Portal Axle Conversion Kit: SCX10 Pro
Z-AXI338001
Axial Axial 0605482186152
SRP: £179.99
SMAP:
Trade:

Barcode:
0605482186152

Overview

In competition or simply while trekking the trails, your Axial SCX10 Pro crawler is equipped to conquer nearly any challenge. It's even more unstoppable when you raise your rig's performance with the SCX10 Pro PRO45 Portal Axle Kit. Fully assembled and ready to install, the Pro Portal Axle Kit makes it fast and easy to add portals and expand the breadth of your SCX10 Pro adventures.

The Pro Portal Axle Kit improves your Axial SCX10 Pro crawler's capabilities with a pair of powerful climbing advantages. First, it increases the ground clearance by 13.8mm, or over half an inch. The extra clearance lets you maneuver with confidence over obstacles that leave other 1/10 scale rigs hung up and helpless.

Second, the Pro Portal Axle Kit adds 13.6mm to the track width for greater stability. You'll see an immediate improvement in sidehill performance. Tackle tough lines over slopes and up steep inclines, knowing that your SCX10 Pro has the grip it needs to get to the finish.

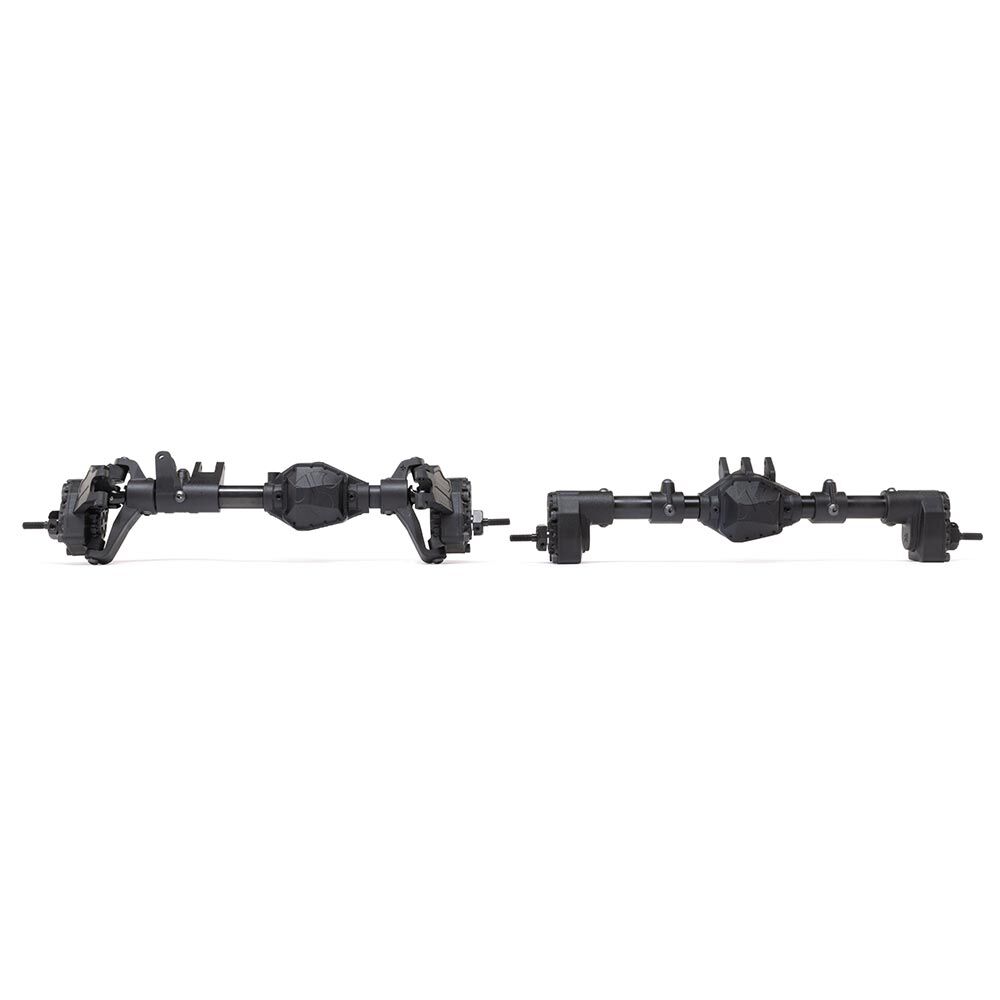

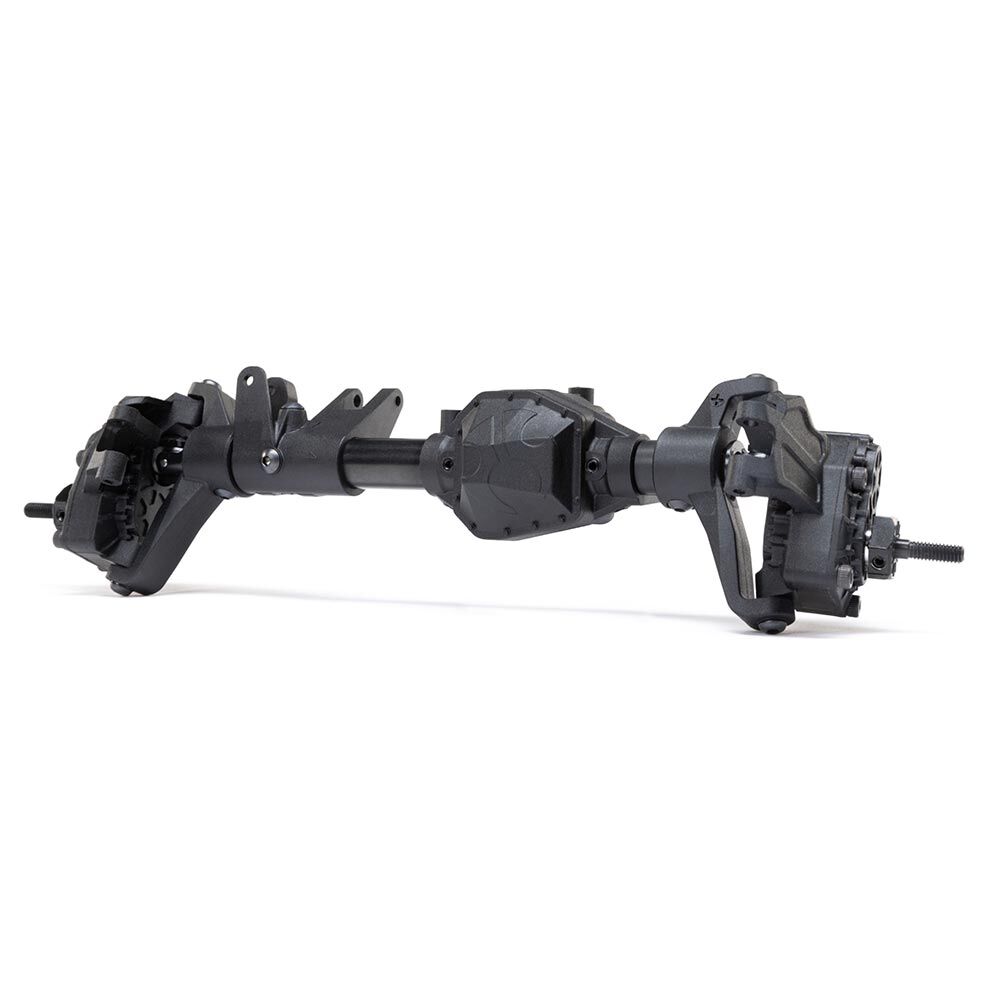

The Axial SCX10 Pro PRO45 Portal Axle Kit comes complete with a steerable portal axle and a fixed rear portal axle. Both are fully assembled, and the kit includes all the hardware and instructions needed for installation. Add it to your SCX10 Pro and outclimb your competition!

Features

  • Designed specifically for the Axial SCX10 Pro
  • Increases ground clearance by13.8mm
  • Widens overall track by 13.6mm
  • Fully assembled
  • Fast and easy to install
  • 20 degrees caster
  • Includes hardware and installation instructions
  • Nothing else required
EVERYTHING INCLUDED
EVERYTHING INCLUDED & ASSEMBLED

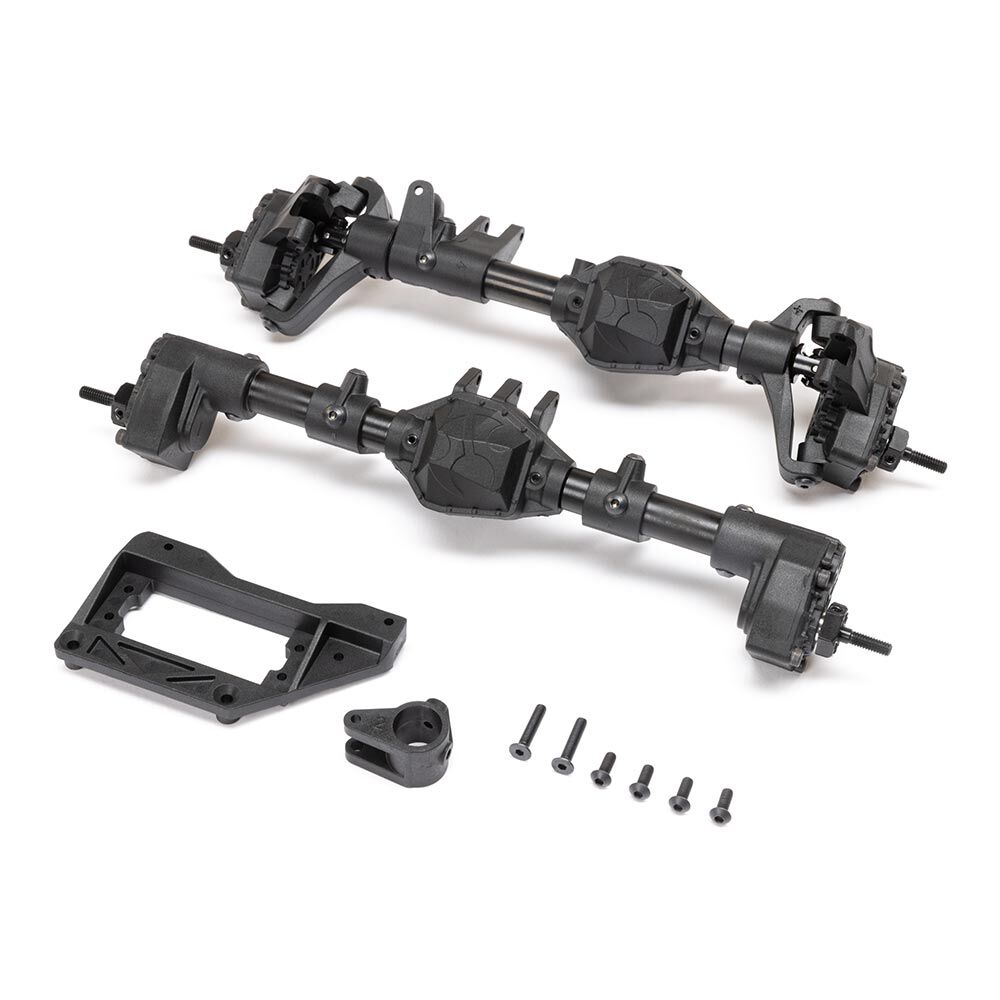

The Pro Portal Axle Kit comes complete with a fully assembled, steerable portal axle and fixed rear portal axle. Hardware and instructions are included for fast, easy installation on your Axial SCX10 Pro.



AR45 UNIVERSAL JOINTS
IMPROVED GROUND CLEARANCE & TRACK WIDTH

The Pro Portal Axle Kit increases your Axial SCX10 Pro crawler's ground clearance by 13.8mm, or more than half an inch. That's enough added clearance to climb with confidence over obstacles that would hang up other 1/10 scale rigs.



HYPOID DIFFERENTIAL GEARS
STEEL GEARS FOR STRENGTH

The SCX10 Pro PRO45 Portal Axle Kit uses the same proven steel gears found in the standard axle. The portal gears are also the same as the popular AR45P portal axles.






Support

Related Items

Optional Parts

Image Item Id Name Trade SSP Order
Now
  Z-AXI230052 Body Set: 1/10 SCX10 PRO £39.99
  Z-AXI332001 6-Bolt 27 8 Overdrive Gear Set £49.99
  Z-AXI334003 Carbon Servo On Axle Mount: PRO £19.99

Pit/Field Tools

Image Item Id Name Trade SSP Order
Now
  T-DYN2806 5 Piece Metric Nut Driver Assortment £19.99
  T-DYN2819 5 pc Metric Hex Driver Assortment £19.99

Used In

Image Item Id Name Trade SSP Order
Now
  C-AXI03028 1/10 SCX10 PRO Scaler 4WD Kit £579.99

Replacement Parts

Image Item Id Name Trade SSP Order
Now
  Z-AX30165 Pin 2.5x12mm (6) £7.99
  Z-AX31066 Cap Head M2x8mm Black (10) £6.99
  Z-AX31250 4mm Serrated Nylon Lock Nut, Black (10) £7.99
  Z-AX31403 M3x4x10mm Hex Button Head Shoulder Screw (6) £6.99
  Z-AX31406 Bearing 7x14x3.5mm (2) £10.99
  Z-AX31407 Bearing 5x14x5mm (2) £10.99
  Z-AXA0147 Hex Socket Flat Head M3x16mm, Black (10) £4.99
  Z-AXA114 Hex Socket Button Head M3x8mm, Black Oxide (10) £4.99
  Z-AXA1221 Bearing 5x11x4mm £9.99
  Z-AXI231052 Servo & Winch Mount, Chassis Brace: 1/10 SCX10 PRO £11.99
  Z-AXI232002 AR44 6-Bolt Differential Locker £10.99
  Z-AXI232003 6-Bolt 30 8 Heavy Duty Gear Set £49.99
  Z-AXI232006 Currie F9 Portal Steering Knuckle/Caps: UTB £10.99
  Z-AXI232007 32P Portal Gear Set, 23T/12T (2 pieces each) £10.99
  Z-AXI232008 Portal Stub Axle (2): Capra 1.9 UTB, SCX10III Base Camp £19.99
  Z-AXI232018 12mm Hex, Screw Shaft & Spacer (4): UTB £10.99
  Z-AXI232044 AR45P AR45 Differential Covers, Black: SCX10 III £19.99
  Z-AXI232071 Axle Tube Link Mount Set & Cap: 1/10 SCX10 PRO £11.99
  Z-AXI232072 Axle Center 3rd Member Housing & Cover FR/RR: 1/10 SCX10 PRO £11.99
  Z-AXI232081 Axle Tube Set, Front, Steel: 1/10 SCX10 PRO £32.50
  Z-AXI232086 C Carrier & Link Mount Portal Conversion: SCX10 PRO £11.99
  Z-AXI235014 M2.5 x 10mm Cap Head Screw (10) £6.99
  Z-AXI235098 M2.5 x 8mm Button Head Screw (10) £6.99
  Z-AXI235102 M2.5 x 18mm Button Head Screw (10) £6.99
  Z-AXI236172 Screw Shaft M3 x 2.0 x 12mm £9.99
  Z-AXI237009 5mm x 13mm x 4mm Ball Bearing (2) £10.99
  Z-LOS237001 10x15x4mm Ball Bearings (4) £19.99
  Z-TLR5900 Button Head Screws, M3 x 5mm (10) £7.99
  Z-TLR6289 Set Screw, M3 x 5mm (10) £7.99
