Product Details

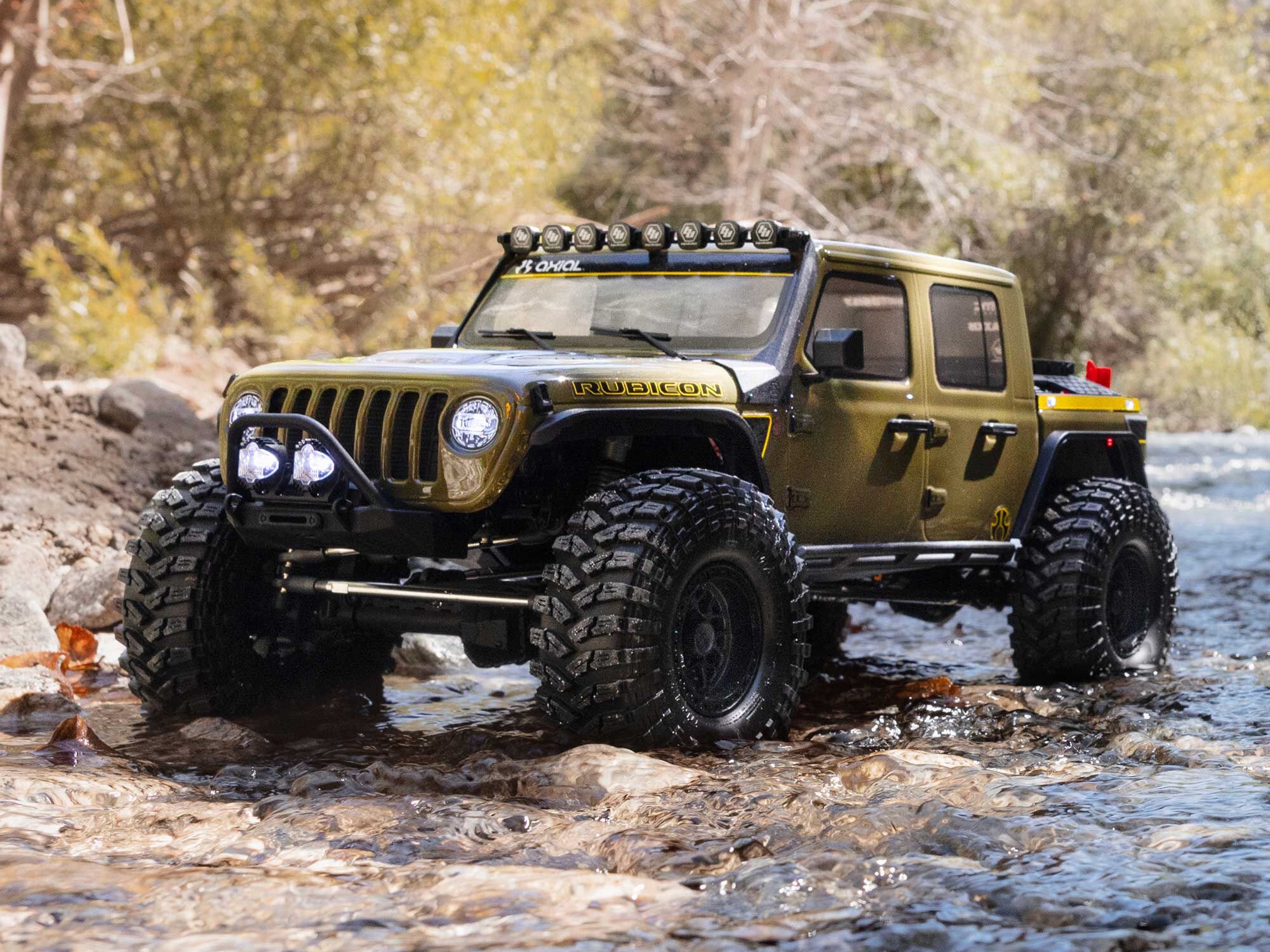

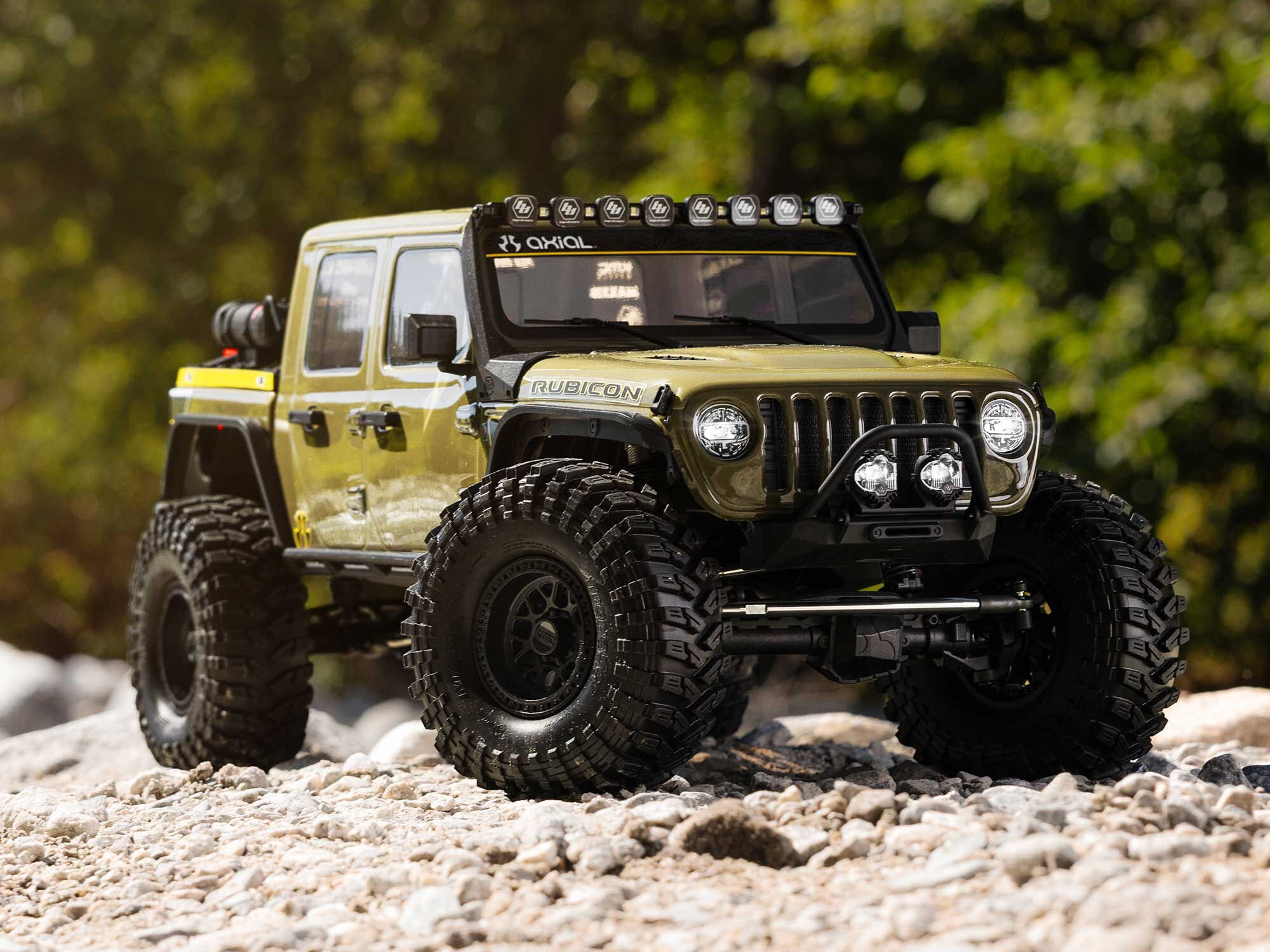

Axial's SCX10 III Motobilt Waypoint Jeep JT Gladiator delivers a 1/10-scale recreation of one of the most extreme off-road machines built. Licensed Jeep details, bobbed bed, KMC wheels, Maxxis tyres, and LEDs make it ready for real terrain.
Key Features
- Officially licensed Jeep JT Gladiator body replicating Motobilt's Waypoint build
- Ready-To-Run - only a battery and charger required
- Licensed KMC Grenade beadlock wheels with Maxxis Trepador tyres
- LEDs on bumper, headlight, taillights, and bed rack
- The factory-installed dig function for precision maneuvers
- (1) Axial SCX10 III Motobilt Waypoint Jeep JT Gladiator 4X4 RTR Brushed Rock Crawler
- (1) Spektrum SLT3 3-Channel Transmitter
- (1) Spektrum SR515 Receiver
- (1) Spektrum Firma 40A Brushed Waterproof ESC
- (1) Axial Slick Rock 35-Turn Brushed Motor
- (1) S683 Servo with Steel Output Gear
- (1) SX108 Dig Micro Servo
- (1) Product Manual
- (4) AA Batteries
- 11.1V 3200mAh 3S 30C Smart G2 LiPo Battery: IC3
- S2200 G2 AC 2x200W Smart Battery Charger
Axial 1/10 SCX10 III Motobilt Waypoint Jeep JT Gladiator Rock Crawler Introduction
Welcome to the world of extreme off-road diehards-those late-night garage builders with grease on their hands and adventure in their veins. The ones crafting machines built to push past ordinary terrain. Axial brings that spirit to life with a scale version in the SCX10 III Jeep JT Gladiator.
Axial partnered with Motobilt to create the officially licensed Jeep JT Gladiator build with authentic scale details. The durable polycarbonate body features Jeep's iconic 7-slot grille, detailed fender flares, moulded door handles, hood vents, and side mirrors. Official Jeep production colours and detailed inner fender wells deliver the realism enthusiasts demand.
Both variants include Motobilt's Waypoint trim specs: front and rear bumpers with Baja Designs LP6 bumper lights and S2 bed rail lights, plus a scale 15 lbs. CO2 tank and Hi-Lift jack in the bed. Officially licensed Maxxis Trepador tyres wrapped around KMC Grenade beadlock wheels provide an aggressive tread and excellent grip for trail crawling.
The AR45 straight axles feature a driver offset differential housing on the front axle. Oil-filled aluminium-bodied shocks with single coil-over springs are fully tunable. The front 3-link and rear 4-link suspension uses 6mm stainless steel links and pivot balls for durable off-road capability. The expandable steel C-channel chassis rails with 13.9" wheelbase reduce frame flex and improve suspension performance.
The improved SCX10 III Panhard bar mount features two-piece construction with double shear protection. The skid plate offers multiple upper link mounting options for fine-tuning suspension geometry and anti-squat.
The Spektrum SLT3 transmitter and Firma 40A Brushed Waterproof ESC provide precise control. The third channel operates the Dig feature, locking the rear axle for front-wheel drive for navigating technical terrain. The S683 servo's 25T steel output gear handles tough conditions without failure.
Power comes from an Axial Slick Rock 35-Turn Brushed motor and Spektrum Firma 40A ESC, with bright LEDs for realistic night crawling. Silicone elastomer battery straps replace velcro for convenient battery access, accommodating standard or shorty battery packs.
Whether you're an experienced enthusiast or new to the hobby, the SCX10 III Jeep JT Gladiator delivers authentic styling and proven Axial performance right out of the box.
Axial 1/10 SCX10 III Motobilt Waypoint Jeep JT Gladiator Rock Crawler Features
- Motobilt Waypoint build trim specs and details
- Bobbed bed for better departure clearance
- Durable polycarbonate body, painted and assembled
- Jeep's authentic and iconic 7-slot grille design
- Detailed fender flares, door handles, hood vents, and side mirrors
- Official Jeep colour paint schemes
- Inner fender wells for scale realism
- Motobilt front and rear bumpers
- Baja Designs LP6 bumper lights
- Baja Designs S2 bed rail lights
- Scale 15 lbs. CO2 tank in bed
- Hi-Lift jack bed mount
- Officially licensed KMC Grenade beadlock wheels
- Maxxis Trepador tyres in soft compound
- AR45 straight axles
- Oil-filled shocks with aluminium threaded bodies
- Front 3-link suspension
- Rear 4-link suspension
- 6mm stainless steel suspension links
- Stainless steel pivot balls on rod ends
- Expandable steel C-channel chassis rails
- 13.9" extended wheelbase
- SCX10 III transmission with full ball bearings
- All-metal internal transmission gears
- Improved two-piece Panhard bar mount with double shear protection
- Skid plate with multiple link-mount options for adjustable geometry and dialed–in anti–squat
- Spektrum SLT3 3-channel transmitter
- Spektrum Firma 40A Brushed Waterproof ESC
- Axial Slick Rock 35-Turn Brushed 540-size motor
- Spektrum S683 servo with 25T steel output gear
- Factory dig system with included servo and hardware
- Dig feature is operated through the transmitter's third channel
- Silicone elastomer battery straps
- Compatible with standard or shorty battery packs

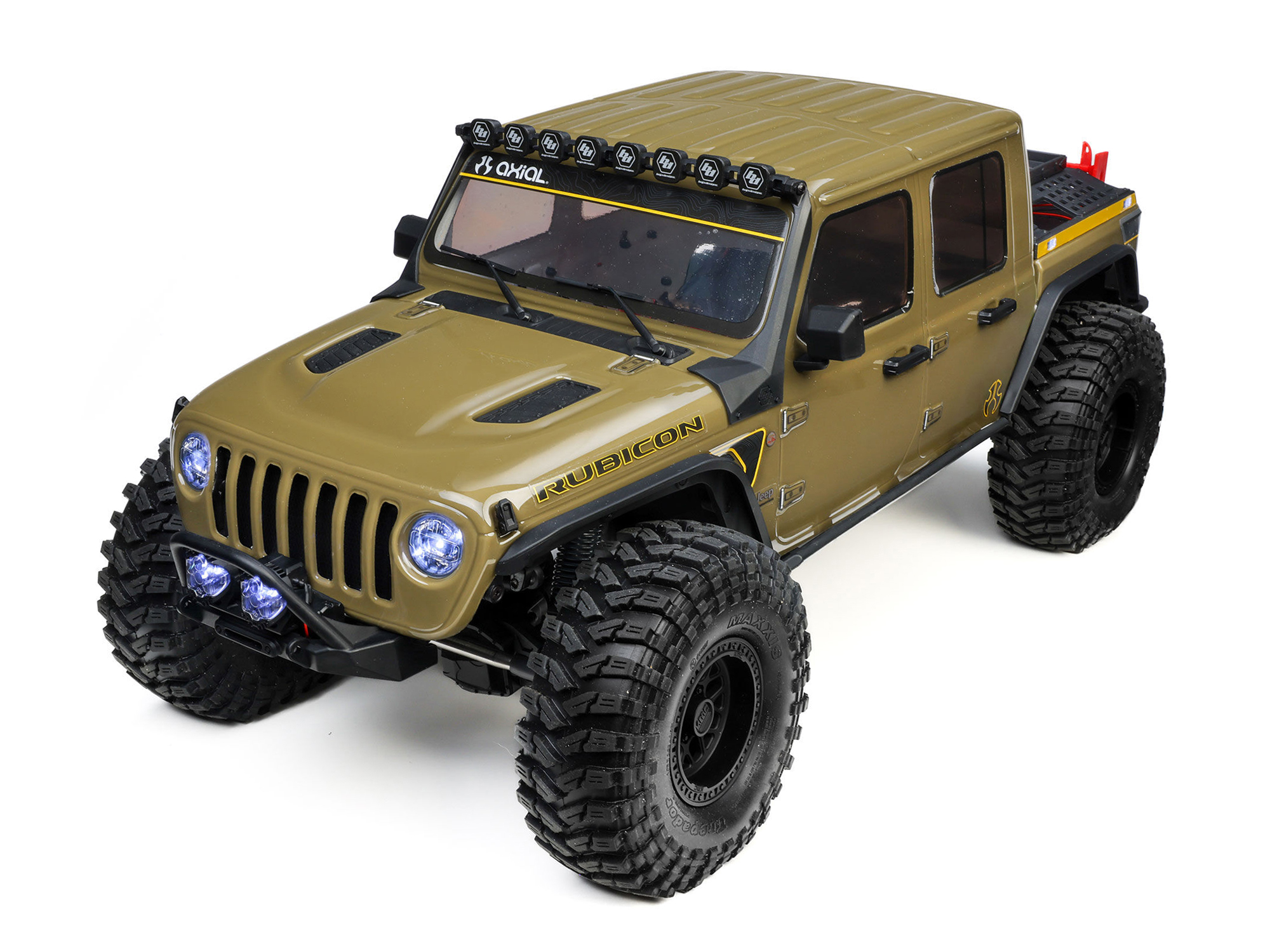

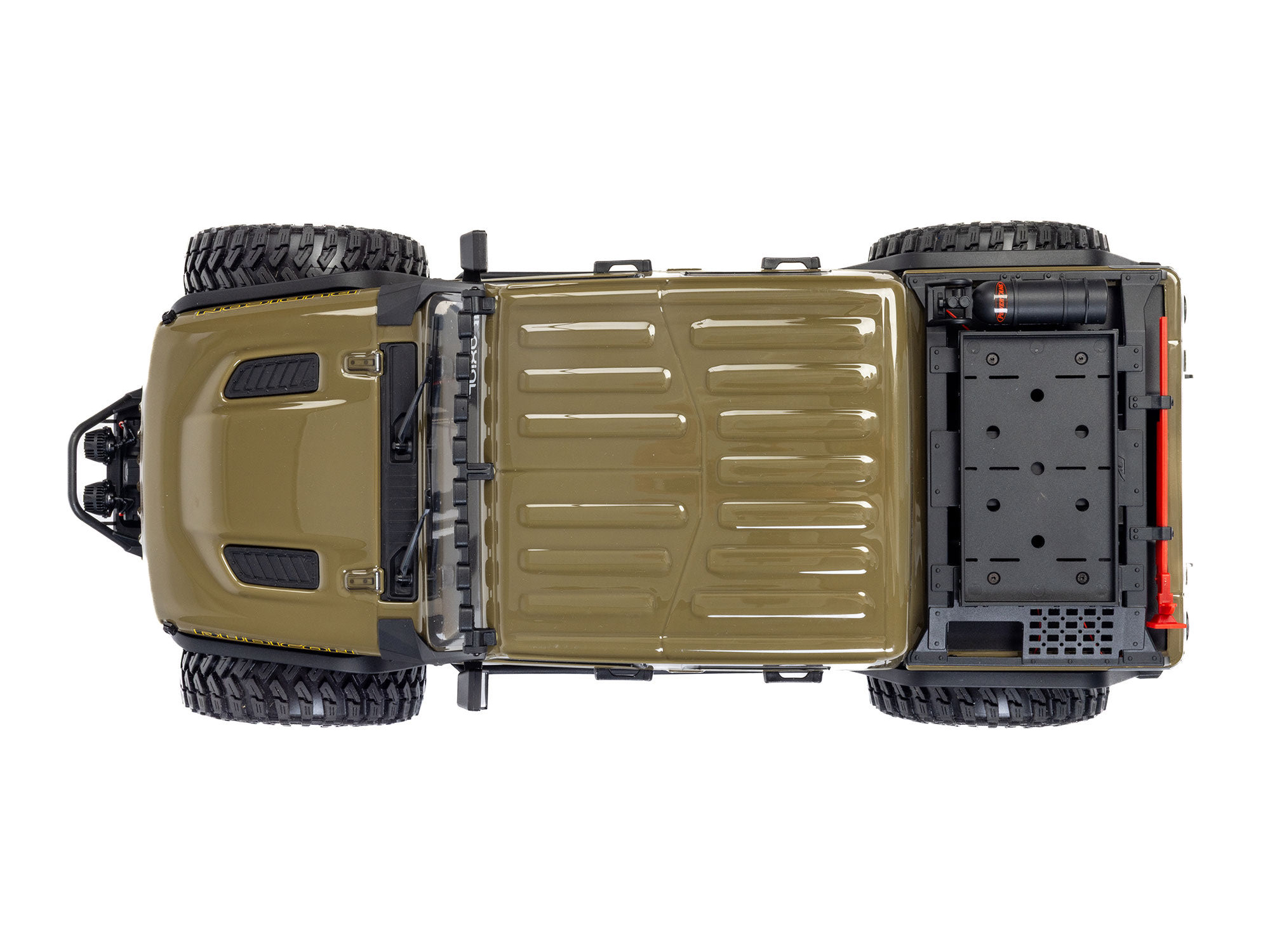

OFFICIALLY LICENSED JEEP JT GLADIATOR BODY

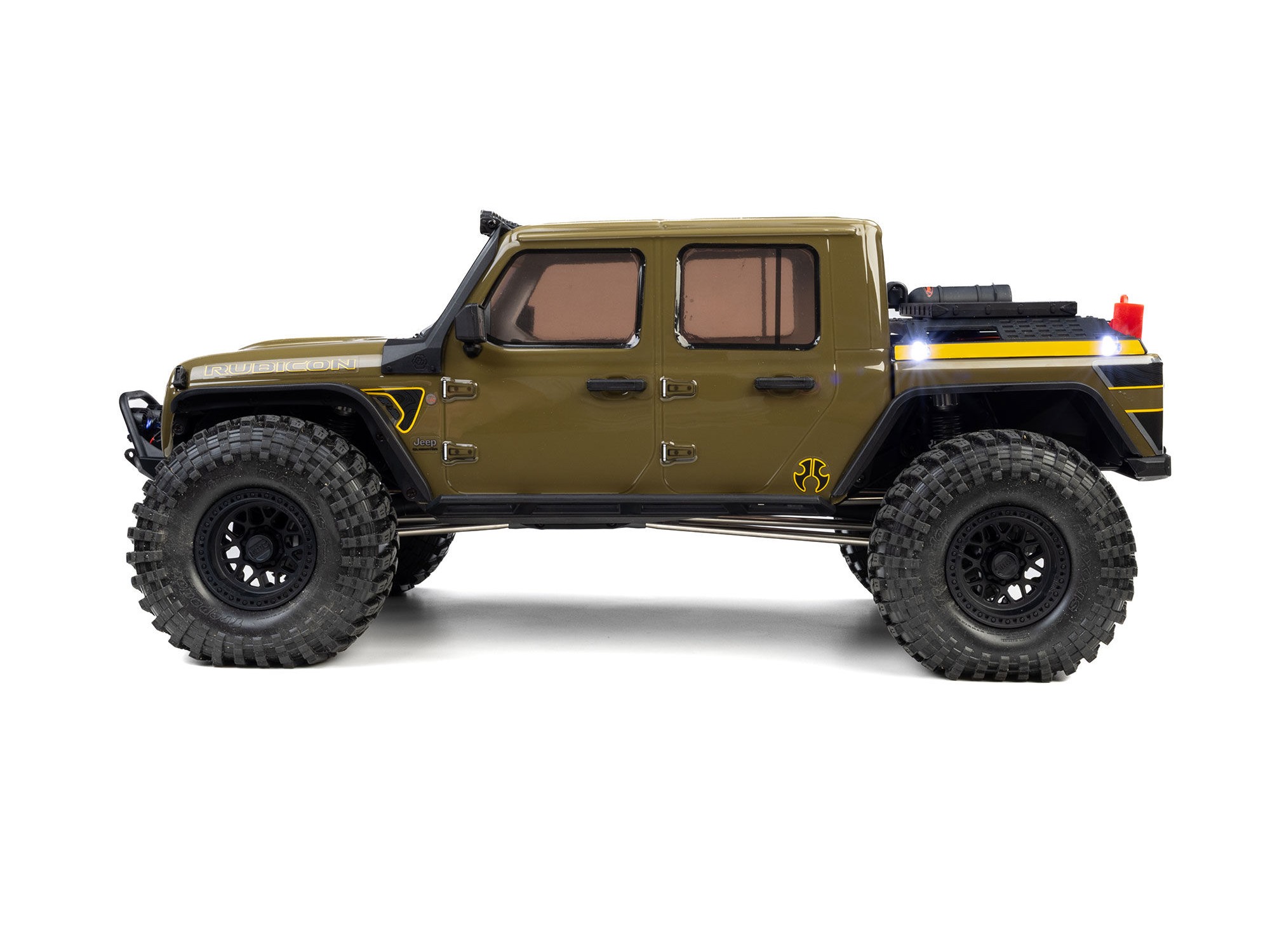

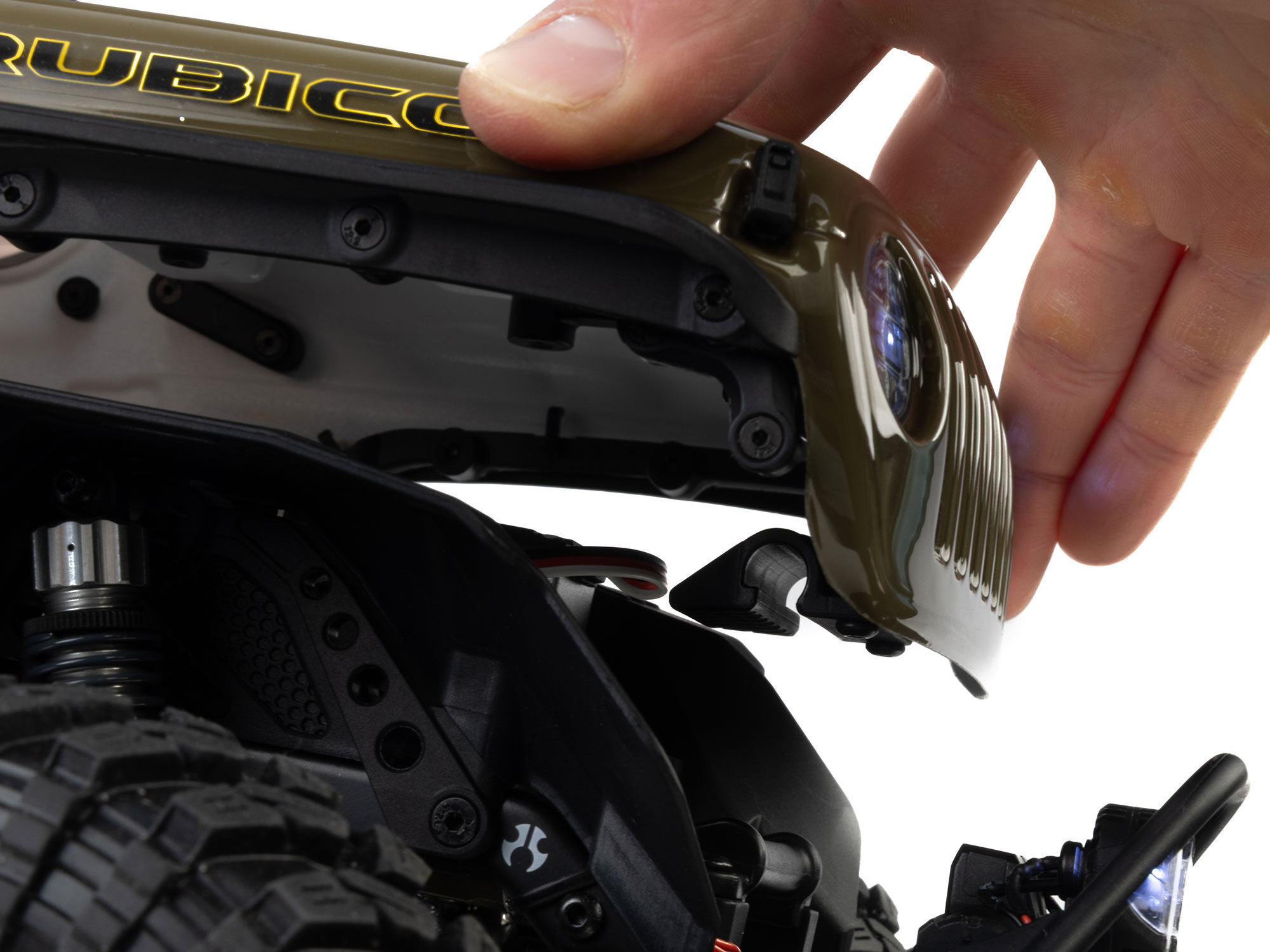

Made of durable polycarbonate, this officially licensed Jeep JT Gladiator scale body comes painted and assembled. It features Jeep's authentic and iconic 7-slot grille design with detailed fender flares, moulded door handles, hood vents, and side view mirrors. Plus, two paint schemes based on official Jeep production colours to bring the scale fun to life.

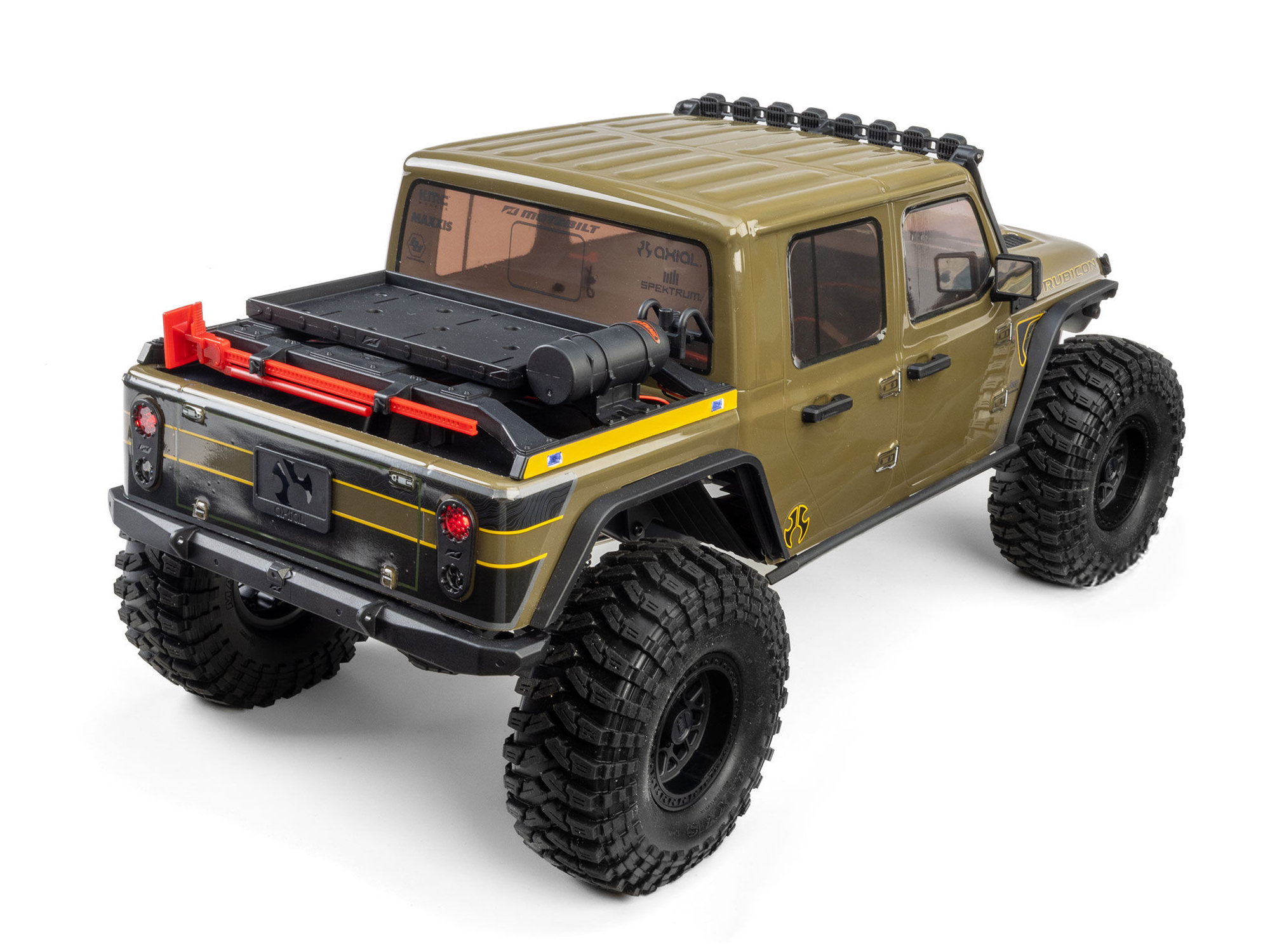

MOTOBILT WAYPOINT SPEC SCHEME

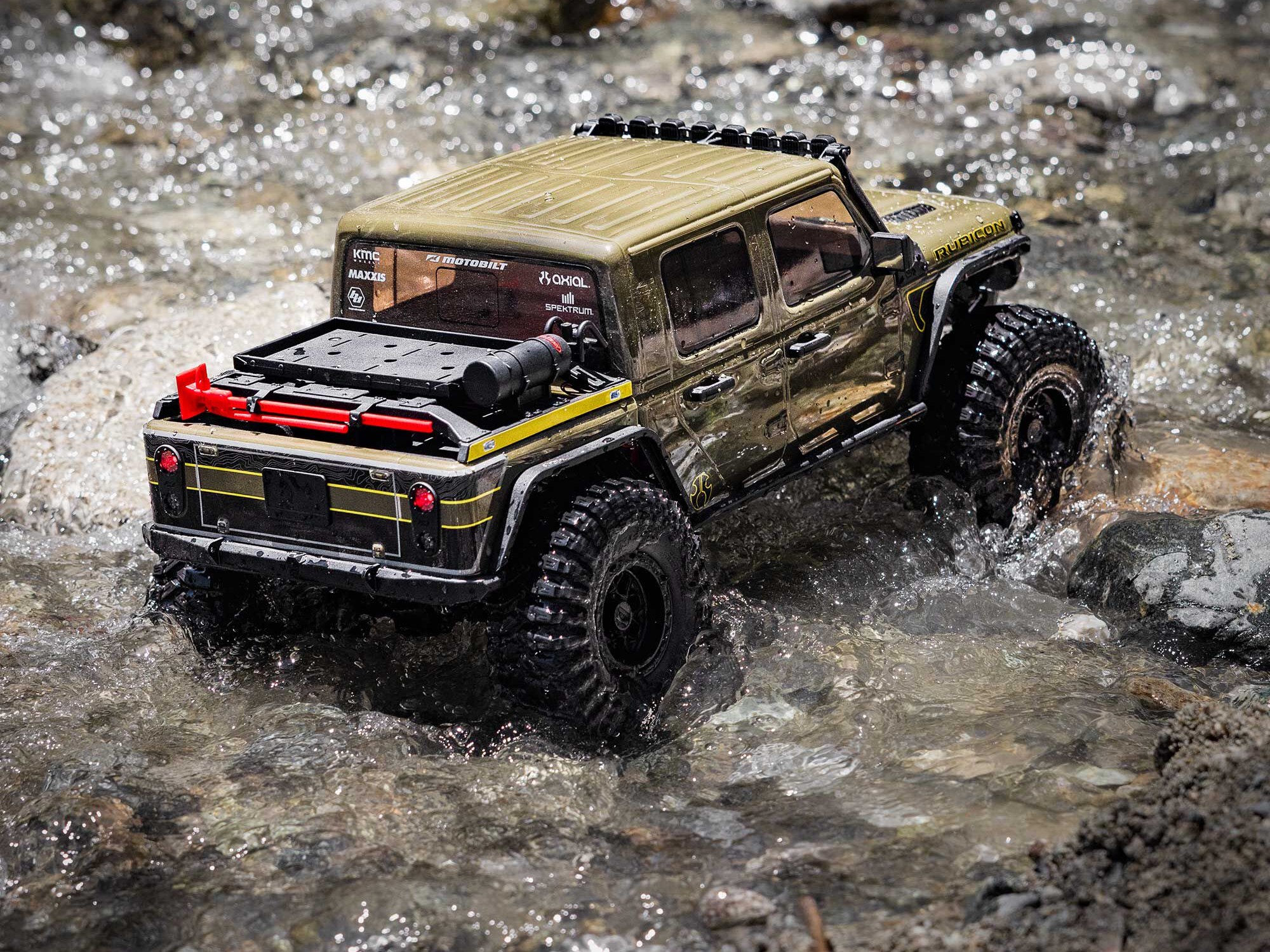

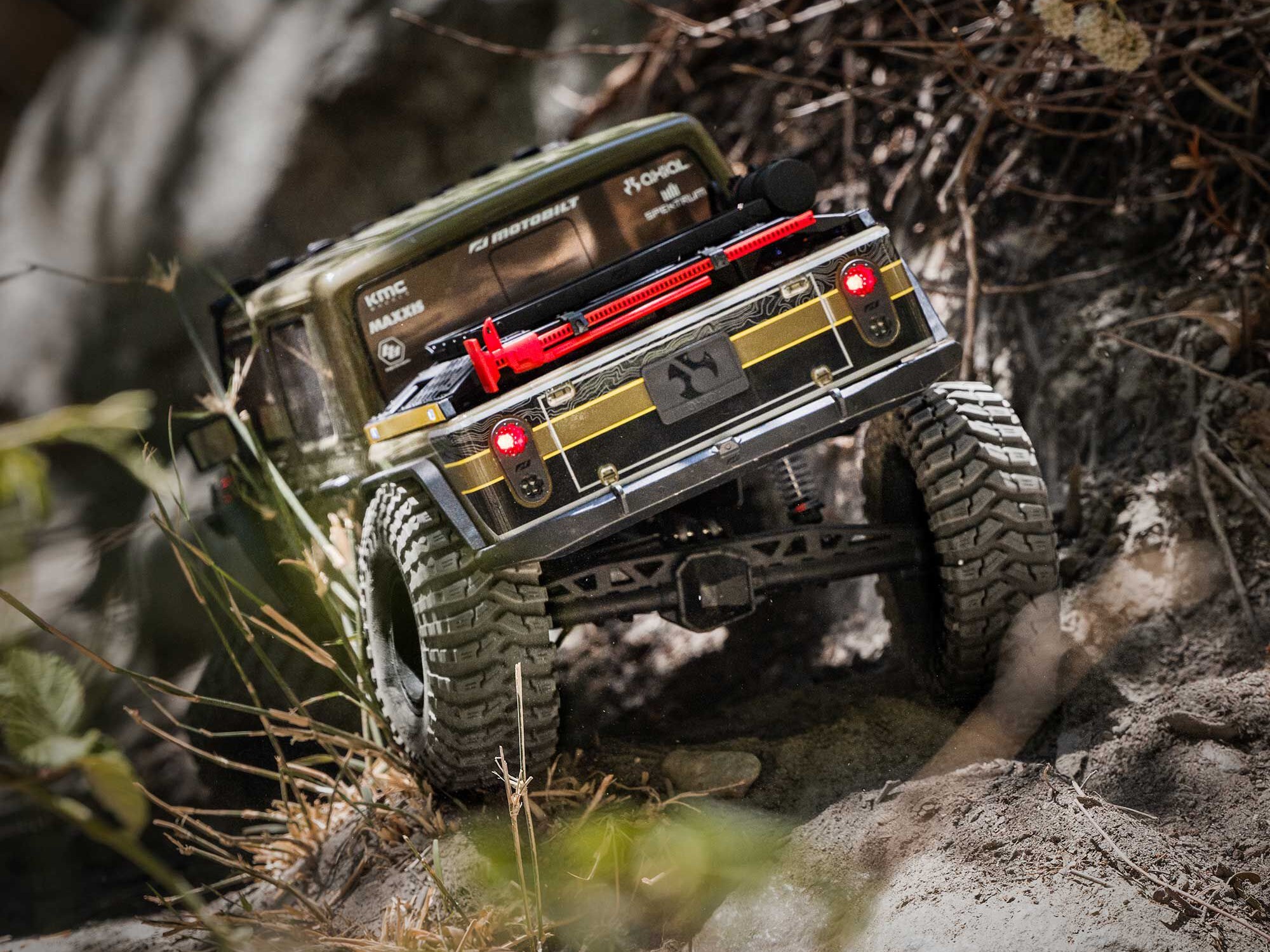

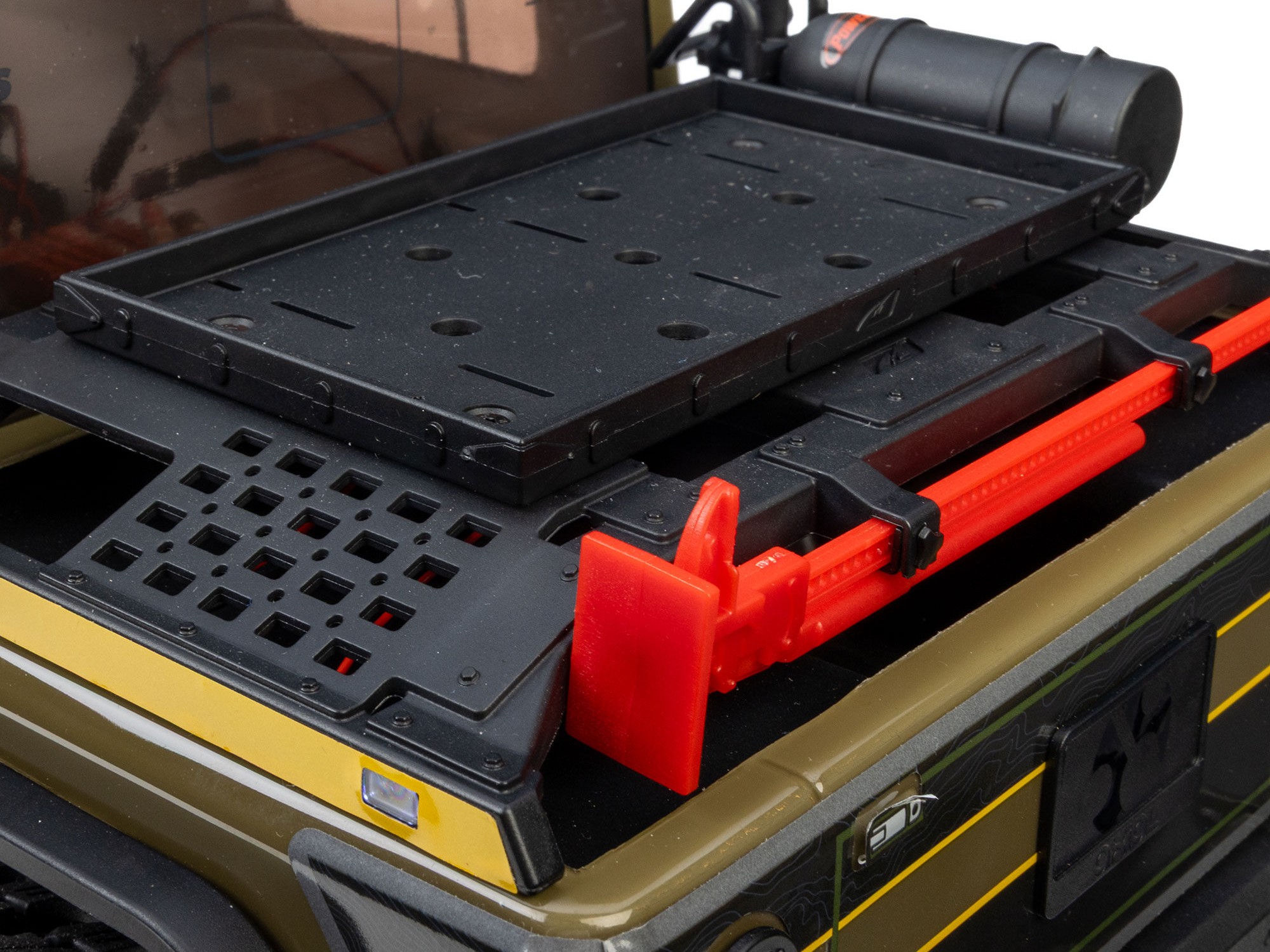

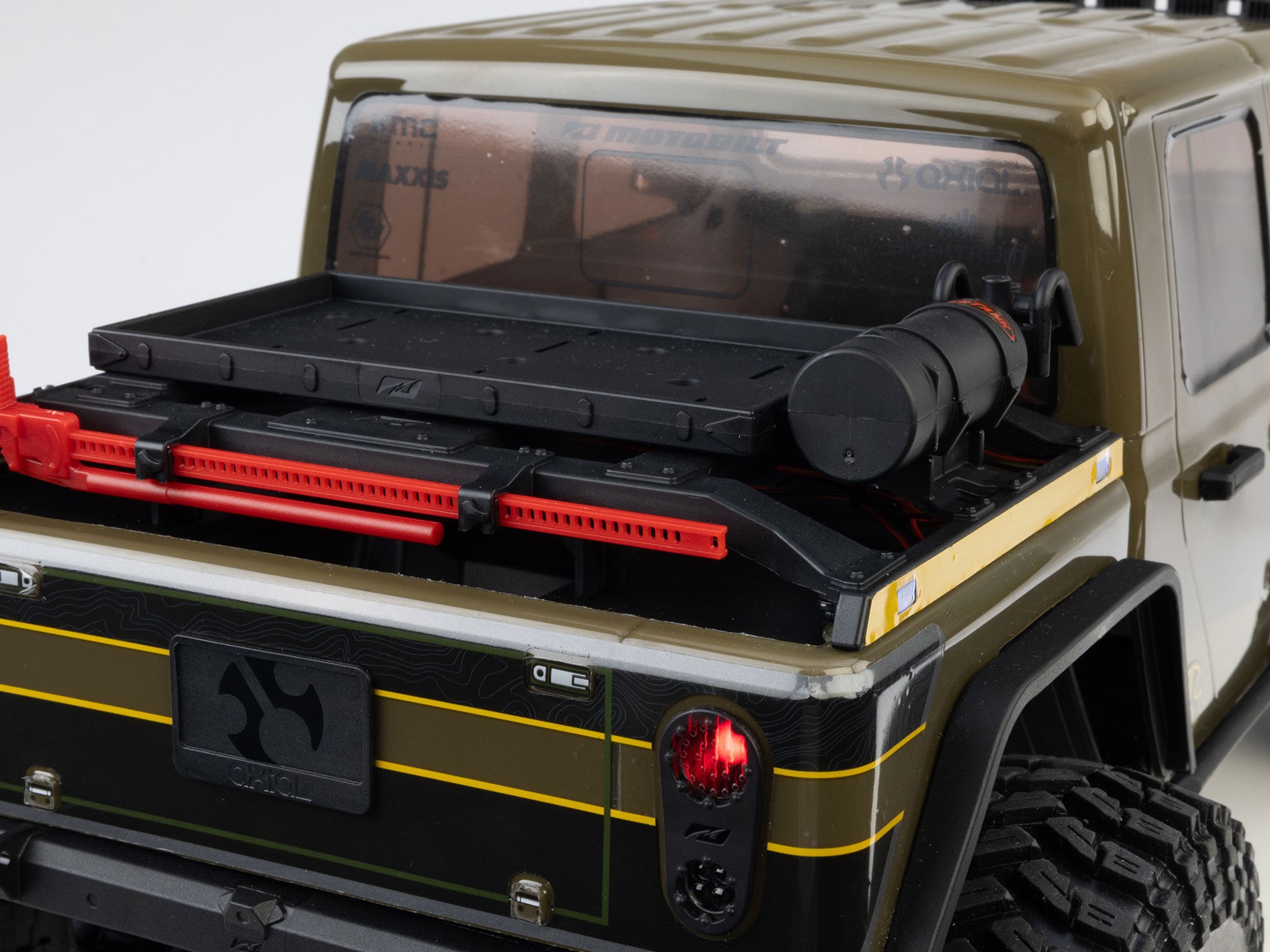

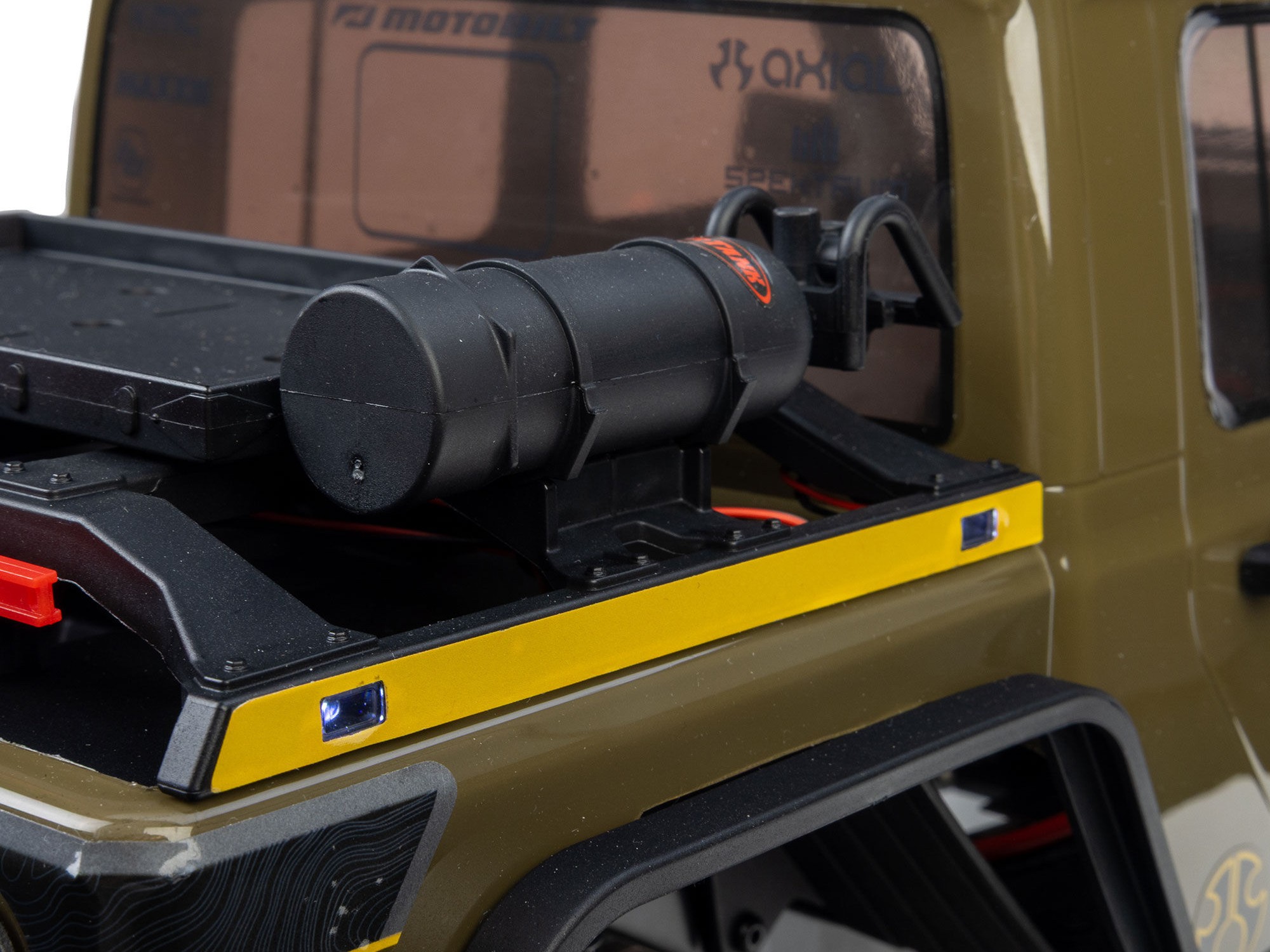

Both T1 and T2 variants come with the trim specs from Motobilt's Waypoint build. They feature Motobilt front and rear bumpers with Baja Designs LP6 bumper lights, and S2's bed rail lights, along with a scale 15 lbs. CO2 tank in the bed and Hi-Lift jack. This rig is designed to turn heads on both trails and rocks.
SPEKTRUM SLT3 TRANSMITTER
The Spektrum SLT3 transmitter delivers precise trail control, with its third channel operating the SCX10 III's dig function.

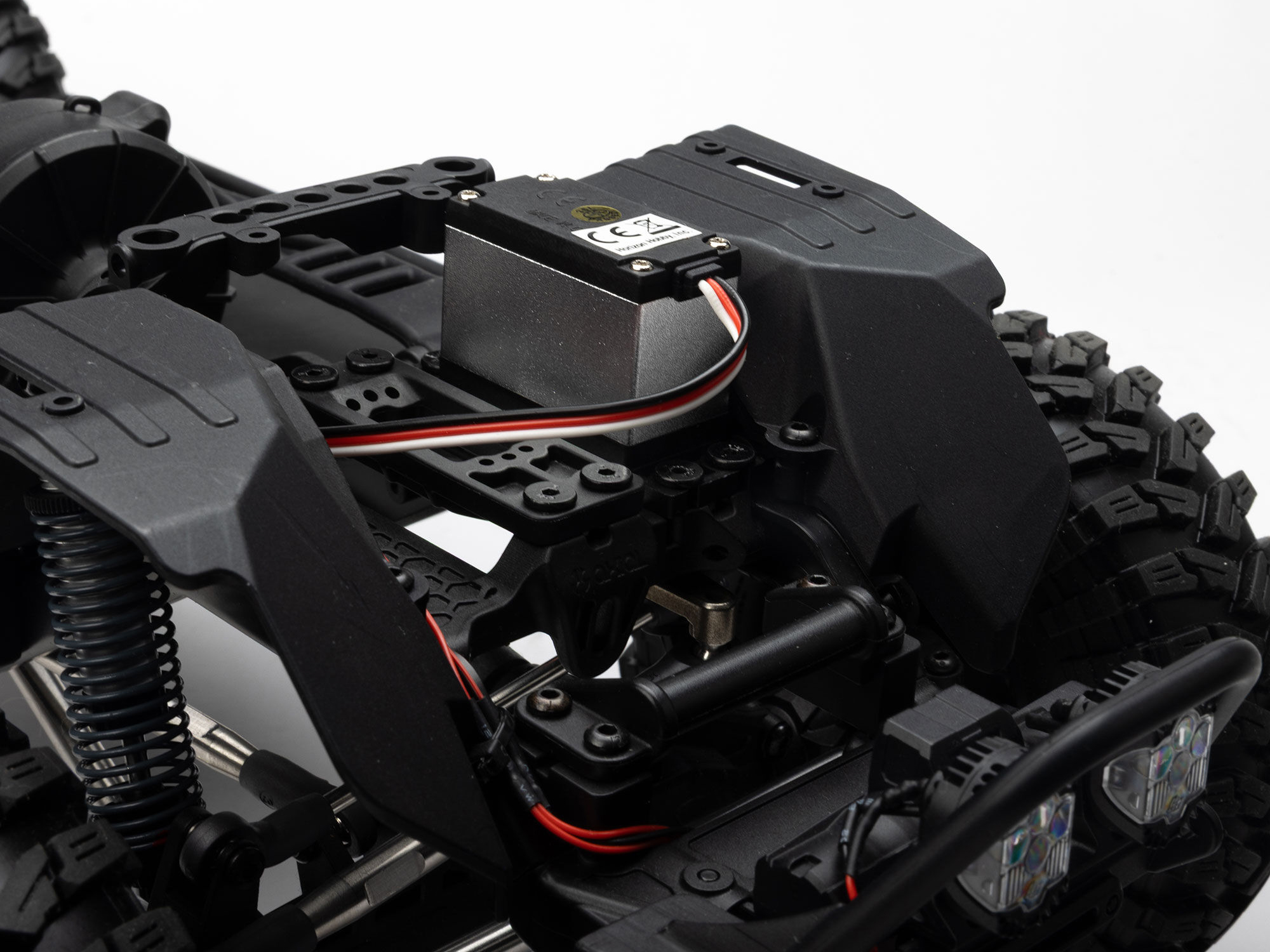

STRONGER STEERING SERVO
The S683 servo's 25T steel output gear delivers the toughness drivers need to push harder without fear of failure.
DIG FUNCTION
Dig is a remotely selected transmission mode that locks the rear drivetrain and enables the front tyres to power the vehicle for tight turns with the rear tyres locked in place.

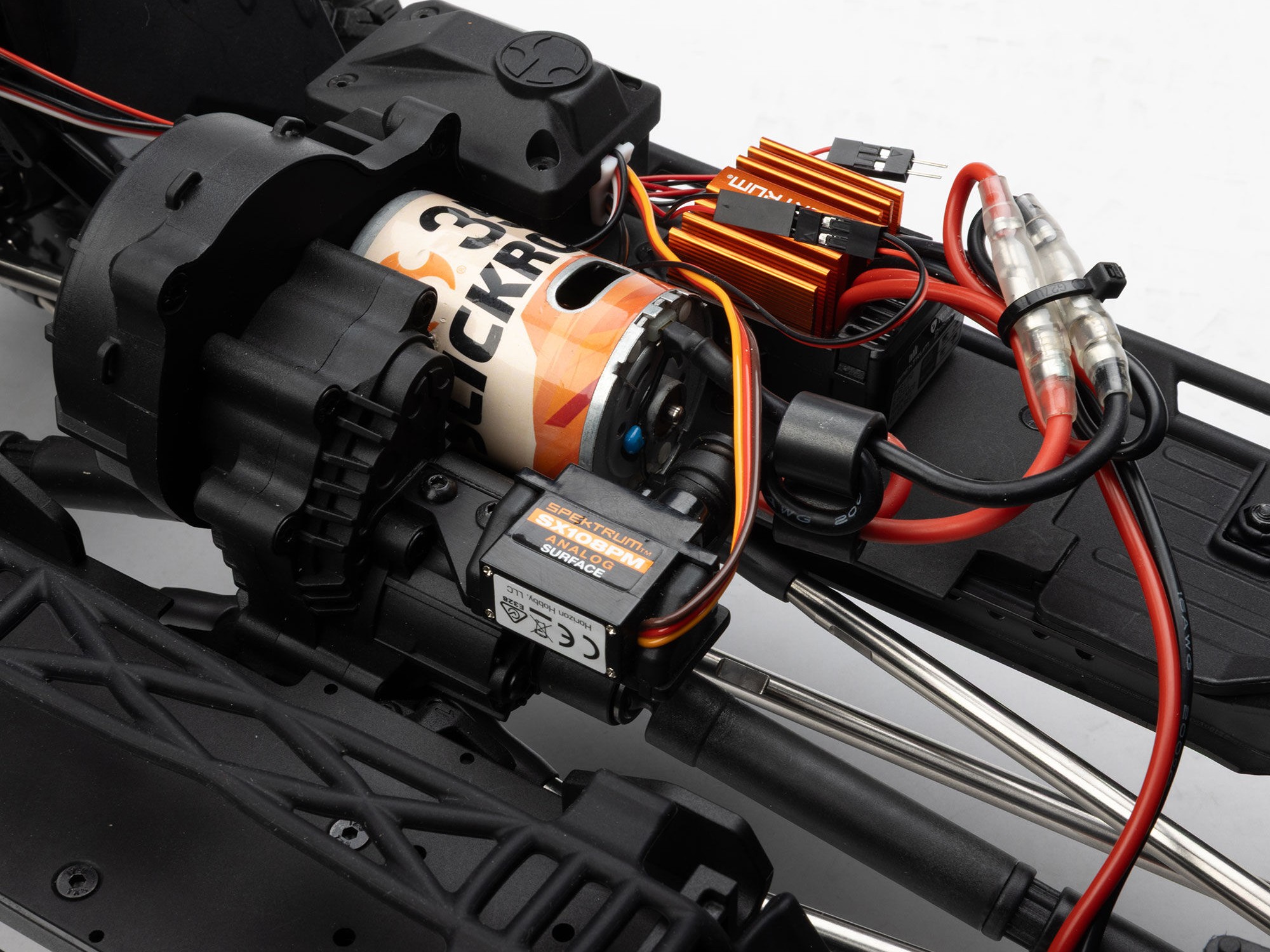

INSTALLED POWER SYSTEM

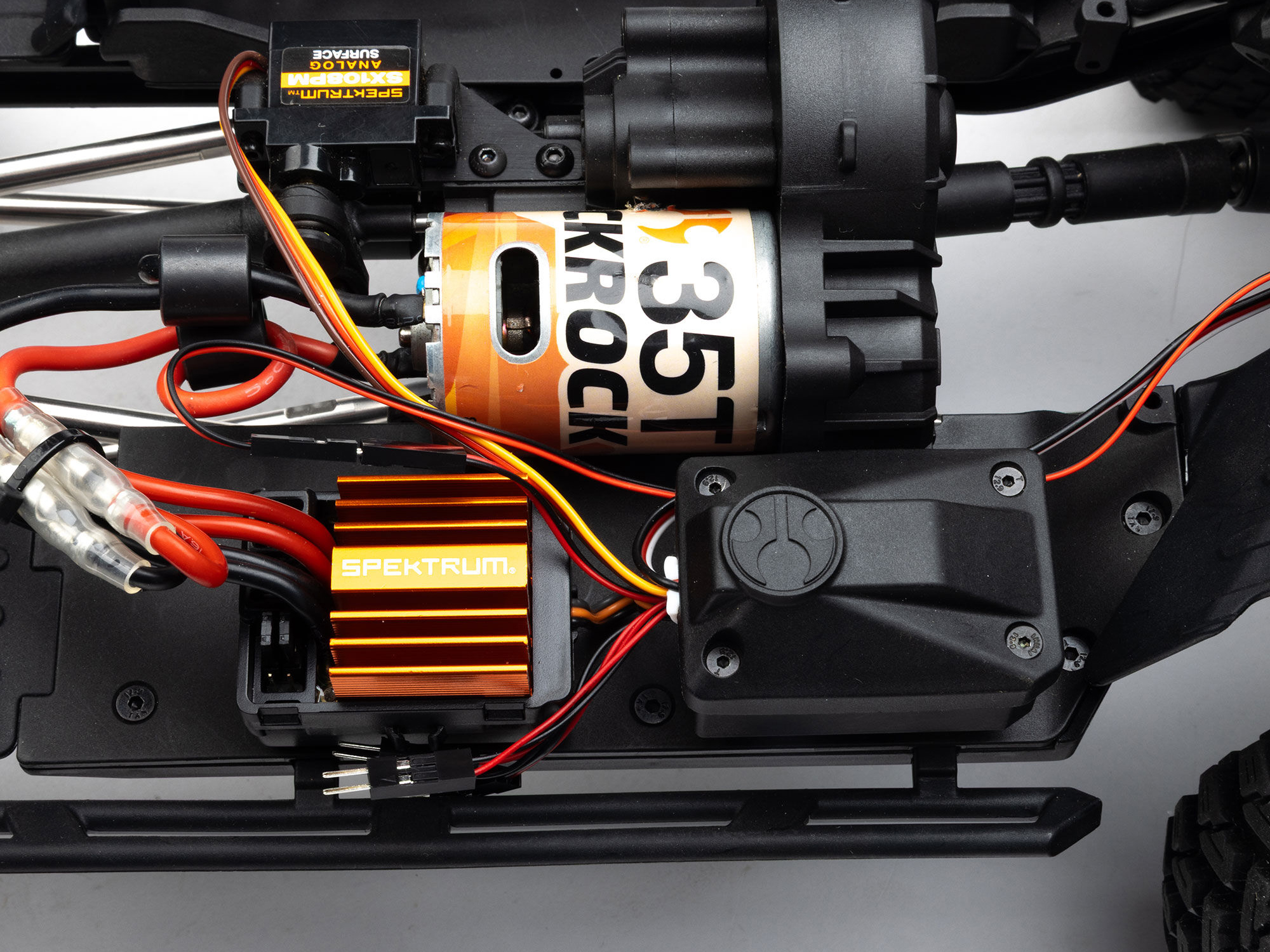

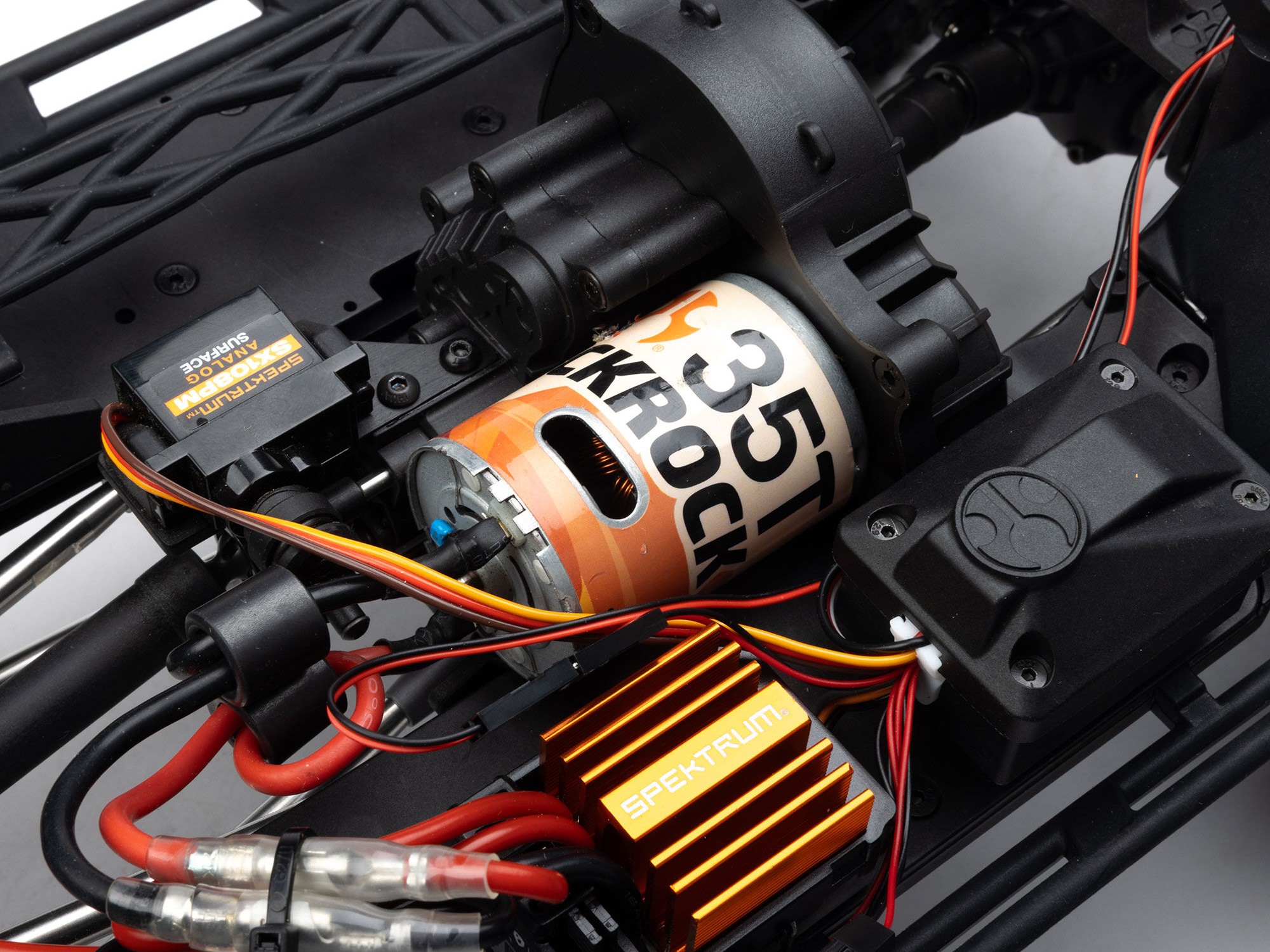

The factory-installed brushed power system features an Axial Slick Rock 35-Turn Brushed 540-size motor and a Spektrum Firma 40A Brushed Waterproof ESC. Trail proven electronics to get you up and going on the trails.
AR45 STRAIGHT AXLES

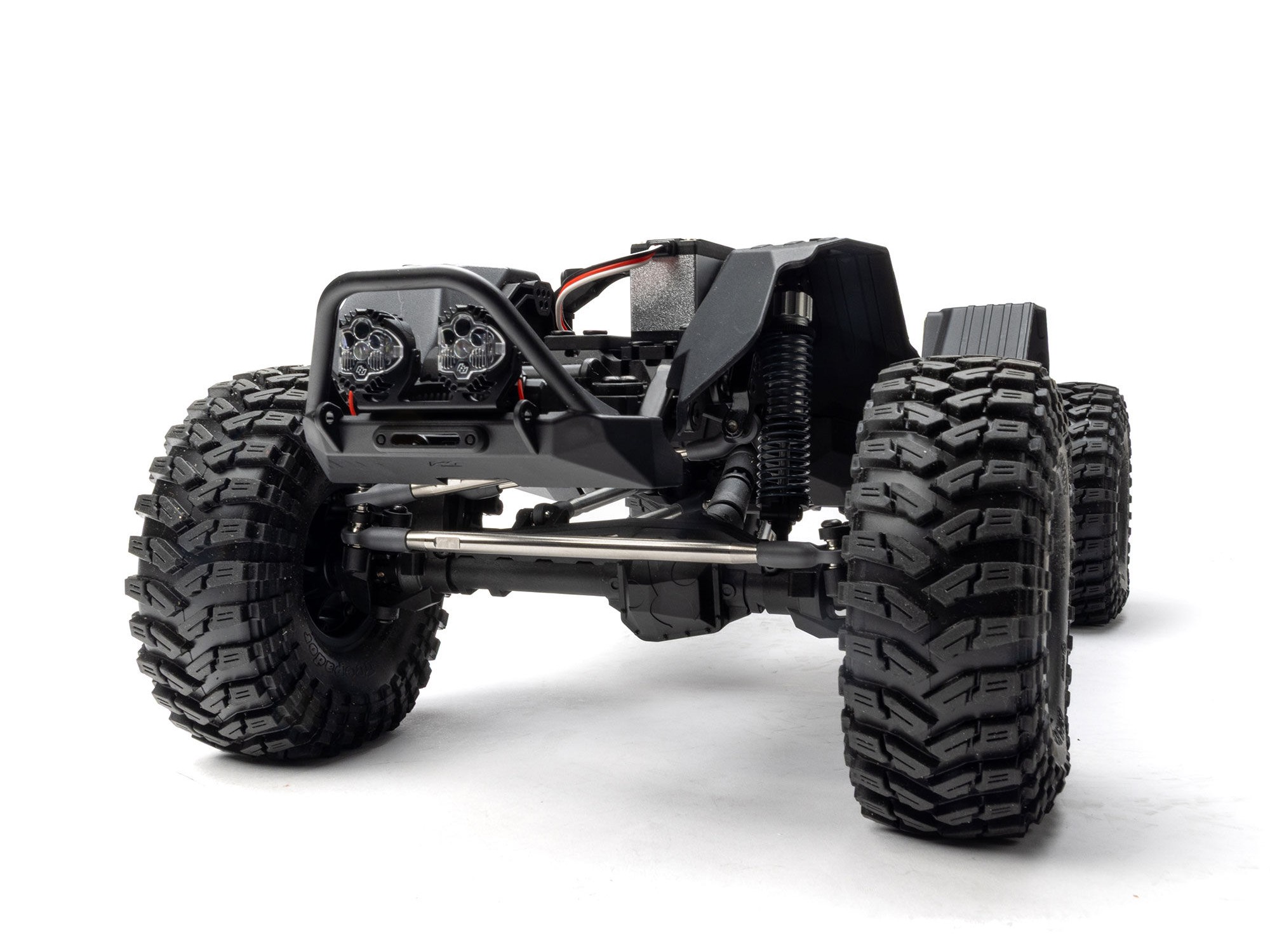

The front AR45 features a driver–offset differential housing for added scale realism. An optional overdrive gear (AXI332001) is also available.

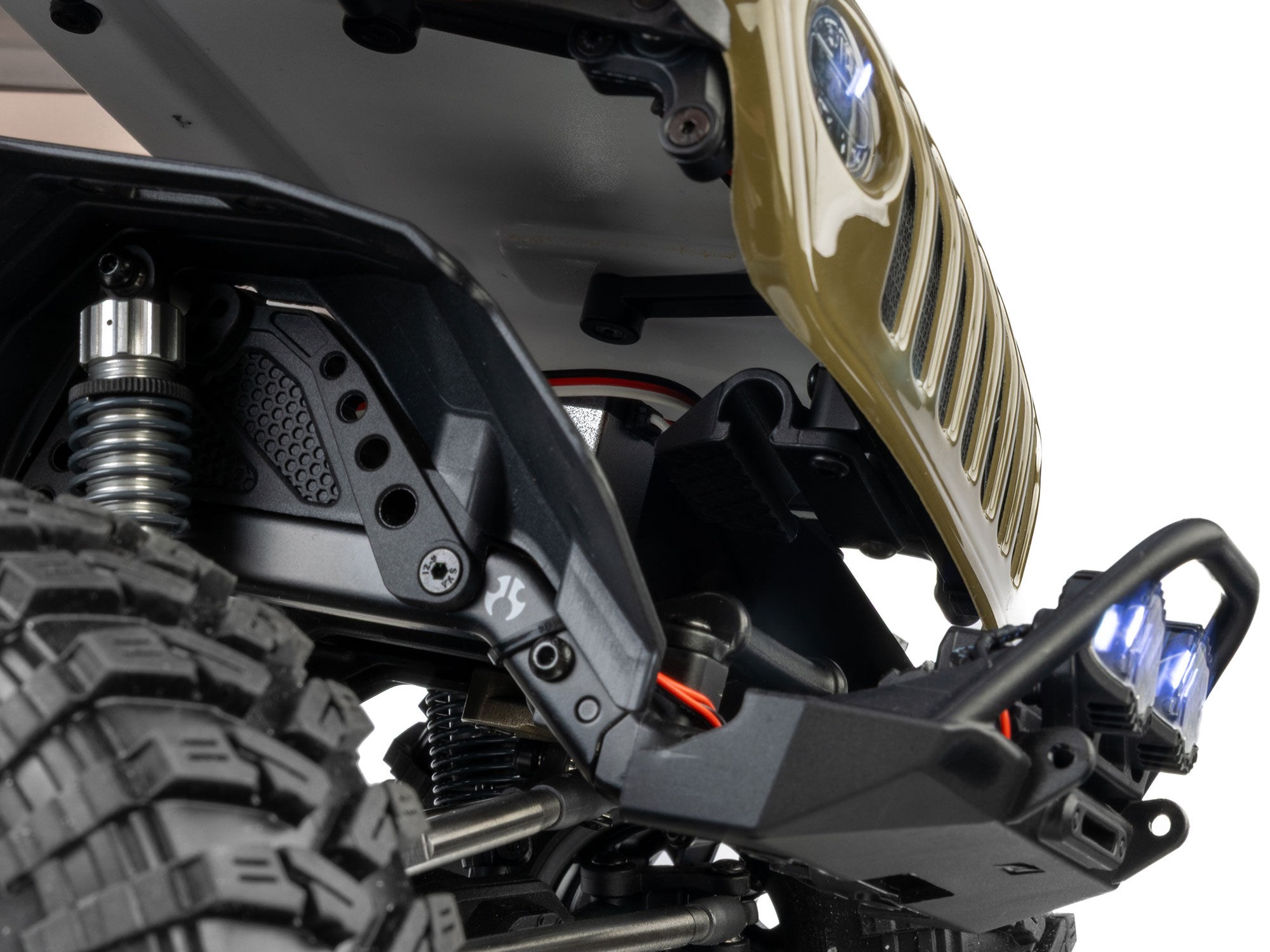

ALUMINIUM ADJUSTABLE COIL-OVER SHOCKS
Oil–filled shocks with aluminium threaded bodies and single coil–over springs deliver smooth damping, easy tuning, and quick on–trail adjustability.
OFFICIALLY LICENSED WHEELS

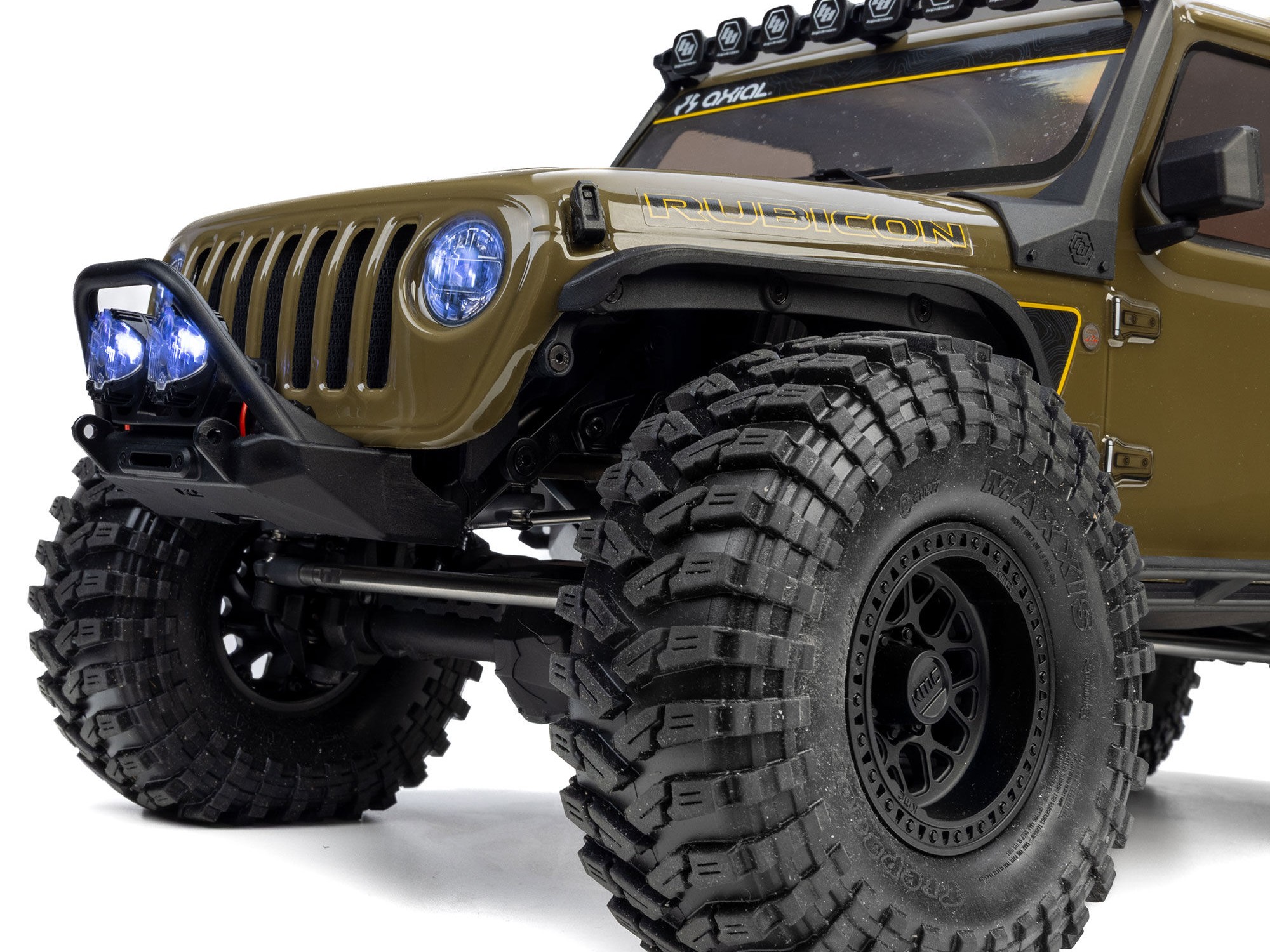

Officially licensed KMC Grenade wheels give the Jeep JT Gladiator 4X4 its iconic look, and their true beadlock design delivers authentic off–road attitude.
OFFICIALLY LICENSED TYRES
Maxxis Trepador tyres in Axial's soft compound deliver great performance and an aggressive stance, with rugged tread and side lugs that make the Gladiator trail and rock–ready.

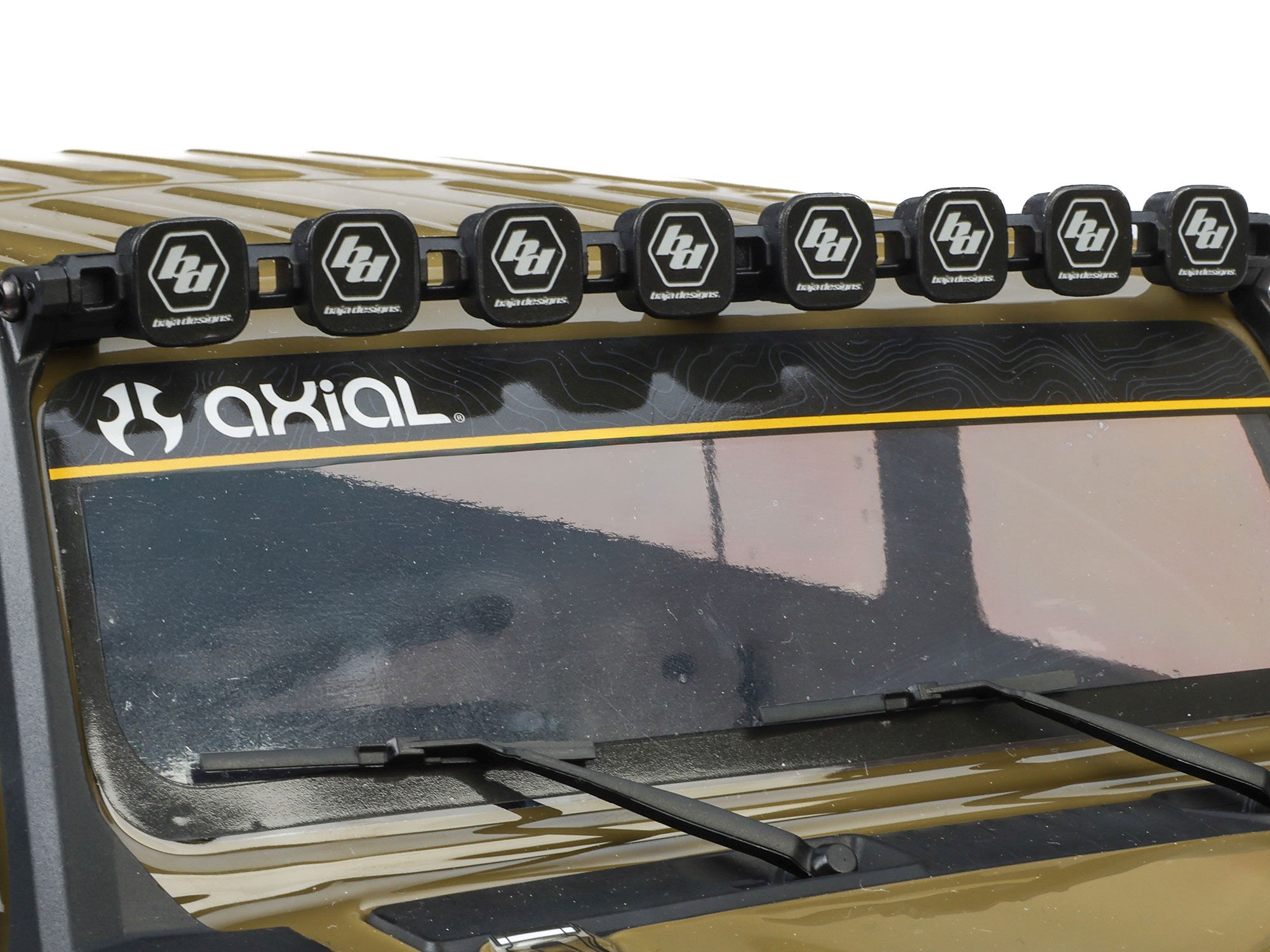

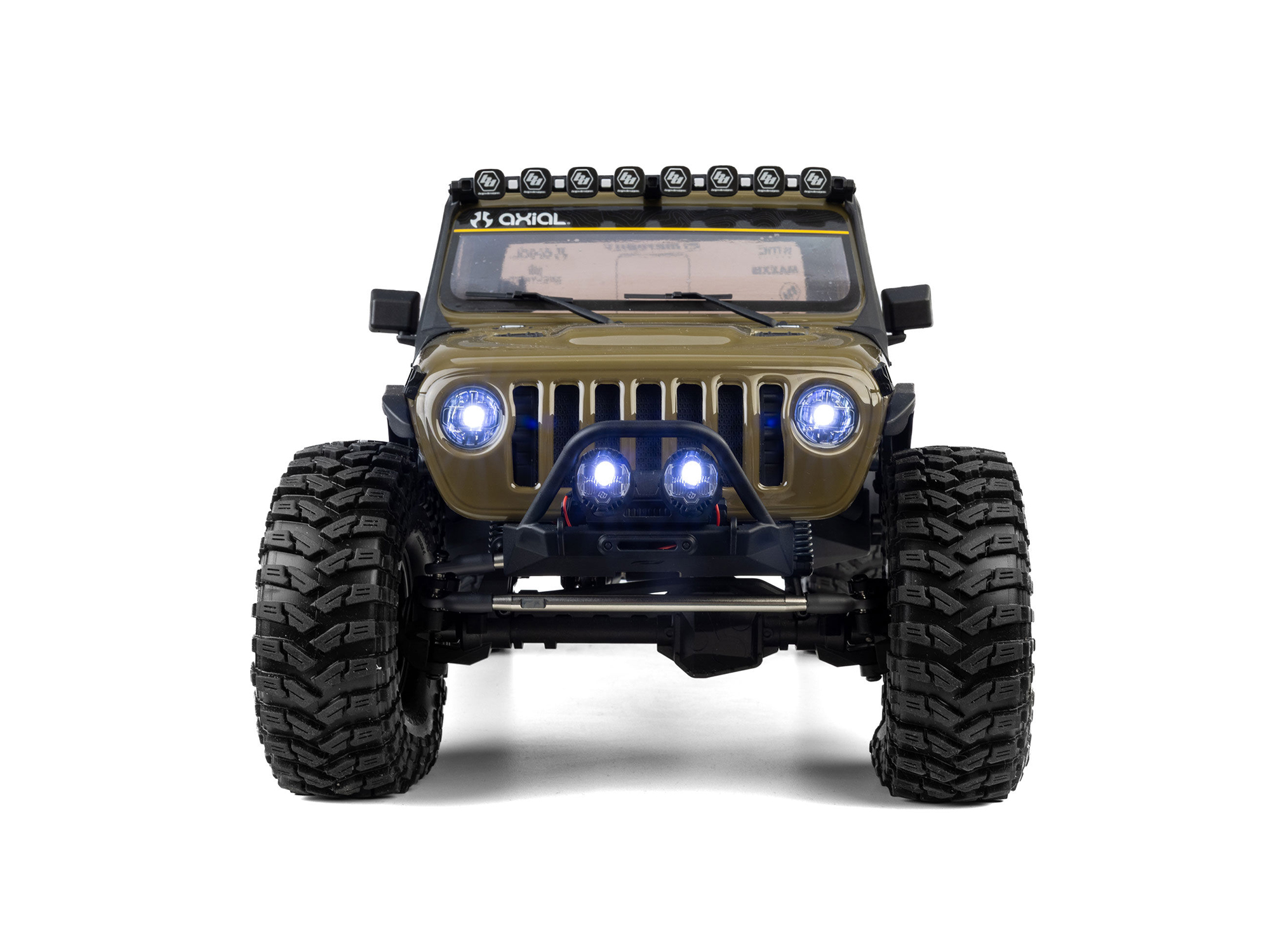

POWERFUL LED LIGHTS

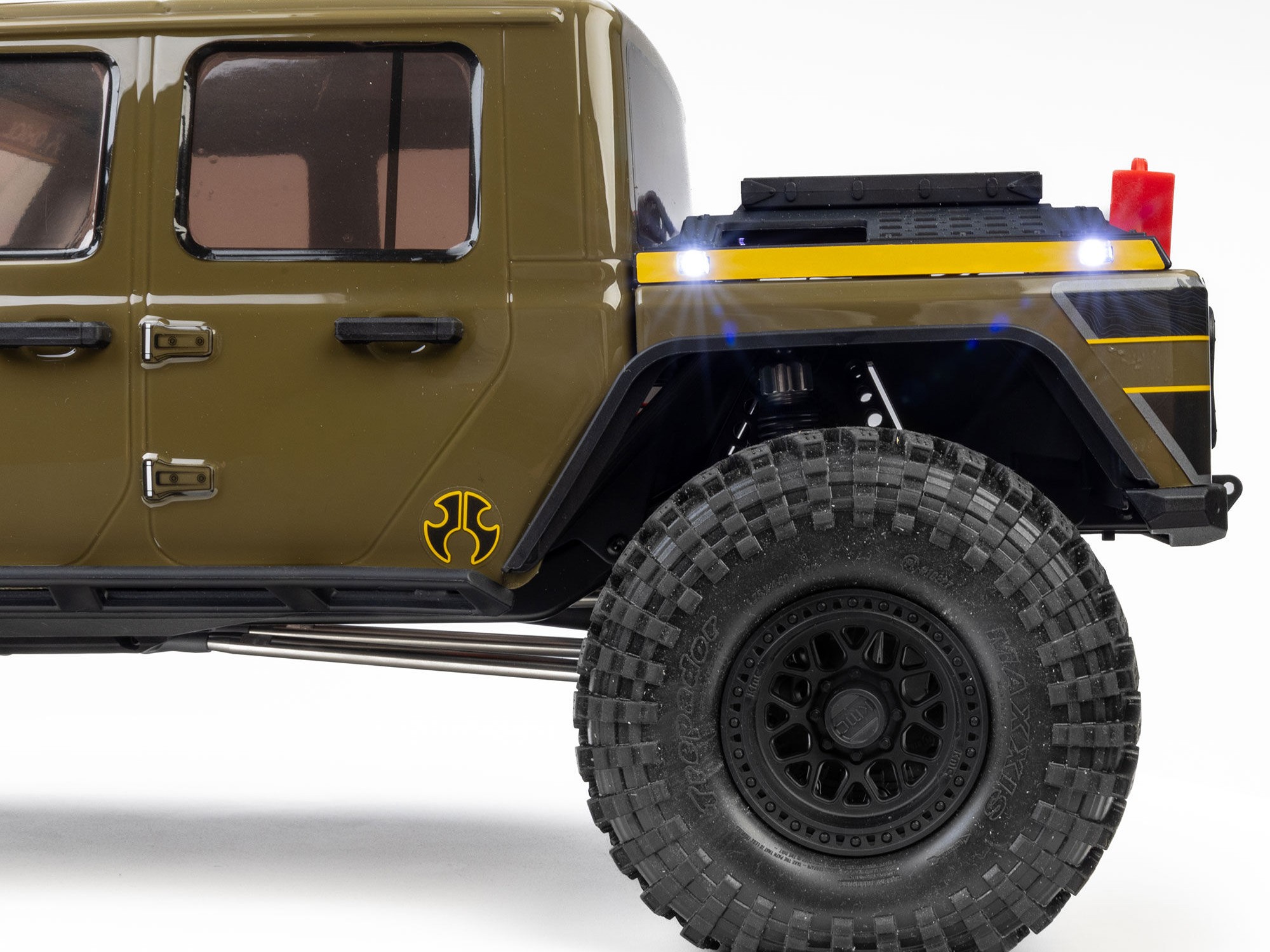

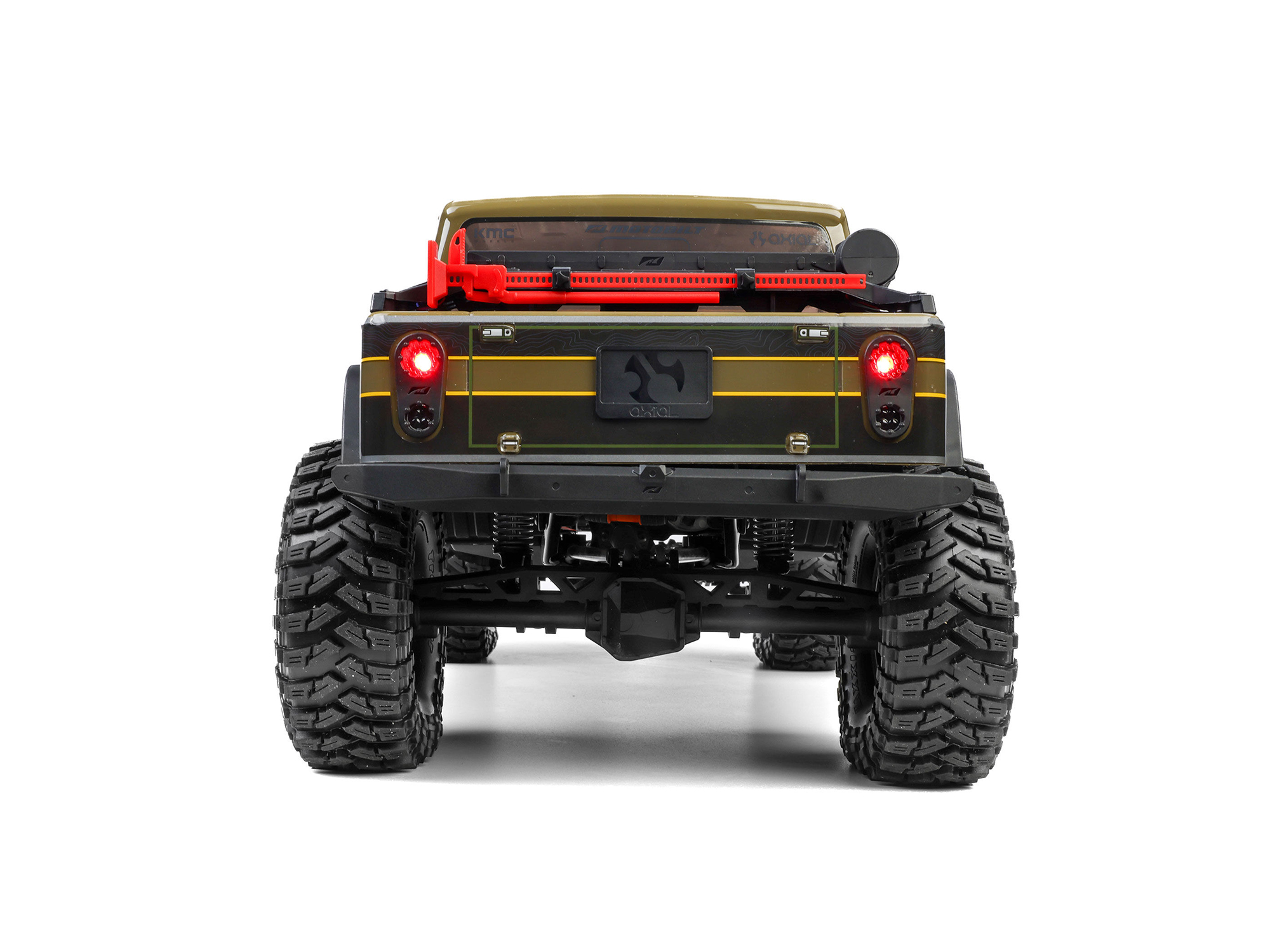

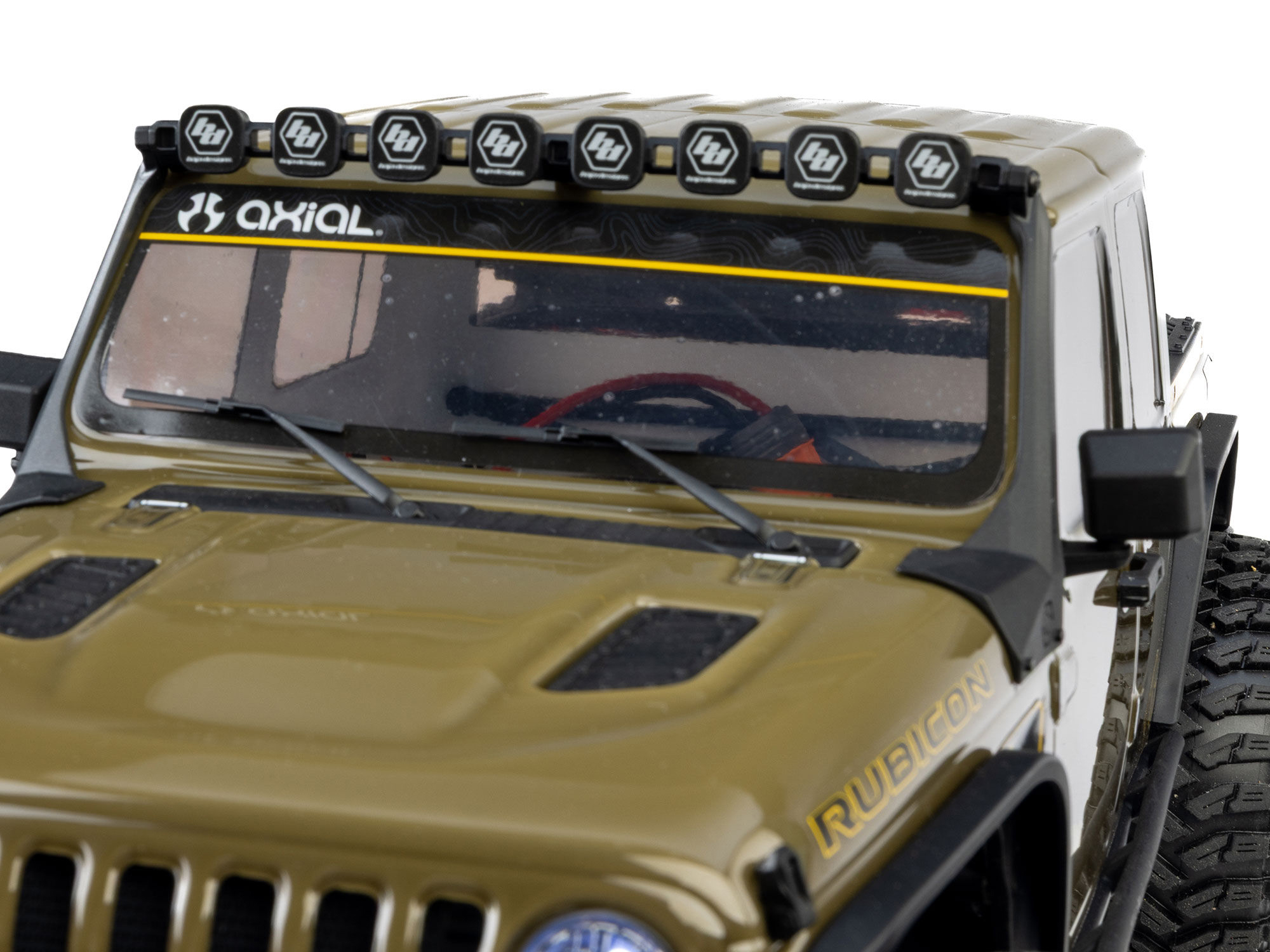

Equipped with bright, durable LEDs for enhanced visibility and a realistic night crawling experience. The detailed LEDs on bumper, headlight, taillights, and bed rack offer a more realistic, scale-inspired experience. Relax and enjoy the trail or if you prefer, display on the shelf and admire the functional and exquisite detail.

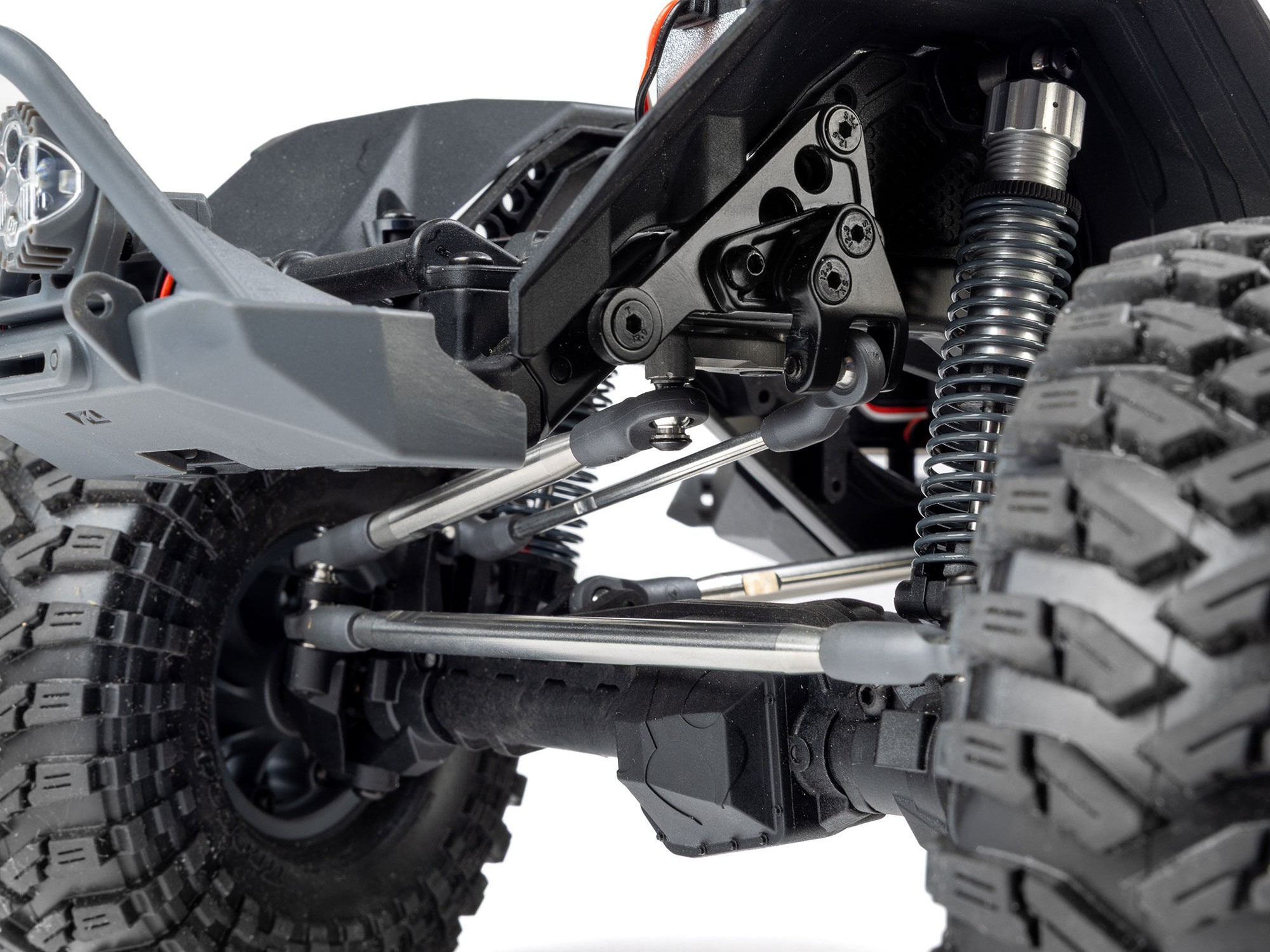

OPTIMIZED SUSPENSION

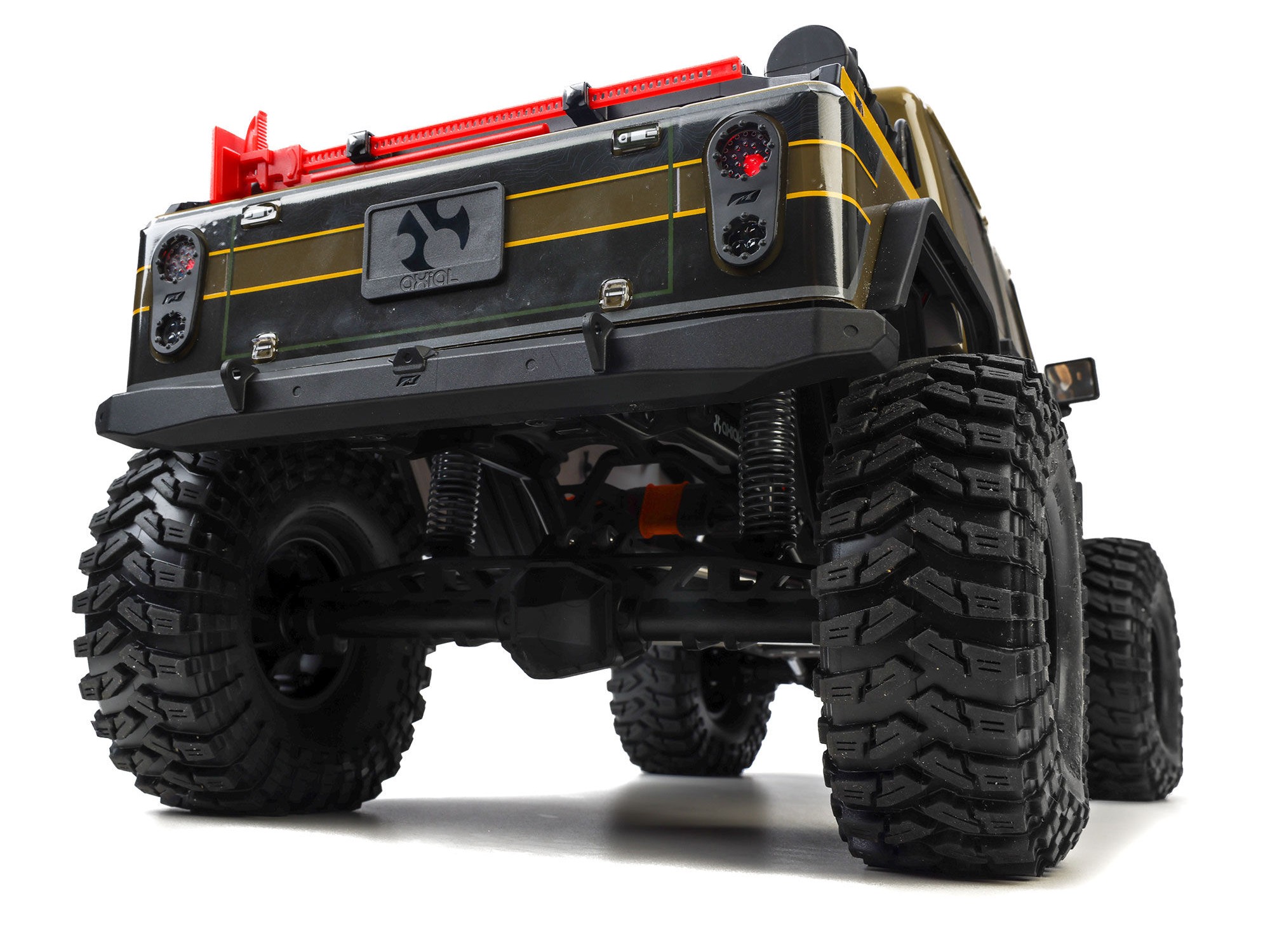

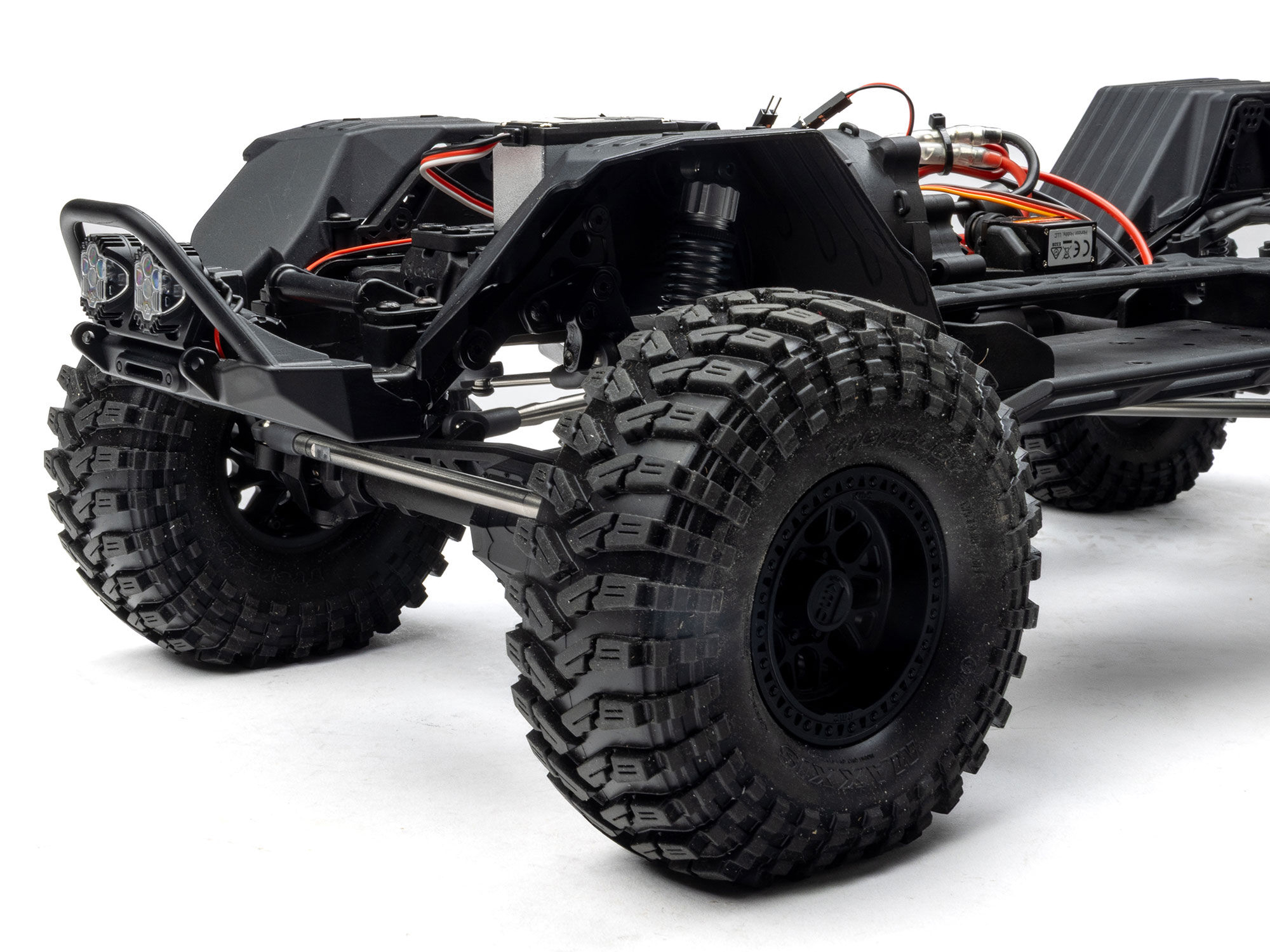

The front 3-link and rear 4-link suspension features 6mm stainless steel links and stainless steel pivot balls on the rod ends for durable off-road capability. Along with an extended wheelbase, 13.9", this rig is set to tackle anything in its way.
ALL-METAL GEARS
The SCX10 III transmission uses all–metal gears and full ball bearings for the trail–ready strength you can count on.

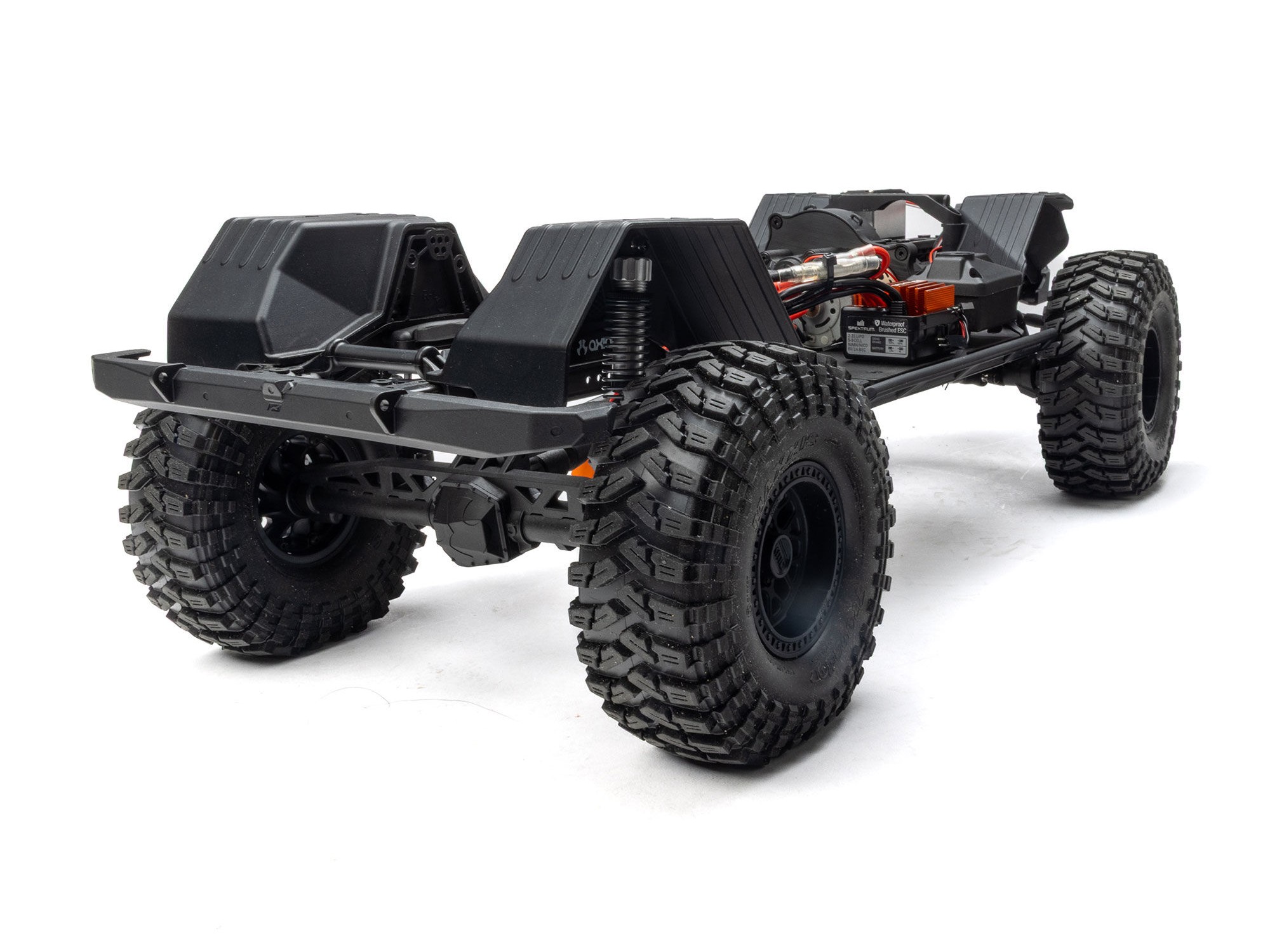

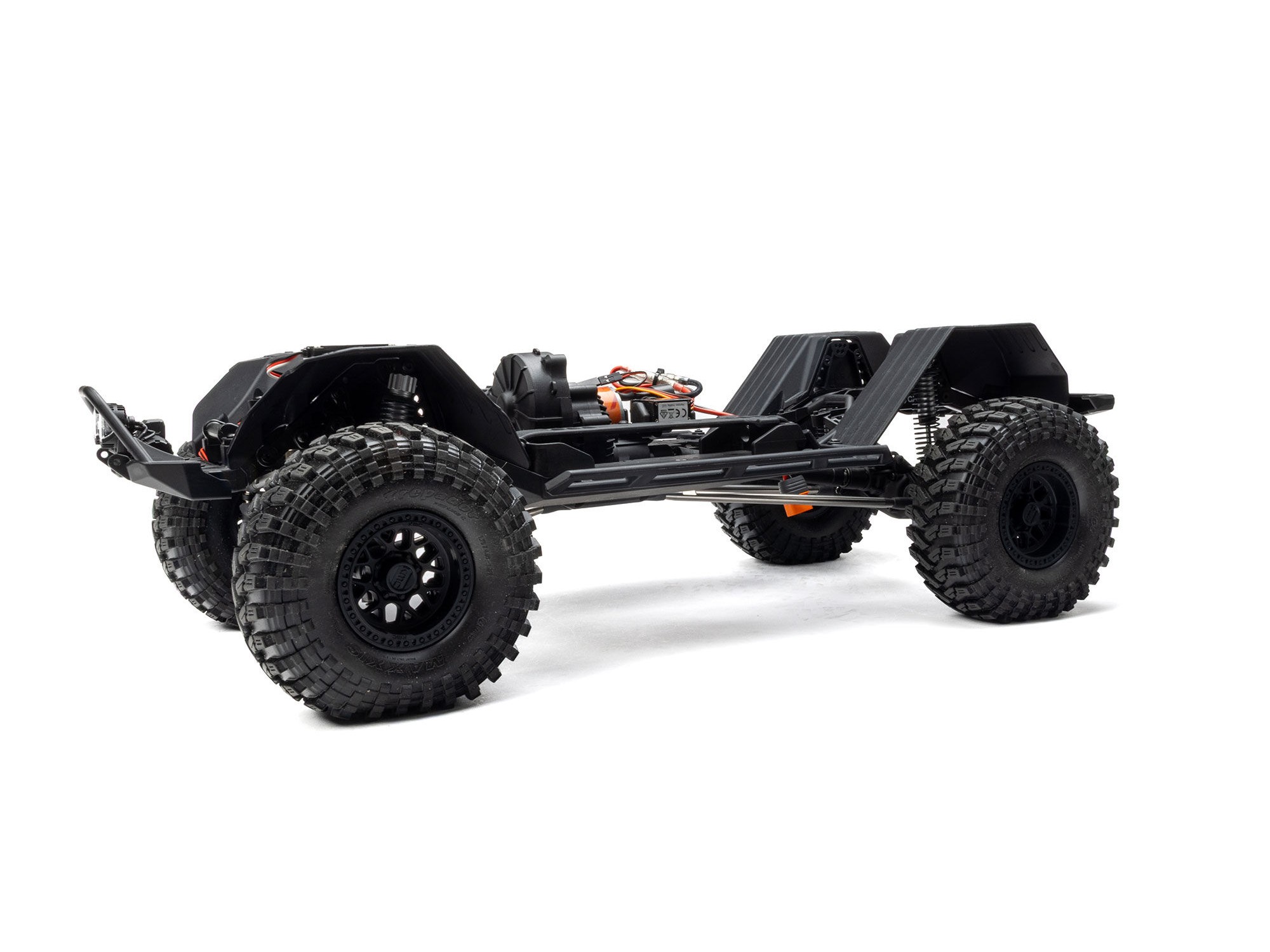

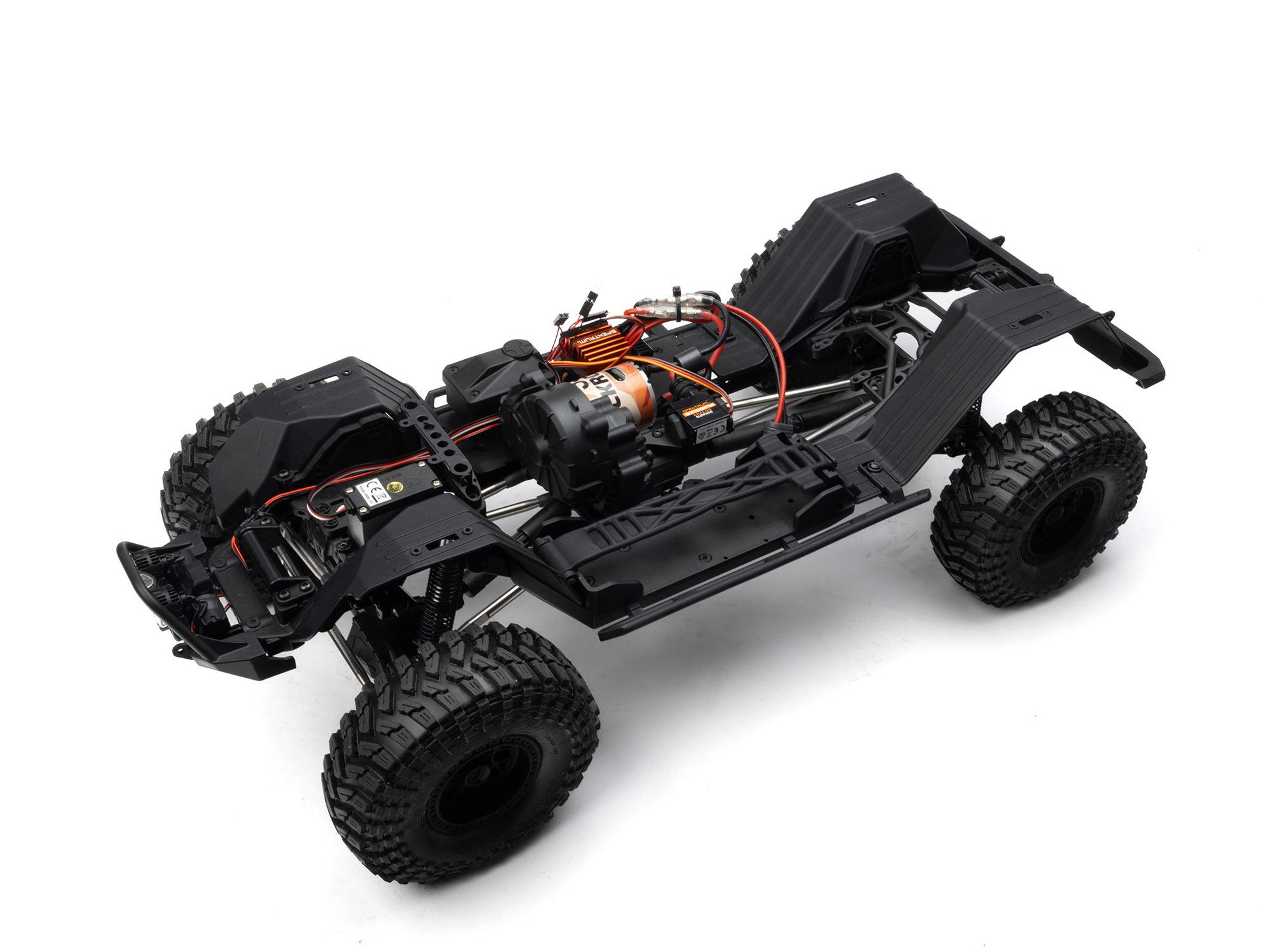

SCX10 III STEEL C-CHANNEL CHASSIS

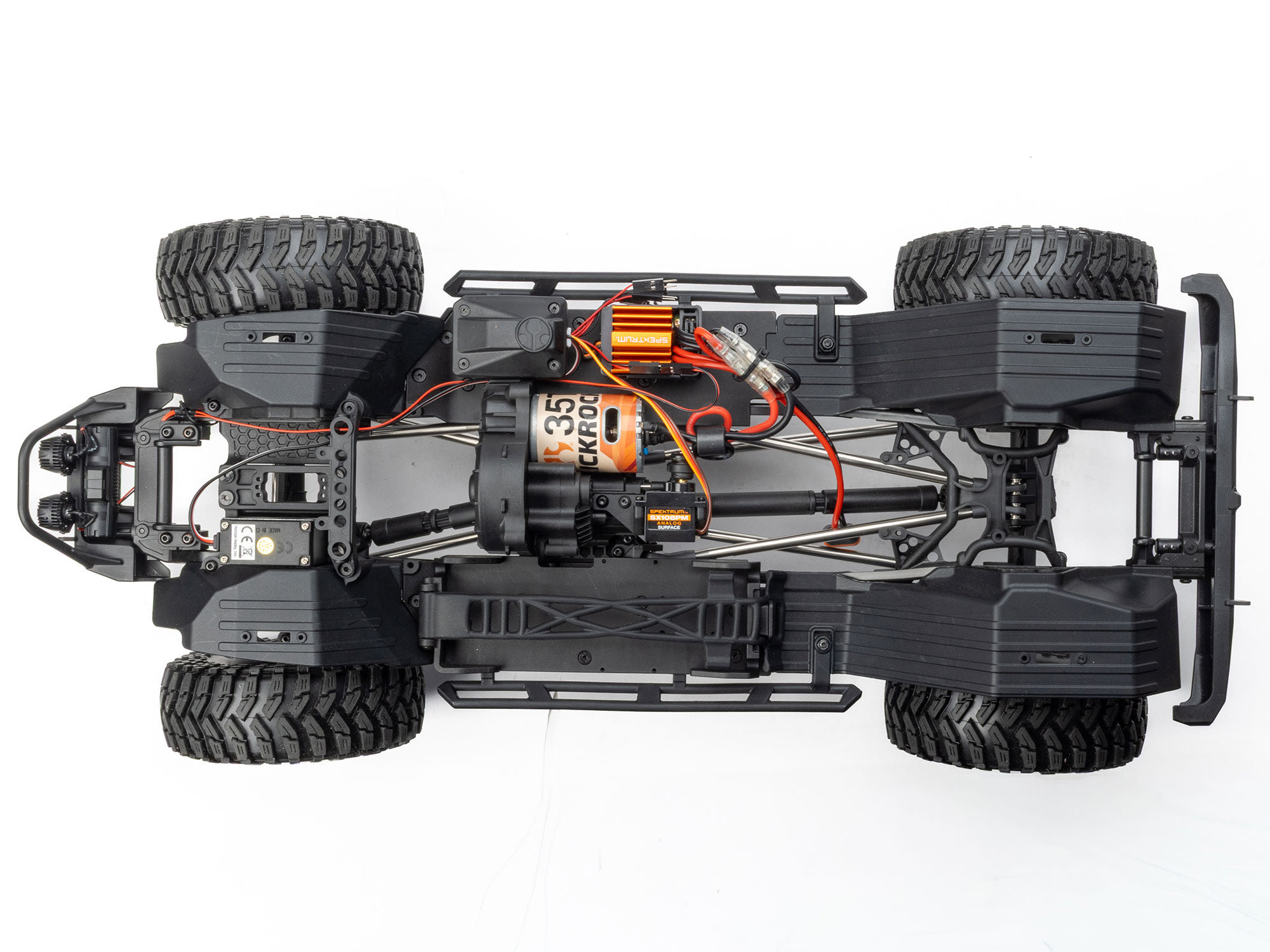

Since the Jeep JT Gladiator is a longer wheelbase than most other scale rigs, it comes with an expandable, realistic steel C-channel chassis rails designed to reduce frame flexing and increase proper suspension performance. Want a shorter wheelbase or a new look? Grab genuine Axial links and a new body to build your perfect rig.
UPGRADED PANHARD BAR MOUNT
Axial engineers have gone back to the drawing board and improved the Panhard bar mount on the SCX10 III platform. Now featuring a two-piece design and double shear protection, this updated part will not disappoint on the trails.

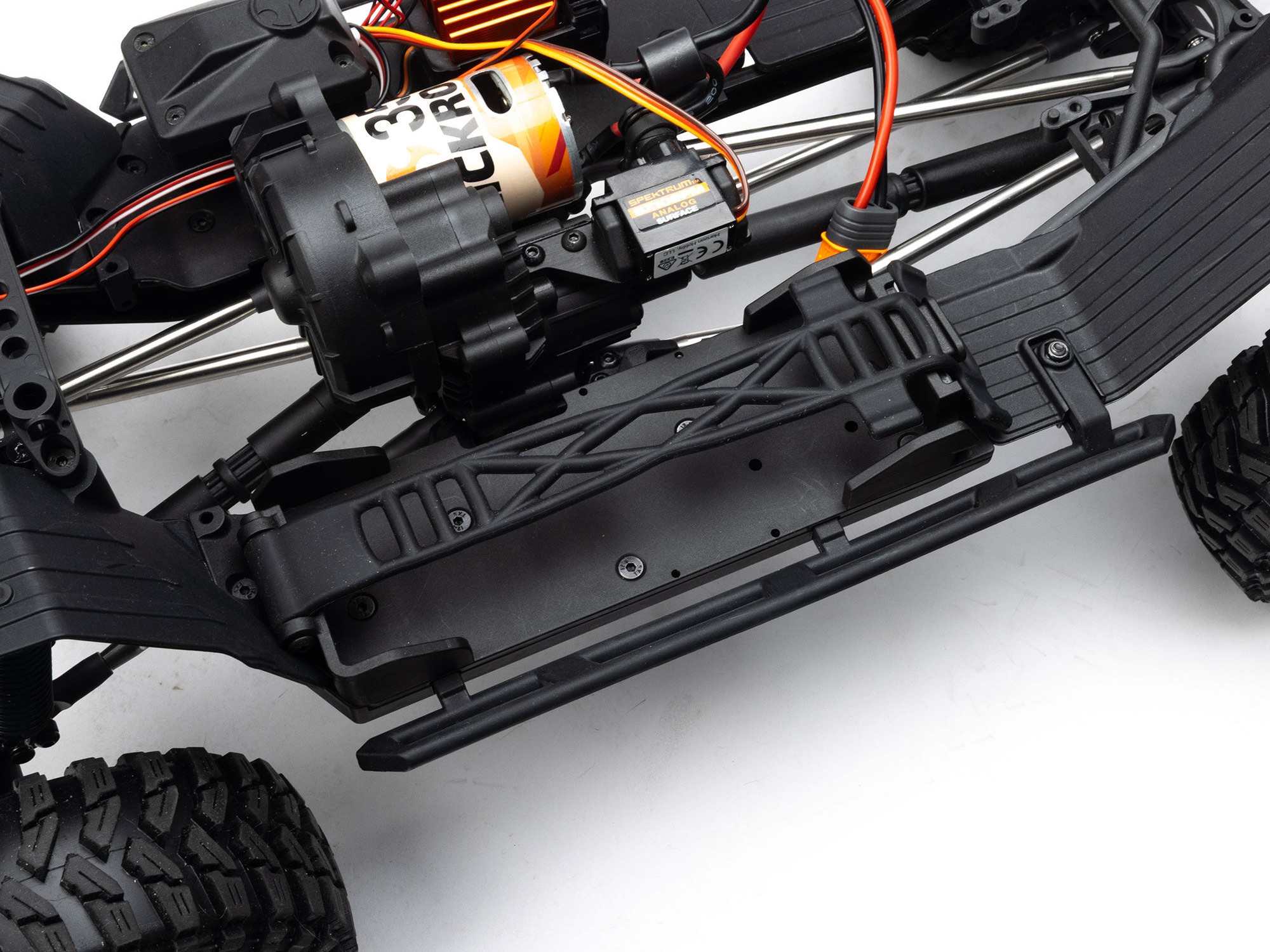

SKID PLATE

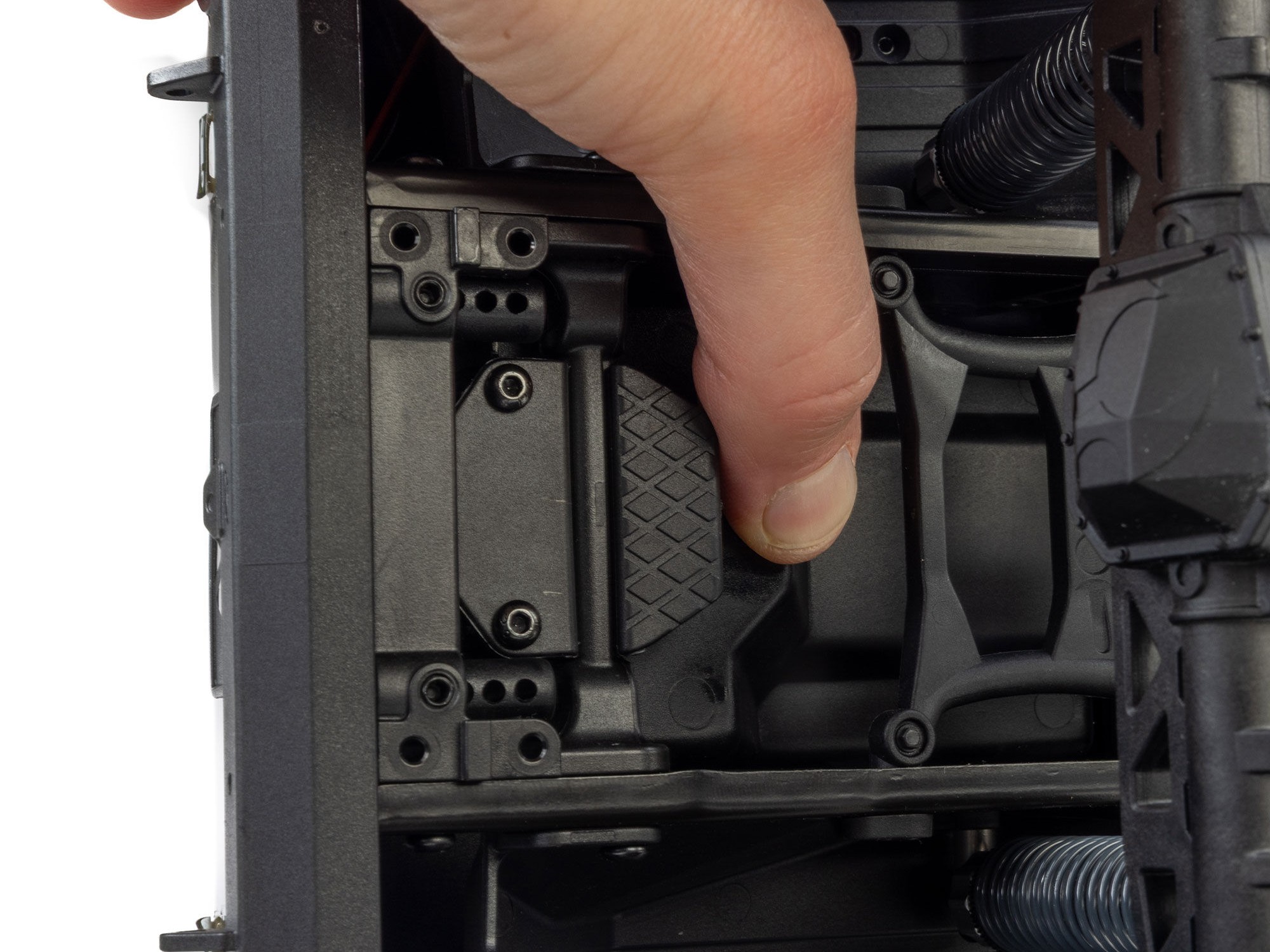

The SCX10 III skid plate offers multiple upper–link mounting options, letting you fine–tune suspension geometry and dial in anti–squat.

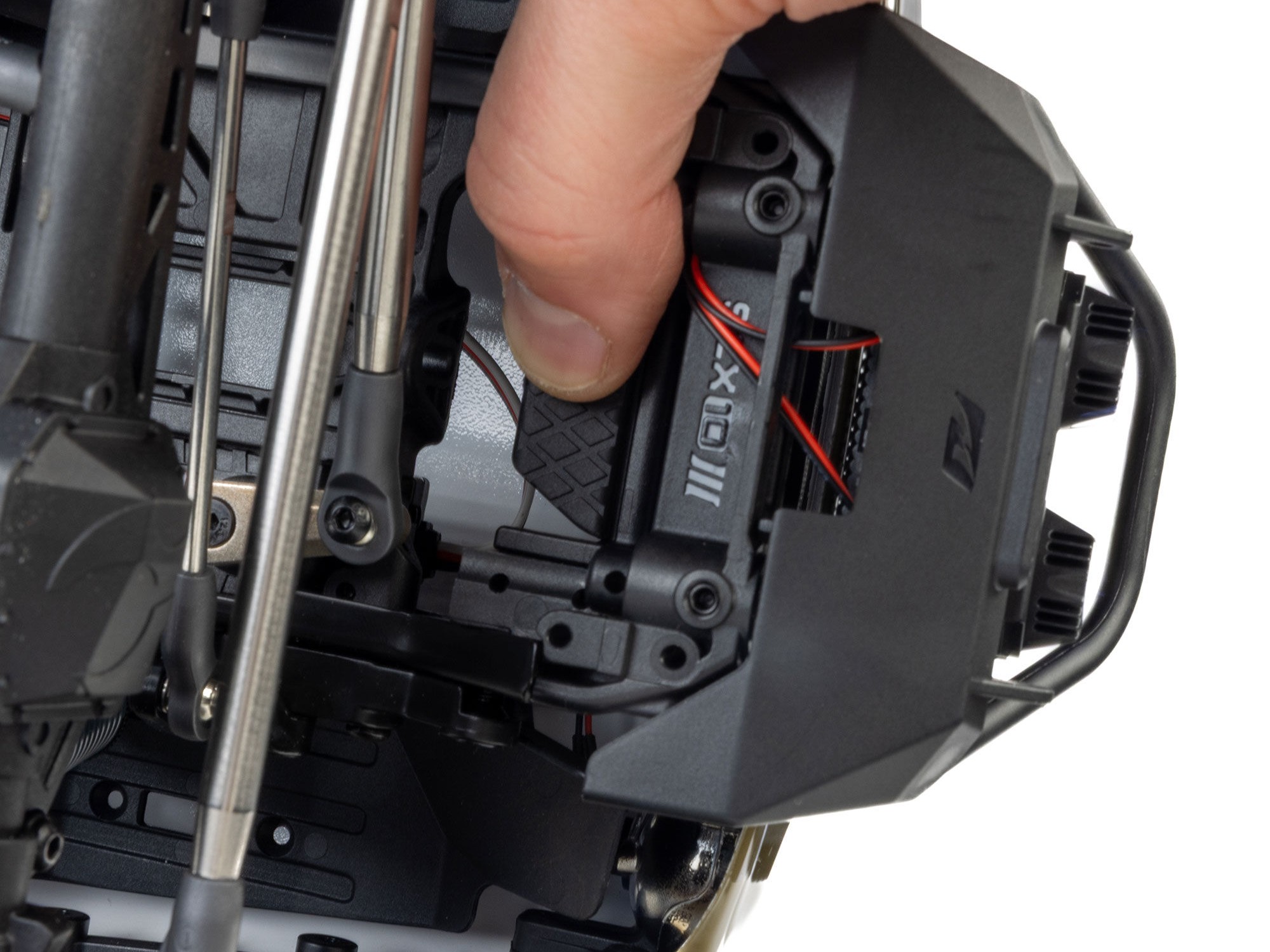

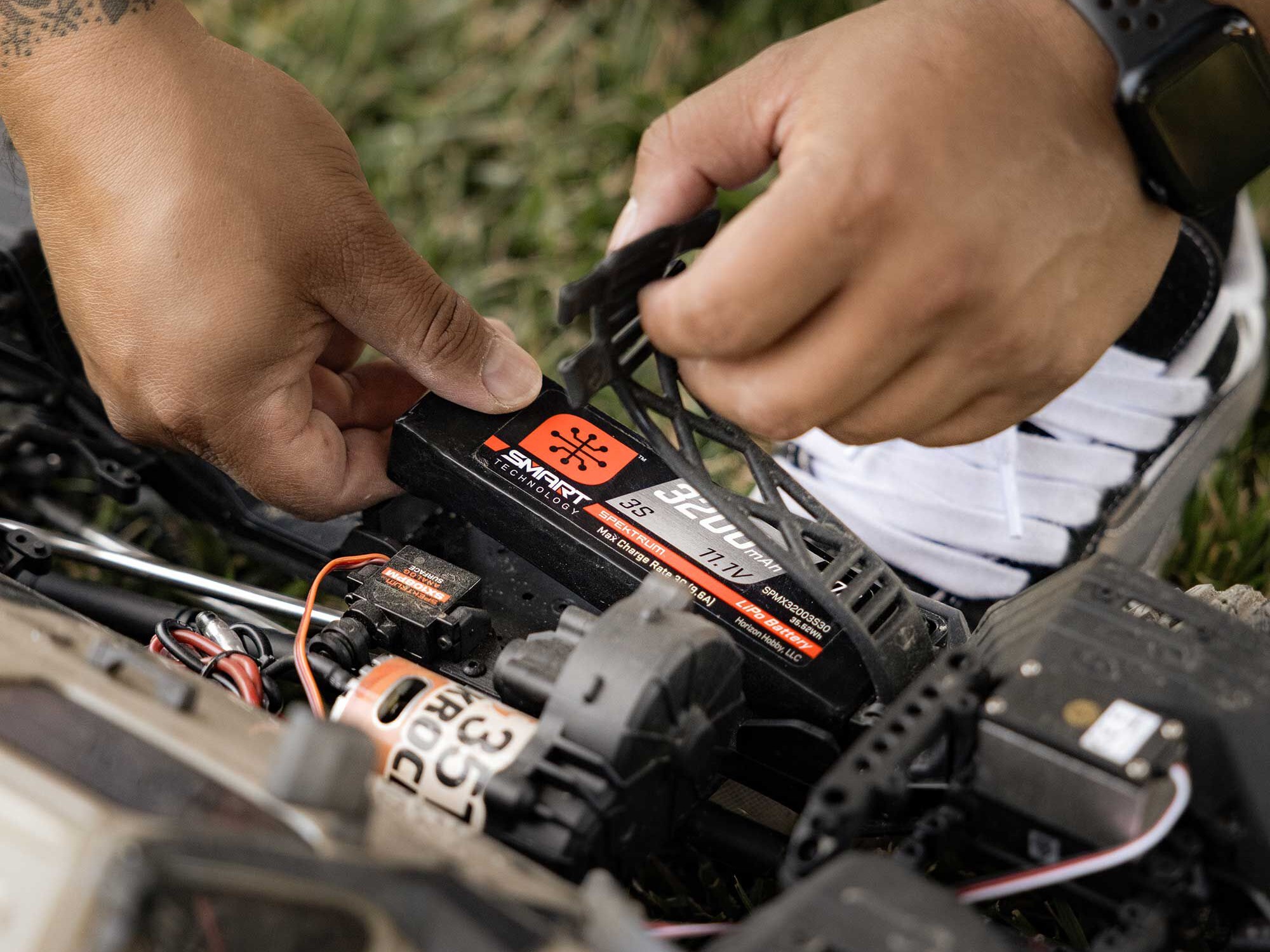

ADJUSTABLE BATTERY MOUNTING SYSTEM
Axial designers have updated the battery mount system on the SCX10 III. No longer are you using hook and loop straps, but rather silicone elastomer straps offering simple and convenient access to the battery. And you can run standard or shorty packs on your rig to tailor your weight preference on the trails.
| Spec | Data |
|---|---|
| Scale | 1/10 |
| Motor type | Brushed 540 |
| Weight | 3.02Kg |
| Height | 234mm |
| Length | 551mm |
| Width | 251mm |
