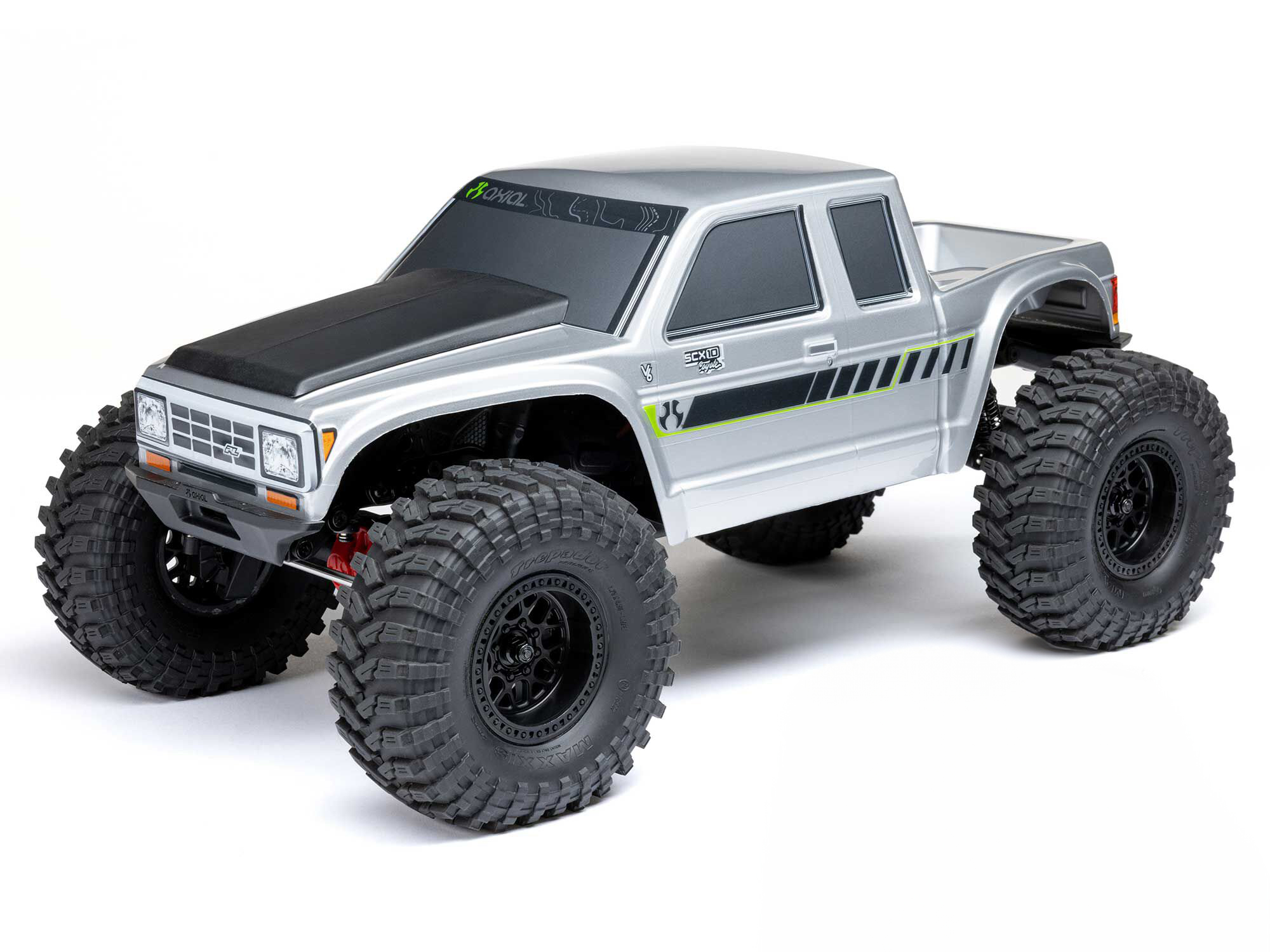

1/10 SCX10 III Coyote 4X4 RTR Brushed Rock Crawler, Silver
C-AXI-2036T1
Axial Axial 0660132639556
NEW
SRP: £339.99
SMAP:
Trade:

Barcode:
0660132639556

Product Details

The SCX10 III Coyote delivers comp-ready performance for experienced crawlers, while its value and RTR simplicity make it a great first RC rig. Whether you're exploring trails or squeezing through gates, it has the features - and affordability - you want.

Key Features

  • SCX10 III one-piece steel C-channel chassis
  • Durable LCXU transmission
  • High-clearance AR45P portal axles
  • Factory-painted Pro-Line Coyote body
  • Ready-to-run - just add battery and charger
In The Box
  • (1) Axial SCX10 III Coyote 1/10 Scale 4X4 RTR
  • (1) Axial 35T 540 Brushed Motor
  • (1) Spektrum SLT2 2-Channel SLT Radio
  • (1) Spektrum SR515 DSMR 5-Channel Receiver
  • (1) Spektrum S664 Waterproof Metal Gear 25T Servo
  • (1) Spektrum 40A Waterproof Brushed ESC
  • (4) AA Transmitter Batteries
  • (1) Instruction Manual
Needed to Complete
  • 2-3S LiPo battery with IC3 connector
  • Compatible LiPo charger

Axial SCX10 III Coyote RC Rock Crawler Overview

You don’t have to spend big money to dominate the trails and the comps. The Axial SCX10 III Coyote 4X4 rock crawler is both affordable and equipped to conquer anything in its path. The Coyote’s built-in capabilities meet the needs of experienced crawling enthusiasts who put high performance above everything else. For newcomers to the trails, the ready-to-simplicity and budget-friendly price also make it an ideal first rig. A factory-finished Pro-Line Coyote body tops it off with plenty of eye-catching Axial realism.

But the Coyote is much more than an SCX10 III with a new look. Axial has taken its proven 1/10-scale platform to another level. All-new oil-filled shocks and shock towers add more adjustability. Overdrive gears in the front axle increase maneuvering and climbing ability for getting to and through the gates. New sliders have smooth undersides for better performance and body fit. Officially licensed Maxxis Trepador tyres and KMC Grenade wheels, with dual stage open cell foam inserts, add to the rig’s realistic looks and high-performance crawling capabilities. And a new battery mount lets you position the battery in front of the transmission, improving weight distribution and balance.

Axial also incorporates a clipless mounting system for the Pro-Line Coyote body, enhancing the rig’s looks by eliminating visible body clips. The body is hinged at the rear and removes completely for effortless chassis access. There are no clips to fuss with and lose. For the best performance on the trails, the body is pinched in the front, dovetailed, and bobbed in the rear, and only as wide as necessary. It slips through narrow obstacles and allows ample tyre clearance and suspension articulation.

These updates join proven features that have made the Axial SCX10 III a favorite on the trails. Its one-piece steel C-channel chassis reduces frame flexing and increases suspension precision. With all-metal internal gears and a full set of ball bearings, the LCXU 4-wheel drive transmission easily handles rough off-road surfaces. AR45P portal axles increase the ground clearance at the differential for gliding over uneven terrain.

Adding to the value of the Axial SCX10 III Coyote, the ready-to-run package comes with a 2-channel Spektrum SLT2 radio designed to help all drivers succeed on the trails. If this is your first RC vehicle, the radio’s throttle limiting feature lets you learn control skills safely and with confidence. With the flip of a switch, you can limit maximum speed to 50% or 75% until you’re comfortable driving at full power. Even the 4 x AA batteries required for the transmitter are included, so all you need is the Lipo battery and charger.

The Axial SCX10 III Coyote is proof that performance and quality can be budget-friendly. It has the features and capabilities you need to go from the box to the comp to the podium - saving money all the way.

Axial SCX10 III Coyote RC Rock Crawler Features

  • Ready-to-run - just add your choice of battery and charger
  • SCX10 III one-piece steel C-channel chassis
  • Factory-painted Pro-Line Coyote body
  • Clipless body mounting system
  • High-clearance AR45P portal axles
  • Overdrive gears in the front axle
  • Durable LCXU transmission
  • Multi-link solid axle suspension
  • Oil-filled coil-over shocks
  • New shock towers with more adjustability
  • All-metal gears
  • Full ball bearings
  • Officially licensed KMC Grenade wheels
  • Officially licensed Maxxis Trepador tyres
  • Dual-stage open cell foam tyre inserts
  • Axial 35T 540 brushed motor
  • Spektrum SLT2 2-channel SLT radio
  • Spektrum SR515 DSMR 5-channel receiver
  • Spektrum S664 waterproof metal gear 25T servo
  • Spektrum 40A waterproof brushed ESC
SCX10 III STEEL C-CHANNEL CHASSIS for the Axial SCX10 III Coyote RC Rock Crawler
SCX10 III STEEL C-CHANNEL CHASSIS

The Coyote is built on the proven, realistic Axial SCX10 III platform. Its one-piece steel C-channel chassis is easy to work on, reduces frame flexing, and increases the precision of suspension movement.

AR45P PORTAL AXLES for the Axial SCX10 III Coyote RC Rock Crawler
AR45P PORTAL AXLES

AR45P portal axles increase the SCX10 III Coyote’s ground clearance at the differential for easier off-road handling. The front axle features overdrive gears to improve climbing performance and maneuverability.

LCXU TRANSMISSION for the Axial SCX10 III Coyote RC Rock Crawler
LCXU TRANSMISSION

The LCXU 4-wheel drive transmission is durable, simple, and works with standard and portal axles. It has a full set of ball bearings and all-metal internal gears for the strength and durability to conquer trails and competitors.

PRO-LINE COYOTE BODY for the Axial SCX10 III Coyote RC Rock Crawler
PRO-LINE COYOTE BODY

Created by Pro-Line, the factory-painted Coyote polycarbonate body offers more than trail- and comp-ready looks. It mounts without any body clips and can be completely removed for easy chassis access. The body is contoured to slip through obstacles and allow ample tyre clearance and suspension articulation.

KMC GRENADE WHEELS & OFFICIALLY LICENSED MAXXIS TYRES  for the Axial SCX10 III Coyote RC Rock Crawler
Licensed Maxxis Tyres & KMC Grenade Wheels

The Coyote’s officially licensed Maxxis Trepador tyres add to the rig’s realistic looks and high-performance crawling capabilities. Dual stage, open cell foam inserts are included, with soft outer foam and firm inner foam to improve grip and sidewall support. KMC Grenade wheels are loaded with detail and their one-piece design is light weight and durable.

COIL-OVER SHOCKS for the Axial SCX10 III Coyote RC Rock Crawler
COIL-OVER SHOCKS

The competition-style composite smooth body shocks improve tyre clearance and provide smooth, predictable handling over any terrain. These pro-inspired shocks combine the right amount of support and droop for a level of performance not typically seen in RTRs.

OPTIMIZED SUSPENSION for the Axial SCX10 III Coyote RC Rock Crawler
OPTIMIZED SUSPENSION

The SCX10 III Coyote’s multi-link, solid axle suspension features 6mm stainless steel links and all-metal pivot balls for off-road durability.

INSTALLED POWER SYSTEM for the Axial SCX10 III Coyote RC Rock Crawler
INSTALLED POWER SYSTEM

The Coyote’s factory-installed brushed power system features a 35T Axial 540 motor and waterproof Spektrum 40A ESC. A metal geared Spektrum S664 servo is included for strong, dependable steering.

SPEKTRUM SLT2 2.4GHz TRANSMITTER for the Axial SCX10 III Coyote RC Rock Crawler
SPEKTRUM SLT2 2.4GHz TRANSMITTER

The included Spektrum SLT2 transmitter is designed to help all drivers succeed on the trails. Its throttle limiting feature can limit the rig's maximum available speed to 50% or 75% until you're ready for it all. Four AA batteries are included.

NEW BATTERY MOUNT for the Axial SCX10 III Coyote RC Rock Crawler
NEW BATTERY MOUNT

A new battery mount on the SCX10 III Coyote allows the battery to be positioned in front of the transmission for improved weight distribution and balance.




Spec Data
Scale 1/10
Weight
2.38Kg
Height
197mm
Length
445mm
Width
235mm
