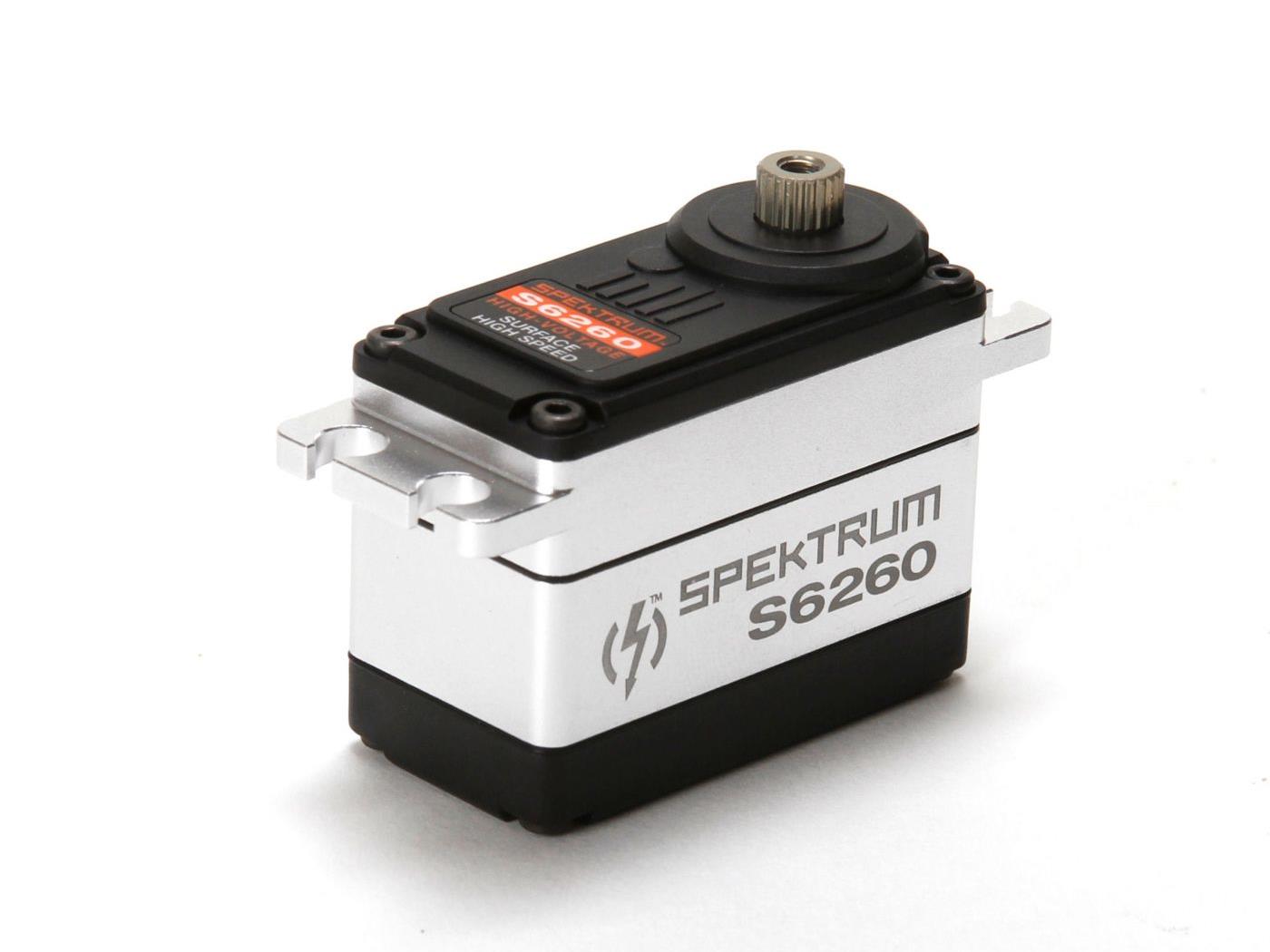

S6260 High Torque High Speed Digi HV Servo-Metal Gear
P-SPMSS6260
Spektrum Spektrum 0605482585269
SRP: £129.99
SMAP:
Trade:

Barcode:
0605482585269

Key Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.




Spec Data
Speed @ 6V
0.08s/60°
Torque @ 6V
12.0Kg/cm
Speed @ 7.4V
0.07s/60°
Speed @ 8.4V
0.06s/60°
Torque @ 7.4V
15.10Kg/cm
Torque @ 8.4V
17.4Kg/cm
Weight
65.2g
Bearings Dual BB
Gear Type Metal
Motor Type Coreless
Height
31.8mm
Length
41.0mm
Width
20.8mm
Support

Related Items

Optional Parts

Image Item Id Name Trade SSP Order
Now
  P-DYN2530 1/2 Machined Aluminum Servo Arm: Fut Blue £8.99
  P-DYN2531 1/2 Machined Aluminum Servo Arm: Fut Black £8.99
  P-DYN2532 1/2 Machined Aluminum Servo Arm: Fut Red £8.99
  P-DYN2534 1/2 Machined Aluminum Servo Arm:SPK/J/A/KO Blue £8.99
  P-DYN2535 1/2 Machined Aluminum Servo Arm: SPK/J/A/KO Black £8.99
  P-SPMA3001 Heavy-Duty Servo Extension 6 £8.99
  P-SPMA3003 Heavy-Duty Servo Extension 12 £9.99
  P-SPMA3004 Heavy-Duty Servo Extension 18 £9.99
  P-SPMA3005 Heavy-Duty Servo Extension 24 £10.99
  P-SPMA3006 Heavy-Duty Servo Extension 36 £11.99
  P-SPMA3052 Standard Servo Extension 9 £11.99
  P-SPMA3058 Standard Y-Harness £19.99
  P-SPMA4042 Socket Head Servo Mounting Screws (20) £4.50
  P-SPMSP3042 Locking Black Cable 2" £8.99
  P-SPMXBC100 XBC100 Smart Battery Checker & Servo Tester £59.99
  Y-SPMA3054 Servo Connector Clips (25) £5.99
  Z-AR390196 Female To Male JR 150mm Servo Extension £6.99
