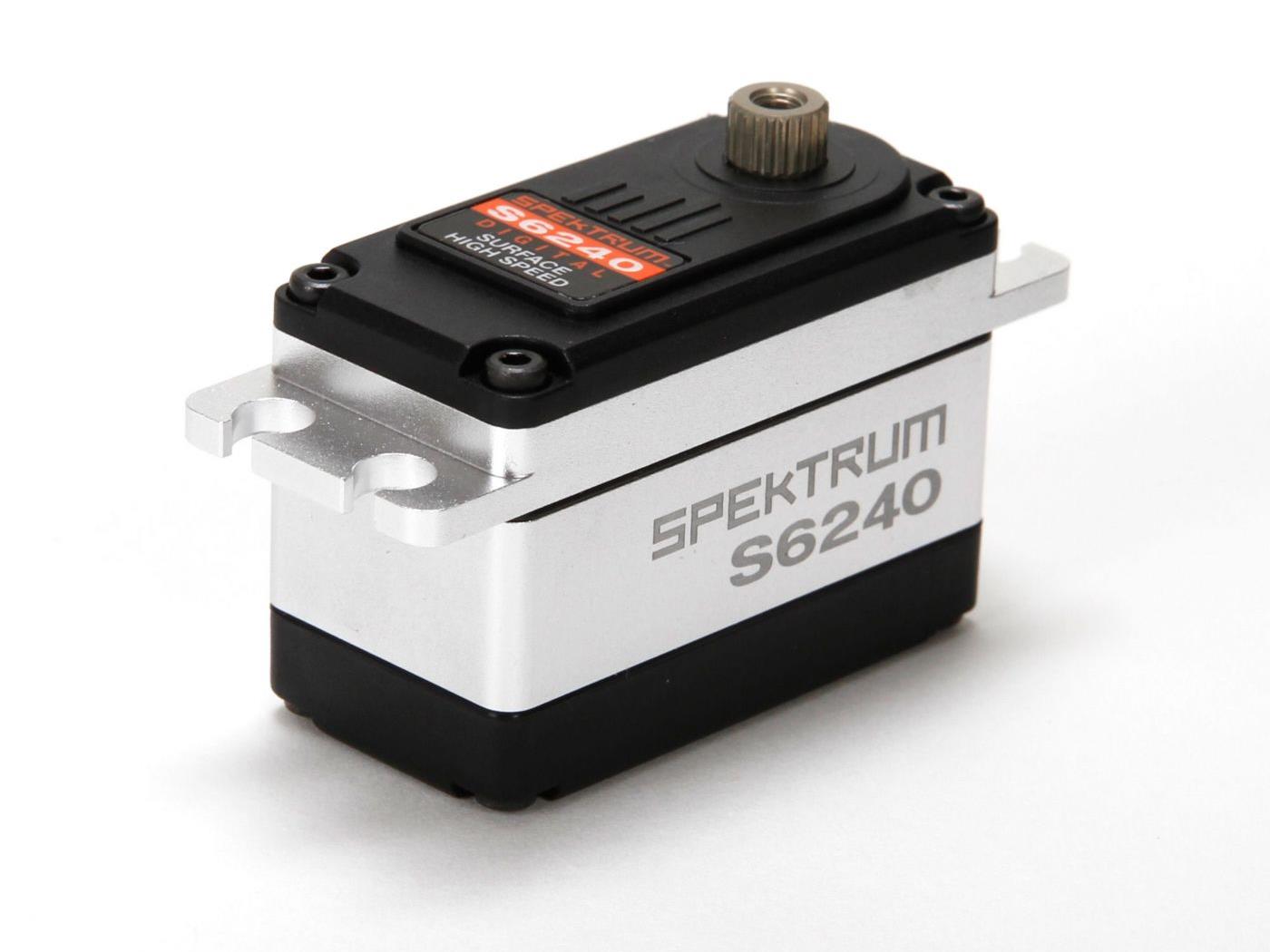

S6240 High Torq High Speed Digital WP Servo-Metal Gear
P-SPMSS6240
Spektrum Spektrum 0605482585245
SRP: £99.99
SMAP:
Trade:

Barcode:
0605482585245

Key Features

  • Removable wire harness with different lengths available
  • 7075 Aluminum hard anodized output shaft/main gear with steel internal gears
  • Aluminum case for good heat dissipation
  • Aluminum mounting tabs
  • NMB dual main bearings
  • 23T output shaft
  • Waterproof
  • 1-Year Limited Warranty

Overview

The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. The S6230 and S6240 offer high-torque or high-speed performance in a more compact size for 1/10th scale crawlers or monster trucks where space is limited. The S6250 HV and S6260 HV are standard size servos for High-Voltage applications up to 8.4V, And the S6280 HV and S6290 HV feature all metal case construction for the ultimate 1/8th scale performance. All these servos feature Spektrum innovations like the removable wire leads that allow for custom lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.

Specification
  • Speed @ 6V0.08s/60°
  • Torque @ 6V15.00Kg/cm
  • Weight: 29.5g
  • Bearings Dual BB
  • Gear Type: Metal
  • Motor Type: Coreless
  • Height: 30.0mm
  • Length: 41.0mm
  • Width: 20.9mm



  • Spec Data
    Speed @ 6V
    0.08s/60°
    Torque @ 6V
    15.00Kg/cm
    Weight
    29.5g
    Bearings Dual BB
    Gear Type Metal
    Motor Type Coreless
    Height
    30.0mm
    Length
    41.0mm
    Width
    20.9mm
