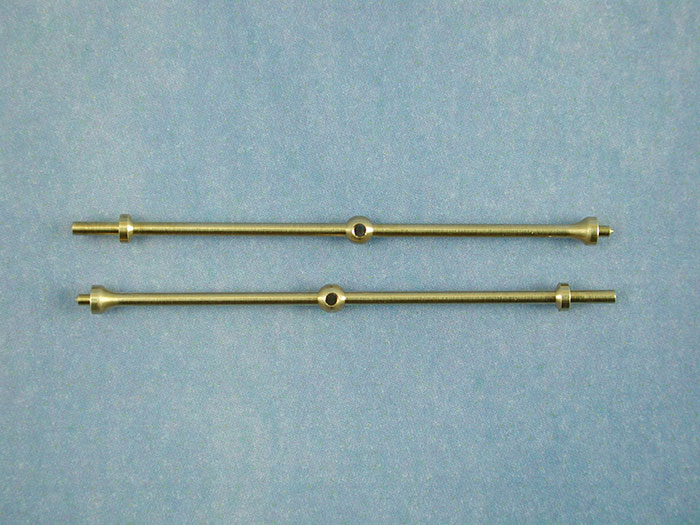

Stanchion Height (excluding upper and lower locating pins): 40mm
Base Locating Pin Length: 4mm
Capping Locating Pin Length: 1.5mm
Capping Locating Pin Diameter: 1.0mm
Stanchion Diameter: 1.2mm
Ball Diameter: 2.5mm
Hole Diameter: 1.05mm

Capping locating pin is tapered to a point to assist in position marking for drilling of the capping rail. Pack of 10.
