Overview

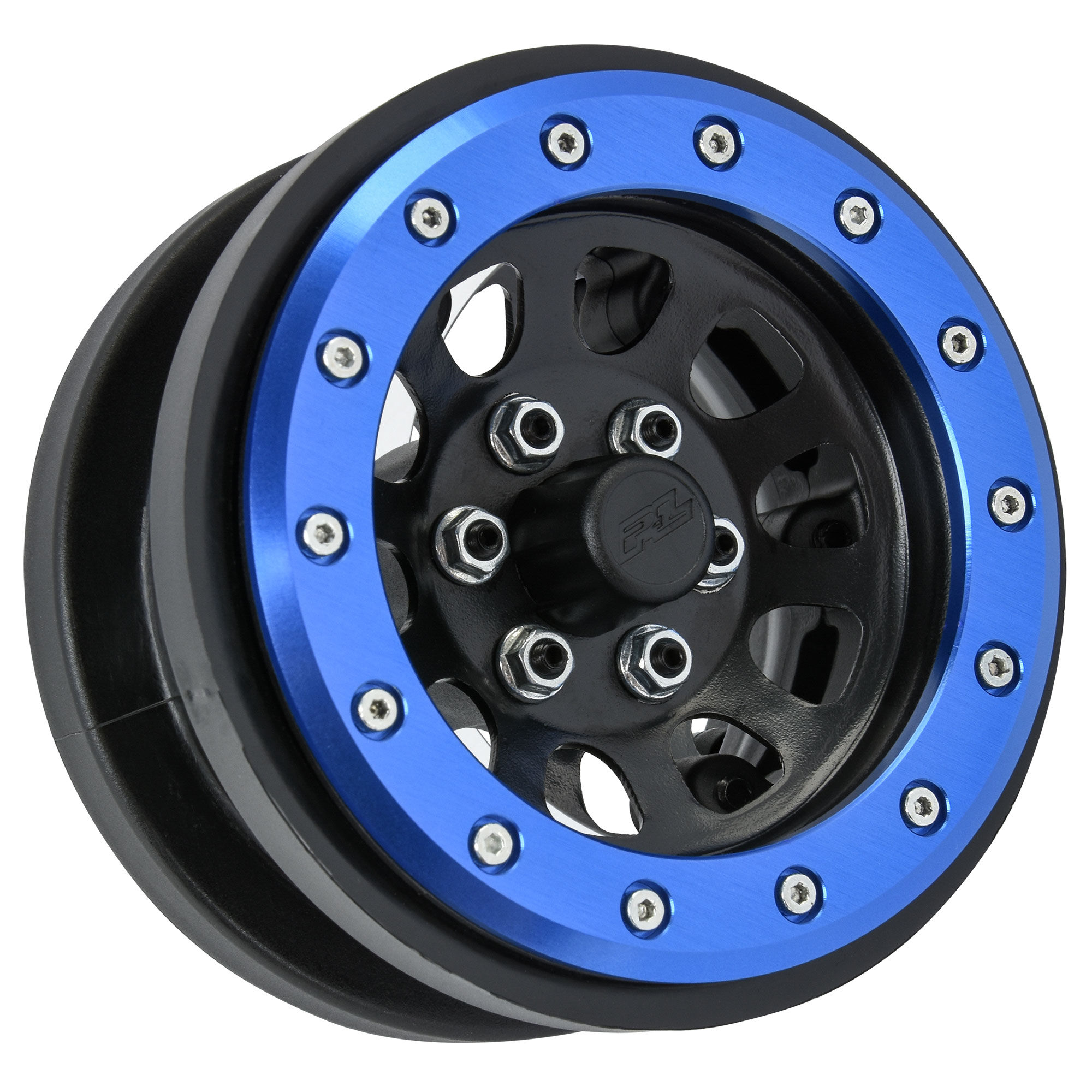

This is a pair of Steelies 2.9" Wheels for SCX6™. Introducing a unique, no-nonsense, trail-proven wheel solution for the Axial® SCX6™! The Steelies Wheel features a Black Powder Coated Stamped Steel wheel face with anodized aluminum rings pre-installed into the wheel face.

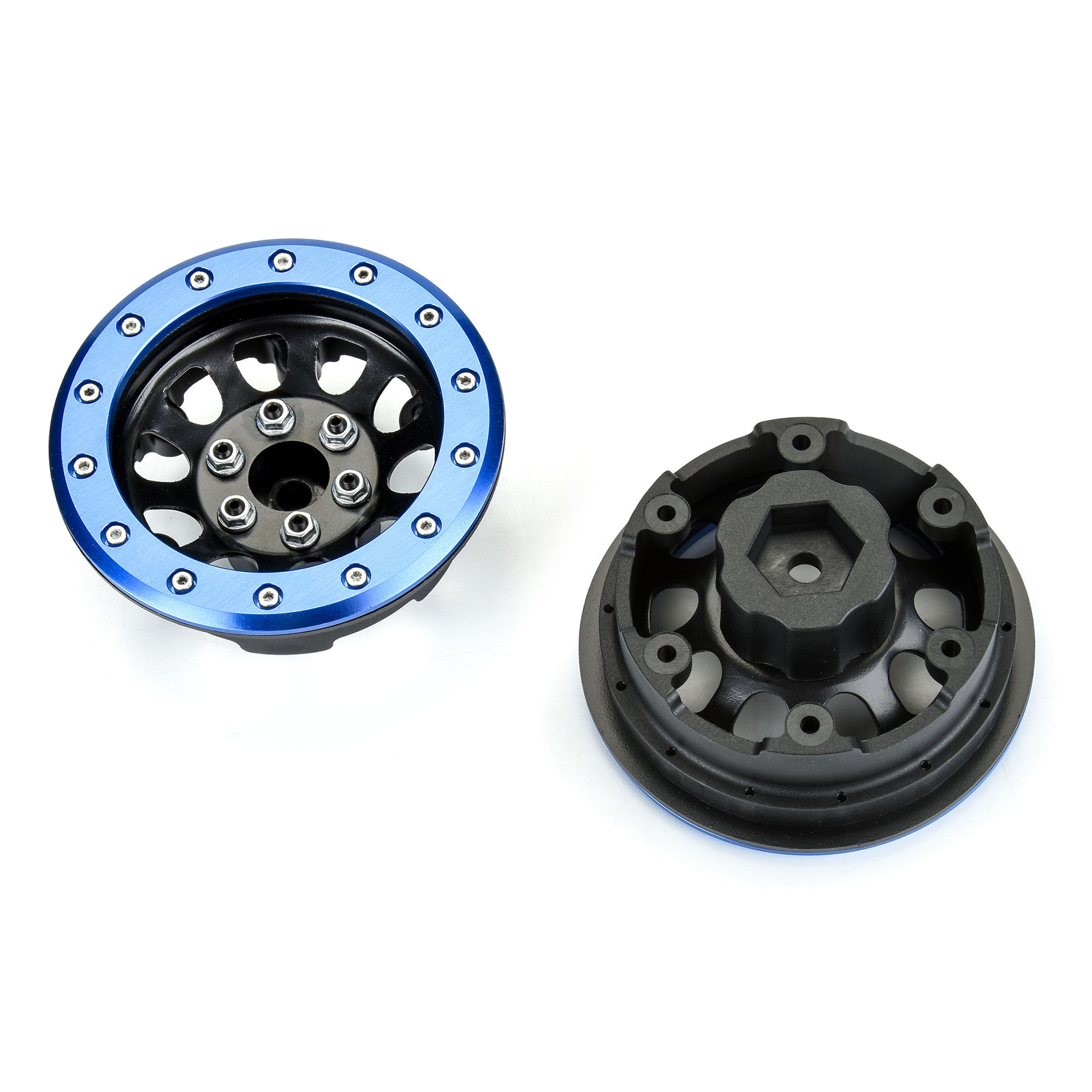

This Internal bead-loc style wheel can be configured with 2 different offsets. Install the +2mm offset hex or +10mm offset hex to push the wheel further outwards, giving you more stability and clearance for wide tires.

Give your SCX6™ a tough look with Pro-Line's Steelie wheels!

Assembly Instructions

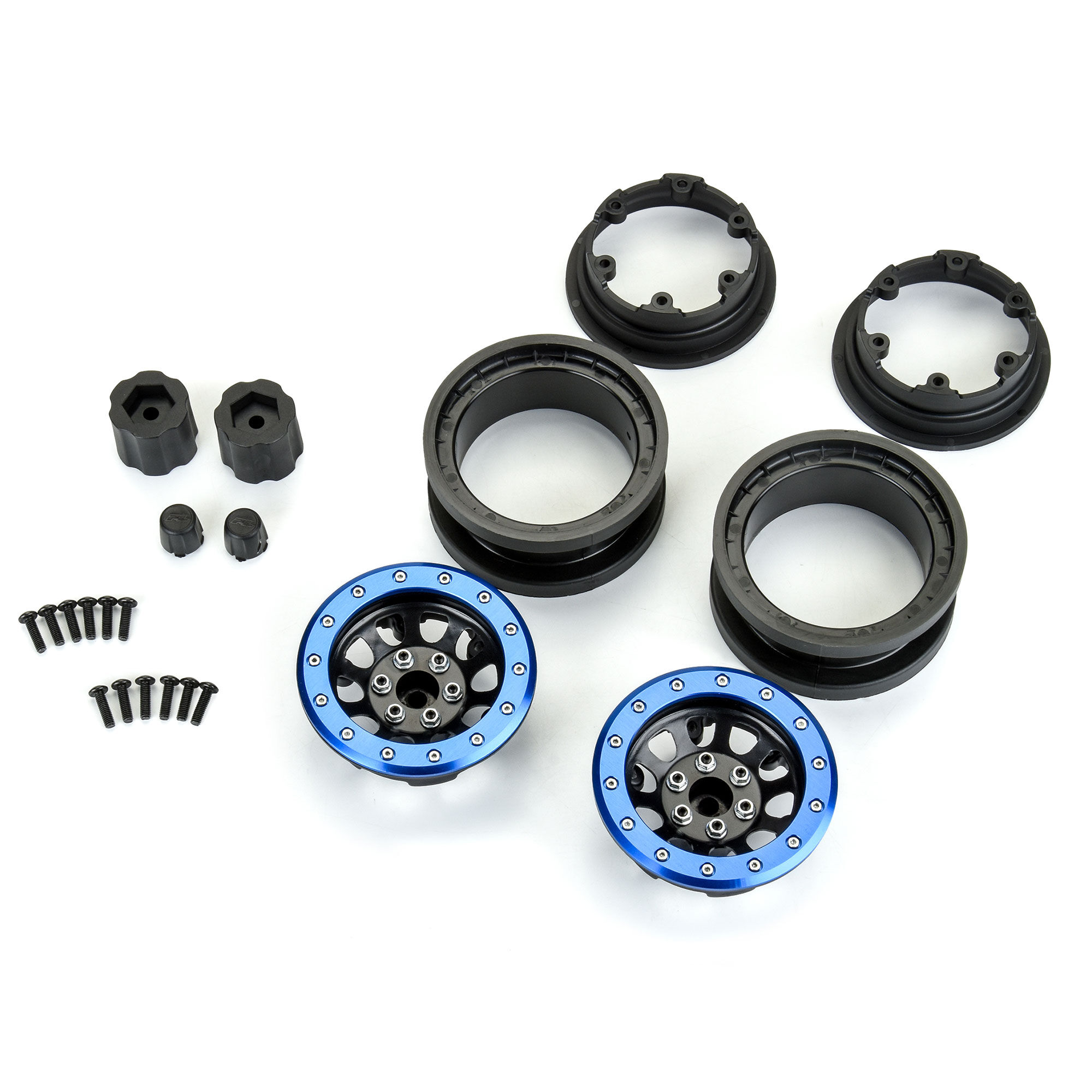

1. Stuff the Internal Bead-loc Ring into your tire, making sure it is centered and fully seated.
2. Assemble the Steel Front Face and the Back Face using (6) M4x14 BHCS, capturing the tire bead.
3. Choose your offset:
1. For a +2mm offset, (pre-installed) align the Hex Adapter holes with the back of the wheel face. Secure using (6) M3x20 Set Screw
2. For a +10mm offset, align the Hex Adapter holes with the back of the wheel face. Secure using (6) M3x20 Set Screw
4. Install the Wheel & Tire onto your SCX6™ using the stock wheel nut
5. Install the P-L Hub Cab by pressing it into the wheel center.

Please note: All tires & wheels are sold in pairs, unless otherwise noted

PRO283800 |Steelies Blue/Black 2.9" Stamped Steel Dual Offset (+2/+10) Wheels for Axial® SCX6™

Features

Fits
