Pilatus PC-21 1.3m PNP
A-EFL14975
E-flite E-flite 0660132889173
NEW
SRP: £659.99
SMAP:
Trade:

Barcode:
0660132889173

Product Details

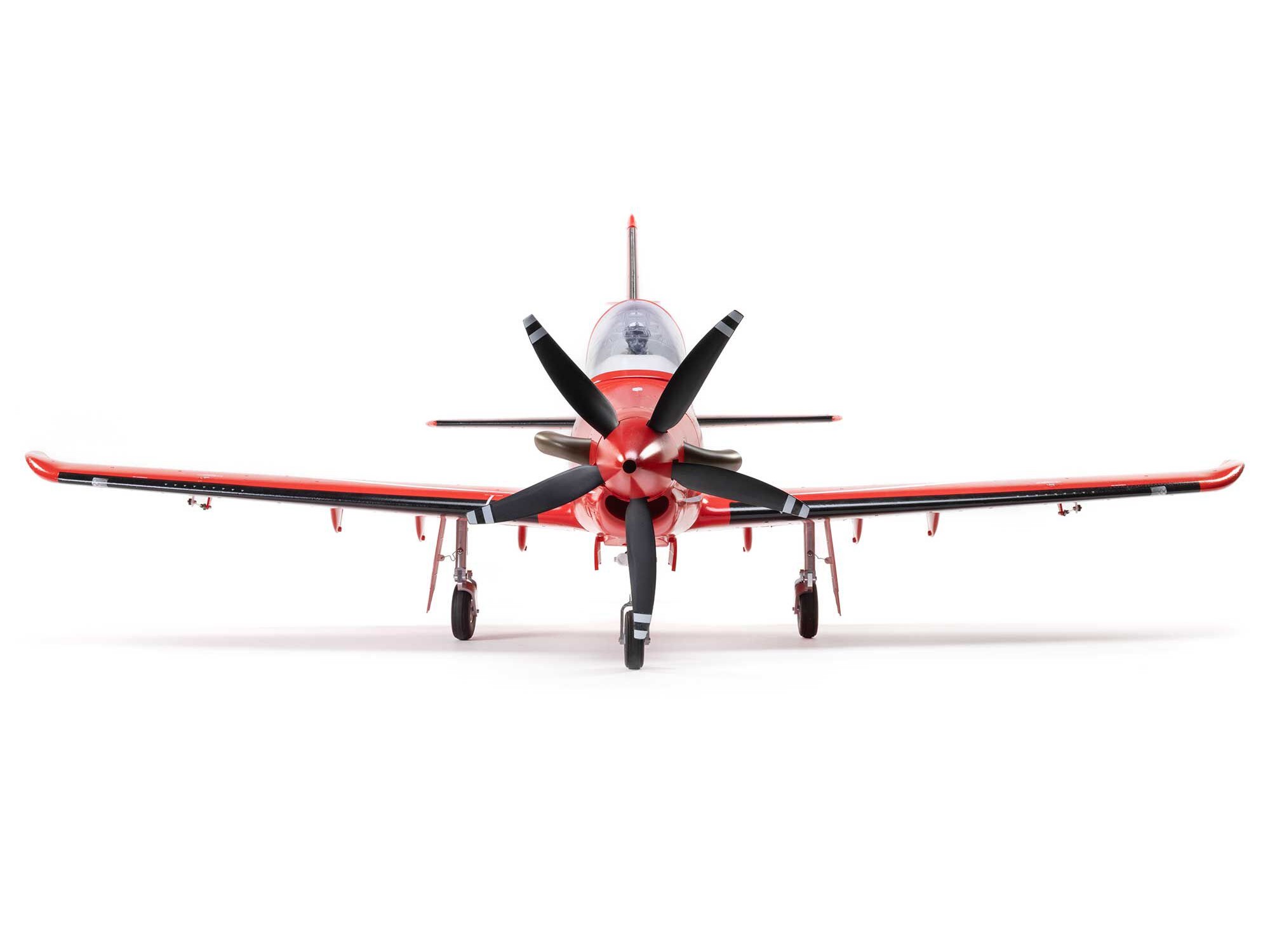

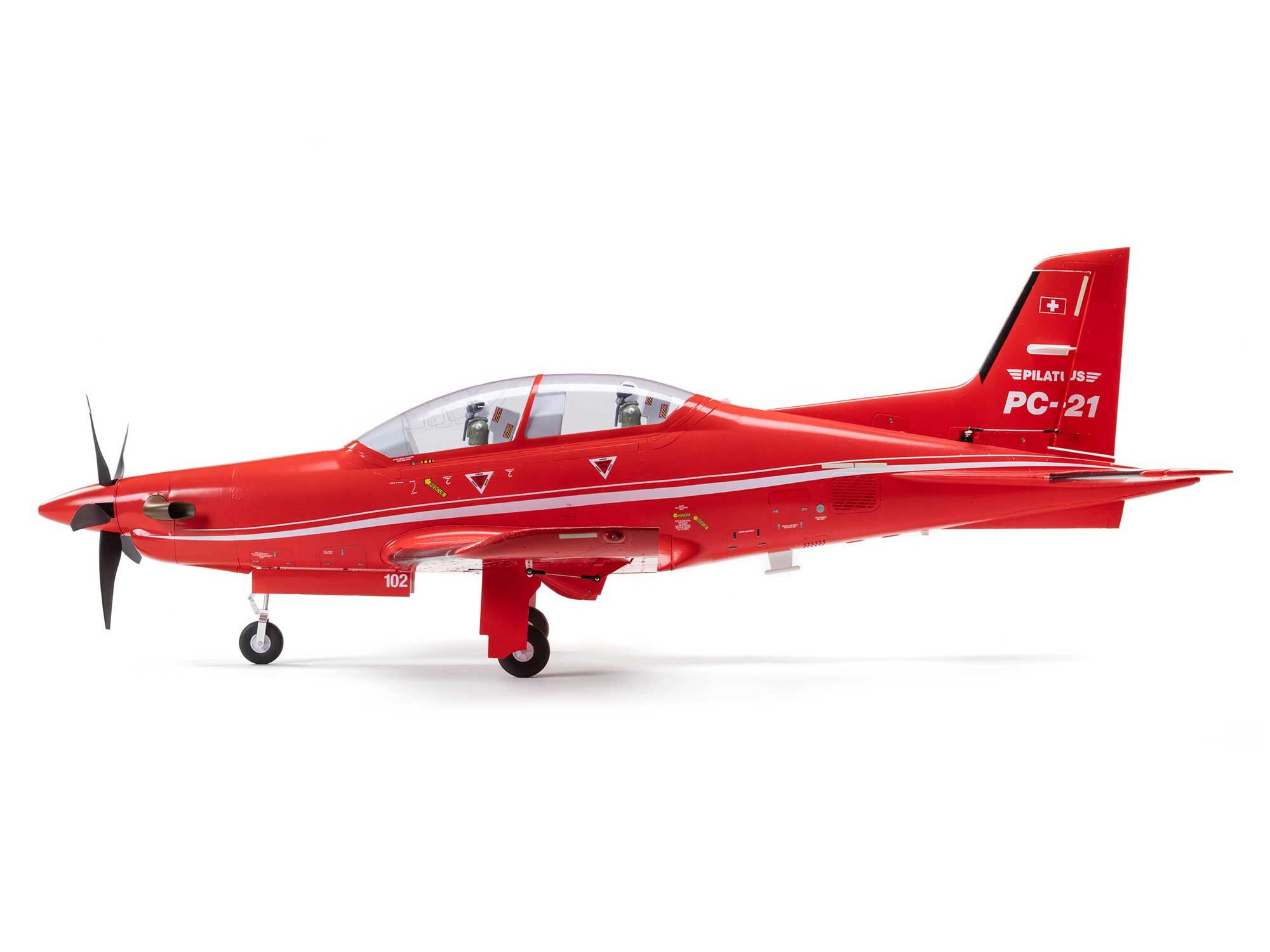

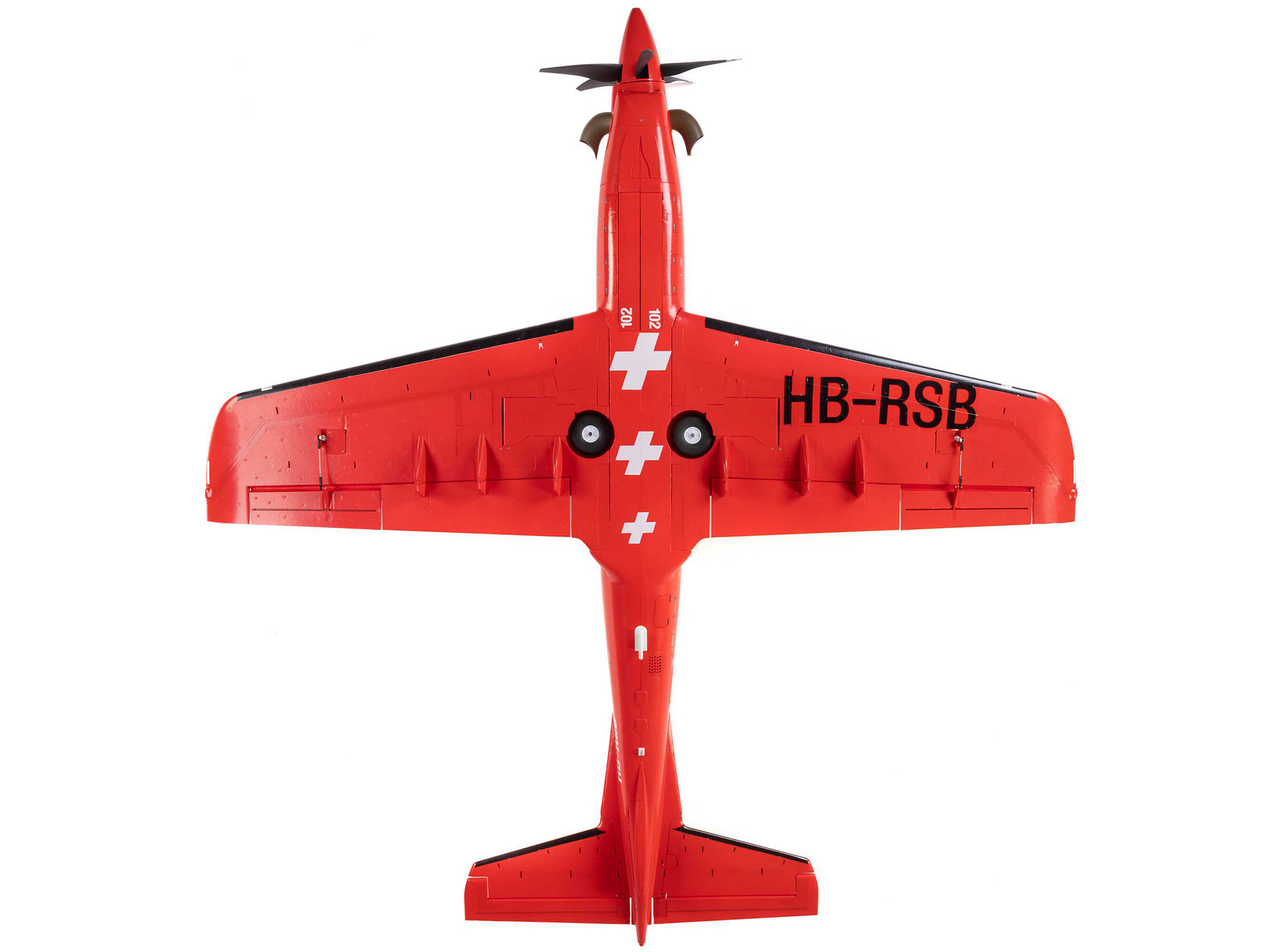

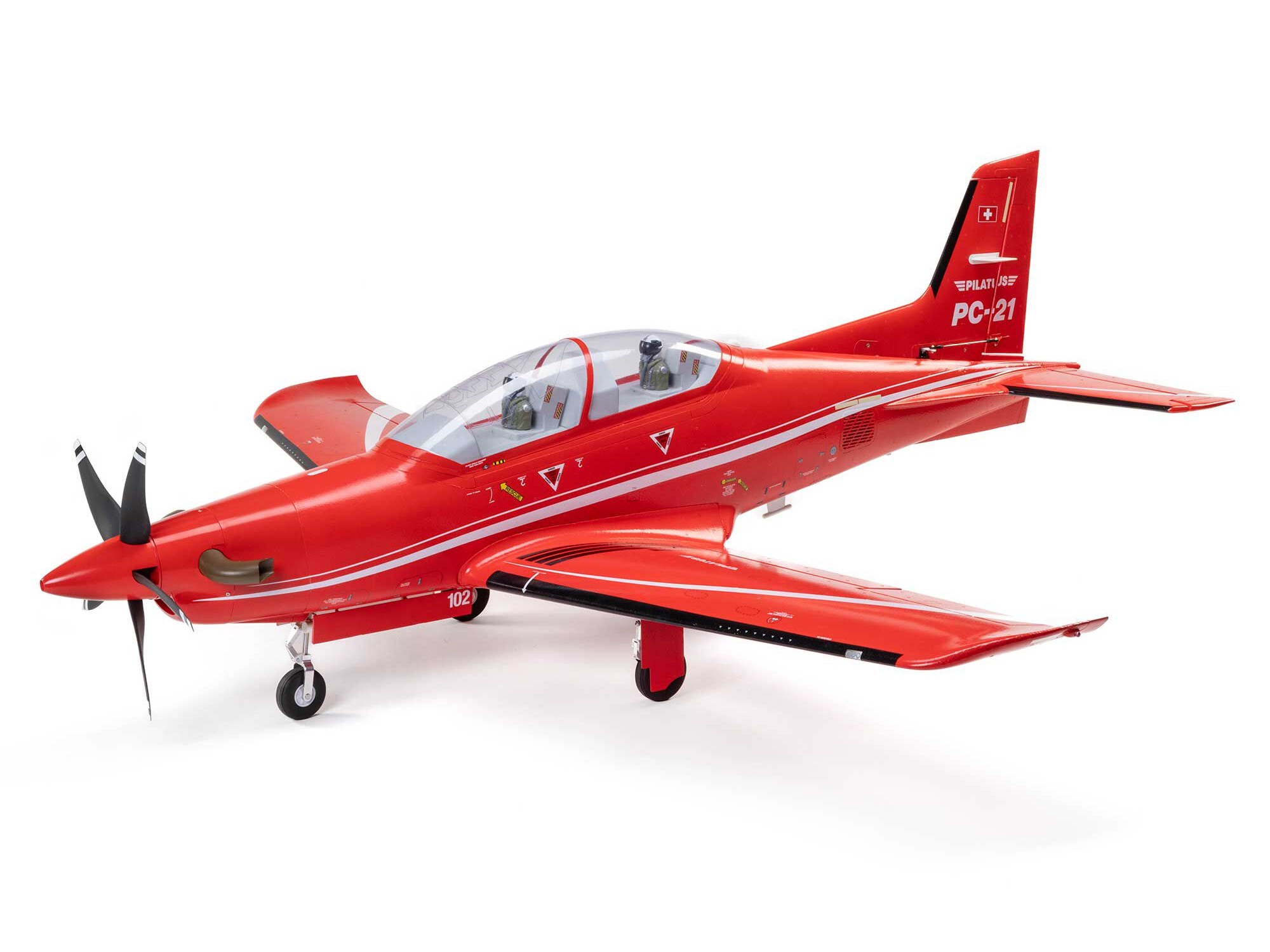

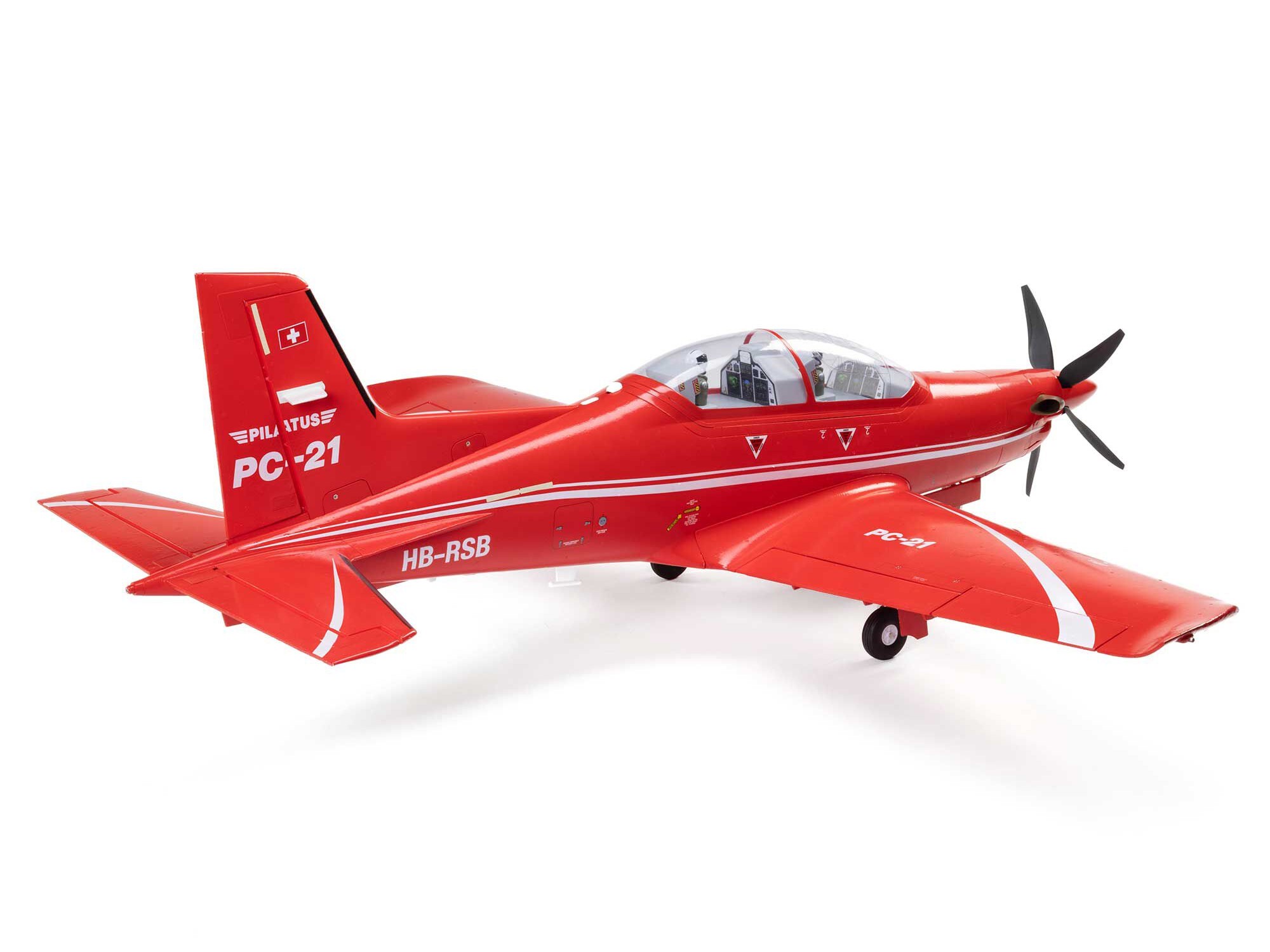

The E-flite® Pilatus PC-21 1.3m (1.45m L) is an incredible scale replica of the popular turboprop-powered advanced trainer in service with many air forces worldwide. It features more scale details and functional features than smaller PC-21 models, plus it delivers amazing flight and aerobatic performance while also being capable of level-flight top speeds up to 100+ MPH with 6S batteries!

Key Features

  • The most convenient, detailed, and capable scale replica of the unique Pilatus PC-21 advanced trainer flown by air forces worldwide
  • An abundance of scale details including exhaust stacks, simulated antennas, pilot figures, and more
  • Functional scale features including flaps, nose gear doors, retracts, LED landing, navigation, and anti-collision lights
  • Fits 6S batteries from 4000-7000mAh to deliver a wide range of performance and flight times
  • Unlimited vertical performance plus level-flight top speeds up to 100+ MPH with the stock 5-blade propeller and spinner
In The Box
  • (1) E-flite PC-21 1.3m (1.45m L) with:
  • (7) Spektrum Metal-Geared Servos (installed)
  • (1) Spektrum Brushless Outrunner Motor (installed)
  • (1) Spektrum Avian 100-Amp Smart Brushless ESC (installed)
  • (1) Product Manual
Needed to Complete
  • Full-range 6+ channel transmitter and receiver
  • 6S 22.2V 4000-7000mAh LiPo with EC5 or IC5 Connector
  • Compatible LiPo charger

E-flite Pilatus PC-21 RC Airplane Introduction

The Pilatus PC-21 is an advanced training platform developed specifically to meet the needs of modern pilots. Designed and built in Switzerland, it features a turboprop engine to deliver jet-like performance and high-G capability, making it the top choice of numerous air forces around the world. The E-flite® PC-21 1.3m (1.45m L) is a tribute to the unique design featuring a variety of scale details along with functional retracts and flaps, plus landing and navigation lights. It's equipped with a 5-blade propeller, a specially tuned brushless motor, and a Spektrumâ„¢ Avianâ„¢ 100A Smart ESC compatible with 6S 4000–7000mAh batteries to deliver unlimited vertical performance and level-flight top speeds up to 100+ MPH. The BNF Basic version also includes a telemetry-capable AR637TA+ receiver with enhanced AS3X+®, optional-use SAFE® Select, and convenient Smart Transmitter File technologies that make it even easier for a wide range of pilots to fly and enjoy!

E-flite Pilatus PC-21 RC Airplane Overview

The E-flite® Pilatus PC-21 1.3m (1.45m L) is designed to be the most convenient and capable scale model of the modern advanced training platform from Pilatus yet! It features an abundance of scale details and functional features, including LED landing, navigation, and anti-collision lights, as well as flaps with true-to-scale hinges and hidden pushrods. Factory-installed electric retracts with durable metal components, including shock-absorbing and heavy-duty trailing link struts, make it possible to take off from a wide variety of surfaces, including paved runways, packed dirt, and even some grass.

The sleek EPO airframe is composite-reinforced throughout and is factory-finished with a premium fully-painted plus waterslide decal trim scheme. Best of all, no glue is required for assembly – a total of eight hex head screws secure the vertical stabilizer and the two-piece wing with hands-free connections, and the horizontal stabilizers snap into/out of place without the use of any tools or fasteners. That means you can be ready to enjoy an authentic PC-21 flying experience unlike any other in less time than it takes to charge a battery!

Both versions include seven factory-installed metal-geared servos with ball-link equipped linkages. They deliver precise and reliable control for everything from scale to high-speed, pattern-like, and even aggressive aerobatic flying – especially the BNF Basic version that's equipped with a factory-installed AR637TA+ receiver featuring enhanced AS3X+® and optional-use SAFE® Select Select technologies. The receiver is also loaded with a Smart Transmitter File (STF) that allows you to automatically import all settings for NX and iX series transmitters during the binding process so you can be flying in less time than ever before.

The specially-tuned brushless outrunner motor and Spektrum™ Avian™ 100-amp Smart ESC are compatible with popular and common 6S 4000–7000mAh batteries. You can install the included 5-blade prop and spinner to deliver unlimited vertical performance and level-flight top speeds up to 100+ MPH. Or you can install the included 2-blade spinner and an optional APC 12x12E prop (APC12012E, sold separately) to achieve even higher speeds at significantly less current draw for longer flight times. The ESC can provide a variety of real-time power system telemetry data with both Smart and non-Smart batteries via compatible receivers (including the AR637TA+ installed in the BNF Basic version) and Spektrum AirWare-equipped transmitters. With a 7–8+ channel transmitter, you can also utilize the optional-use motor/thrust reversing to shorten rollouts after landing and for other unique ground handling capabilities.

All these details and features combine to deliver a convenient and extremely capable scale replica of the PC-21 that's an excellent choice for intermediate to experienced pilots!

E-flite Pilatus PC-21 RC Airplane Features

  • The most convenient, detailed, and capable scale replica of the unique Pilatus PC-21 advanced trainer flown by air forces worldwide
  • An abundance of scale details including exhaust stacks, simulated antennas, pilot figures, and more
  • Functional scale features including flaps, nose gear doors, retracts, LED landing, navigation, and anti-collision lights
  • Extremely wide flight envelope from unexpectedly stable slow-flight to locked-in precision aerobatic capabilities and beyond
  • 100-amp Spektrum Avian Smart ESC provides real-time battery voltage, temperatures, motor RPM and other data with Smart and non-Smart batteries
  • Optional-use motor/thrust reversing to help shorten rollout after landing and for other special ground handling capabilities
  • Fits 6S batteries from 4000-7000mAh to deliver a wide range of performance and flight times
  • Unlimited vertical performance plus level-flight top speeds up to 100+ MPH with the stock 5-blade propeller and spinner
  • More speed, lower current draw and longer flight times using the included 2-blade spinner and an optional (sold separately) APC 12x12E prop
  • Seven factory-installed metal-geared servos with precise ball-link equipped linkages

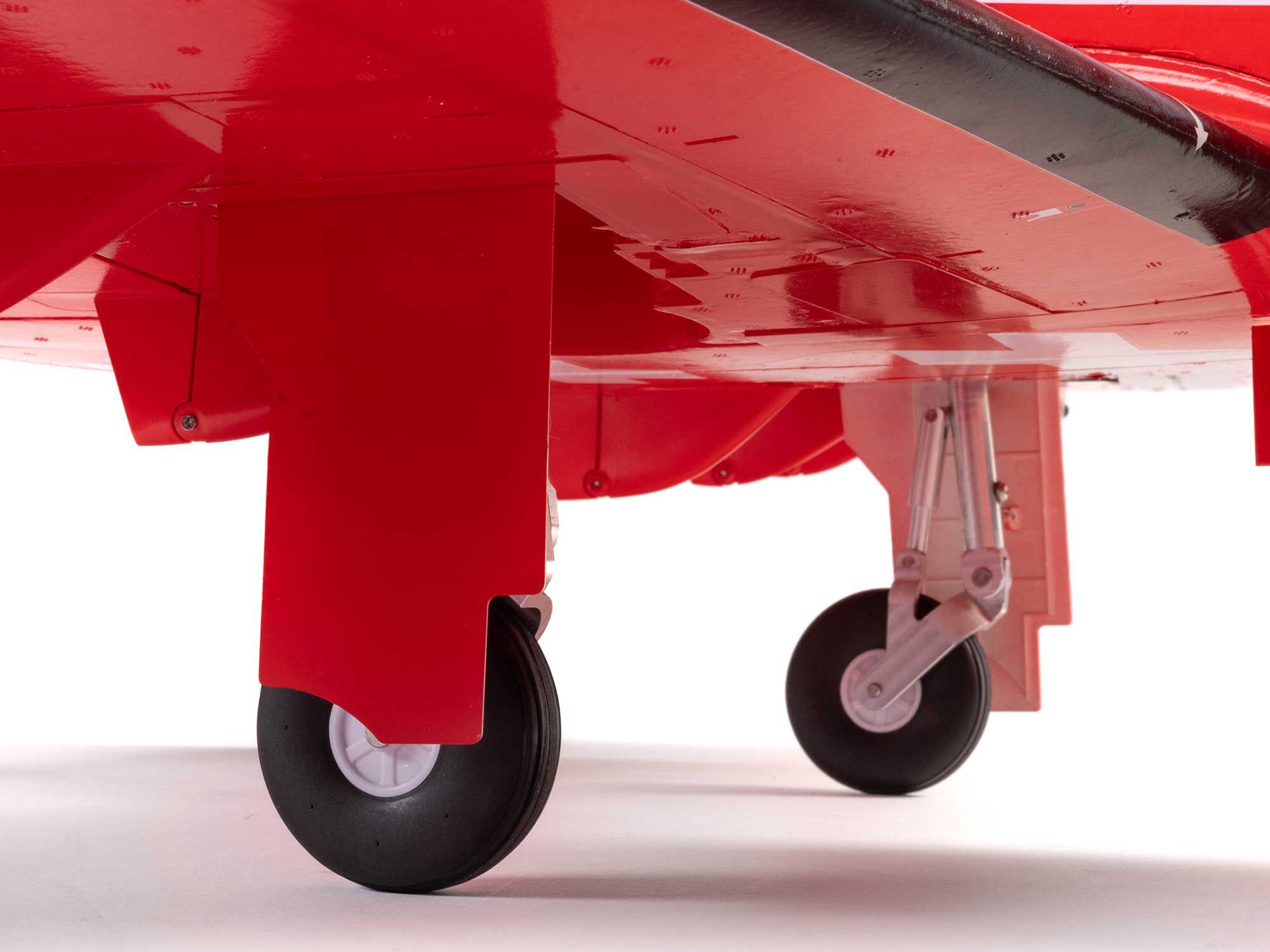

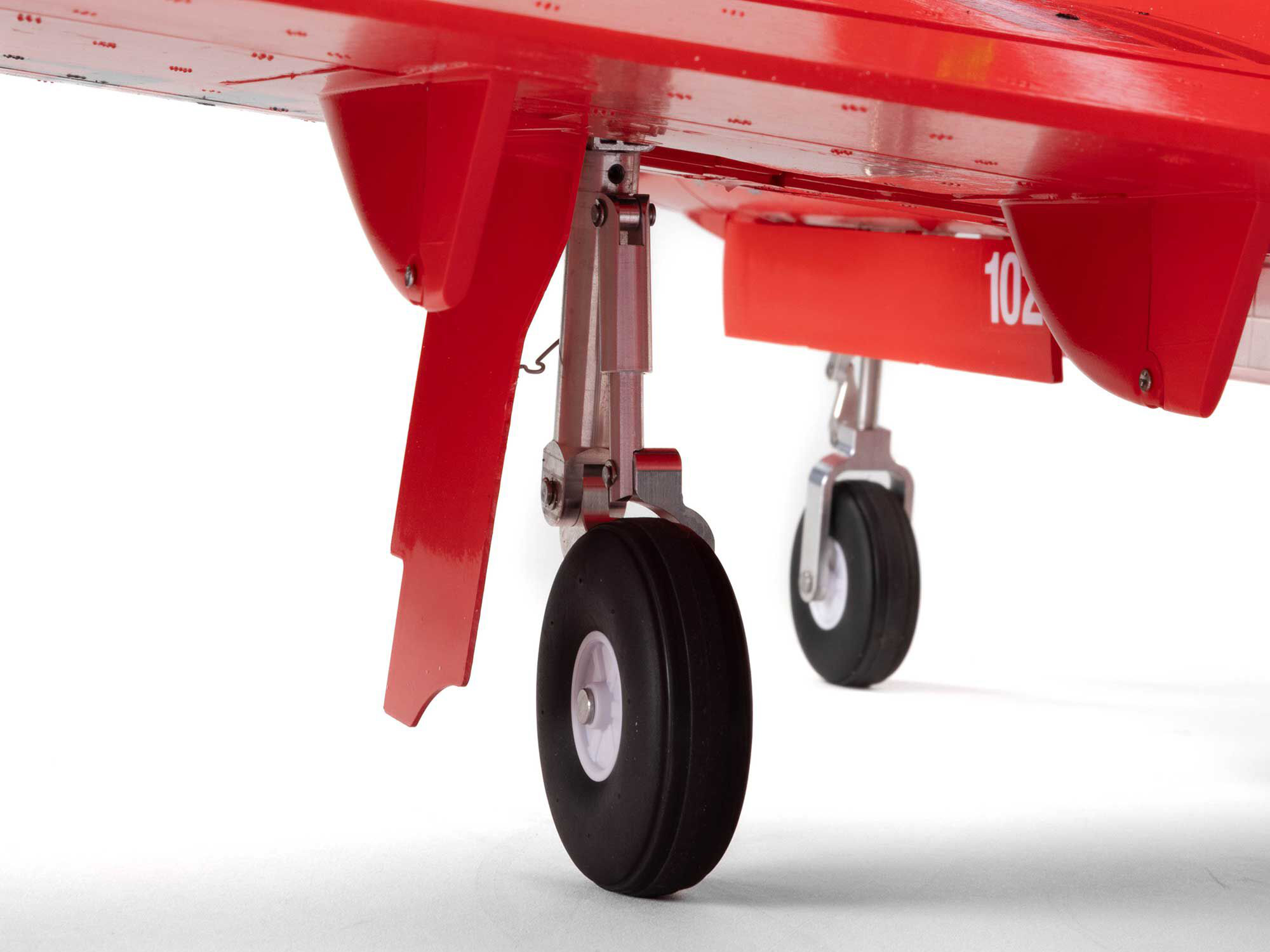

  • Electric retracts with shock-absorbing and heavy-duty trailing link struts to fly from a variety of surfaces including pavement, dirt and short grass
  • Functional flaps with scale hinges and hidden linkages for shorter takeoffs and landings plus improved slow-flight performance
  • Plastic capped hatch edges and opening for added durability to prevent damage and paint chipping
  • No glue required for assembly and can be ready to fly in less time than it takes to charge a battery

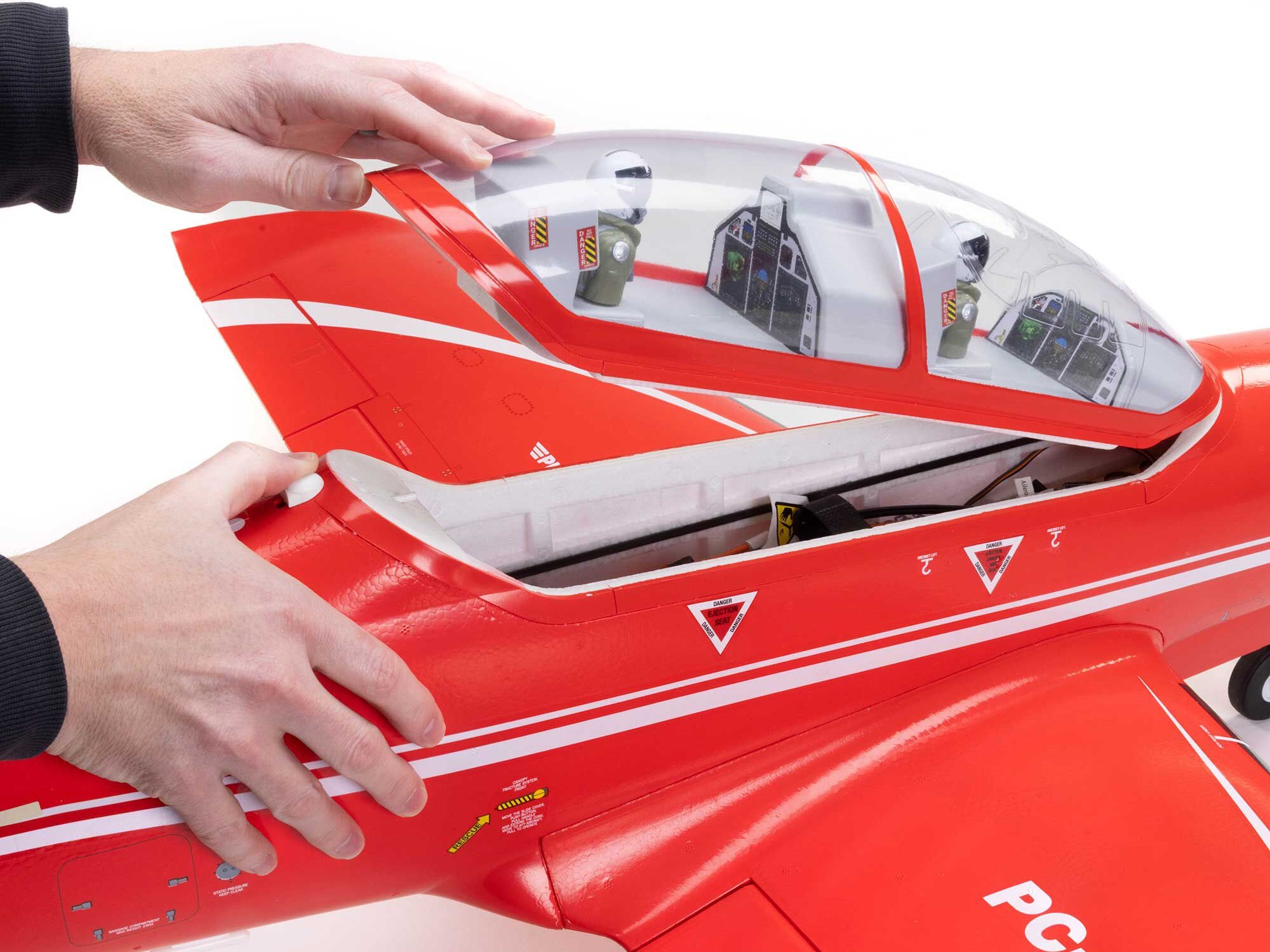

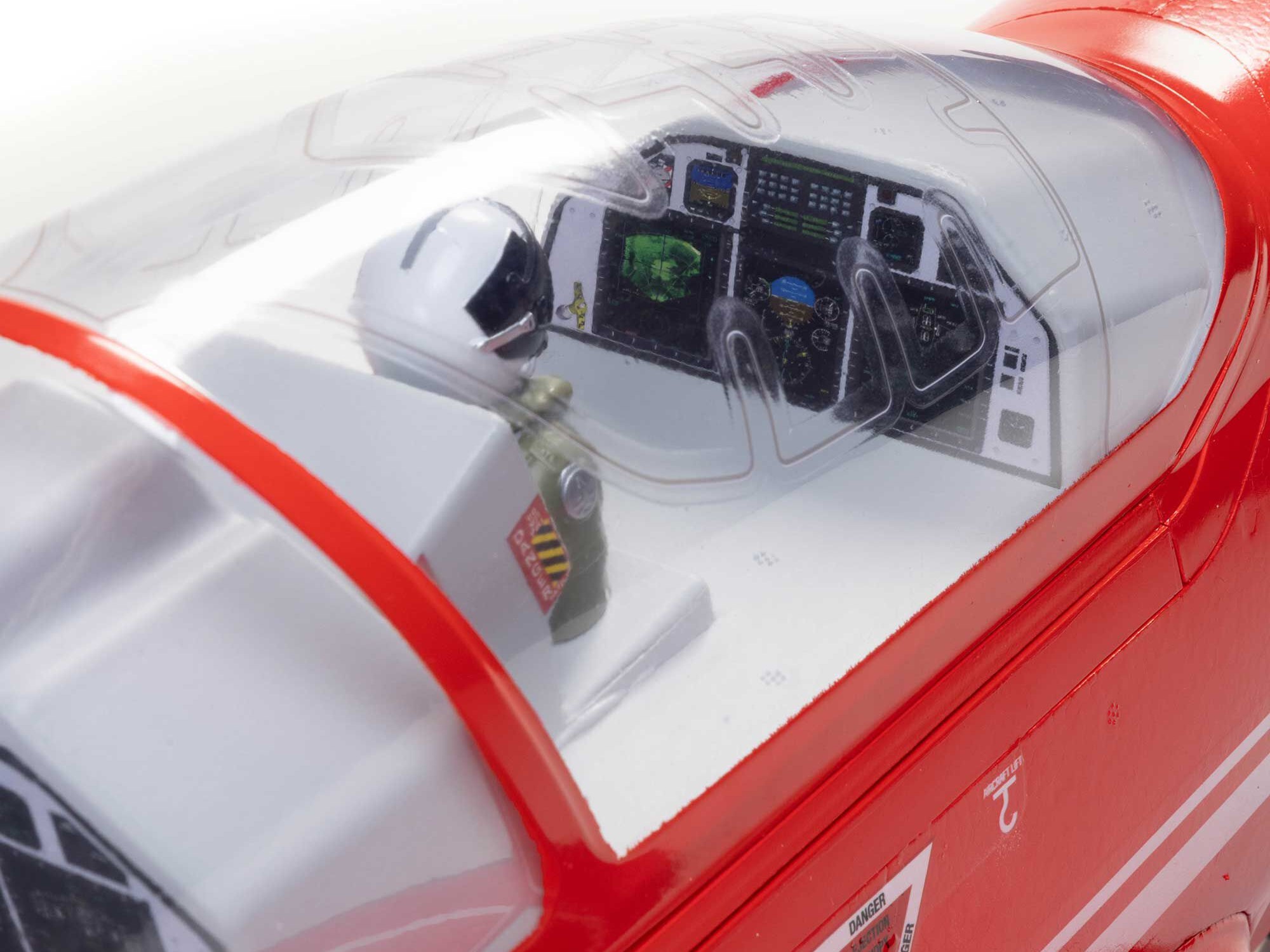

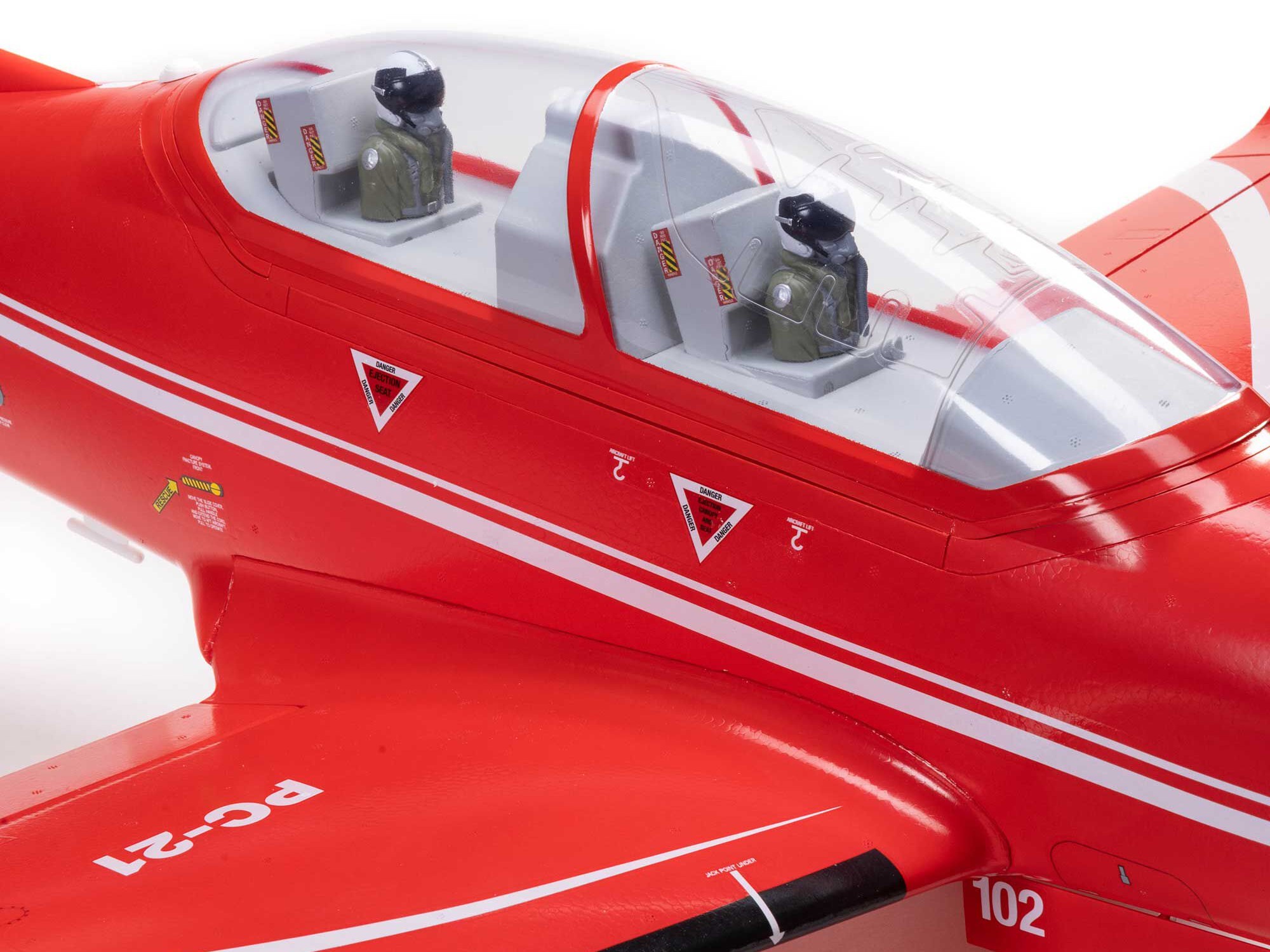

  • Convenient top hatch with clear canopy, cockpit detail, and two pilot figures
  • Premium fully painted trim scheme with factory-applied water-slide decals
  • Two-piece wing with hands-free connections that bolts into place
  • Extremely durable, fully moulded high density EPO airframe
Skill Level 4 for the E-flite Pilatus PC-21 RC Airplane
Skill Level 4 – Advanced Pilots (Advanced Experience Required)

Skill Level 4 aircraft, like this one, are suitable for more experienced RC pilots who already have the skills to assemble, set up and fly similar class models. This PNP version requires more experience and skills to assemble and fly than the BNF Basic version because you will need to install a receiver that does not already include properly tuned AS3X+ and SAFE Select technologies. You should have the experience and skills necessary to successfully fly models like the E-flite ElectroStreak 1.1m, V1200 1.2m, 1.2m to 1.5m warbirds, 64mm and larger EDF, or other similar class models before attempting to fly the PC-21 1.3m PNP version.

Plug-N-Play Completion Level Completion Level Advantage Completion Level for the E-flite Pilatus PC-21 RC Airplane
Plug-N-Play® Completion Level

The Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately), plus the transmitter and battery you provide (also sold separately). Simply install the receiver, finish any final assembly, and fly!

Strength and Precision for the E-flite Pilatus PC-21 RC Airplane
Smart Technology

The PC-21 1.3m is equipped with an exclusive Spektrum Avian Smart ESC that can provide a variety of real-time power system related telemetry data including overall battery voltage and more – with Smart and non-Smart batteries – via compatible receivers (including the AR637TA+ installed in the BNF Basic version) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. With a 7–8+ channel transmitter, you can also utilize the optional-use motor/thrust reversing to shorten rollouts after landing and for other unique ground handling capabilities.

Choose Your Performance for the E-flite Pilatus PC-21 RC Airplane
Choose Your Performance

The PC-21 1.3m is factory-equipped with a high-power brushless power system that gives you the option to choose the performance you prefer with common and popular 6S 4000–7000mAh batteries. Install the included 5-blade prop and spinner for less noise and to deliver unlimited vertical performance plus level-flight top speeds up to 100+ MPH. Or install the included 2-blade spinner and an optional APC 12x12E prop (APC12012E, sold separately) to achieve even higher speeds at significantly less current draw for longer flight times with the same batteries.

Strength and Precision for the E-flite Pilatus PC-21 RC Airplane
Strength and Precision

Speed is nothing without the right balance of strength and precise control. The PC-21's stunning and sleek airframe is moulded in high-density EPO that results in a stronger and stiffer airframe. It's also composite-reinforced including multiple carbon fiber spars throughout the wing, fuselage and tails. Plus, it's equipped with metal-geared servos and linkages with ball-links that deliver the precise control and reliability you need to enjoy flying scale-like or fast flight after flight.

Functional Features for the E-flite Pilatus PC-21 RC Airplane
Functional Features

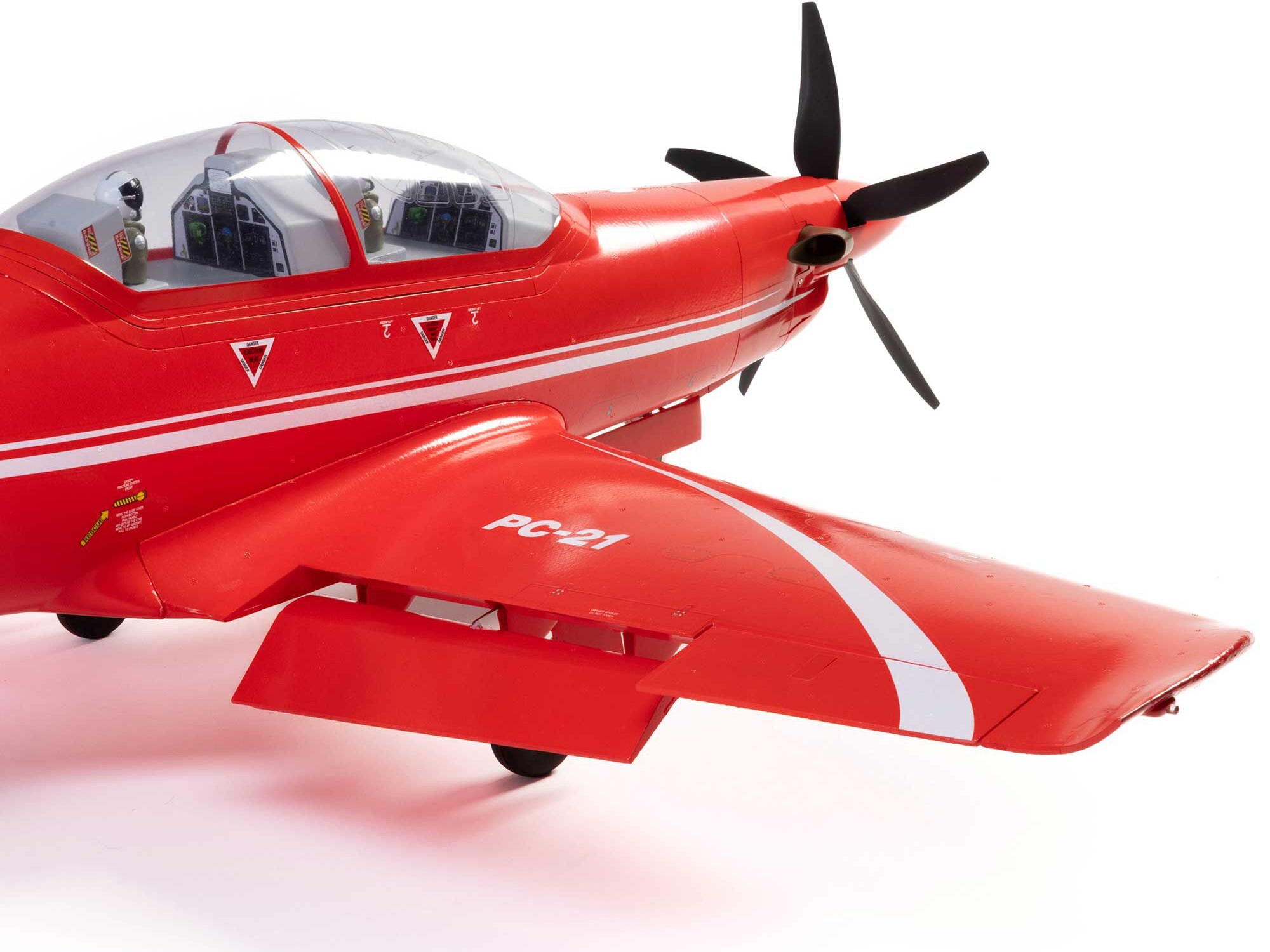

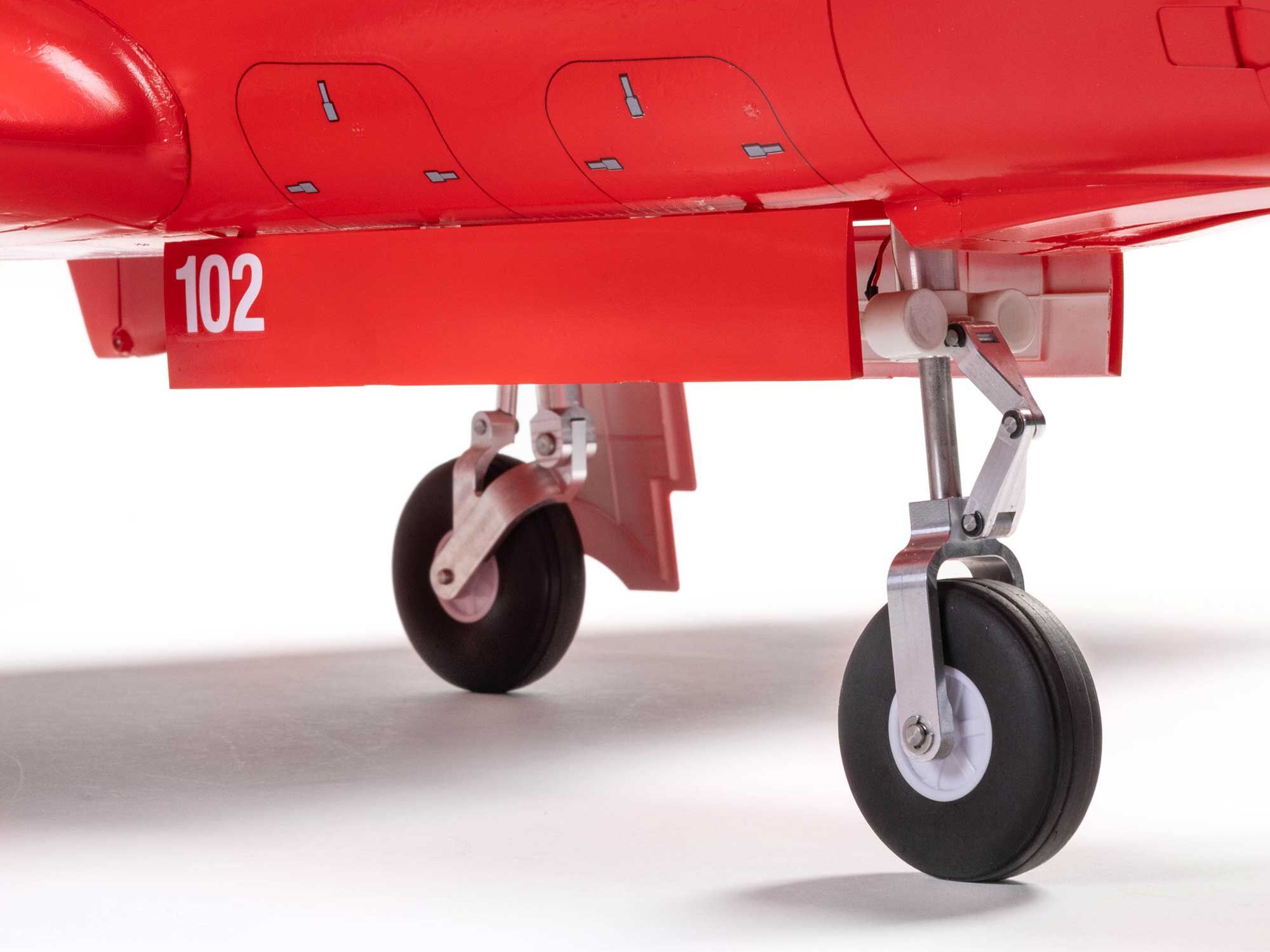

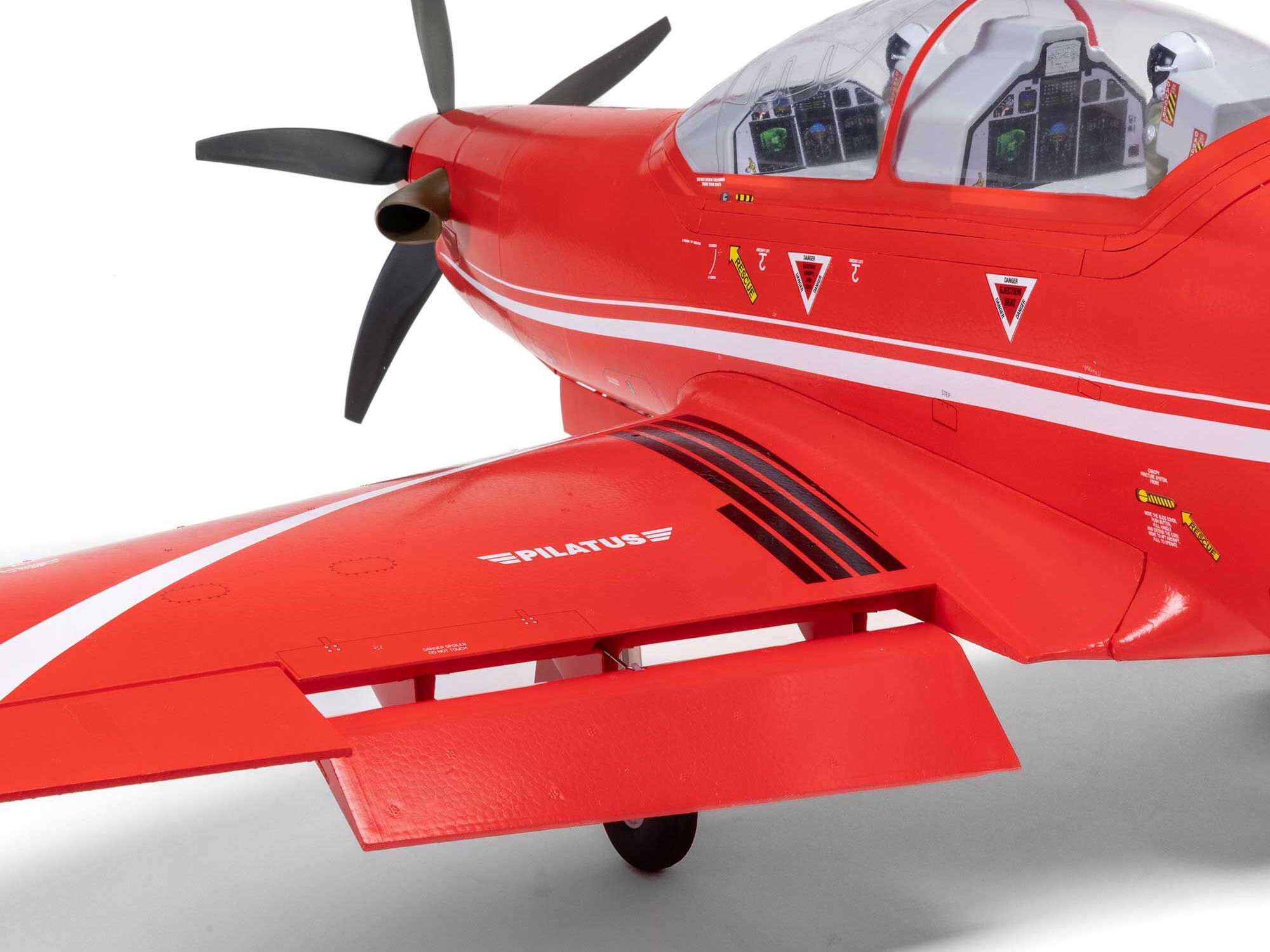

Operational flaps with true-to-scale hinges and hidden linkages offer improved slow-flight capability and performance while also making it possible to take off and land in shorter distances and at slower speeds. Durable and reliable electric retracts with shock-absorbing and heavy-duty trailing link struts make it possible to fly from a variety of surfaces including pavement, dirt and short grass.

Easy Assembly  for the E-flite Pilatus PC-21 RC Airplane
Easy Assembly

No glue is required for assembly and you can have the PC-21 1.3m ready to fly in less time than it takes to charge a battery! With a total of eight hex head screws, the vertical stabilizer and the two-piece wing bolt into place and can easily be removed for convenient storage and transport. Plus, the horizontal stabilizers snap into/out of place without the use of any tools or fasteners.

Scale Details for the E-flite Pilatus PC-21 RC Airplane
Scale Details

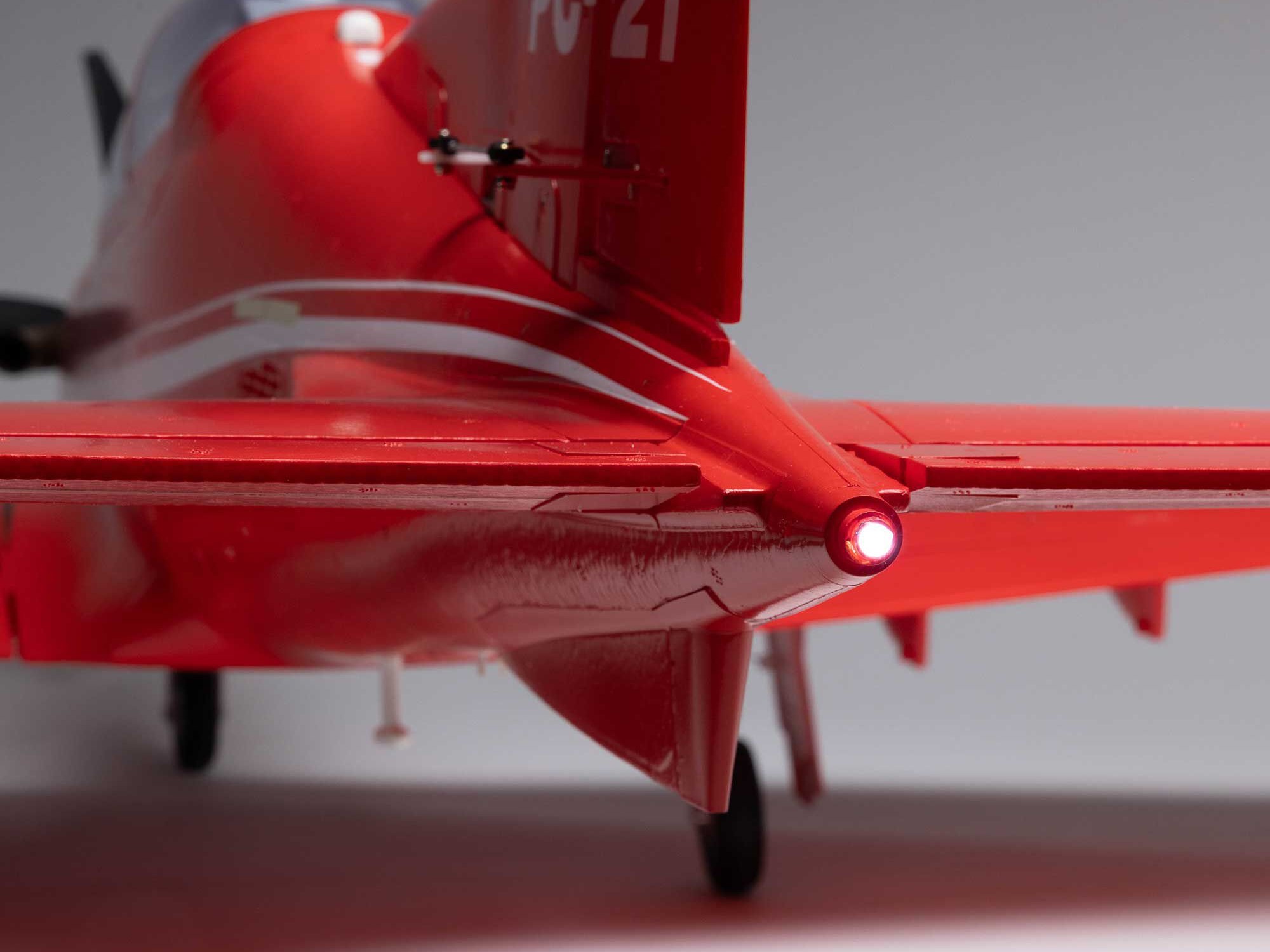

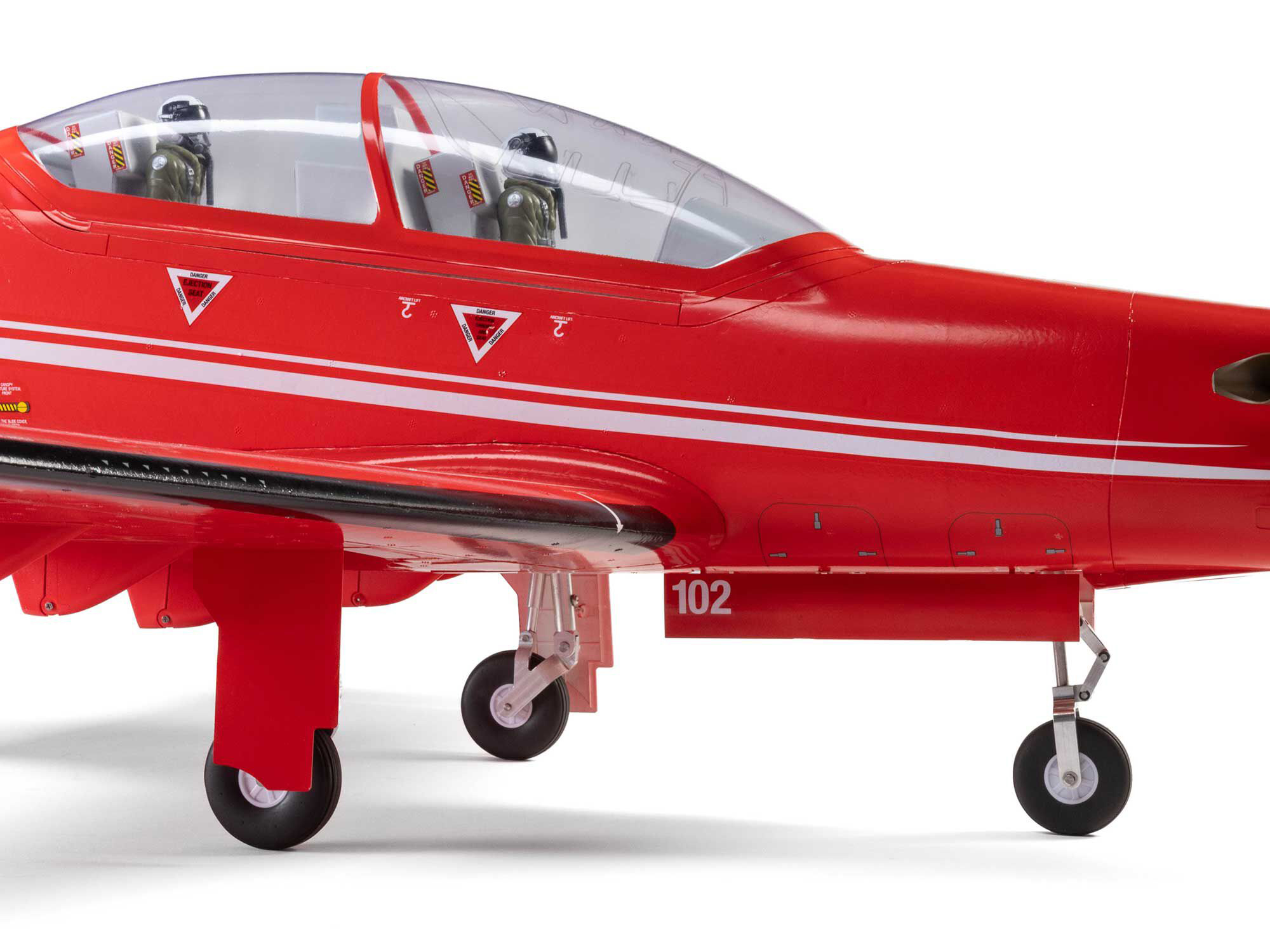

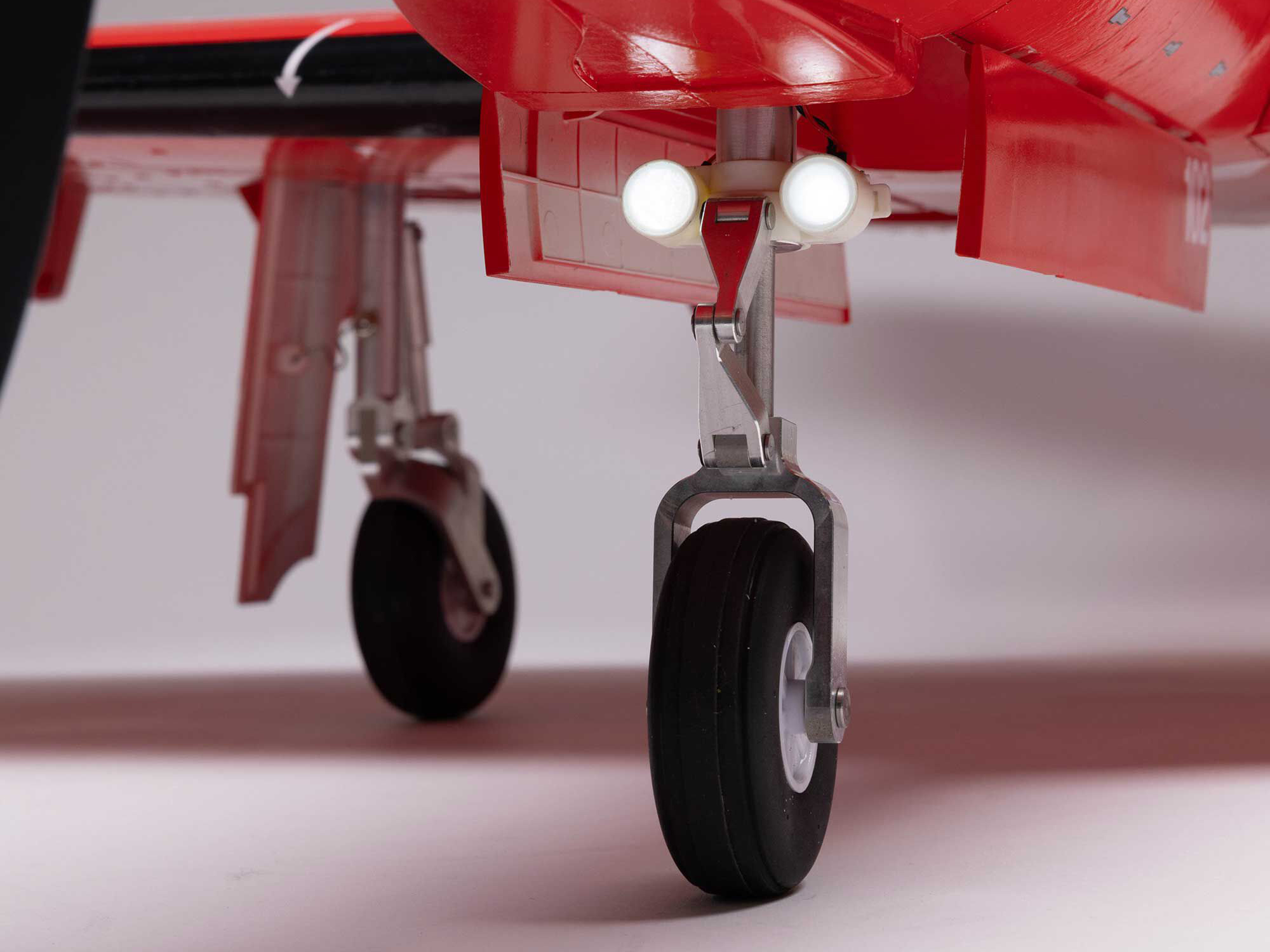

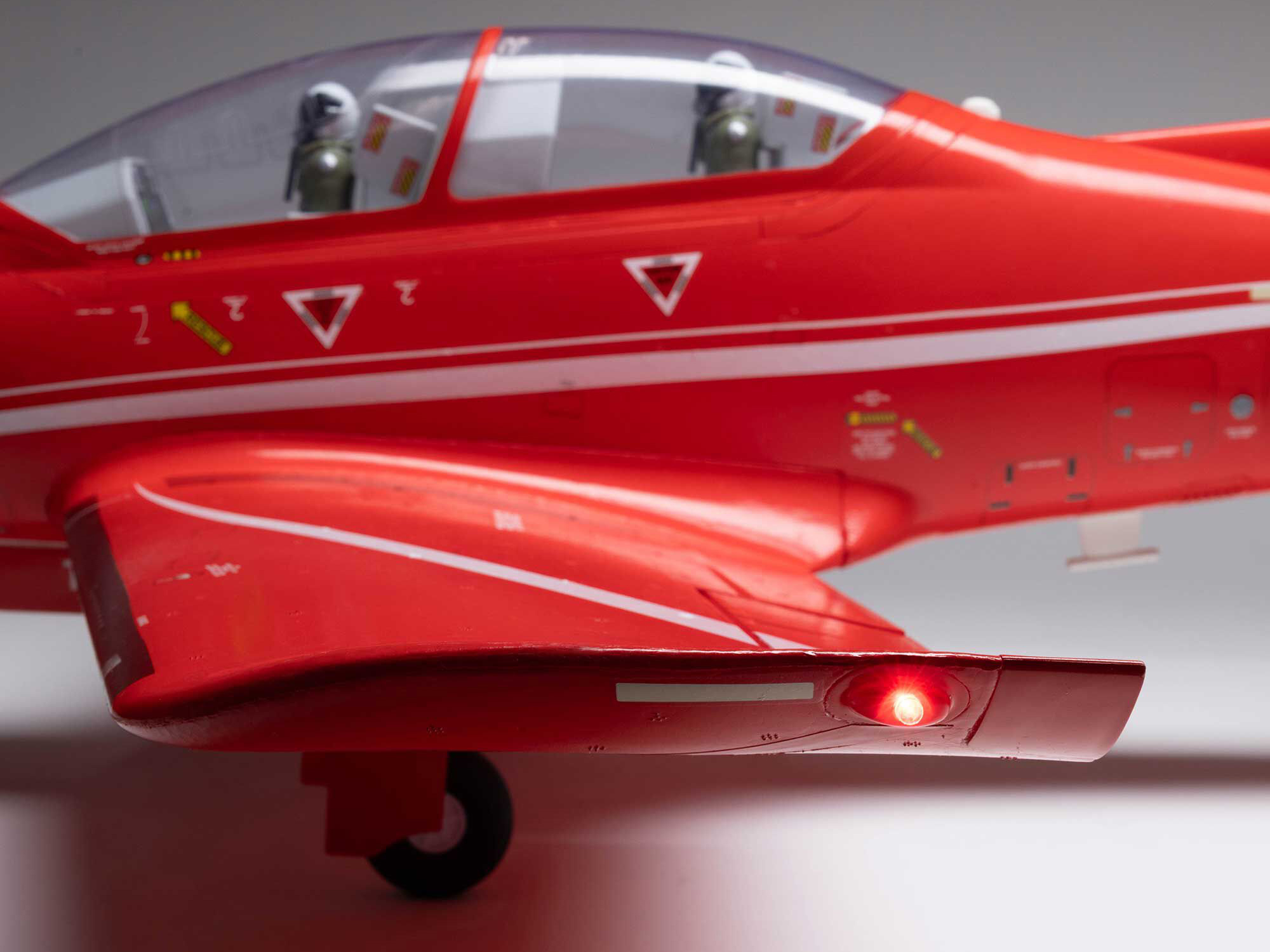

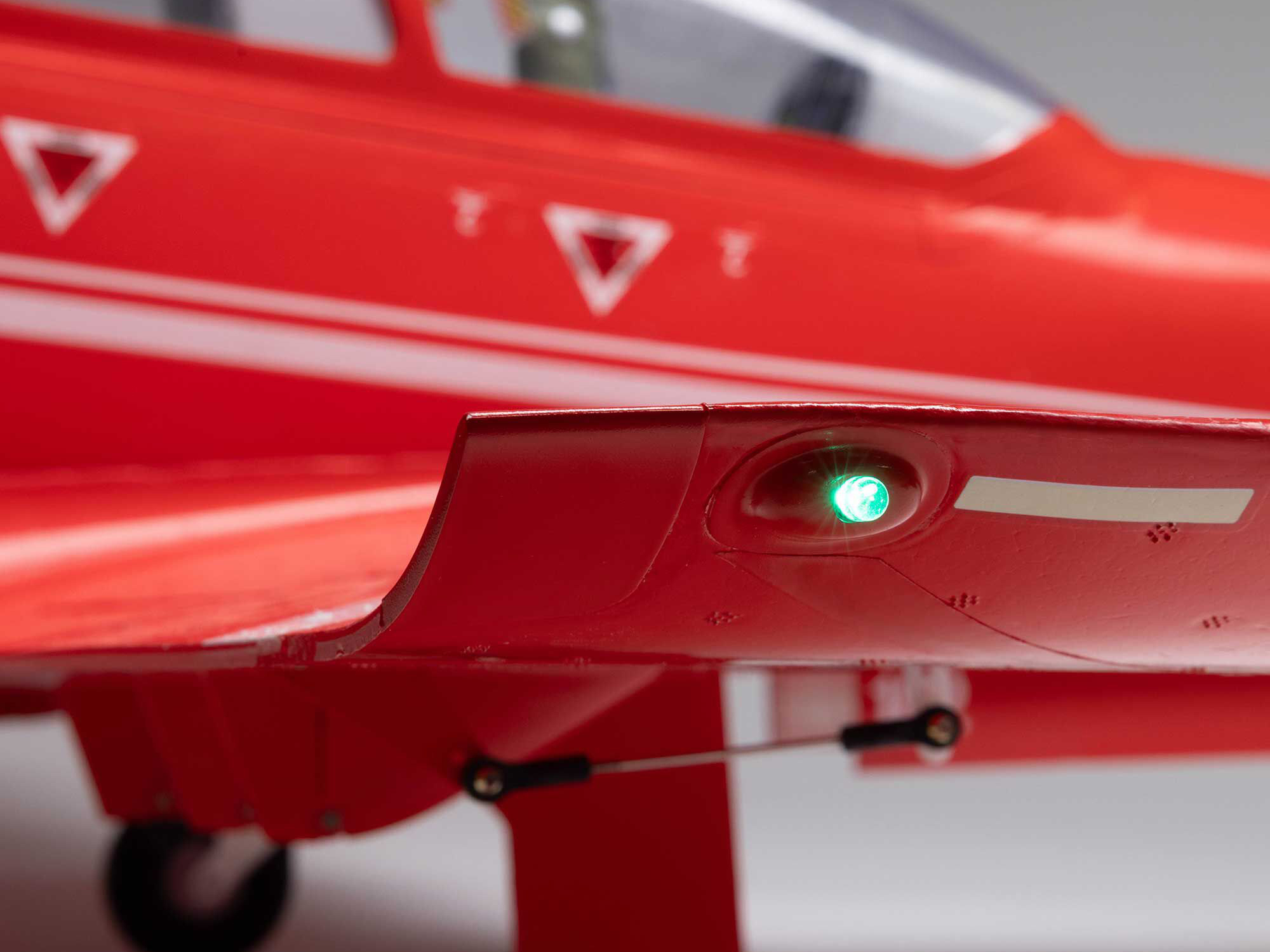

Nose gear doors plus LED landing, navigation, and anti-collision lights, exhaust stacks, simulated antennas, and more are features that take your scale experience to another level.




Spec Data
Wingspan
1320mm
Battery type 6S Lipo with IC/EC5 Connector
Motor type 5065-470Kv Brushless Motor
Weight
2897g
Length
1448mm
Video Gallery

Related Items

Completion Guide

Image Item Id Name Trade SRP Order
Now
  O-SPMX76S30 7000mAh 6S 22.2V SMART G2 30C IC5 £209.99
  P-SPM-1032 AR637T+ DSMX 6-Channel AS3X+ & SAFE Telemetry Receiver £84.99

Optional Parts

Image Item Id Name Trade SRP Order
Now
  O-SPMX-1070 22.2V 6000mAh 6S 120C Smart G2 Pro Air LiPo Battery: IC5 £164.99
  O-SPMX56S100 22.2V 5000mAh 6S 100C Smart G2 LiPo Battery: IC5 £174.99
  O-SPMX70006S30 7000mah 6S 22.2V Smart LiPo 30C; IC5 £199.99
  O-SPMX76S30 7000mAh 6S 22.2V SMART G2 30C IC5 £209.99
  P-SPM-1031 AR631+ DSMX 6-Channel AS3X+ & SAFE Receiver £74.99
  P-SPMXBC200 Smart LiPo Battery Checker & Servo Tester £64.99
  P-SPMXGPS100 GNSS Wireless GPS Speed Meter and Data Logger £109.99
  T-DYN2834 Startup Tool Set: Metric £32.50

Pit/Field Tools

Image Item Id Name Trade SRP Order
Now
  T-DYN2834 Startup Tool Set: Metric £32.50

Replacement Parts

Image Item Id Name Trade SRP Order
Now
  M-SPMXAM3600 Brushless Motor 5065-470Kv, 14-Pole £109.99
  P-SPMSA332 9g servo MG £10.99
  P-SPMXAE1100D Avian 100Amp Brushless Smart ESC, 3-6S Ver. D £119.99
  Z-EFL14951 Fuselage: Pilatus PC-21 1.3m £144.99
  Z-EFL14952 Wing Set: Pilatus PC-21 1.3m £129.99
  Z-EFL14953 Horizontal Stabilizer Set: Pilatus PC-21 1.3m £42.50
  Z-EFL14954 Vertical Stabilizer: Pilatus PC-21 1.3m £42.50
  Z-EFL14955 Canopy Hatch: Pilatus PC-21 1.3m £42.50
  Z-EFL14956 Flap Hinge Set: Pilatus PC-21 1.3m £10.99
  Z-EFL14957 Aileron Servo Covers: Pilatus PC-21 1.3m £8.99
  Z-EFL14958 Cowling: Pilatus PC-21 1.3m £10.99
  Z-EFL14959 Landing Gear Doors: Pilatus PC-21 1.3m £16.99
  Z-EFL14960 Spinner (5-Blade): Pilatus PC-21 1.3m £10.99
  Z-EFL14961 Spinner (2-Blade): Pilatus PC-21 1.3m £10.99
  Z-EFL14962 Lighting Set: Pilatus PC-21 1.3m £15.99
  Z-EFL14963 Hatch Latch: Pilatus PC-21 1.3m £12.99
  Z-EFL14964 Right Landing Gear Strut: Pilatus PC-21 1.3m £37.50
  Z-EFL14965 Left Landing Gear Strut: Pilatus PC-21 1.3m £37.50
  Z-EFL14966 Nose Landing Gear Strut: Pilatus PC-21 1.3m £37.50
  Z-EFL14967 Dummy Exhaust Set: Pilatus PC-21 1.3m £6.99
  Z-EFL14968 Control Horn Set: Pilatus PC-21 1.3m £8.99
  Z-EFL14969 Servo Arm Set: Pilatus PC-21 1.3m £6.99
  Z-EFL14970 Pushrod Set: Pilatus PC-21 1.3m £12.99
  Z-EFL14971 Wheel Set: Pilatus PC-21 1.3m £10.99
  Z-EFL14972 Axle Set: Pilatus PC-21 1.3m £9.99
  Z-EFL14973 Screw Set: Pilatus PC-21 1.3m £15.99
  Z-EFL14974 Wing Joiner: Pilatus PC-21 1.3m £13.99
  Z-EFL14976 Stabilizer Joiner Set: Pilatus PC-21 1.3m £7.99
  Z-EFL14977 Prop Adapter: Pilatus PC-21 1.3m £8.99
  Z-EFL14978 Strut Pin Set: Pilatus PC-21 1.3m £8.99
  Z-EFL14979 X-Motor Mount: Pilatus PC-21 1.3m £4.99
  Z-EFL14980 Decal Set: Pilatus PC-21 1.3m £34.99
  Z-EFL-3981 Nose Gear Retract: PC-21 1.3m £32.50
  Z-EFL-4737 90-Degree Main Gear Retract Unit: PC-21 1.3m £32.50
  Z-EFLP12125BL Propeller: 5-Blade 12 x 12 Electric £11.99
