. . . Arrma Outcast 4S Stunt Truck RTR

  • New
  • Arrma
  • 1/10th Outcast 4S Stunt Truck RTR
  • ETA: July 2022

PRODUCT OVERVIEW
The original ARRMA OUTCAST 4X4 4S BLX Stunt Truck provided the perfect middle ground between the agile 3S BLX vehicles and bigger, more powerful 6S BLX machines. It delivered affordable, all-out stunt performance for brushed bashers looking to upgrade and for any driver wanting ARRMA toughness and speed.

This new version marks the next evolution of the capable ARRMA 4X4 4S platform - longer, wider, and tougher than the previous chassis for even greater stability and control. It also includes a full package of Spektrum radio electronics and is the first ARRMA 4x4 to come equipped with a Spektrum 4S brushless power system.

The footprint of this OUTCAST 4X4 4S BLX Stunt Truck is 17% larger than the previous model, with higher shock towers, longer shocks, and wider suspension arms for longer, more plush suspension travel. The strength of the transmission has been bolstered with the inclusion of steel gearbox input gears, steel main diff gears and CVD Driveshafts. Upgrades are joined by proven features from before that deliver unstoppable performance in environments ranging from off-road, dirt, and grass to parking lots, paved and asphalt surfaces. These include a strong composite chassis and retained hinge pin plates; protective skid plates in front and rear; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout. The OUTCAST 4X4 4S BLX also incorporates the signature ARRMA easy-access modular design to make routine maintenance fast and simple.
Durable, low-profile dBoots Back-Flip tyres with medium-compound foam inserts offer an aggressive tread pattern for excellent traction on a wide range of surfaces. The vintage truck body has a tough, injection-moulded rear wing and comes factory-finished in your choice of two exciting colours. Front and rear bumpers protect against impacts and a wheelie bar with rubber tyres provides stunt potential.

Completing the ready-to-run package are a Spektrum SLT3 2.4GHz radio with SR315 receiver and a stronger, faster Spektrum S652 digital servo. Add your choice of battery, charger, and "AA" transmitter batteries and bash with the best!

FEATURES
  • NEW 17% Larger footprint - longer and wider than the previous 4X4 4S platform for added stability
  • NEW Tough new suspension arms that increase vehicle width
  • NEW Durable steel 1.35 module main diff gears and input gears in the front and rear gearboxes
  • NEW Strong CVD telescopic driveshafts front and rear
  • NEW Higher shock towers, longer shocks and wider suspension arms for longer, more plush suspension travel
  • NEW Aluminium big bore shocks included as standard
  • NEW CNC machined, red anodized 17mm wheel hubs
  • NEW Steel slipper hub strengthening ring
  • NEW Spektrum Firma 120A brushless ESC and 3668 2400Kv motor
  • NEW Spektrum S652 Steel Metal-Geared, waterproof digital servo with 232 oz-in of torque
  • NEW Spektrum 2.4GHz SLT3 transmitter and SR315 receiver
  • NEW Sway bars fitted front and rear for improved cornering dynamics
  • NEW Wheelie bar with rubber tyres
  • Rubber shielded bearings
  • Metal internal-geared diffs
  • Steel spur gear
  • Strong composite chassis with extended height dirt defenders
  • Adjustable turnbuckles
  • Steering system with stone clearance
  • ARRMA motor heatsink and cooling fan
  • Easy-access modular design - power, diff and electronics modules can be removed quickly and easily for maintenance
  • Battery retention system including wire clips


Longer Chassis

For this new version of the OUTCAST 4x4 4S BLX Stunt Truck, ARRMA engineers lengthened the vehicle to 20.28 inches - 1.08 inches longer than previous model - for increased stability and control.


Designed Tough

Features that contribute to the 4X4 4S BLX platform's unstoppable performance include a stronger composite chassis and retained hinge pin plates; protective skid plates in front and rear; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout.

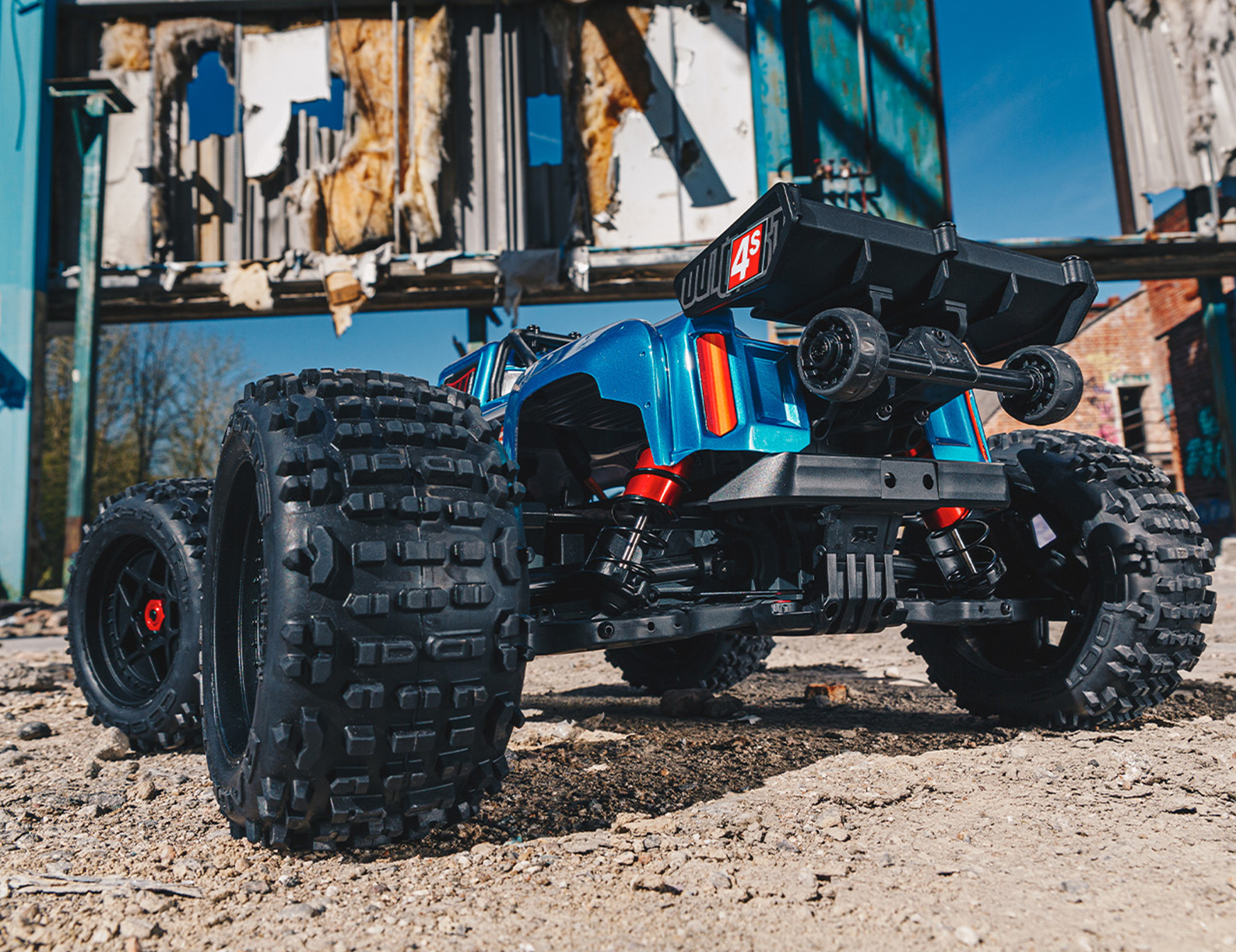

Wider Track

To handle more aggressive bashing, the front and rear track width has been increased with new, wider arms to 17.72 inches - 1.72 inches more than the previous OUTCAST 4X4 4S BLX Stunt Truck.

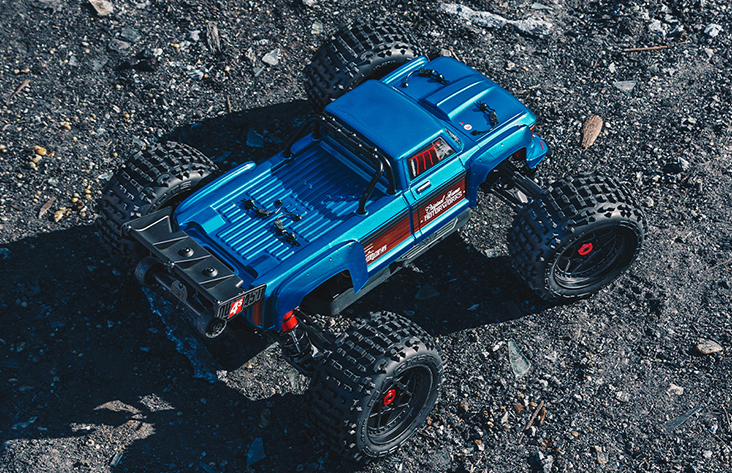

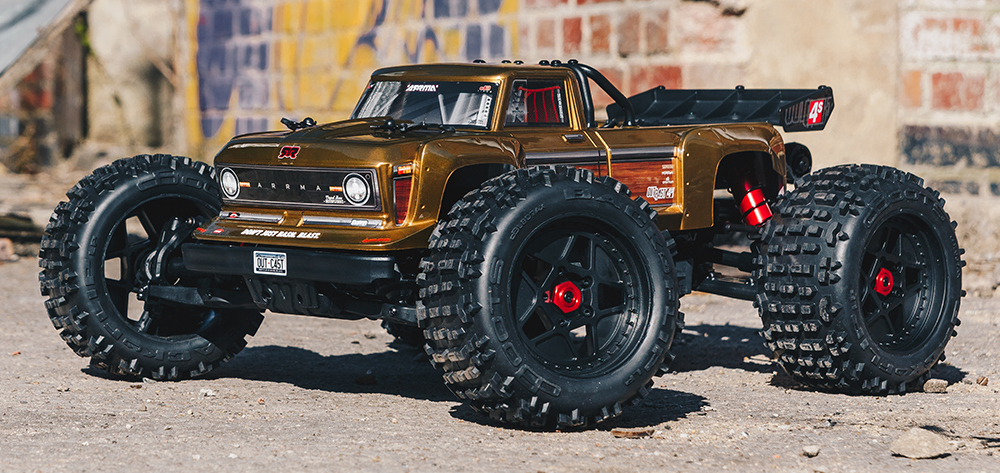

Finished Truck Body

The sleek truck body features a tough, injection-molded rear wing and comes factory-finished in your choice of two exciting colours. Front and rear bumpers protect against impacts and a wheelie bar with rubber tyres provides stunt potential.


Big Bore Oil-Filled Shocks

Longer, aluminium-bodied, oil-filled big bore shocks are included and mounted on higher shock towers. These plus the wider suspension arms give the vehicle longer, more plush suspension travel.

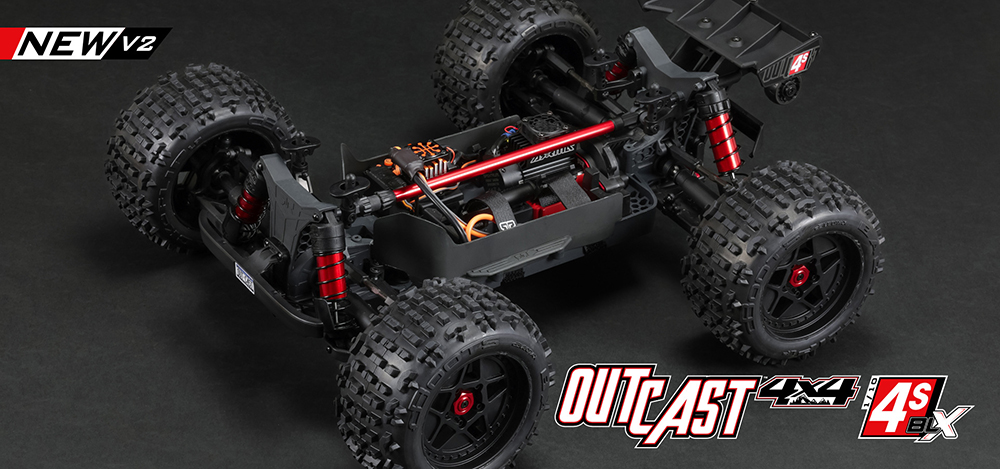

Modular Design

The OUTCAST 4X4 4S BLX Stunt Truck RTR incorporates the signature ARRMA easy-access modular design. Separate, easily removable chassis modules for the power system, electronics and differential components make routine maintenance fast and simple.


Wheels and Tyres

The durable, low-profile dBoots Back-Flip tyres with medium-compound foam inserts offer long-lasting performance and feature an aggressive tread pattern for excellent traction on a wide range of surfaces. The tyres are mounted on tough, 3.8" MT wheels with CNC machined, red anodized 17mm hubs.


SLT3 Transmitter

The included Spektrum SLT3 transmitter is ergonomically designed for fatigue-free bashing.


SR315 Receiver

Compatible with SLT and DSMR protocols, the included Spektrum SR315 3-channel receiver offers outstanding range and fast response rate. It's also Smart telemetry compatible (in DSMR mode and using the Spektrum Dashboard app).

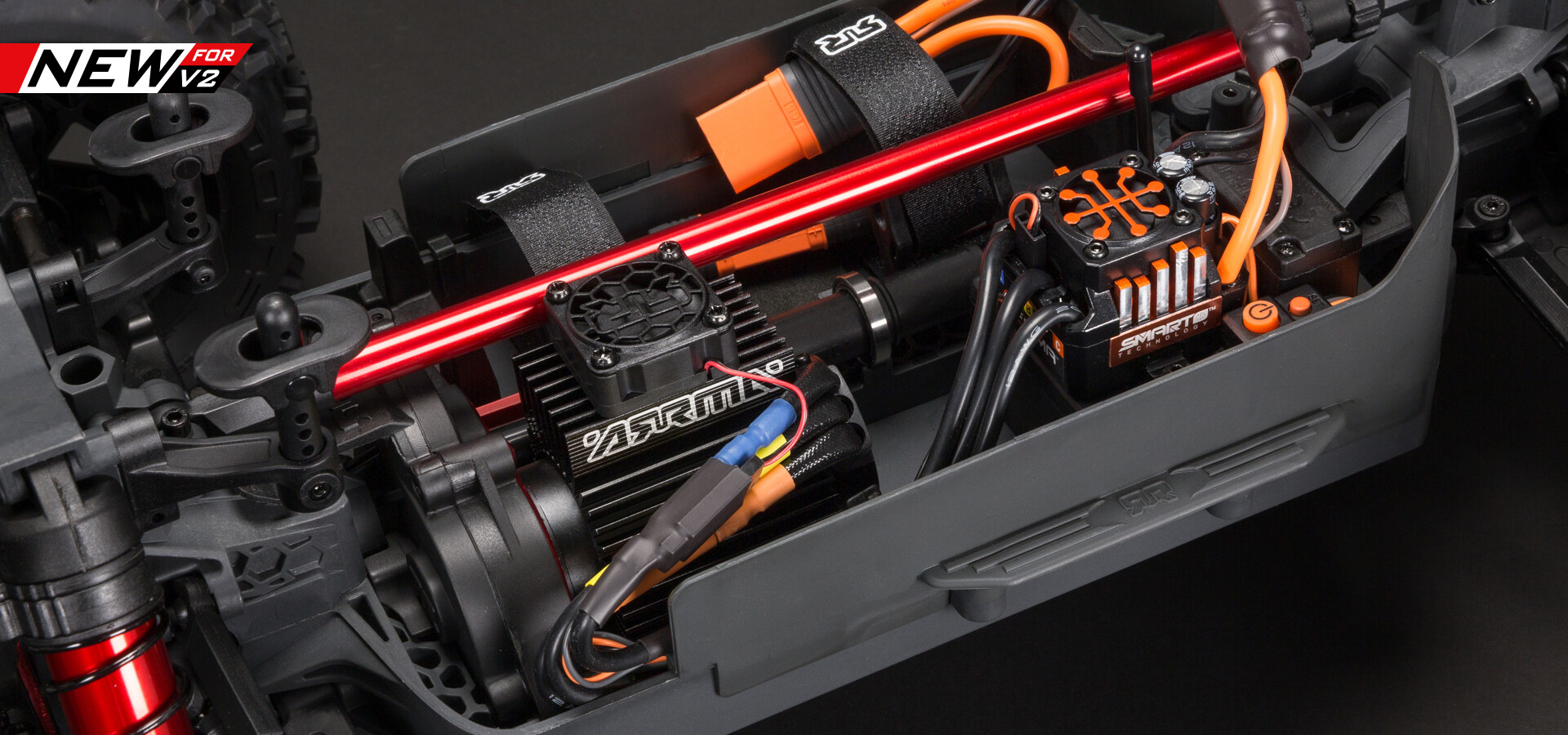

Firma 120A SMART ESC

The included and installed Spektrum Firma 120A ESC handles 3S/4S LiPo power and uses IC5 connectors (also compatible with EC5 connectors).


Firma 2400Kv Motor

Installed on an easy-access sliding mount for quick removal, the included Spektrum Firma 2400Kv brushless motor features an ARRMA heatsink, cooling fan, and Safe D pinion gears.

Image Item Id Name Trade SSP Order
Now
  C-ARA4410V2T1 1/10 OUTCAST 4X4 4S V2 BLX Stunt Truck RTR, Bronze £479.99
  C-ARA4410V2T2 1/10 OUTCAST 4X4 4S V2 BLX Stunt Truck RTR, Blue £479.99
IN THE BOX
  • (1) ARRMA OUTCAST 4X4 4S BLX 1/10 Scale 4WD Stunt Truck RTR
  • (1) Spektrum Firma 120A Smart Waterproof ESC
  • (1) Spektrum Firma 3668 2400Kv Brushless Motor
  • (1) Spektrum 2.4GHz SLT3 3-Channel Transmitter
  • (1) Spektrum SR315 Dual Protocol Receiver
  • (1) Spektrum SPMS652 Metal-Geared Digital Servo
  • (1) 23T Spline servo saver
  • (1) Product Manual

NEEDED TO COMPLETE
  • 3S LiPo or 4S Hardcase LiPo Battery*
  • Compatible Charger
  • (4) AA Batteries
  • LiPo Safe Charging Bag
*Maximum battery dimensions 6.14x2.01x1.89 in (156x51x48mm). Minimum battery specs 5000mAh 35C.
COMPLETION ITEMS
Image Item Id Name Trade SSP Order
Now
  O-GC4S5000-60E5 Li-Po Car 4S 14.8V 5000mAh 60C with EC5 £67.5
  O-SPMXC2050I S155 G2 1x55W AC Smart Charger, International £64.99
  O-GC4S6800-120E5 Li-Po Car 4S 14.8V 6800mah 120C with EC5 £114.99
  O-SPMX53S50H5 5000mAh 3S 11.1V SMART G2 50C IC5 £79.99
  O-SPMX54S50H5 5000mAh 4S 14.8V SMART G2 50C IC5 £129.99
  O-GAC100PRO-UK IMars III 10A Charger 2-6S/3-18NiMH 100W AC £64.99
