The ARF version arrives mostly factory assembled with pre-installed hinges and bolt-on tail surfaces that save you considerable time and effort. It also allows you to install a 20cc petrol engine, similar-class glow engines, or an equivalent electric power system and the electronics you prefer. The PNP version saves you even more time because it doesn't require any glue for assembly and is equipped with six factory-installed digital and metal-geared Spektrum A6380 servos, a 4S-6S compatible Avian 5065-450Kv outrunner motor, and a 100-amp Smart ESC that can provide a variety of power system related telemetry data with Smart and non-Smart batteries via compatible receivers and Spektrum AirWare-equipped transmitters.
Both versions include simple yet durable aluminium landing gear with optional-use wheel pants. You also have the option to install floats with a silver-painted finish using the custom float strut set (sold separately). The balsa and lite-ply airframe arrives factory-finished with genuine UltraCote film covering and a variety of features, including a large and convenient top-mounted windshield hatch, a painted-to-match fibreglass cowl, plus LED navigation lights. It all adds up so the Valiant 20cc is sure to become a hero around your club and field as the model to have - no matter what flying occasion may arise!
- Giant scale 86.5" (2.2m) wingspan with strong and stiff - yet lightweight and long-lasting - built-up wood construction finished with genuine UltraCote film covering
- Power it your way with glow, petrol or electric power system options (ARF Only)
- Factory-installed hinges and bolt on tail surfaces save considerable assembly time
- Functional flaps for shorter takeoffs and landings plus improved slow-flight performance
- Flaps can travel both ways for optional full-span aileron/flaperon/spoileron and crow operation
- Large and convenient top-mounted windshield hatch, fibreglass cowl, and LED navigation lights
- Designed to accept the optional silver-painted Foam Float and Strut Sets (both sold separately)
- Durable aluminium landing gear with optional-use wheel pants
- Two-piece wing with slots in the fuselage to hold the wing tube for more convenient storage and transport
- Spektrum Avian 5065-450Kv brushless motor compatible with popular and common 4S-6S 4000-7000mAh batteries (PNP Versions Only)
- 100-amp Spektrum Avian Smart ESC provides real-time battery voltage, current and other data via compatible receivers and transmitters (PNP Versions Only)
- Six durable, factory-installed metal-geared and digital Spektrum A6380 servos (PNP Versions Only)

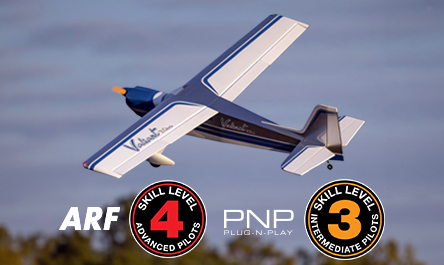

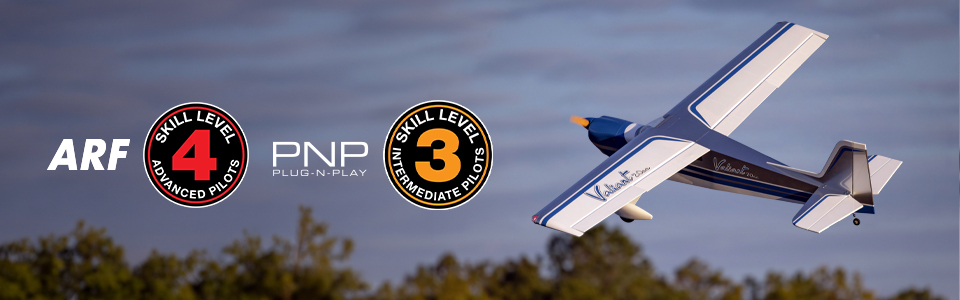

Skill Level 4 aircraft, like this one, are suitable for advanced RC pilots who already have the skills to assemble, set up and fly similar class models. This ARF version requires more experience and skills to assemble than the PNP version because you will need to select and install a suitable power system and electronics. You should have the experience and skills necessary to successfully fly models like the E-flite Turbo Timber Evolution 1.5m, Turbo Timber SWS 2.0m, Carbon-Z Cessna 150T 2.1m, Carbon-Z Cub SS 2.1m, or other similar class models before attempting to fly the Valiant 20cc
Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up and fly similar class models. You should have the experience and skills necessary to successfully fly models like the E-flite Turbo Timber Evolution 1.5m, Turbo Timber SWS 2.0m, Carbon-Z Cessna 150T 2.1m, Carbon-Z Cub SS 2.1m, or other similar class models before attempting to fly the Valiant 20cc.

The balsa and lite-ply airframe is lightweight yet stiff and strong. Best of all it arrives mostly factory-assembled and finished in genuine UltraCote film covering. The PNP version also includes durable, factory-installed metal-geared and digital Spektrum A6380 servos. And in the unfortunate event you damage any airframe parts or components and can't repair them, a full line of replacement/spare parts is readily available.

Both versions include simple yet durable aluminium landing gear with optional-use wheel pants. Or you can install the optional silver-painted foam float set (EFLA5600S; sold separately) and float strut set (HAN15066; sold separately) sets to fly at large ponds and lakes!

The large, top-mounted and magnetically secured windshield hatch cover makes it easy to install and remove batteries for electric power options, and to access the fuel tank and other components for petrol and glow setups. There's also a second hatch for additional electronics access located on top of the fuselage between the two-piece wings that secure quickly and easily with thumbscrews plus there are slots in the fuselage to hold the wing tube for more convenient storage and transport.

This Almost-Ready-To-Fly (ARF) version arrives mostly factory assembled with pre-installed hinges and bolt-on tail surfaces that save you considerable time and effort. Plus, it's ready for you to install a 20cc petrol engine, similar-class glow engines, or an equivalent electric power system and the electronics you prefer.

The Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately). Plus, no glue is required for assembly so you can be in the air as easily and in as little time as possible - typically in just 1-3 hours!

The Valiant 20cc PNP version is equipped with an exclusive Spektrum Avian Smart ESC that can provide a variety of real-time power system-related telemetry data, including motor RPM, current draw, battery voltage, and more - with Smart and non-Smart batteries - via compatible receivers and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20, and others) while you fly.
| Image | Item Id | Name | Trade | SRP | Order Now |
|---|---|---|---|---|---|
| A-HAN15040 | Valiant 20cc ARF, 86.5" | £519.99 | ||
| A-HAN15075 | Valiant 20cc EP PNP, 86.5" | £939.99 |
- ARF/ EP PNP / EP PNP Combo
- (1) Hangar 9 Valiant 20cc PNP with
- (1) Product Manual
- EP PNP & EP PNP Combo Only
- (6) Spektrum A6380 Digital HV, Metal-Geared Aircraft Servos (installed)
- (1) Spektrum Avian 5065-450Kv Brushless Outrunner Motor (installed)
- (1) Spektrum Avian 100-Amp Brushless Smart ESC (installed)
- EP PNP Combo Only
- (1) Spektrum AR8360T+ Receiver
- (1) 6S 5000mAh 30C LiPo Battery
- ARF Version (HAN15040)
- (1) Full-range 5+ channel transmitter and receiver
- (6) Standard sized servos with 80+ oz-in torque (plus one additional standard sized servo for throttle when using a petrol or glow engine)
- (1) 20cc petrol and other similar class engines or an equivalent 4S to 6S compatible electric power system
- EP PNP Version (HAN15075)
- (1) Full-range 5+ channel transmitter and receiver
- (1) 4S 14.8V to 6S 22.2V 4000-7000mAh LiPo with EC5 or IC5 Connector
- (1) Compatible LiPo charger
- EP PNP Combo Version (HAN15075)
- (1) 8+ Channel DSMX Transmitter
- (1) Compatible Charger
