. . . Spektrum DXC+ 12 Channel Transmitter with DSMR+

Slec Materials (51)
  • New
  • Spektrum
  • DXC+ 12-Channel Transmitter with DSMR+
  • ETA: October

PRODUCT OVERVIEW

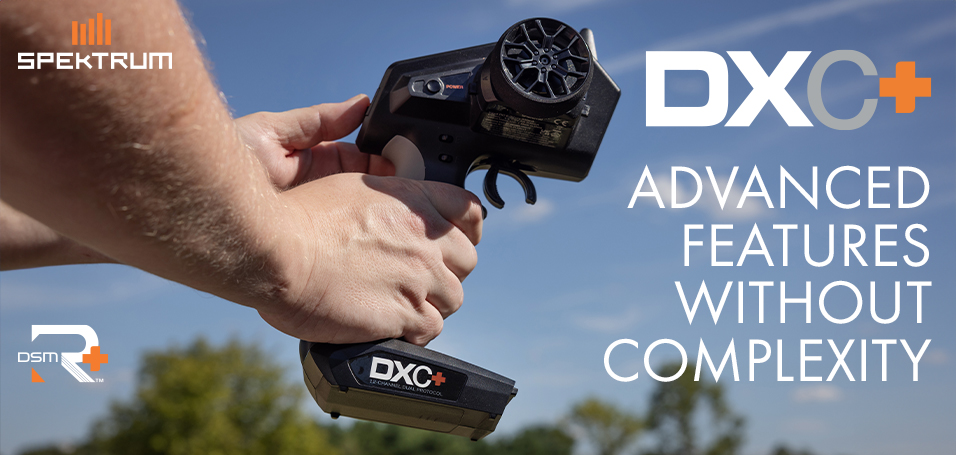

The DXC+ is the savvy solution for bashers, boaters and scalers who want a staggering list of advanced features that includes the virtually unlimited possibilities 12-channel control offers. Built around frequency agile, DSMR+® 2.4GHz technology, you can use the DXC+ in any type of surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb.

The DXC+ includes new upgrades and features that makes it the ideal upgrade transmitter for RTR vehicles. Upgrades include Dual Protocol, DSMR+, 12 proportional channels and USB for easy firmware updates and compatibility with the VRC Racing Simulator.

FEATURES
  • Dual Protocol (DSMR/SLT) Compatibility
  • Twelve fully proportional channels with user-friendly steering and throttle mixes
  • Frequency-agile, Spektrum DSMR+ 2.4GHz technology
  • Backlit LCD screen for better visibility
  • USB for firmware updates and VRC compatibility
  • Spektrum Smart Technology ready
  • Program and fine-tune compatible AVC receivers
  • 20-model memory
  • Smooth, dual-ball bearing precision
  • Non-slip rubber grips
  • Back button makes navigating the interface more intuitive
  • Steering mix, 4-wheel steering mixing, plus one assignable Mix
  • Bind-progress screen displays status and frame rate
  • Compatible with DSMR and DSM2 receivers
  • EN328 compatible


Fits the Way You Drive

The Spektrum DXC+ has many advanced programming features. So naturally it comes with advanced-level, comfortable grip, and easy to reach controls.


12-Channels

12-fully proportional channels allow for more flexibility and versatile control for auxiliary systems such as winches, lights, etc. It's also physically lightweight so that there's less fatigue on you during long trips, plus it's easy to transport with all of your rigs.


SimpleScroll Programming Interface

Sophisticated programming isn't worth much if it's difficult to use. The SimpleScroll interface makes navigating menus and changing settings as simple as 'scroll and click.' It's so easy to use; most users can complete complex programming tasks without ever having to look at the manual.


Dual Protocol (SLT/DSMR) Compatible

The DXC+ is compatible and able to bind with SLT protocol equipped vehicles, such as the Losi Micro-B and T, ARRMA GROM small-scale bashers and Axial SCX24 micro crawlers. With this transmitter, you'll be able to drive SLT and DSMR protocol receivers with one transmitter. Dual Protocol means one perfect control.


Frequency-Agile DSMR+ Technology

The DX Rugged+ is built around frequency-agile DSMR+ 2.4GHz technology. This exclusive Spektrum technology can be used in any surface application, including boats. Its range and response, particularly in noisy 2.4GHz environments, are superb. New features of the 'plus' include the ability for users to do many different mixes, change inputs and do other advanced programming. New mixes include Throttle Mixes, Absolute travel support, Emergency brake feature, Logical, combo, and analog switch support. Additionally, it supports both DRIVE and MS6X Technology. It's also backward compatible with DSM2® and marine-specific Spektrum receivers. This means most longtime Spektrum users can continue using their existing receivers.


Smart Technology Compatible

When combined with Spektrum Firma Smart ESCs and Spektrum Smart capable receivers, the DXC+ receives telemetry data right to your transmitter through the Smart Throttle port on the receiver. Smart Throttle ESCs can send RPM, speed, ESC temp, volts and amp draw.


AVC (Active Vehicle Control) Programming

The DXC+ makes it possible to custom tune the AVC system by providing easy-access to dedicated adjustments. In addition, open channels of the DXC+ can be used to adjust the AVC steering and throttle systems independently. No matter what you're driving, AVC technology can easily meet your skill level or driving style with control that makes it feel like you're driving a finely tuned vehicle that handles beautifully at every speed.


USB Connectivity

USB-C port allows for easy firmware updates, plus a convenient link and connection to control VRC Racing Simulator.


Backlit LCD Display

The DXC+ features a backlit LCD display that allows for better visibility under many weather conditions. The backlight is user adjustable through the Backlight set up in the transmitter.


Wheel and Trigger Calibration

The calibration screen gives you the ability to recalibrate the steering and throttle positions for the ultimate in accuracy.


SR615 Smart Receiver (SPM6130 Version Only)

Built around frequency-agile DSMR technology, the SR615 6-channel receiver delivers superb range and response, especially in noisy RF environments where a solid 2.4GHz link is crucial. Not only is the 2.4GHz link solid, but this receiver also implements a lightning-fast 5.5ms frame rate, providing a quicker, low-latency connection for the pro-level enthusiast. It's potted with an epoxy material to help protect the board from water and vibrations. Plus, while binding, you have the choice of SmartSafeT and preset 'Gas' failsafe options.
Image Item Id Name Trade SSP Order
Now
  P-SPM6130 DXC+ TX w/SR615 RX £199.99
  P-SPMR6130 DXC+ TX Only £149.99
IN THE BOX
  • Spektrum DXC+ 12-Channel DSMR+ Transmitter
  • Spektrum SR615 Receiver (SPM6130 Version Only)
  • Product Manual

NEEDED TO COMPLETE
  • (1) Compatible Receiver
  • (4) AA Transmitter Batteries
DOWNLOAD THE FACTSHEET

Download an A4 factsheet to print off and display in store. No trade prices shown - just a summary of this issue of Logic RC News. Right click the image on the right and select 'Save link as...' to save the pdf locally so you can print at your convenience.
