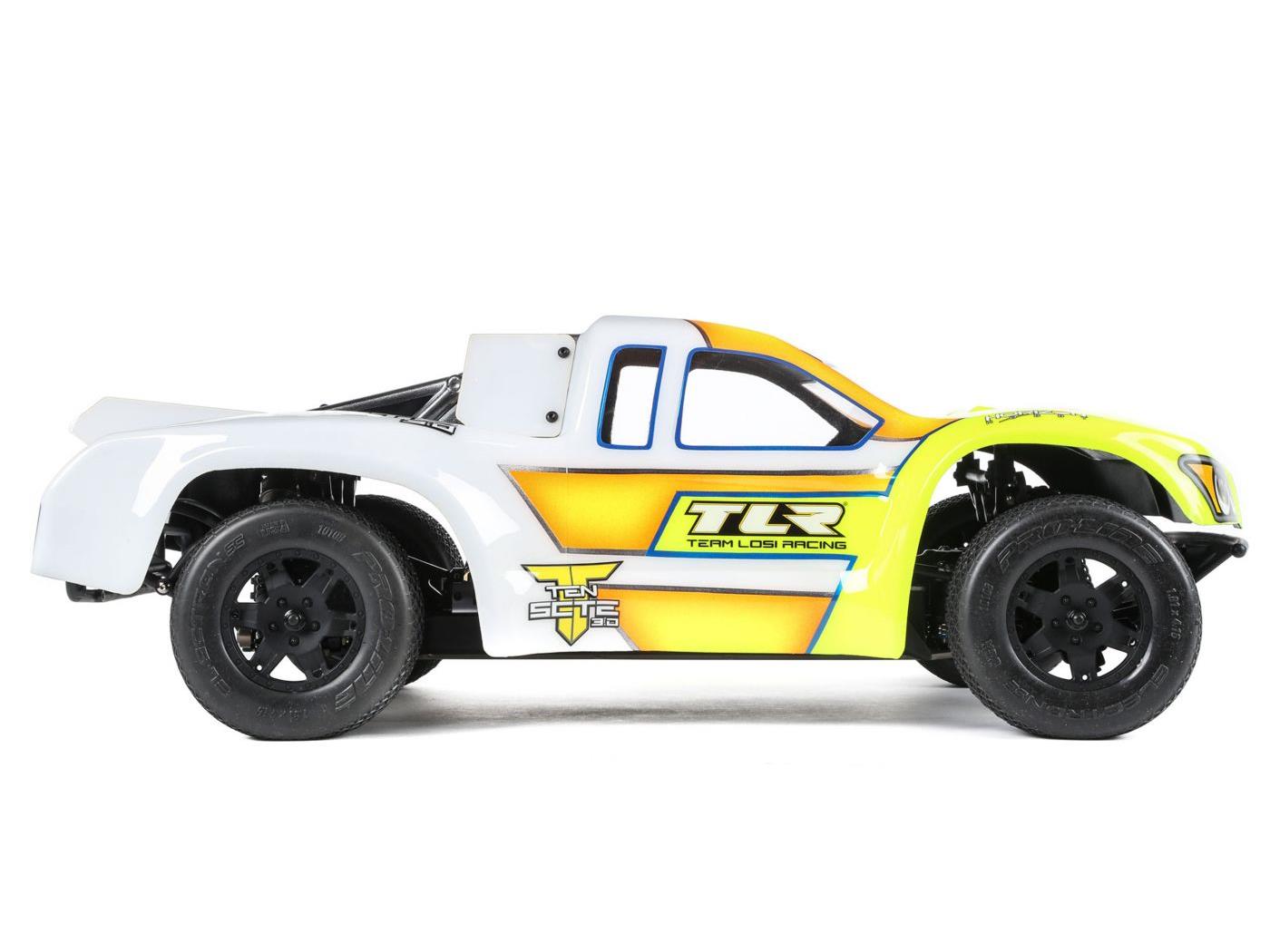

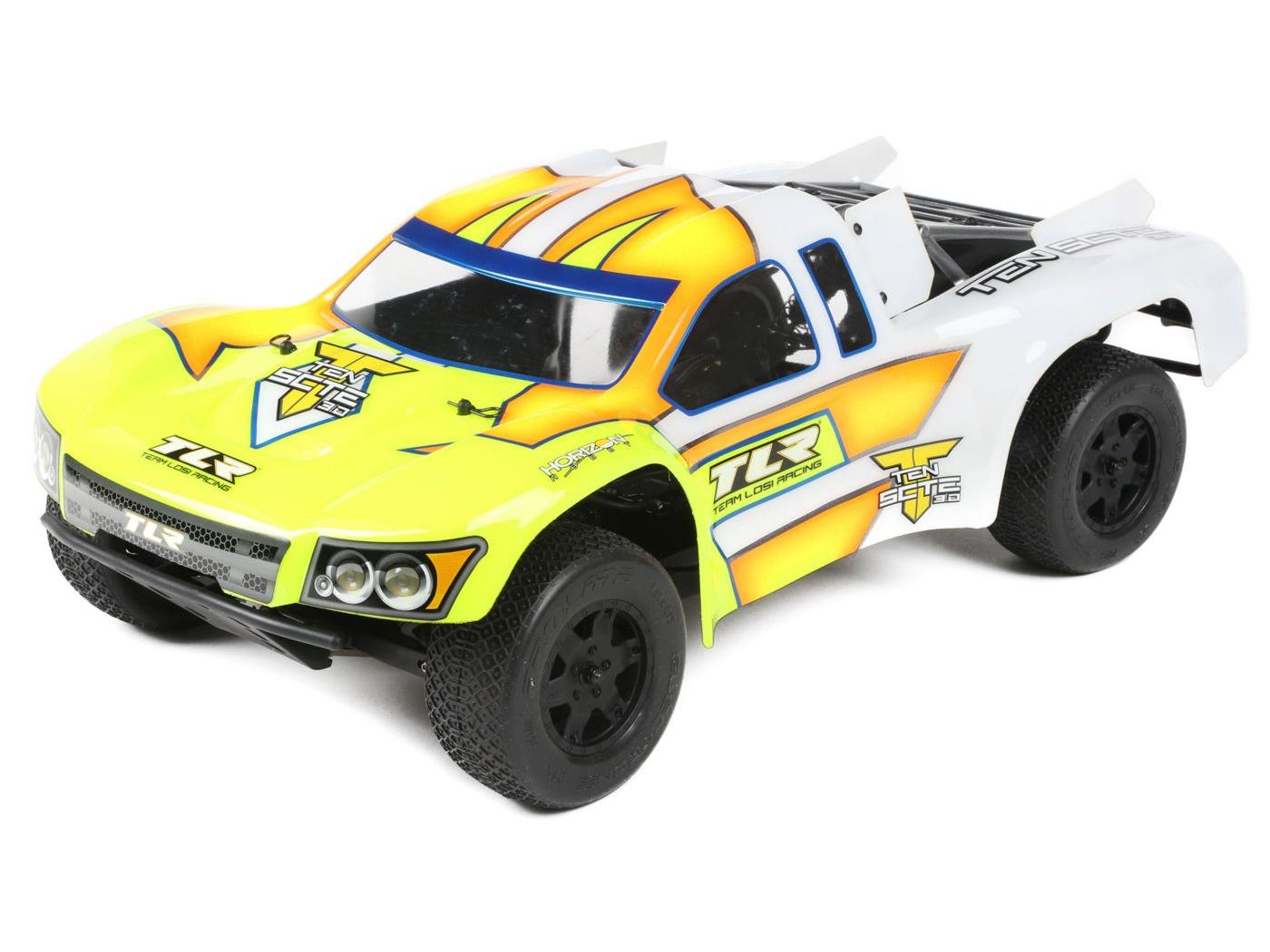

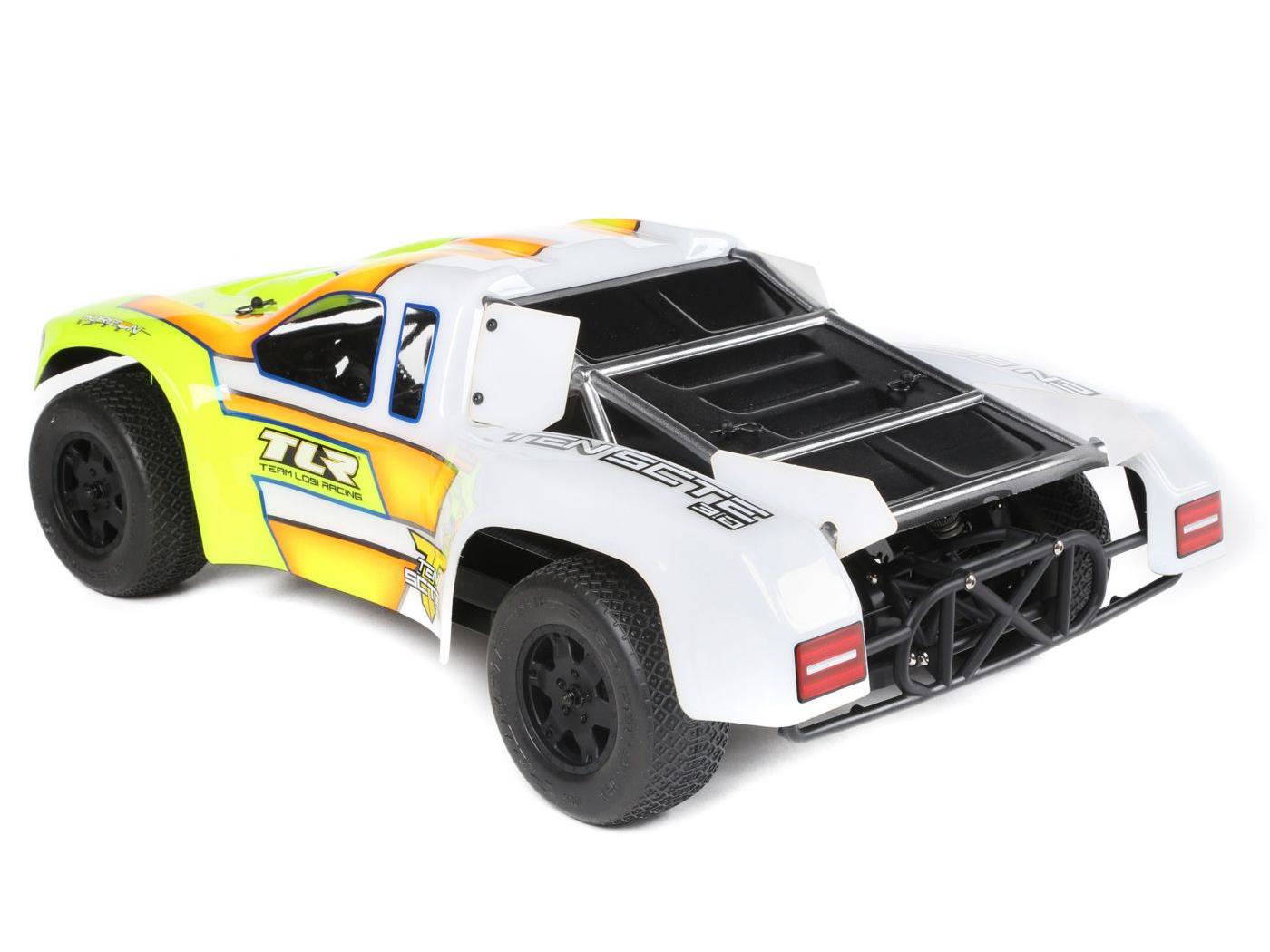

TEN-SCTE 3.0 Race Kit: 1/10 4WD SCT C-TLR03008 TLR TLR 0605482628126  SRP: £559.99 SMAP: Trade: Barcode:
0605482628126 Product Overview The TEN-SCTE platform has been the dominant force in the 4WD SCT class since its inception. With the TEN-SCTE 3.0 kit, TLR engineers started with the championship-winning 2.0 and refined its suspension geometry to be optimized for all track conditions. These refinements also make the truck easier to drive. Other changes include centre driveline adjustability and the inclusion of parts that were considered optional on the SCTE 2.0 kit. Features - Champion pedigree
- Adjustable centre driveline
- 22T platform Gen II shocks
- Dog bone centre drive
- Many popular tuning parts included as standard

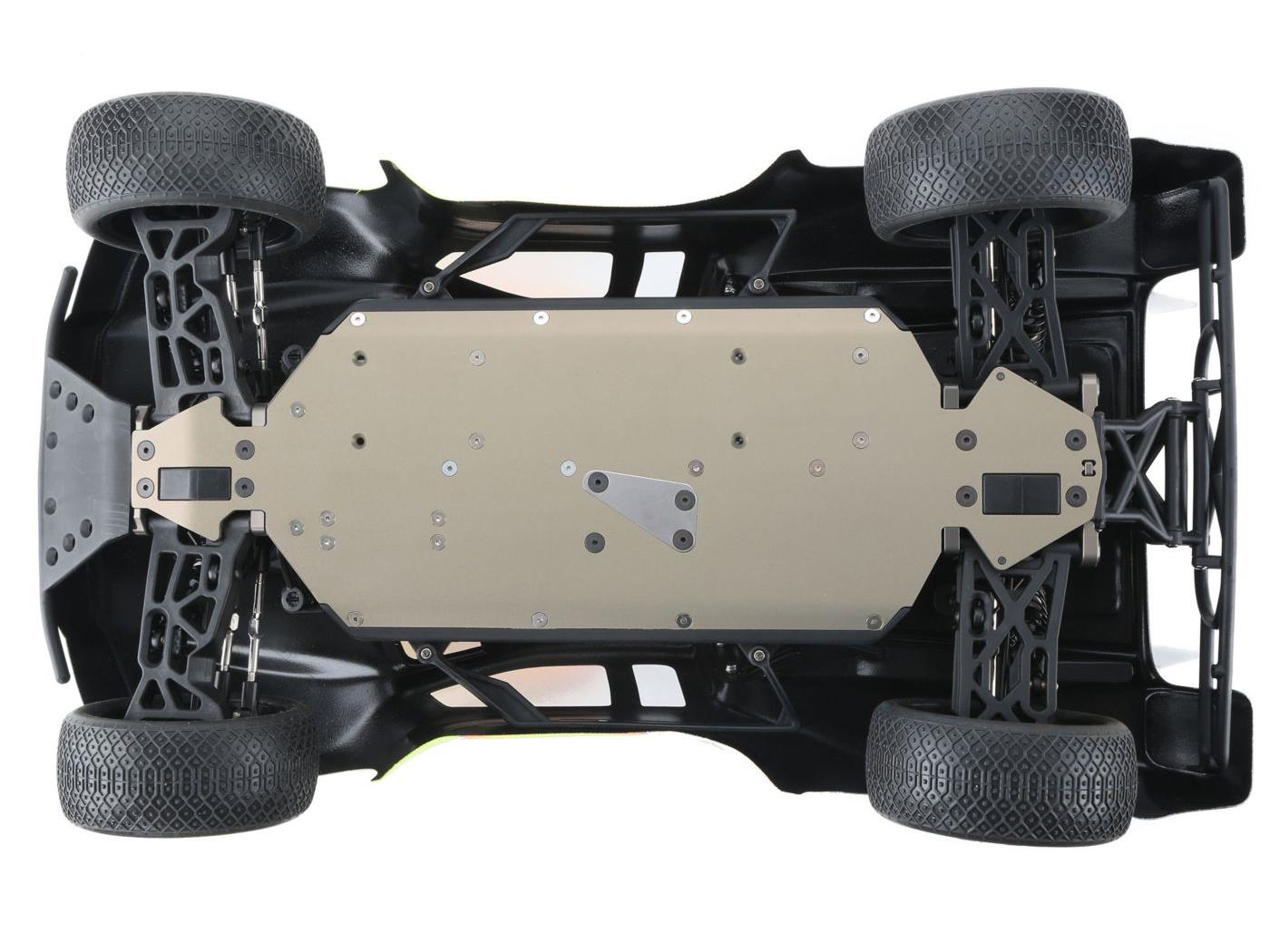

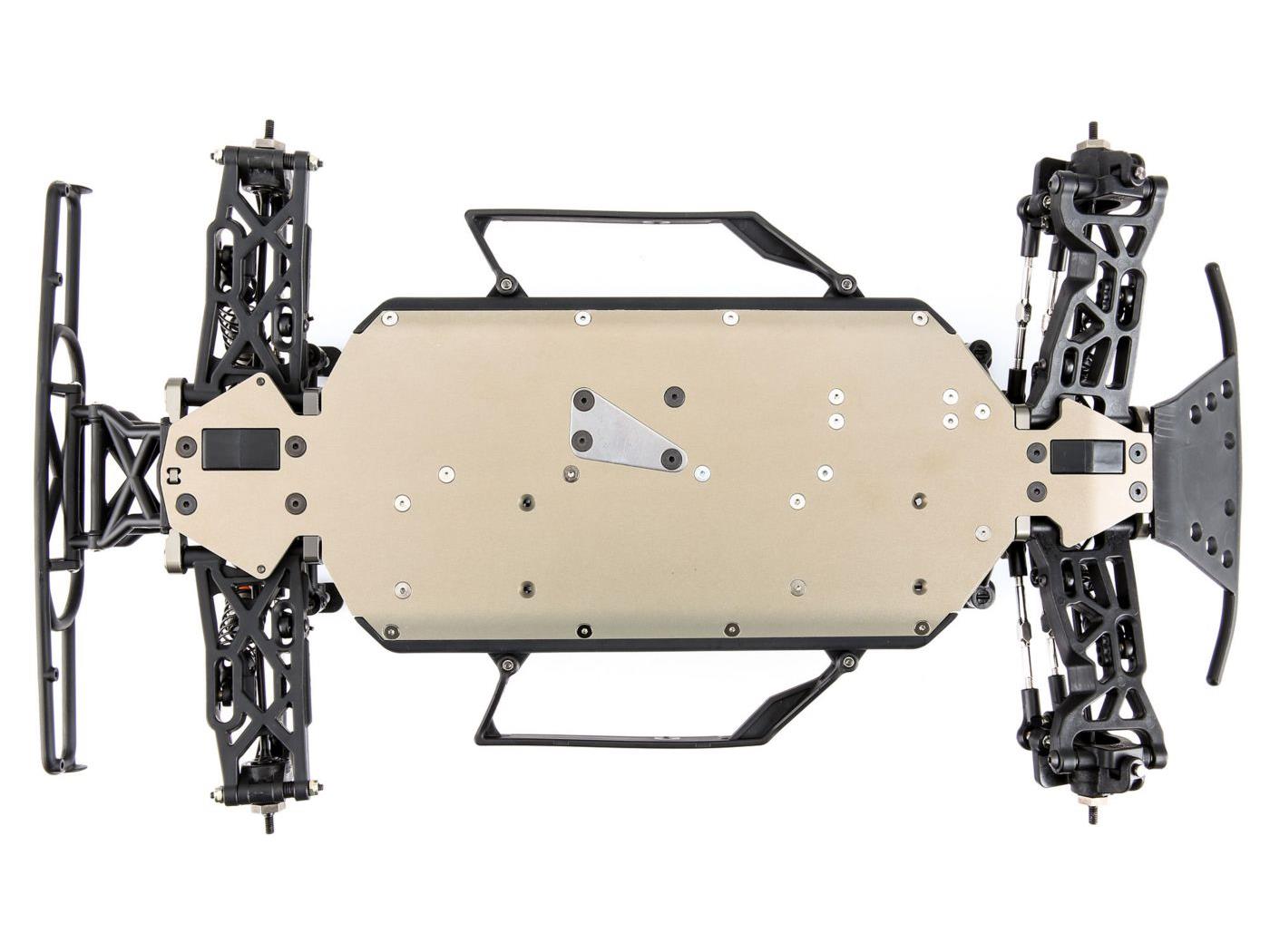

- Lightweight, hard-anodised 7075-T6 aluminium chassis
- 3mm shorter chassis
- Carbon fiber shock towers
- Hard-anodised suspension balls
- Lightweight, CNC-machined outdrives

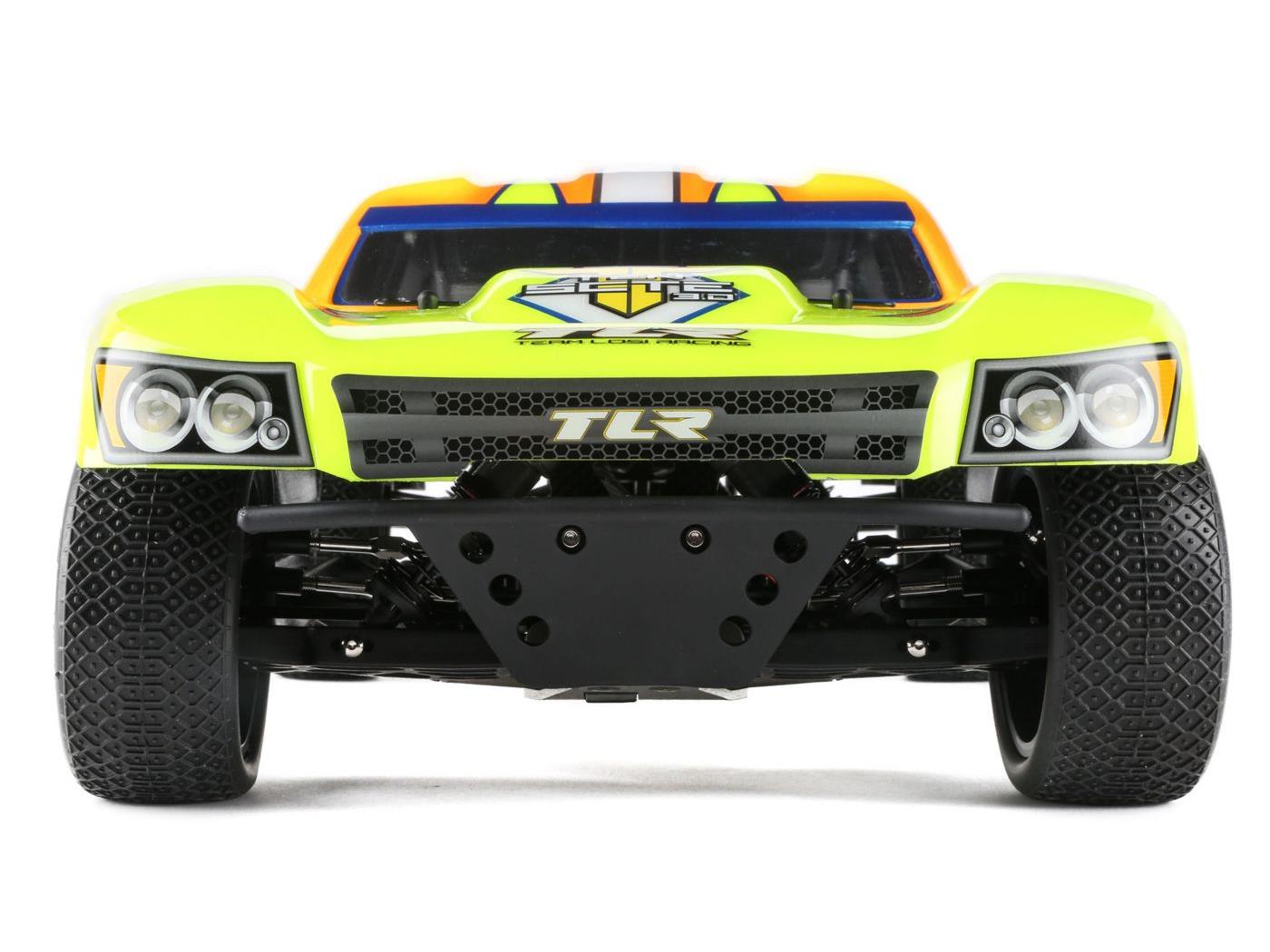

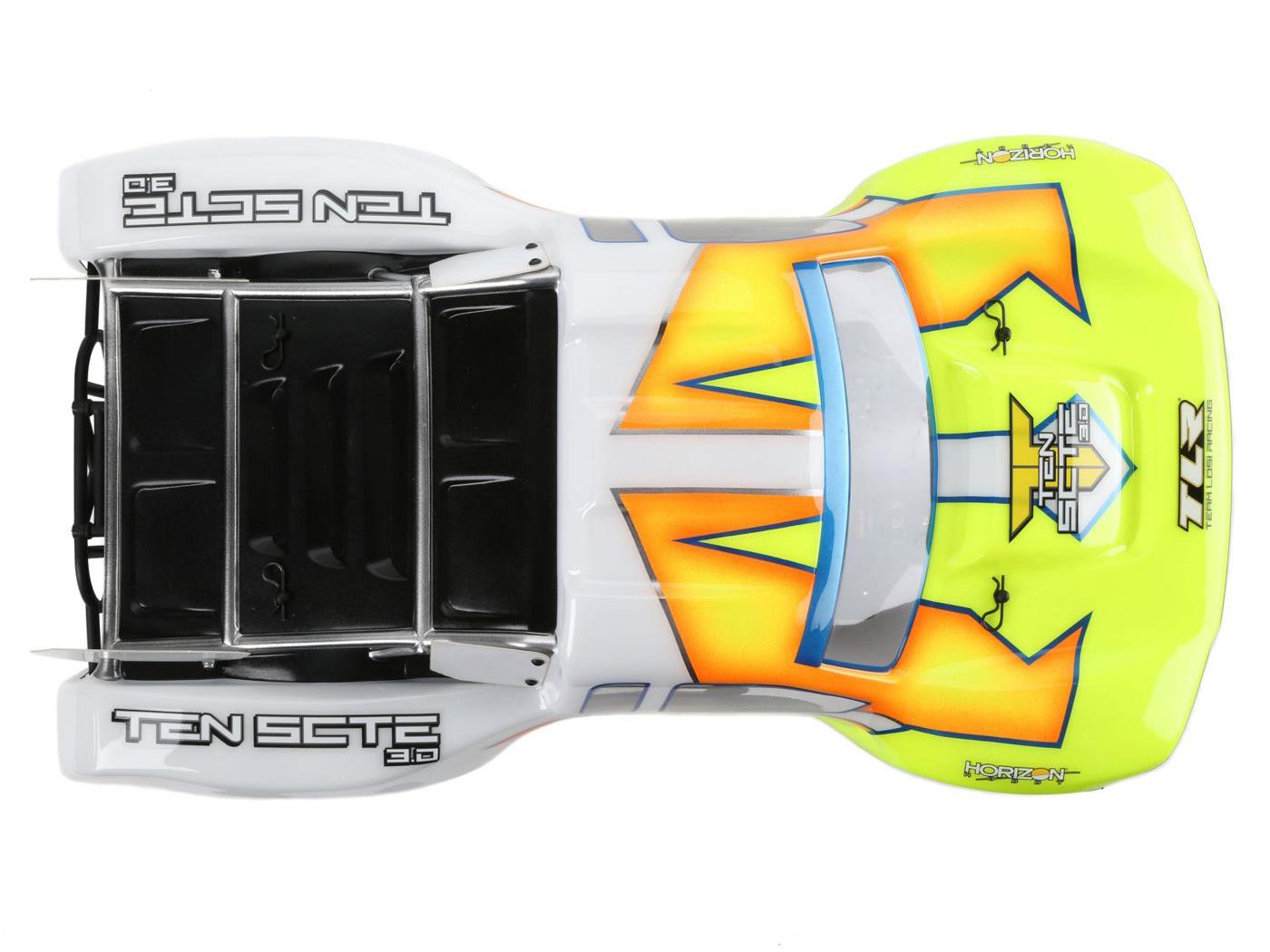

- High-performance TLR⌐ body

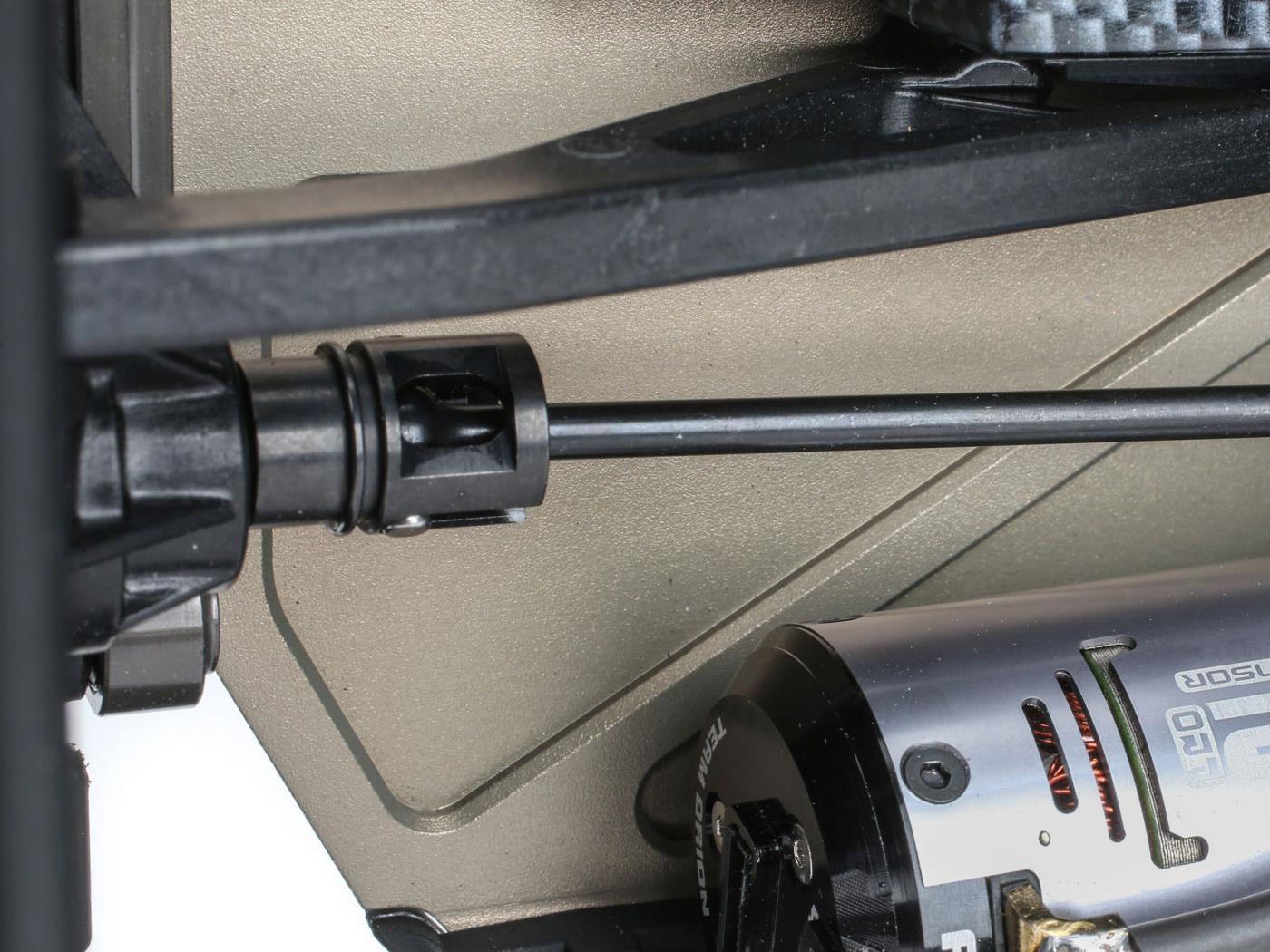

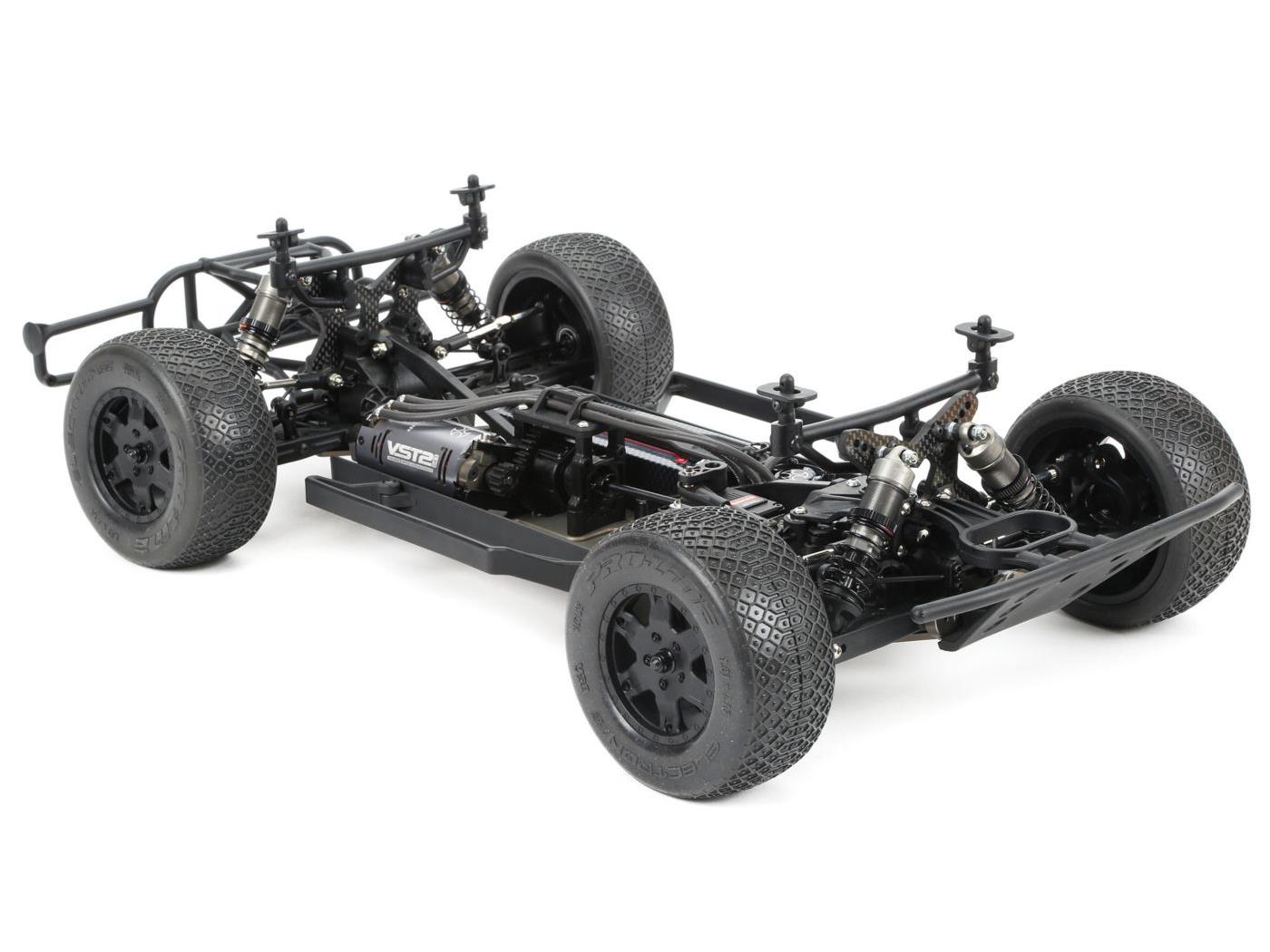

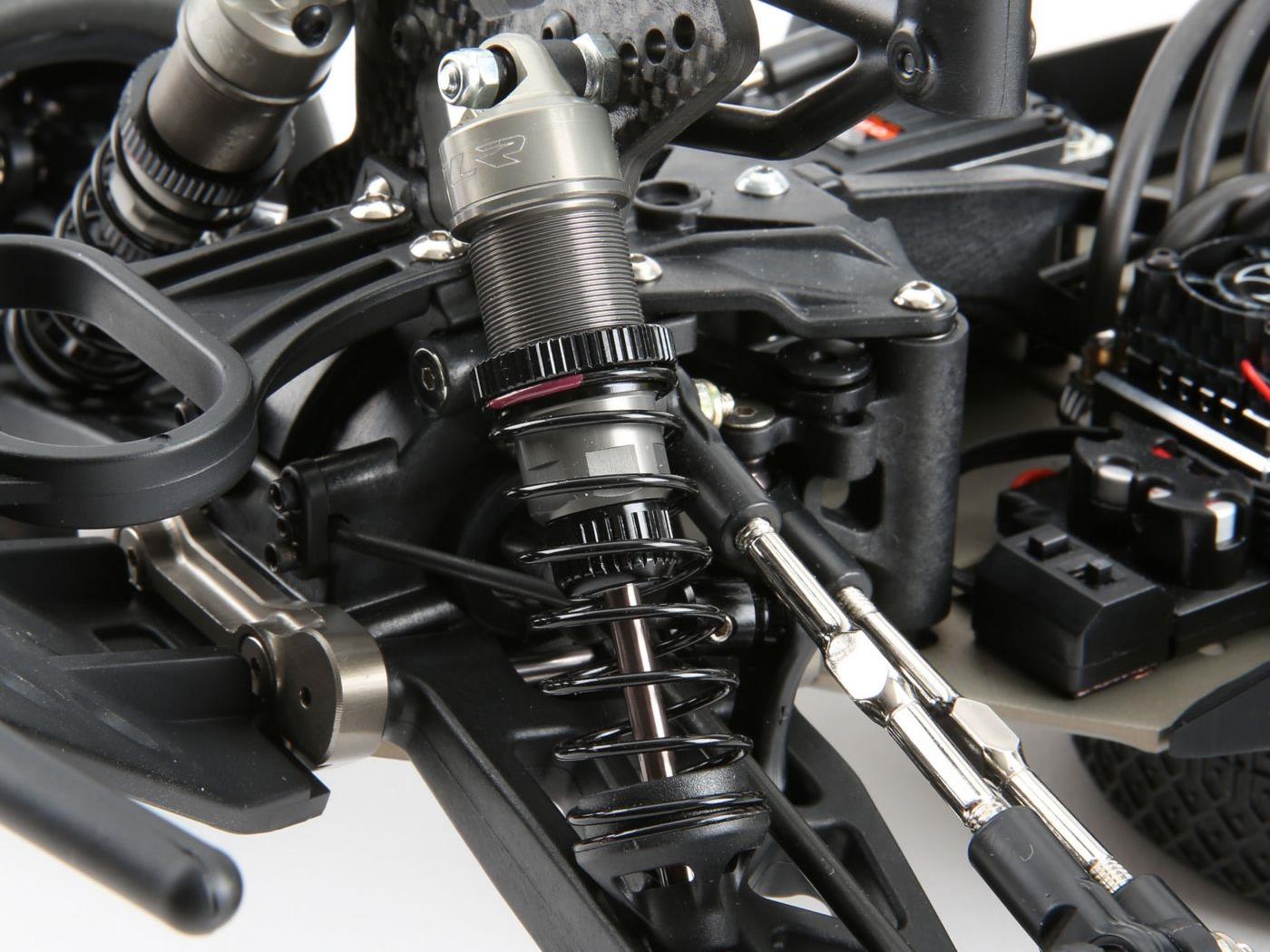

Purpose-Built Racing Chassis The motor and centre diff can be mounted at an angle or in line with the chassis, allowing adjustment of the power bleed between the front and rear drivetrain. Mounted at an angle, the power bleeds evenly front-to-rear and the truck will drive out of the turns harder from point to point. Mounted in line, more power bleeds to the rear. 22™ Shock Absorbers Gen II platform shocks reduce overall weight and lower the CG. Machined shock internals, X-rings, TiCN shock shafts and aluminium bleeder caps provide a smoother, more consistent shock. The truck lands better, jumps better, corners quicker and has a lighter, more nimble feel. Dog-Bone Centre Drive The centre dog bones provide less friction than CVA -type driveshafts, allowing for easier front-to-rear power transfer. This smoothes out changes in power delivery, making the truck easier to drive. Popular Tuning Parts Included Many parts that were previously considered options come standard on the TEN-SCTE 3.0. These include a chassis that is 3mm shorter, 22 platform shocks, a dog-bone centre driveline, 15° caster blocks, hard-anodised aluminium suspension balls, a 2.3mm thick front sway bar, lightweight outdrives, and adjustable aluminium front and rear pivots. CNC-Machined Aluminium Chassis The lightweight chassis is machined from durable 7075-T6 hard-anodised aluminium and is 3mm shorter than the stock TEN-SCTE 2.0 chassis. The shorter chassis makes the 3.0 a nimble truck that changes direction quicker and exits turns harder. It also makes it easier to drive fast and lower lap times. Carbon Fibre Shock Towers The ultimate in performance and durability, carbon-fiber shock towers save weight and help lower the CG. Lightweight Outdrives Lightweight, CNC-machined outdrives are used throughout the truck. This makes the entyre drivetrain lighter so drivers enjoy quicker, more responsive acceleration. High-Performance TLR® The boots help keep grease in and dirt out so your axles last longer and require less maintenance. Needed to Complete - Assembly Tools
- 2-Channel Radio and Receiver
- Electronic Speed Controller
- 540 or 550 sized motor
- Pinion Gear

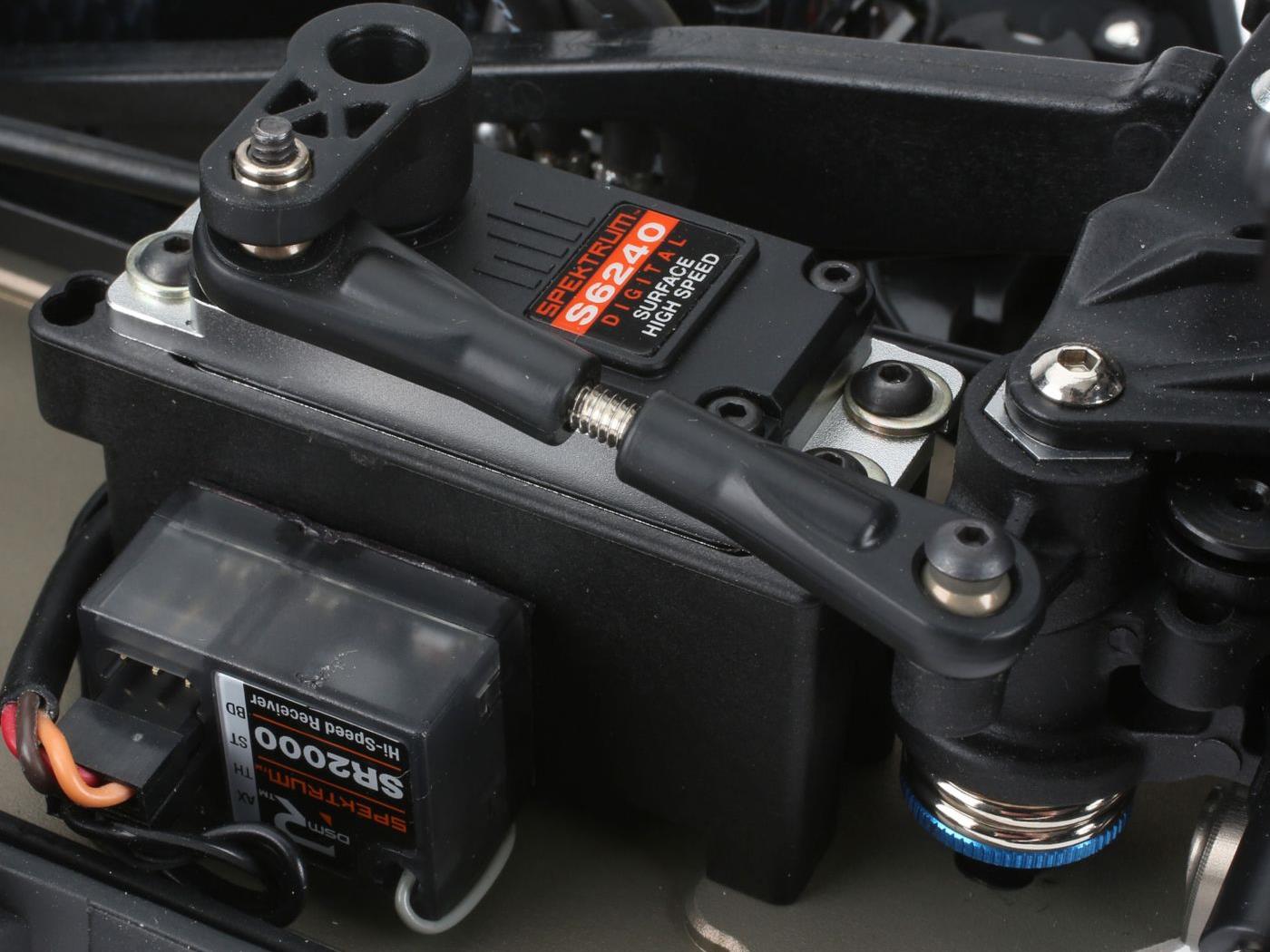

- Steering Servo
- 1/10th Short Course Truck Tyres and Inserts
- Battery Pack (3S Maximum)
- Charger
- Polycarbonate Paintr
Video Gallery Support Exploded Views Click here to view available exploded views.
