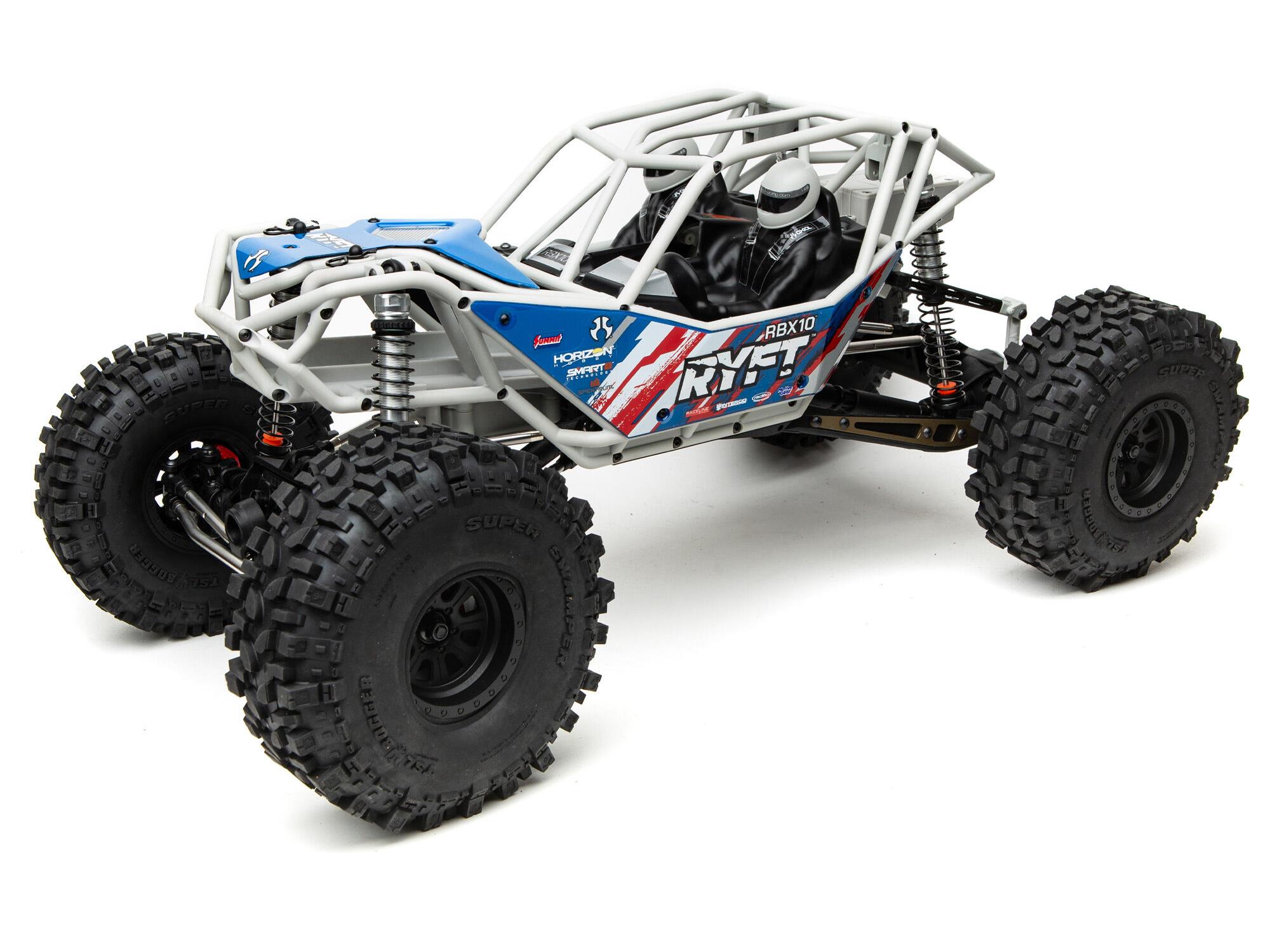

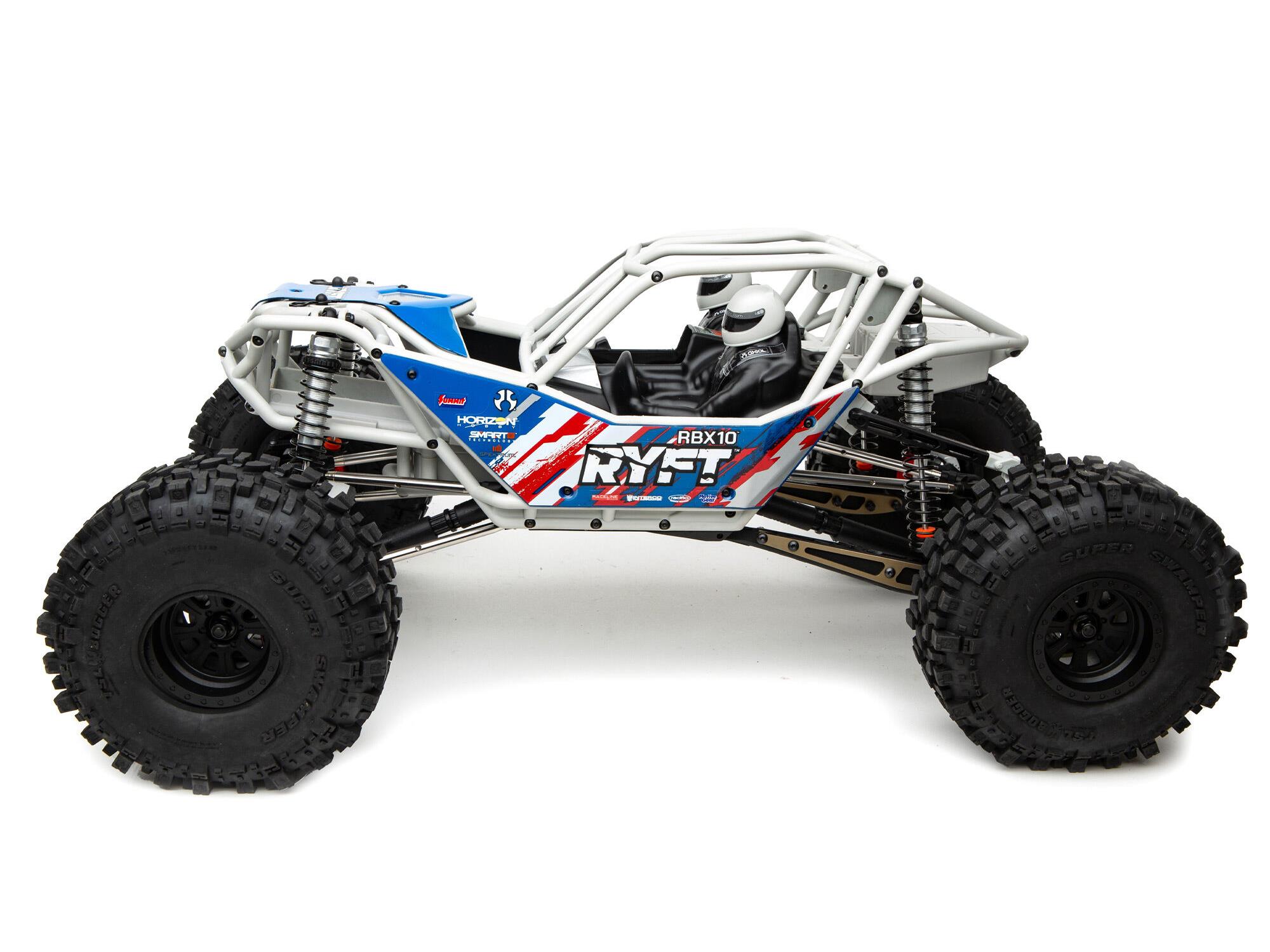

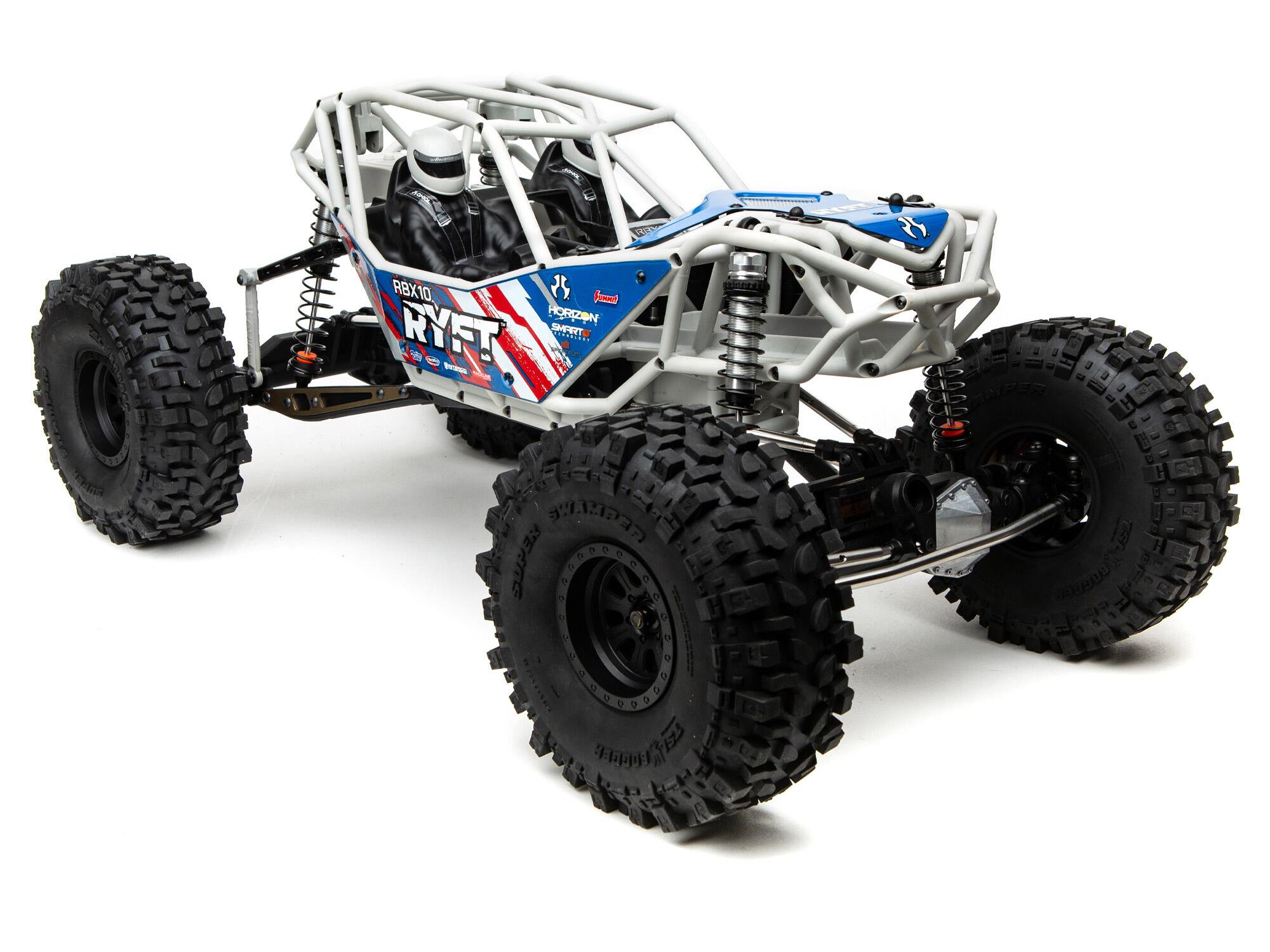

1/10 RBX10 Ryft 4WD Rock Bouncer Kit, Grey
C-AXI03009
Axial Axial 0605482729229
SRP: £449.99
SMAP:
Trade:

Barcode:
0605482729229

Product Details

Like real rock bouncers, the RBX10 Ryft 1/10 scale kit is designed to tackle challenging terrain at high speeds. With a 4WD transmission, robust tube chassis, 4-link suspension and more, this Axial vehicle handles lots of abuse and loads of power.

Key Features

  • Strong tube chassis design
  • Full-time 4WD transmission
  • Solid front and rear axles with realistic metal differential covers
  • Hardened steel universal axle set
  • Long travel front and rear oil-filled shocks
In The Box
  • (1) Axial RBX10 Ryft 1/10 4WD Kit
  • (1) Optional 2-Speed Set
  • (1) Optional Sway Bar Set
  • (1) Optional Differential Spool
  • (1) Optional Lower Link Plate Rear
  • (1) Product Manual
Needed to Complete
  • (1) Radio System
  • (1) Steering Servo
  • (1) ESC and Motor
  • (1) LiPo Battery and Compatible Charger
  • (1) Micro Metal Gear Servo (for 2-speed configuration)

Features

  • Strong tube chassis design
  • Full-time 4WD transmission
  • Solid front and rear axles with realistic metal differential covers
  • Hardened steel universal axle set
  • Tough, large diameter WB11 Wildboar driveshafts
  • 4-Link suspension system
  • Long travel front and rear oil-filled shocks
  • Officially licensed Raceline Monster wheels
  • Simulated disc brakes for extra realism
  • Interco Super Swamper TSL (Three Stage Lug) Bogger tyres
  • Kit also includes option parts

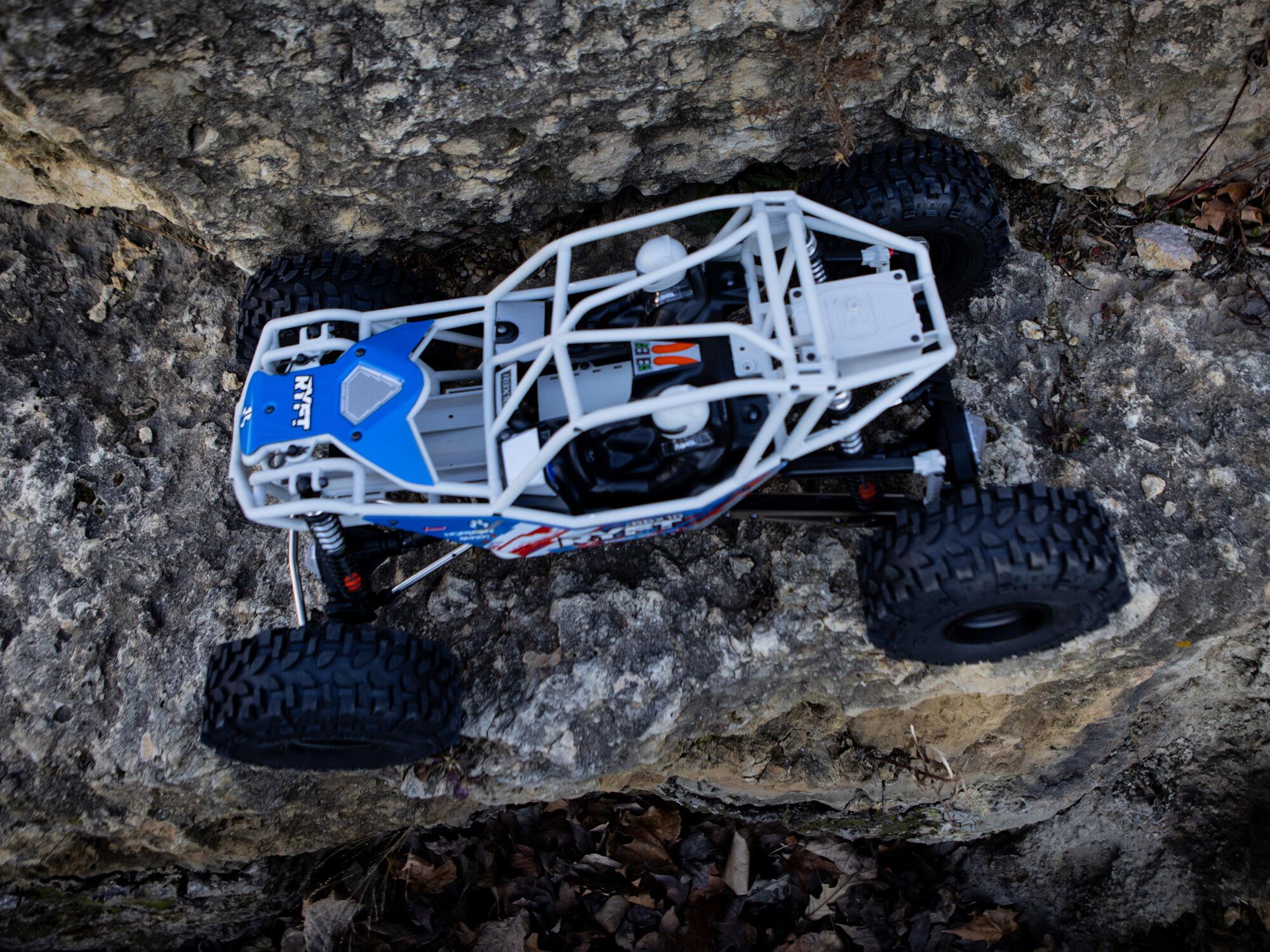

Overview

Axial® introduces another first with the 1/10 scale RBX10 Ryft 4WD, a kit that allows intermediate level RC drivers to experience the thrills of rock bouncer off-road action. Full-size rock bouncers refuse to stop — or even back down on the throttle — when facing steep climbs and massive rocks. So does the RBX10 Ryft 4WD. This ground-up new Axial® vehicle handles lots of abuse and loads of power!

The RBX10 Ryft 4WD's robust, custom tube chassis is engineered from a high-strength composite plastic that withstands the hard knocks of RC off-roading — even while moving at high speeds over difficult off-road terrain. Both the front and rear axles boast a durable one-piece, moulded plastic, solid axle design and realistic metal differential covers. Officially licensed Interco TSL Super Swamper Bogger tyres on Raceline Monster wheels do their part to tame wild tracks, aided by a 4-link suspension and adjustable, long travel front and rear oil shocks. These features, plus a full-time 4WD transmission, make the RBX10 Ryft an exciting vehicle to take on tough challenges at full throttle.

The Ryft kit comes with a clear body for finishing in your favorite colors, plus decals and realistic interior details. Many option parts are also included: spool/locker, rear aluminium link plates, rear sway bar, and parts for a 2-speed or single-speed transmission setup (servo not included). Build and finish the kit as you wish and complete it with your choice of radio system, motor, ESC and battery. Then, enjoy rock bouncing off-road driving over trails, dirt, gravel, rocks and more, with an RC vehicle that's engineered to take it — the Axial® RBX10 Ryft 4WD.

Custom Tube Chassis

Custom Tube Chassis

Axial® is known for custom tube chassis that are strong and well-designed. The Axial® RBX10 Ryft chassis is all that and much more, with the resilience to withstand the hard knocks of rock bouncing.



Front and Rear Solid Axles

Front and Rear Solid Axles

The RBX10 Ryft 4WD is engineered to carry a lot of power over punishing off-road tracks — as evidenced by the durable one-piece, moulded plastic, solid axle design of its front and rear axles. The axles also feature realistic metal differential covers in a raw, unfinished appearance.



Universal Axle Set

Universal Axle Set

Hardened steel universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.

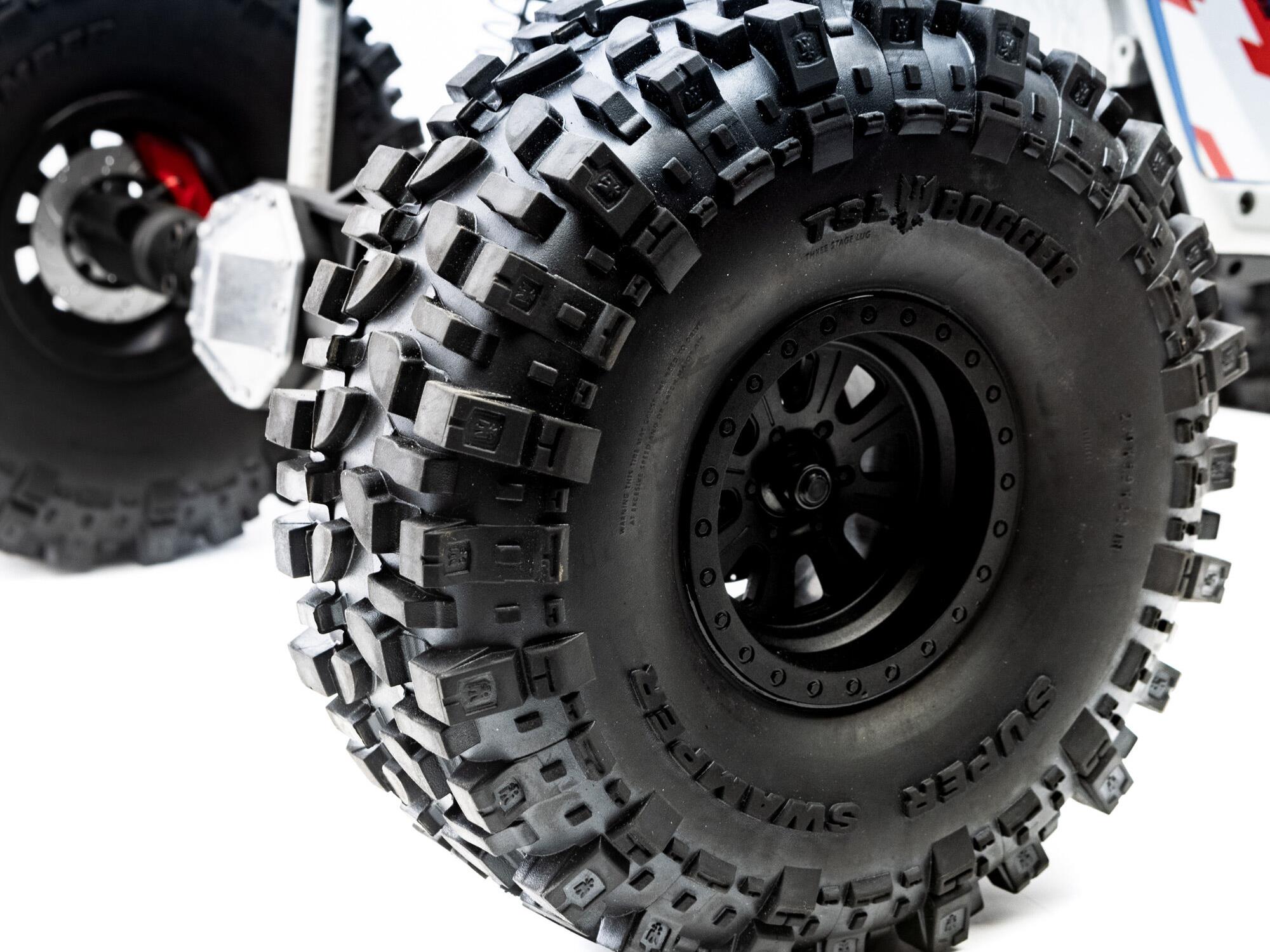

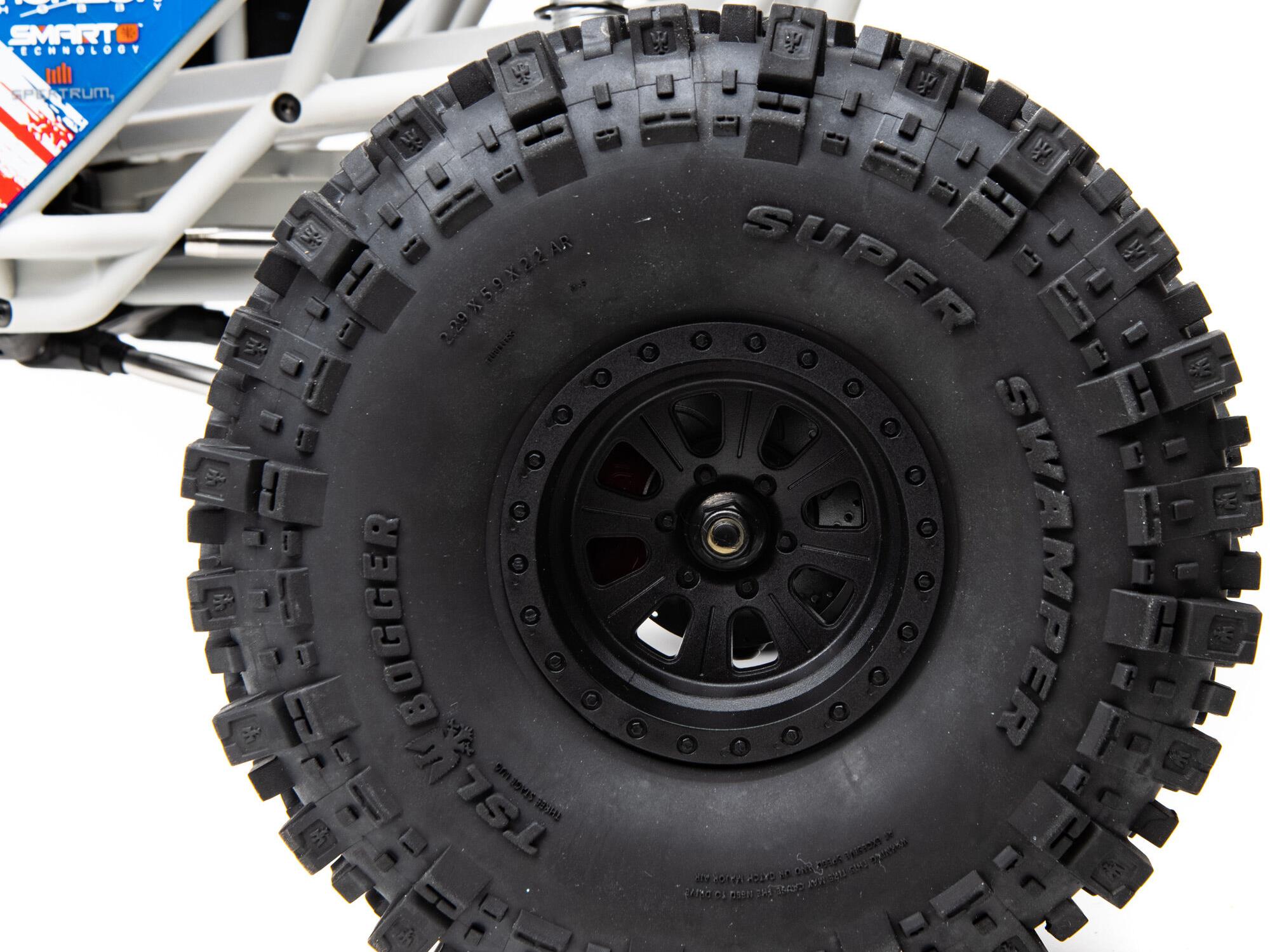

Interco Super Swamper TSL Booger Tyres

Interco Super Swamper TSL Booger Tyres

The Ryft 4WD's licensed replica Bogger tyres feature a directional tread pattern with the patented Interco TSL lug design. The custom siping follows a pattern used by many professional competitive rock bouncers who want an aggressive tyre that performs as good as it looks.

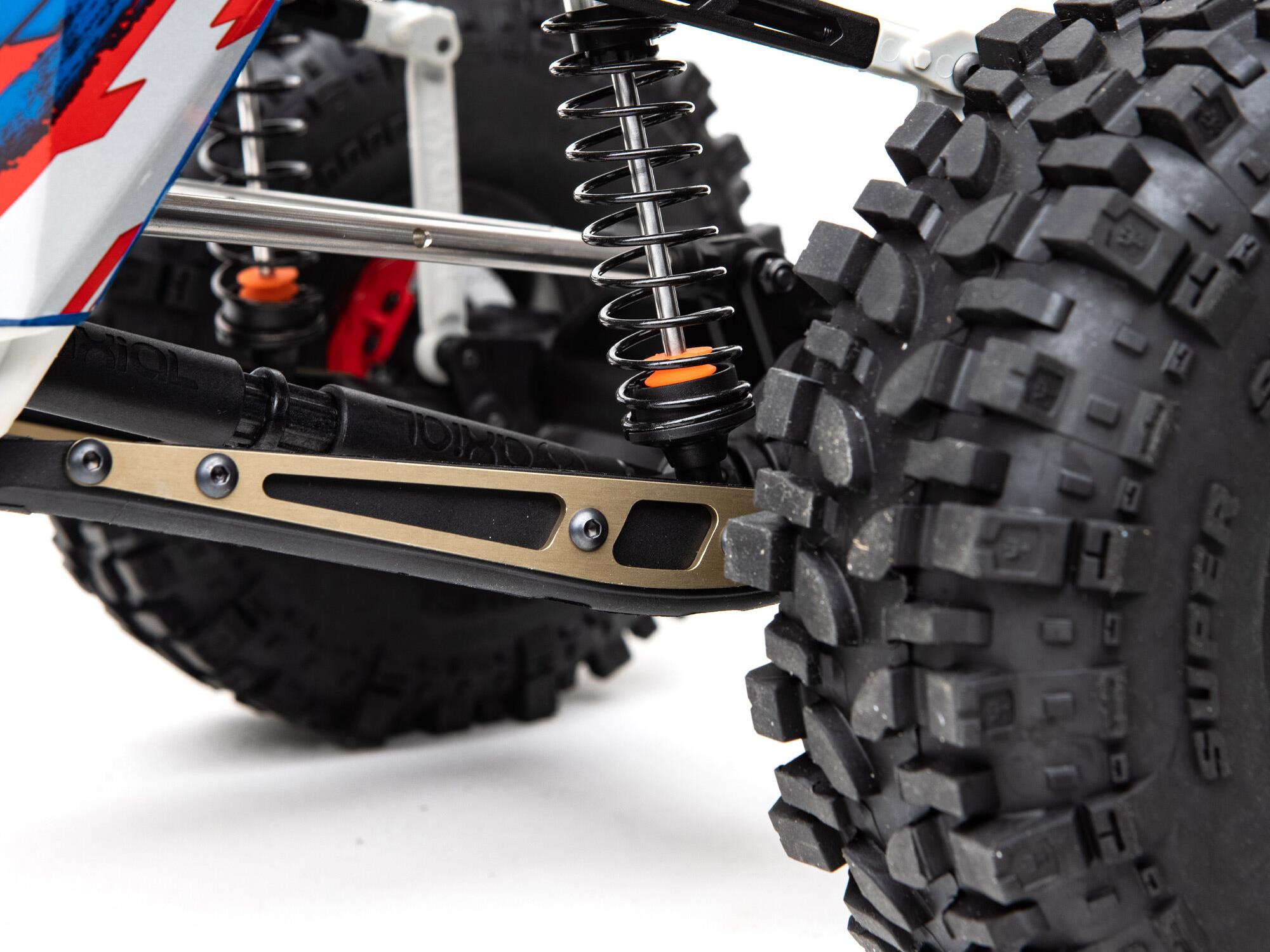

Aluminium Long Travel Shocks

Aluminium Long Travel Shocks

The oil-filled shocks feature threaded bodies and a single coilover spring, plus an aluminium shock cap and pre-load adjustment for tuning the suspension to achieve the best dampening rate. The 12mm bore size allows more fluid volume for better performance.



WB11 Wildboar<sup>™</sup> Driveshafts

WB11 Wildboar Driveshafts

The RBX10 Ryft 4WD kit includes tough, large diameter WB11 Wildboar driveshafts to handle extreme power.



Raceline Monster Wheels

Raceline Monster Wheels

In full-size, Raceline is the most popular wheel for extreme off-road duty — with a show-quality finish and proven ability to take abuse. Officially licensed Raceline Monster wheels give the 1/10 scale Ryft authentic looks and the strength to handle anything you can dish out.

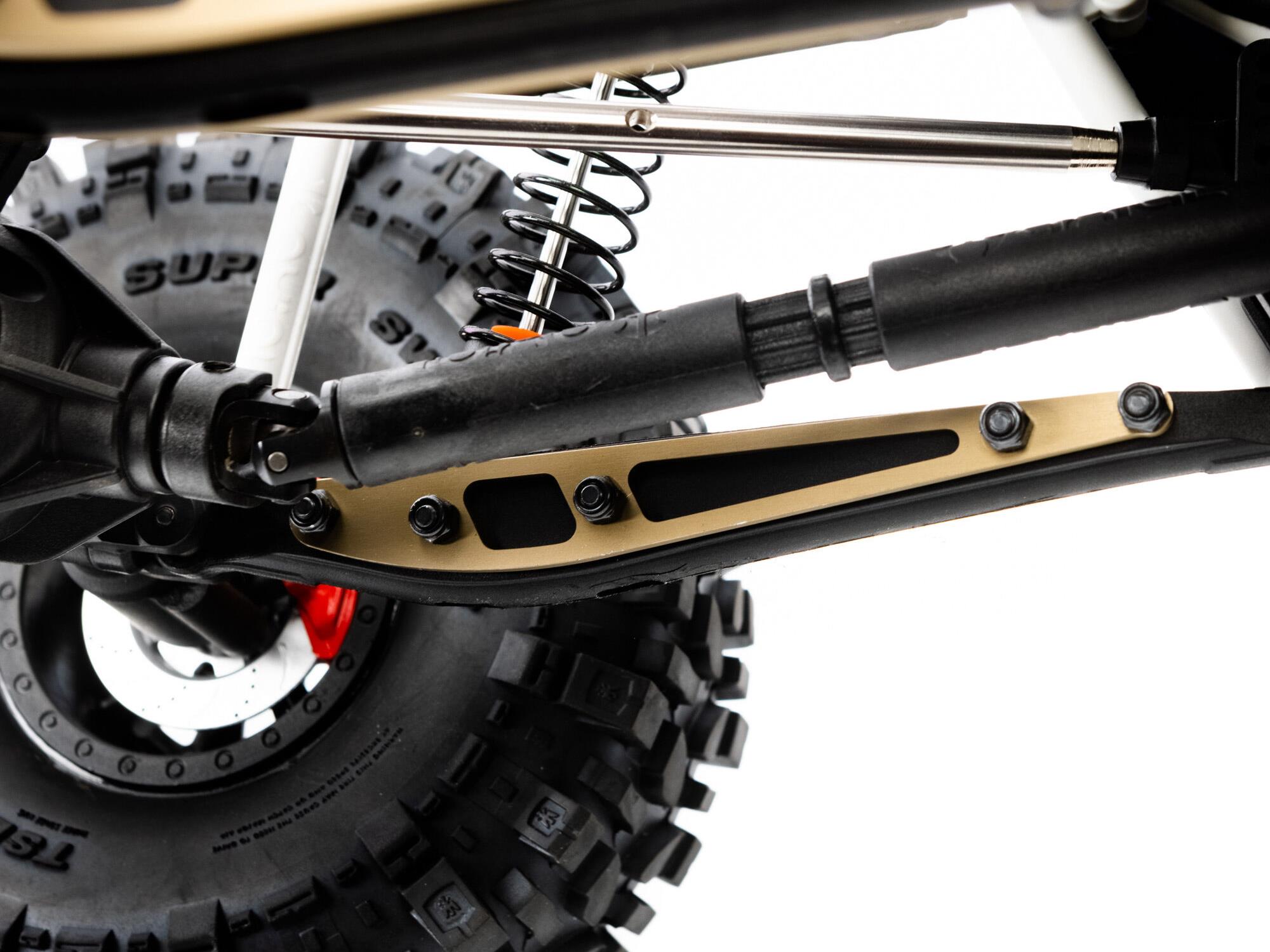

4-Link Suspension

4-Link Suspension

The suspension geometry uses a 4-link design which is optimized to reduce axle steer and to provide the proper anti-squat and roll characteristics. The 4-link system also aids against suspension wrap-up in high-power applications.



Option Parts Included

Option Parts Included

The RBX10 Ryft 4WD kit comes with parts needed to build it with a single or two-speed transmission (servo not included), as well as optional rear sway-bar, rear aluminium link plates, and spool/locker.






Spec Data
Scale 1/10
Weight
3.29Kg
Height
222mm
Length
546mm
Width
323mm
