1/10 SENTON 223S BLX 4X4 SCT RTR with DSC Red/Gunmetal
C-ARA4303V4T2
Arrma Arrma 5052127049887
SRP: £379.99
SMAP:
Trade:

Barcode:
5052127049887

Product Details

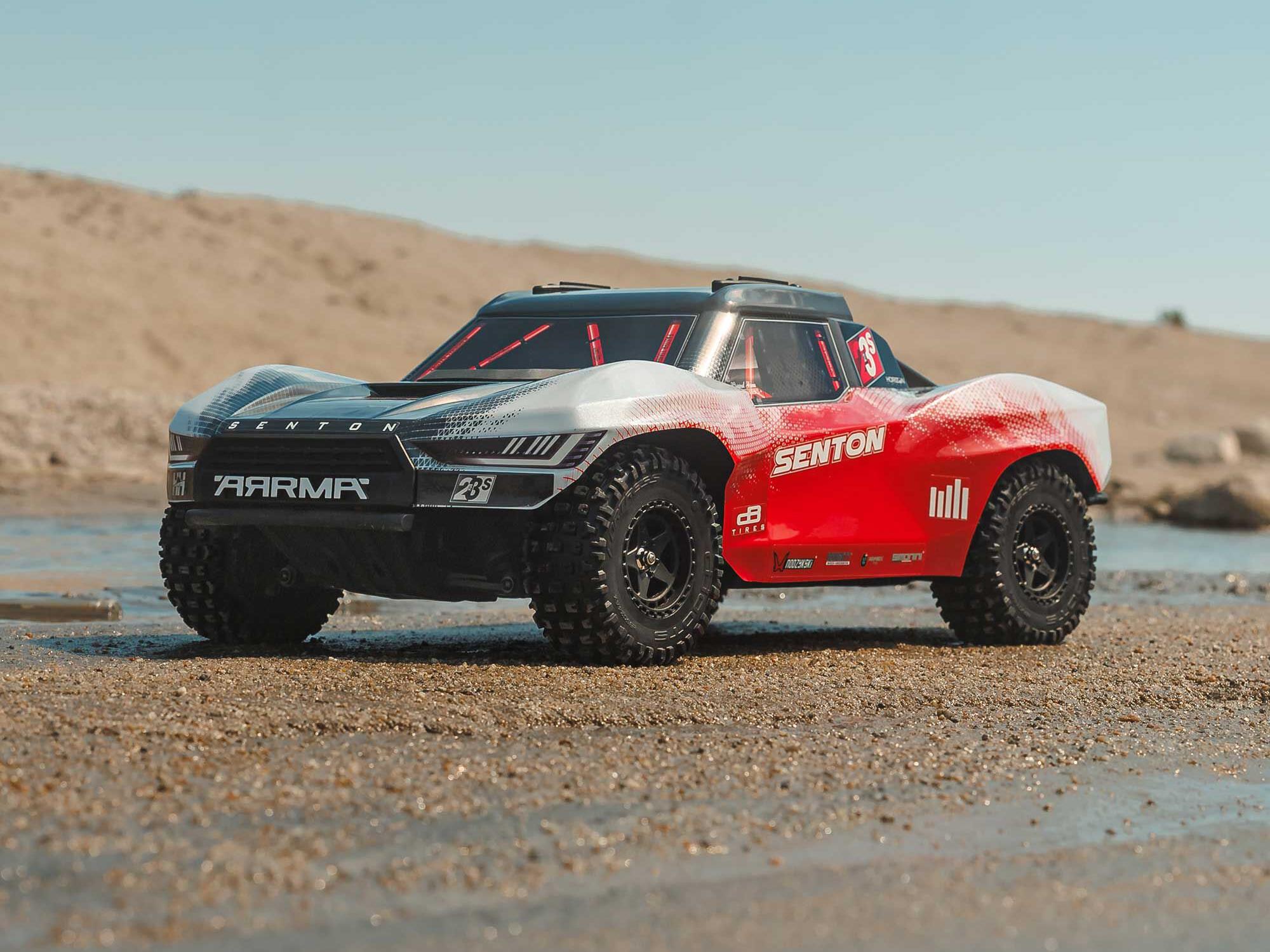

The 1/10 scale ARRMA SENTON 223S BLX is the perfect 4X4 short course truck for growing your brushless bashing skills. It's 2S and 3S capable, letting you increase top speeds from 35+ to 50+ mph - without adding upgrades or buying another vehicle.

Key Features

  • 2S and 3S ready, for brushless beginner to pro-level speeds
  • Spektrum DSC (Dynamic Stability Control) and throttle limiting keep you in control
  • Super-tough 4X4 drivetrain
  • All-terrain suspension package
  • Ready-to-run - just add battery and charger
In The Box
  • (1) SENTON 223S BLX 4X4 1/10 Scale Short Course Truck RTR
  • (1) Spektrum SLT 80A 2-in-1 Waterproof ESC & Receiver 2S/3S with DSC
  • (1) Spektrum 3100Kv Brushless Motor
  • (1) Spektrum SLT3 2.4GHz Transmitter
  • (1) Spektrum S662 Metal-Geared 25T Waterproof Digital Servo
  • (4) AA Batteries
  • (1) Instruction Manual
  • 2.5 and 3.0mm hex wrenches
*For details on waterproof standards, please refer to the product instruction manuals.
Needed to Complete
  • 1 x 2S or 1 x 3S Hardcase LiPo with IC5/EC5 Connector
  • Battery Charging Bag
  • Battery Charger
Note:
Maximum Battery Dimensions: 146mm x 51mm x 48mm (5.7 in x 2.01 in x 1.89 in)
Recommended Battery: 5000mAh 30C

ARRMA 1/10 SENTON 223S RC Short Course Truck RTR Overview

Joining and advancing in the world of high-speed brushless short course truck bashing is easier than you might think. Just start with the 1/10 scale ARRMA SENTON 223S BLX 4X4 short course truck. With aggressive styling, ready-to-run simplicity, unmatched durability, and premium performance, it has everything you need, at a price you can afford. Plus, it's ready out of the box for 2S or 3S LiPo power!

ARRMA developed the 223S series especially for brushless bashing newcomers who want to grow from 2S to 3S capabilities without adding expensive upgrades or buying a whole new vehicle. The SENTON 223S BLX 4X4 reaches 35+ mph top speeds with a 2S LiPo, matching or beating the best that other manufacturers' 2S bashers can do. Whenever you're ready to go faster, just install a 3S battery. Now you can unleash the short course truck's full 50+ mph potential!

You control how fast your SENTON 223S BLX 4X4 can go with the battery you choose and where you set the Spektrum SLT3 transmitter's throttle limiter switch. With throttle limiting, the SLT3 automatically limits top speed to whatever level you prefer until you're ready for it all. Set the switch to 50% or 75% and you'll never have to worry about moving faster than you can safely manage. Make the transition from 2S to 3S brushless speeds with complete confidence.

The Dynamic Stability Control (DSC) built into the short course truck's Spektrum electronics offers another special advantage. With four selectable modes, DSC will automatically correct steering input as needed to improve your control, confidence, and safety, whether you're bashing on high-grip or low-grip surfaces. As you gain experience, just turn off the DSC and use the skills you've mastered.

Everyone can get in on brushless short course bashing fun with the SENTON 223S BLX 4X4. Like all ARRMA vehicles, it's fast and tough - providing new and experienced brushless drivers with amped-up performance straight out of the box. Tough metal and composite materials are used for an easy-to-maintain, super-durable design. The heavy-duty 4X4 drivetrain holds up to extreme bashing, while the all-terrain suspension package and adjustable, oil-filled shocks soak up bumps.

The closed-wheel design of the short course body lets you aim for the block pass in a race without worrying about getting tangled in your competitor's tyres. Impact-absorbing composite front and rear bumpers and strong composite nerf bars add more protection, while higher, extended chassis side guards keep out dirt and debris. The high-quality, on-board Spektrum electronics are waterproof, so whatever the conditions, you can bash without fear.

Take your bashing skills to the next level with the 1/10 scale ARRMA SENTON 223S BLX 4X4 short course truck. Just add your choice of battery and charger. Then discover why it's better to be brushless!

ARRMA 1/10 SENTON 223S RC Short Course Truck RTR Features

  • Ready-to-run - just add battery and charger
  • Install a 2S LiPo battery for 35+ mph maximum speed
  • Use a 3S battery for 50+ mph pro-level top speeds
  • Center diff module and all-metal gear differential
  • Adjustable, oil-filled shocks mounted on composite shock towers
  • Ventilated composite chassis
  • Higher side guards for maximum protection from dirt and debris
  • Impact-absorbing composite front and rear bumpers
  • Strong composite nerf bars
  • Stealth monochrome electronics
  • Aggressive short course body style
  • Hidden body retention system
  • Clipless body with inbuilt dirt protection
  • Spektrum SLT3 2.4GHz 3-channel transmitter
  • Spektrum S662 metal-geared waterproof digital servo
  • Spektrum SLT 80A 2-in-1 waterproof 2S/3S ESC and receiver
  • Spektrum 3100Kv brushless motor and 35mm motor cooling fan
  • 4 "AA" transmitter batteries
  • 2.5 and 3.0mm hex wrenches
  • 2-Year limited warranty (see website for details)
2S & 3S READY  for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR
2S & 3S READY

Don't compromise on performance by choosing between a 2S or 3S capable brushless basher. The SENTON 223S BLX 4X4 short course truck comes ready for both. Start with a 2S LiPo for powerful performance that matches or beats the best that other manufacturers' 2S bashers can do. When ready, install a 3S battery for amped-up, pro-level 50+ mph bashing! The included SLT3 radio can automatically limit top speed to a comfortable level until you're ready to unleash it all.

DYNAMIC STABILITY CONTROL (DSC) for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR
DYNAMIC STABILITY CONTROL (DSC)

Another feature that makes the SENTON 223S BLX 4X4 short course truck ideal for new brushless drivers is the Spektrum electronics' Dynamic Stability Control (DSC). With four selectable modes, DSC will automatically apply steering corrections to improve your control, confidence, and safety, whether you're bashing on high- or low-grip surfaces. As you gain experience, just turn off the DSC and use the skills you've learned.

SPEKTRUM 2.4GHz SLT3 TRANSMITTER for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR
SPEKTRUM 2.4GHz SLT3 TRANSMITTER

The high-quality Spektrum SLT3 3-channel transmitter is perfectly equipped for all drivers. Whether you're using 2S or 3S power, it can help you learn control skills safely by limiting the short course truck's maximum available speed to 50% or 75% until you're ready for it all. Four AA batteries are included.

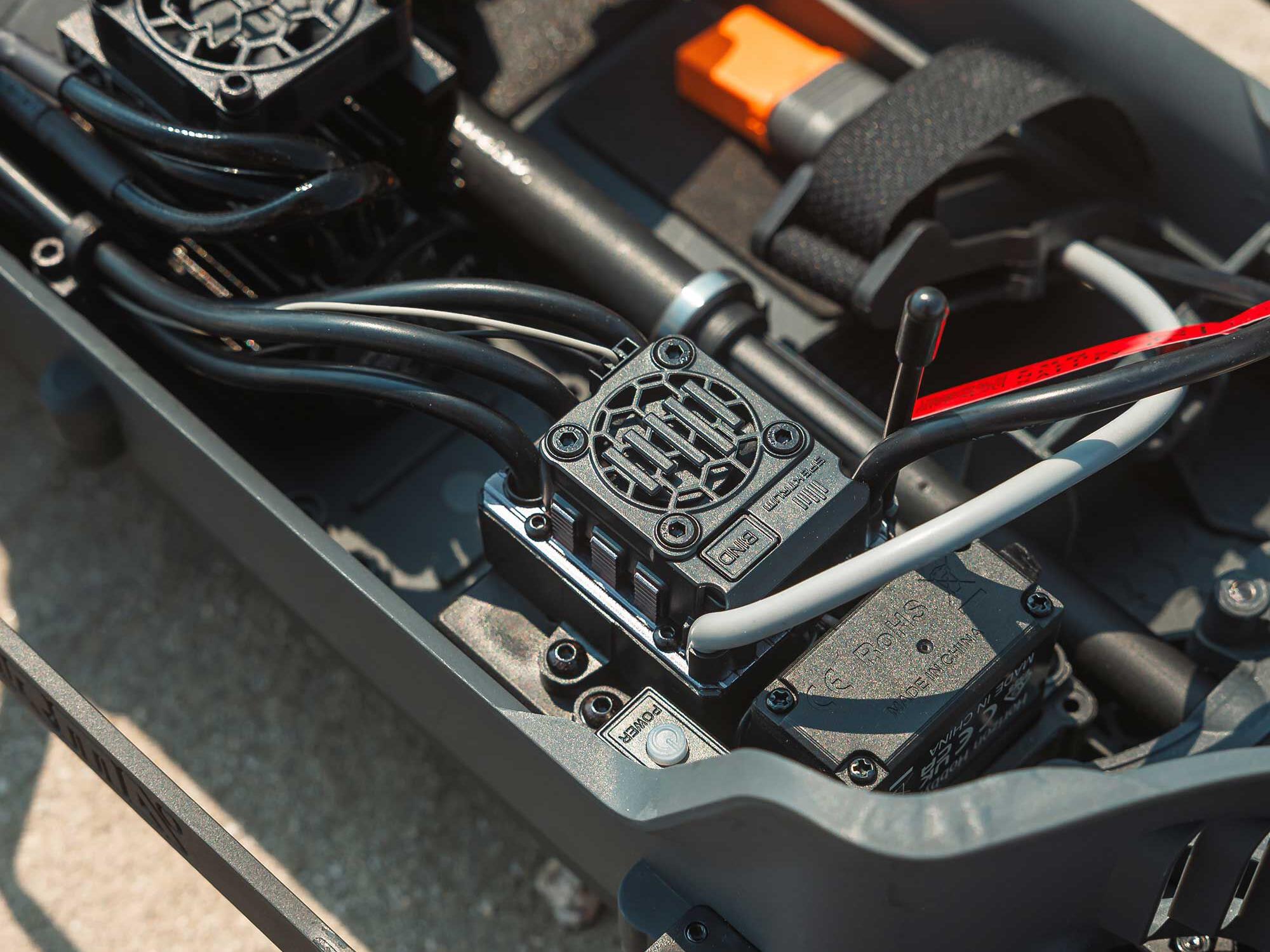

SPEKTRUM ELECTRONICS  for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR

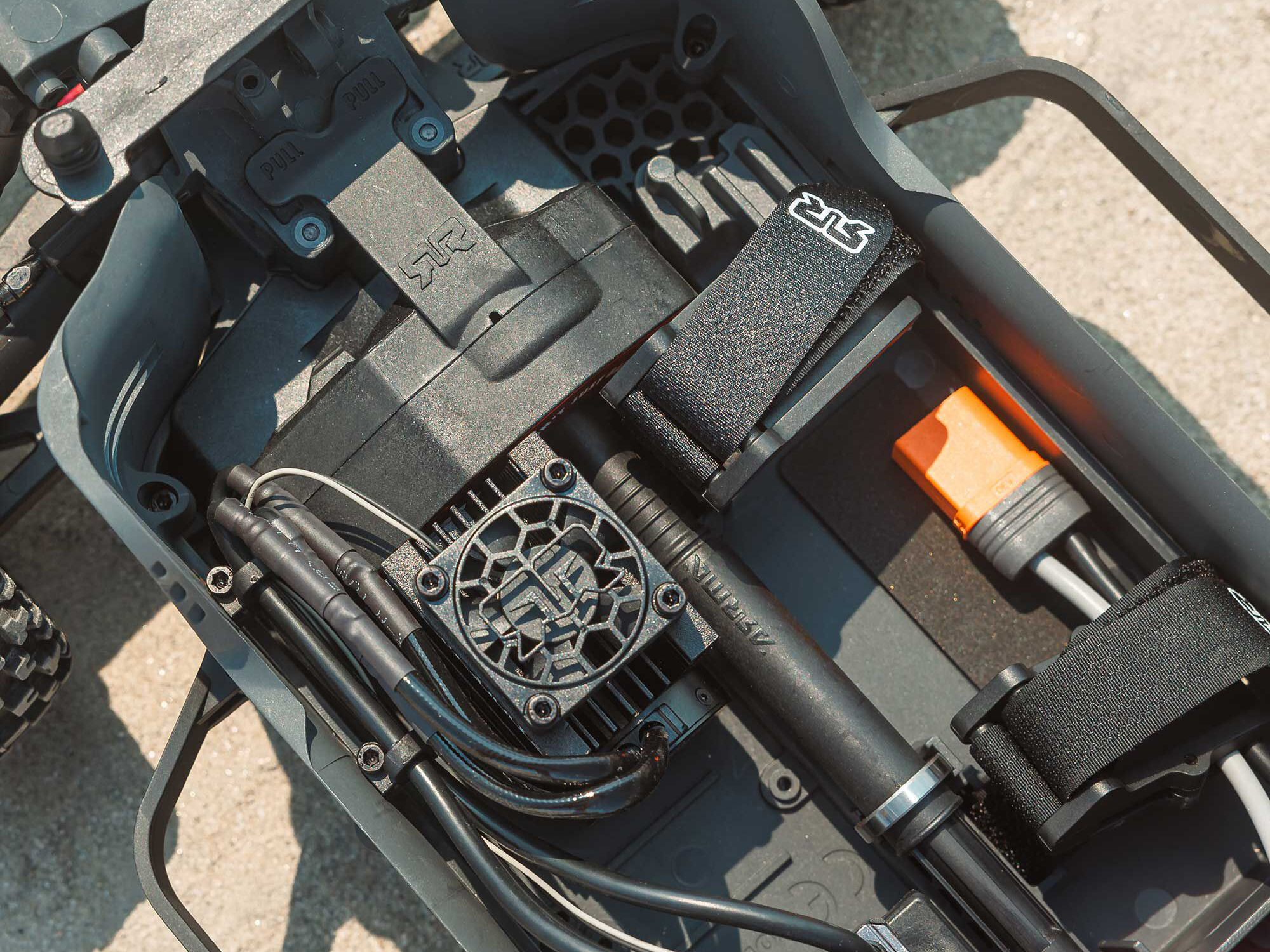

SPEKTRUM ELECTRONICS

Bash without worry, even in wet conditions. Both the Spektrum SLT 80A 2-in-1 brushless 2S/3S ESC and receiver unit and the Spektrum S662 metal-geared digital steering servo are waterproof. (For details on waterproof standards, refer to the SENTON 223S BLX 4X4 short course truck instruction manual.)

SUPER TOUGH TRANSMISSION for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR
SUPER TOUGH TRANSMISSION

Factory assembled and installed, the heavy-duty, metal gear differential sends power from the Spektrum 3100Kv brushless motor to all four wheels for blasting through challenging terrain. The entire power system is well-protected for dependable performance on all terrain.

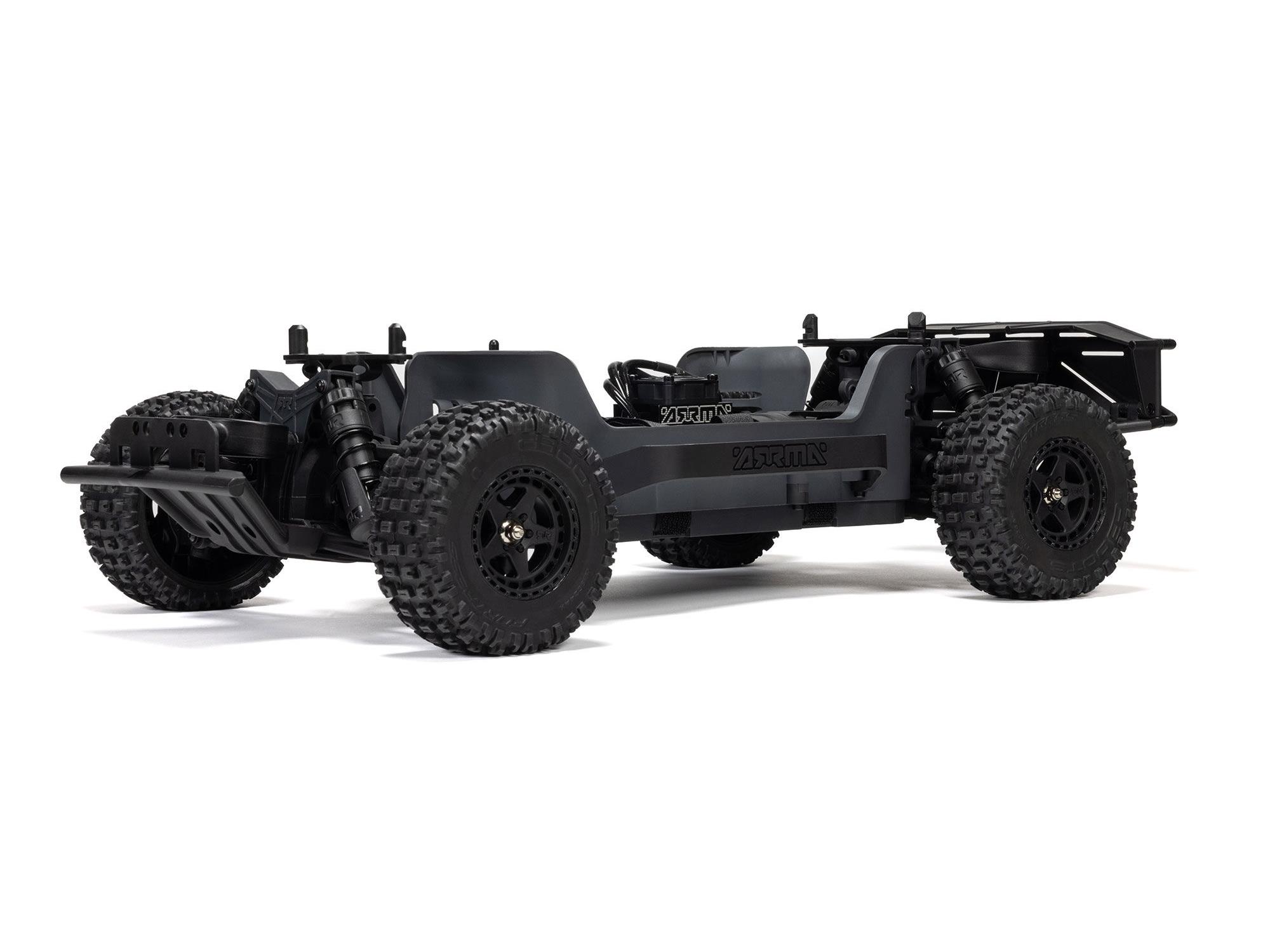

STRONG COMPOSITE CHASSIS for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR

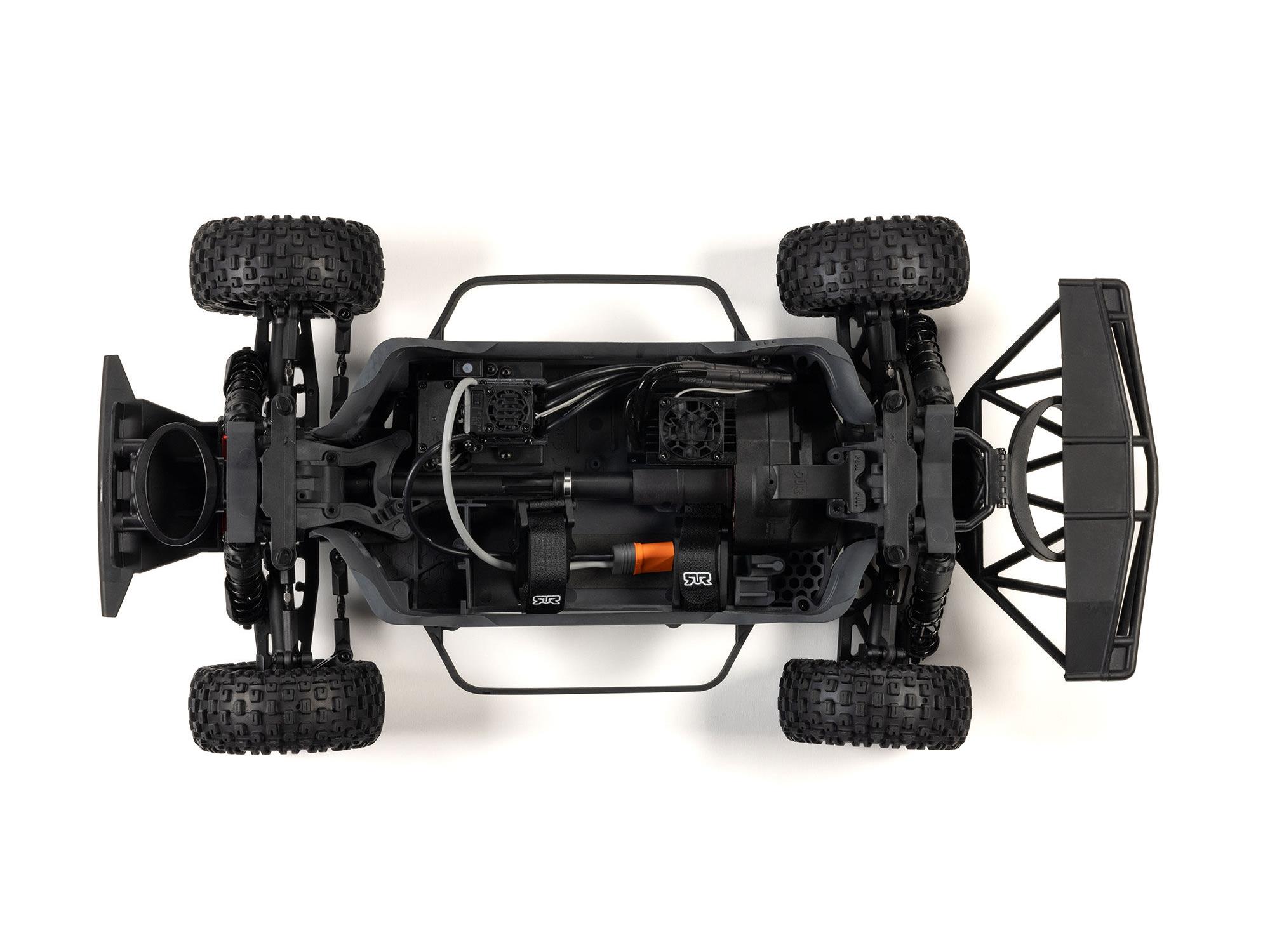

STRONG COMPOSITE CHASSIS

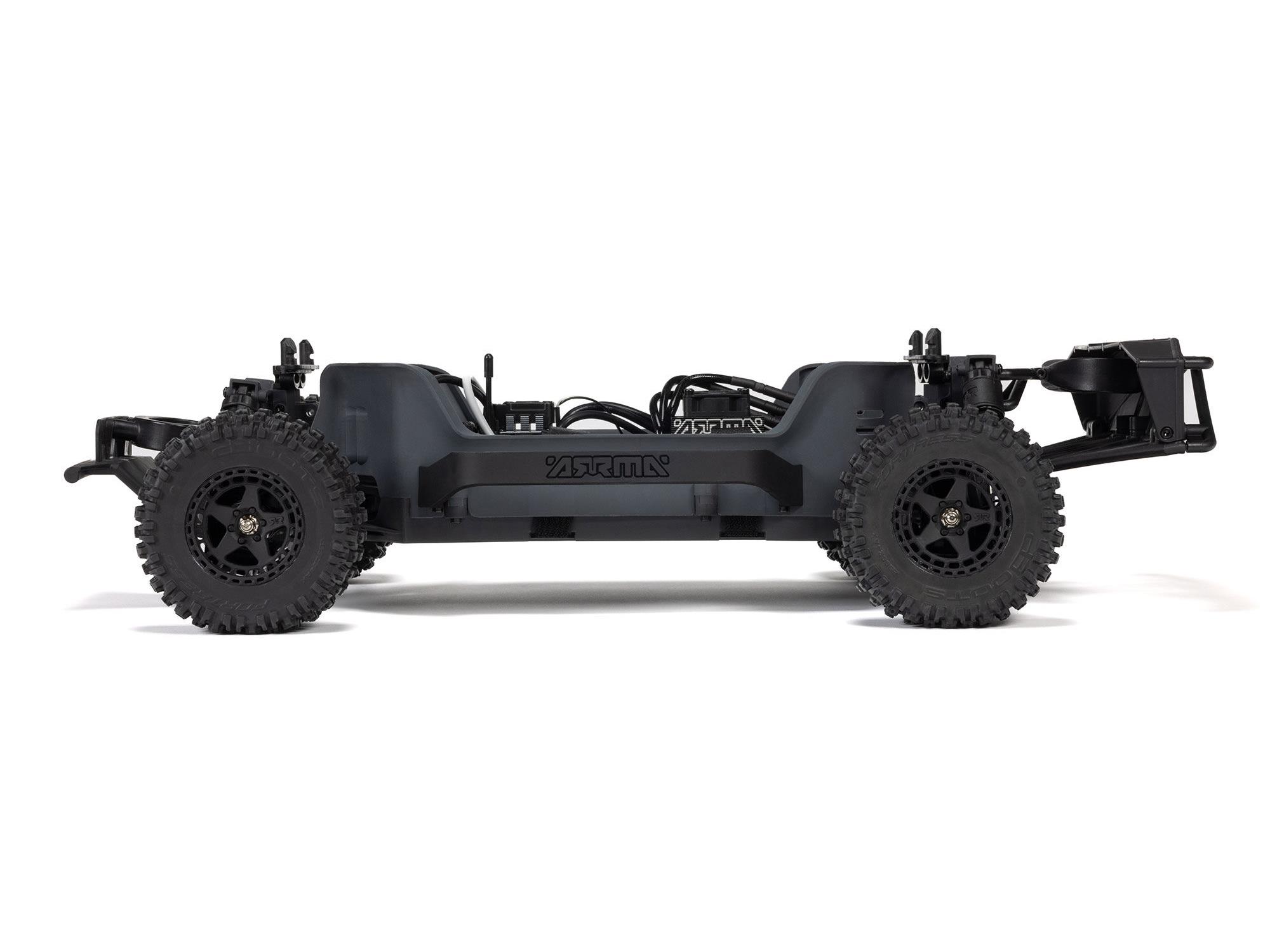

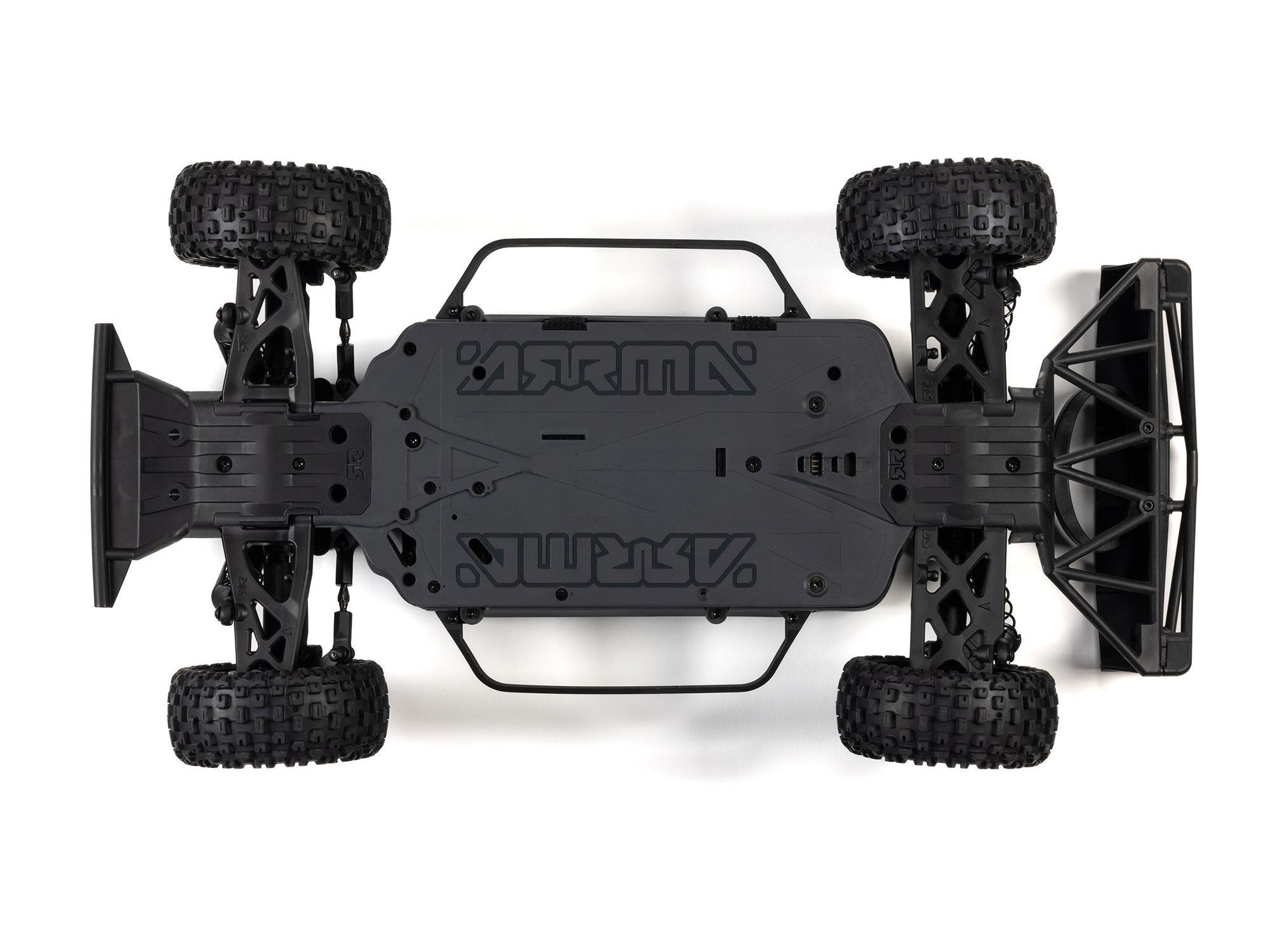

The durability of its ventilated composite chassis lets you send your SENTON 223S BLX 4X4 short course truck over punishing terrain with confidence. Higher side guards offer maximum protection from dirt and debris.

ADJUSTABLE SUSPENSION for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR
ADJUSTABLE SUSPENSION

The all-terrain independent suspension and oil-filled, coilover shocks soak up bumps. If your bashing takes you over uneven surfaces, you can adjust the ride height to increase ground clearance.

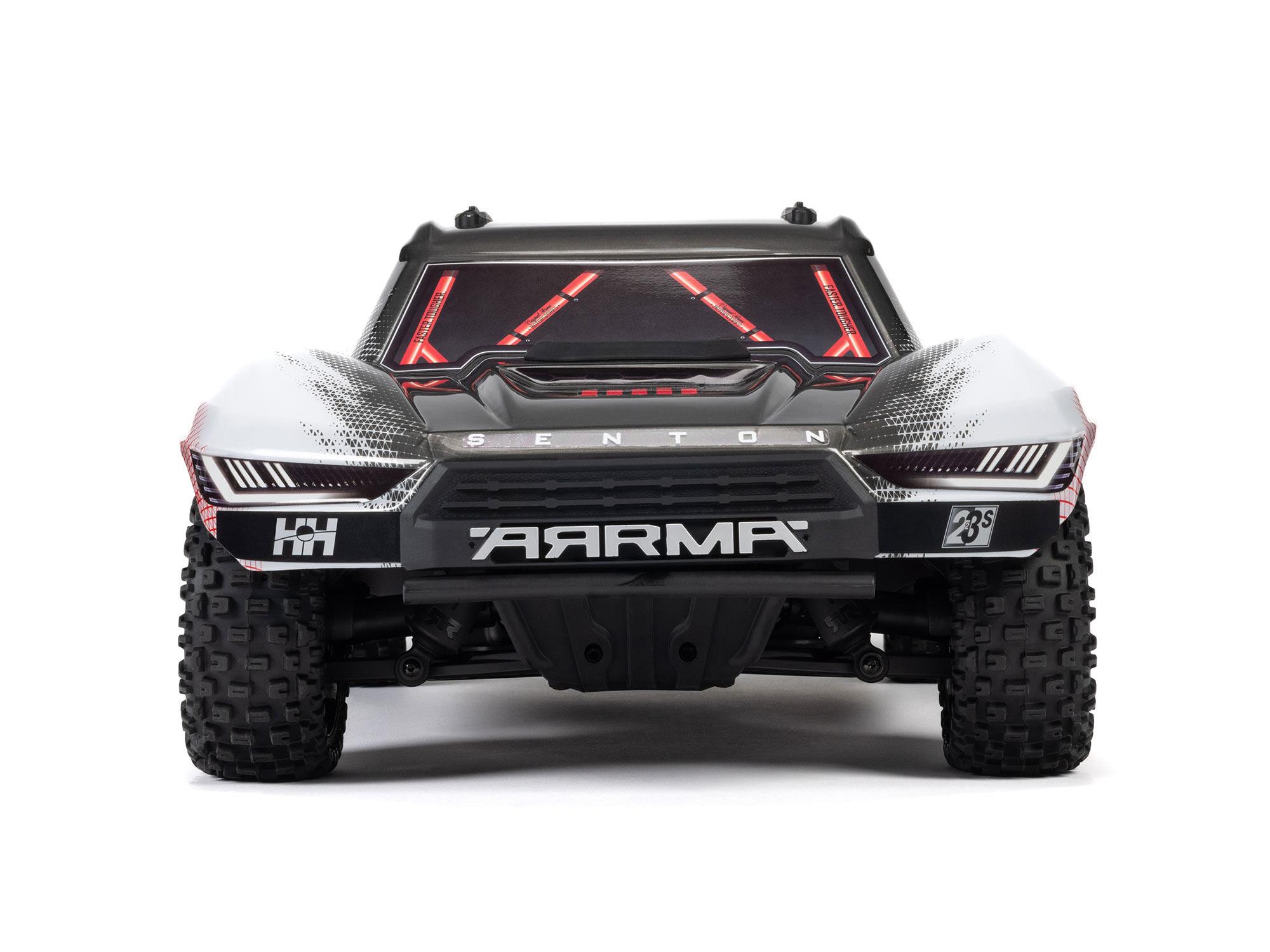

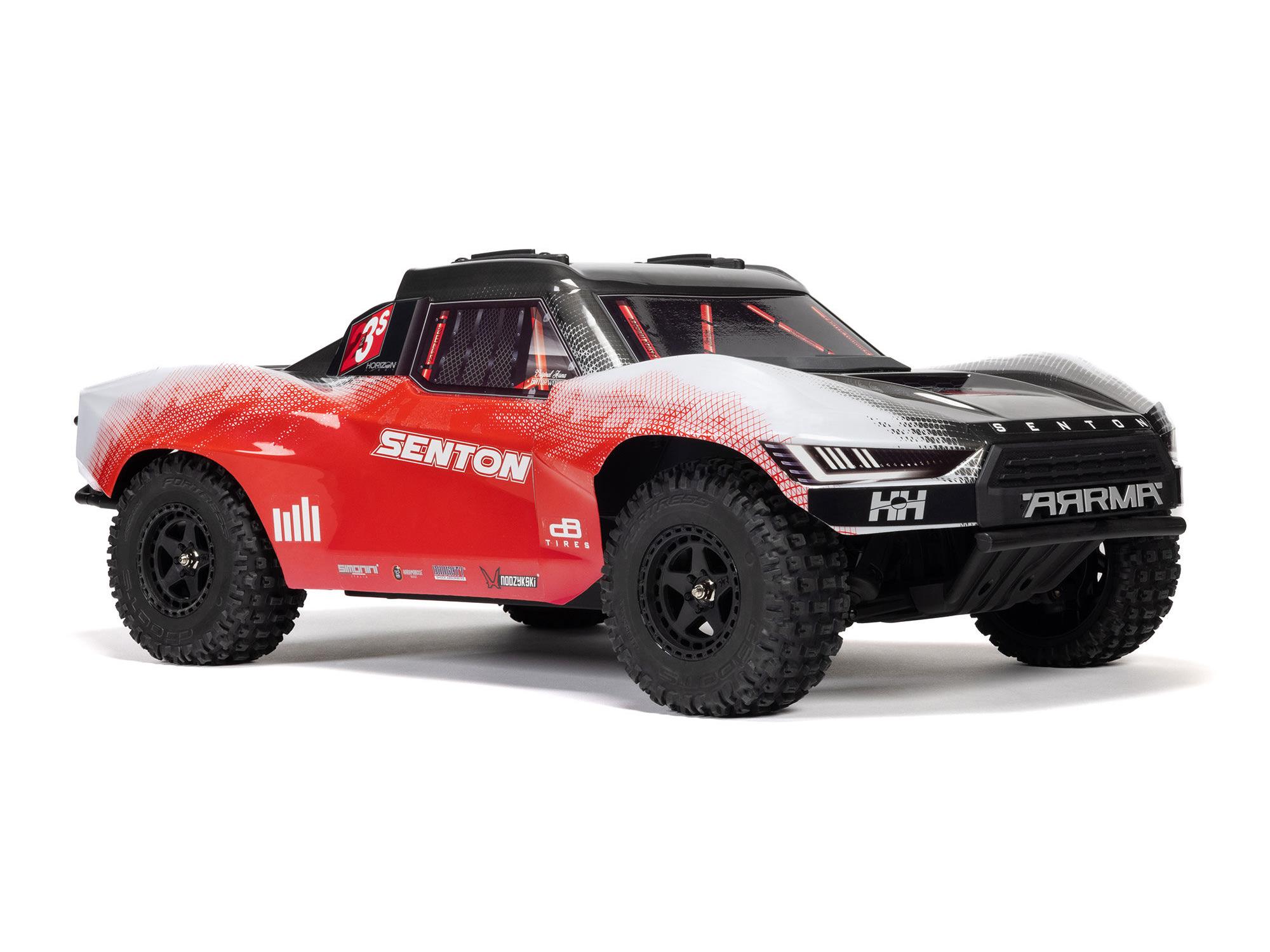

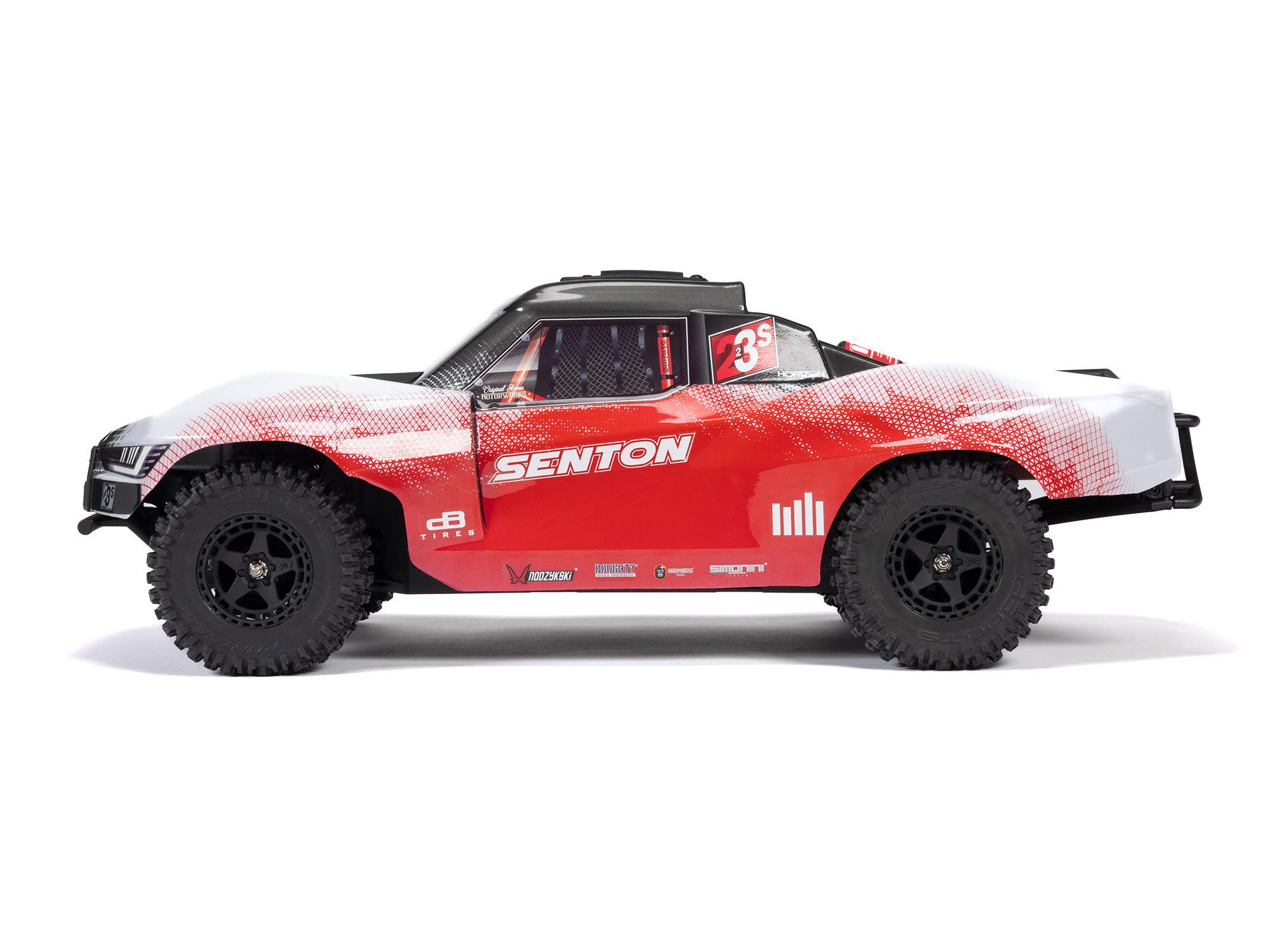

SHORT COURSE TRUCK BODY for the ARRMA 1/10 SENTON 223S RC Short Course Truck RTR

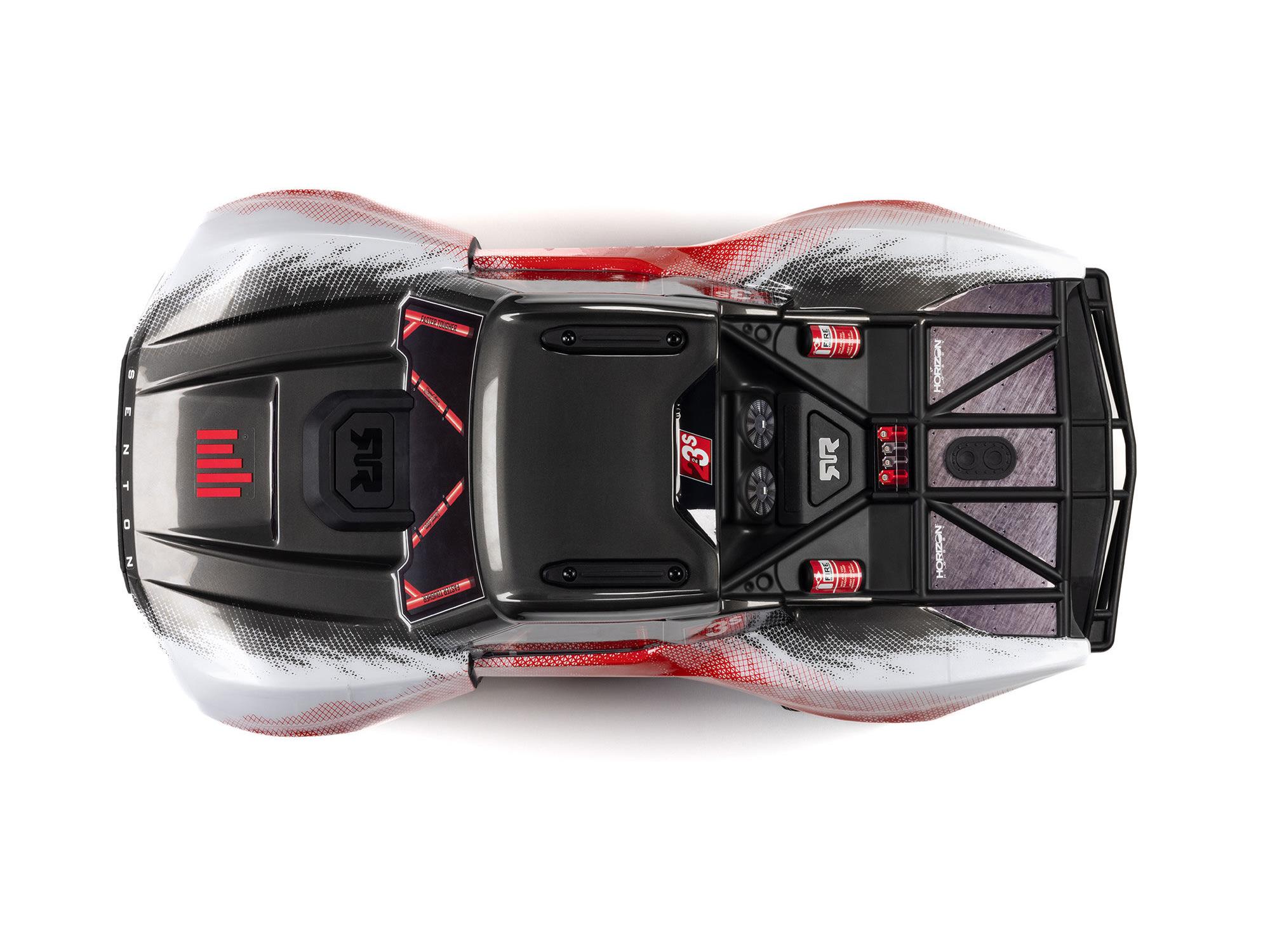

SHORT COURSE TRUCK BODY

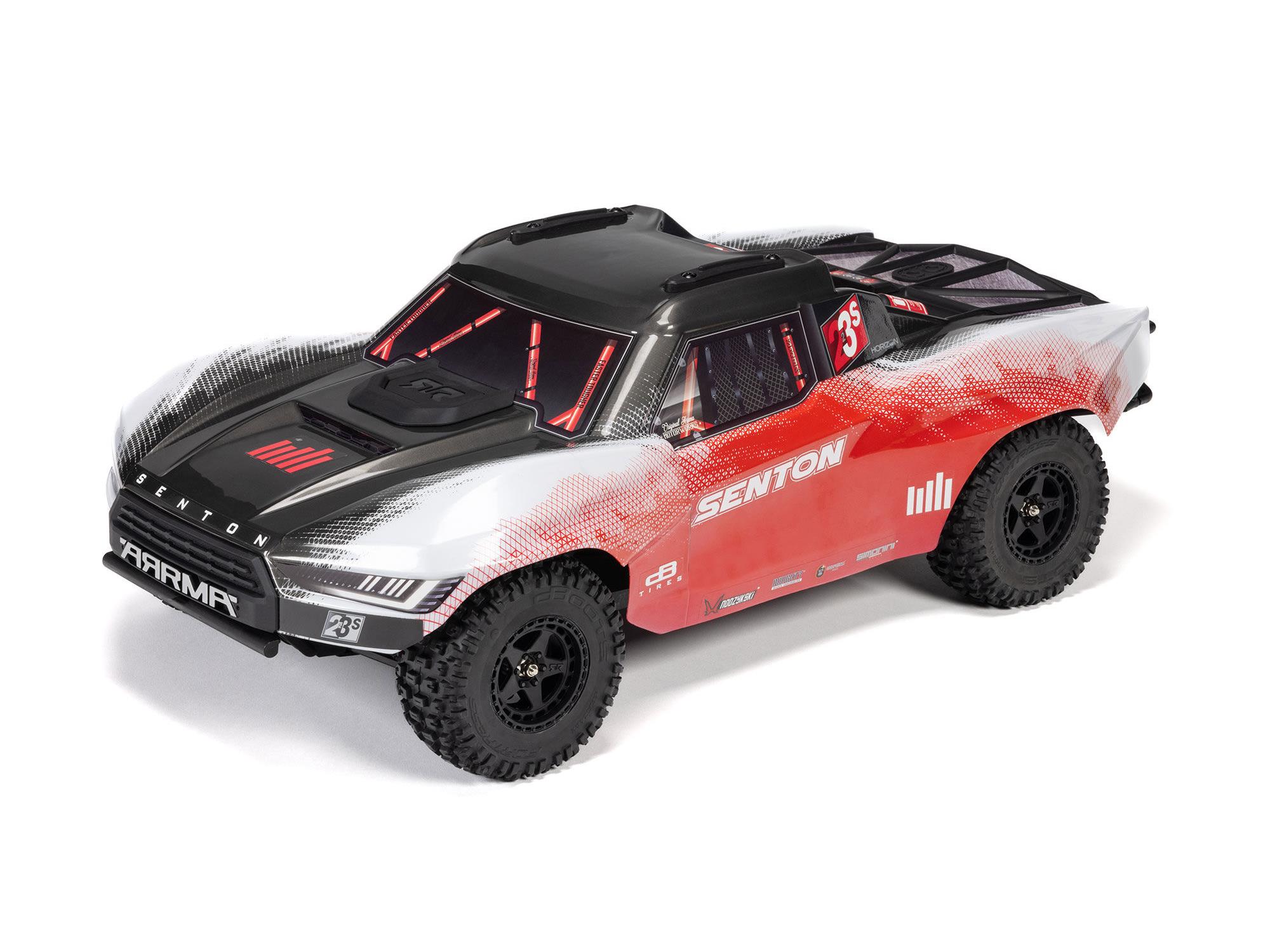

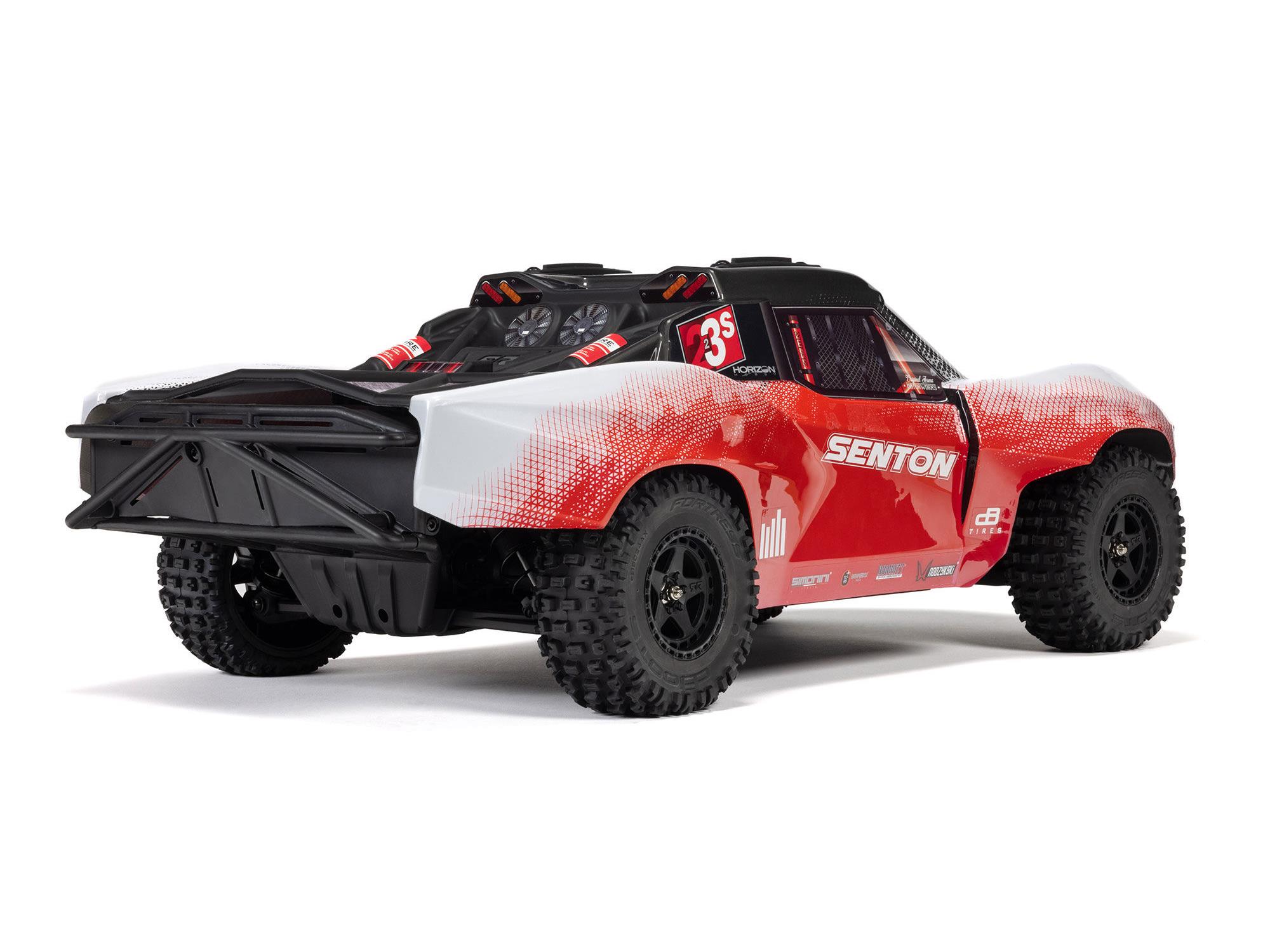

Adding to its exciting realism, the SENTON 223S BLX 4X4 short course truck body is securely held in place by a hidden body retention system.




Spec Data
Scale 1/10
Battery type 1 x 2S or 1 x 3S Hardcase LiPo (Not Included)(Max Size: 146x51x48)
Motor type Spektrum 3100Kv Brushless Motor
Weight
3.55Kg
Height
210mm
Length
558mm
Width
305mm

Related Items

2S Completion Guide

Image Item Id Name Trade SSP Order
Now
  O-SPMX52S50H5 5000mAh 2S 7.4V SMART G2 50C IC5 £64.99
  O-SPMXC2090 S100 1x100W USB-C Smart Charger £29.99

3S Completion Guide

Image Item Id Name Trade SSP Order
Now
  O-SPMX53S50H5 5000mAh 3S 11.1V SMART G2 50C IC5 £84.99
  O-SPMXC2090 S100 1x100W USB-C Smart Charger £29.99

Replacement Parts

Image Item Id Name Trade SSP Order
Now
  Z-ARA-1626 SENTON Clipless Painted Decaled Trimmed Body, Red £69.99
  Z-ARA-1627 SENTON Clipless Painted Decaled Trimmed Body, Blue £69.99
  Z-ARA-1628 Body Post Set £16.99
  Z-ARA-2091 Motor Fan Set 35mm £24.99
  Z-ARA-2092 Motor Heatsink V2: 3660, 3668 £24.99
  Z-ARA-2257 Center Driveshaft Guard £6.99
  Z-ARA-2368 Button Head Screw M3x16mm with Washer (8) £4.99
  Z-ARA-2369 Button Head Screw M3x12mm with Washer (8) £4.99
  Z-ARA-2372 Shock Set 11mm Bore, 109mm Length, 2x1.3mm Piston, 500cSt Oi £27.50
  Z-ARA-2373 Shock Set 11mm Bore, 87mm Length, 2x1.3mm Piston, 700cSt Oil £27.50
  Z-ARA-2374 Shock Cap, Black (2) £4.99
  Z-ARA310956 Diff Set 37T/1.35M £69.99
  Z-ARA310999 16T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311153 Metal Input Gear (13T, 1.35M) 4S v2 £10.99
  Z-ARA311165 57T Metal Center Diff Set, 0.8 MOD £69.99
  Z-ARA311166 Center Diff Case Set (metal) £11.99
  Z-ARA311167 57T Metal Center Diff Spur Gear, 0.8 MOD £29.99
  Z-ARA311168 Metal Center Diff Outdrive Set (2) £19.99
  Z-ARA311169 Center Diff Power Module Plastic Part Set £22.50
  Z-ARA311171 M3x11.5mm Motor Screw Set £5.99
  Z-ARA311192 Aluminium Motor Mount Plate For Center Diff £32.50
  Z-ARA311235 Center Diff Rebuild Kit £18.99
  Z-ARA320589 Aluminum FF Suspension Mount Red £7.99
  Z-ARA320590 Aluminum RR Suspension Mount Red £7.99
  Z-ARA320680 Metal Multi Tool 5/7mm Nut, 11/15mm Bore Shock £11.99
  Z-ARA320824 Battery Mounting Set £27.50
  Z-ARA330666 Spring Perch And Rod End Set £19.99
  Z-ARA330704 Shock Shaft 3x54mm (2) £7.99
  Z-ARA330705 Shock Shaft 3x64mm (2) £7.99
  Z-ARA330712 Shock Springs: 55mm 1.2N/mm (6.9lbf/in) (2) £6.99
  Z-ARA330713 Shock Springs: 70mm 1.2N/mm (6.9lbf/in) (2) £6.99
  Z-ARA330714 Shock Body, Front (2) £6.99
  Z-ARA330715 Shock Body (2) £6.99
  Z-ARA330767 Assembled Turnbuckle Set £27.50
  Z-ARA330810 Steel Ball Set £24.99
  Z-ARA340179 Steering Parts Set £10.99
  Z-ARA340215 Direct Mount Servo Saver (25T Spline) £9.99
  Z-ARA610038 Ball Bearing 15x21x4mm (2RS) (2) £10.99
  Z-ARA610041 Ball Bearing 6x12x4mm 2RS (2) £11.99
  Z-ARA610044 Ball Bearing 12x18x4mm 2RS (2) £11.99
  Z-ARA610045 Ball Bearing 5x10x4mm 2RS (2) £10.99
  Z-ARA610046 Ball Bearing 10x15x4mm 2RS (2) £7.99
  Z-ARA702008 Cap Head Hex Machine Screw, M2.5x6mm (10) £4.99
  Z-ARA709067 Shim 10.2x15x0.5mm (10) £5.99
  Z-ARA716034 O-Ring 7.8x2.2mm (4) £4.99
  P-SPMS662 S662 Standard High Torque Servo, Steel Gear, Waterproof, 25T £64.99
  P-SPMXSE8010RX 80A Brushless 2-in-1 ESC / SLT Receiver: 3S Vehicles £124.99
  Z-AR310775 Differential Outdrives Metal 4x4 (2) £10.99
  Z-AR310780 Composite Front Slider Driveshaft Set 4x4 £19.99
  Z-AR310783 Composite Diff Yoke Set 4x4 £4.99
  Z-AR310864 Composite Rear Slider Driveshaft Set 4x4 £19.99
  Z-AR310865 Diff Planet Gear (4) £10.99
  Z-AR310871 Wheel Hex Metal 14mm BLX 3S (2) £9.99
  Z-AR310872 Diff Case Set 37T (1.35) Main Gear 4x4 BLX 3S £10.99
  Z-AR310875 Differential Gasket 4x4 BLX (2) £4.99
  Z-AR310884 Comp Center Slider Driveshaft 4x4 775 BLX £10.99
  Z-AR320400 Radio Box Set 4x4 £11.99
  Z-AR330442 C-Hubs (2) 4x4 £6.99
  Z-AR330449 Shock Body/Spring Spacer Set 2 Front 4x4 £6.99
  Z-AR330451 Composite Shock Parts/O-Ring Set (2) £7.99
  Z-AR330456 Hinge Pin 4x40mm 4x4 (2) £4.99
  Z-AR330457 Hinge Pin 4x63mm 4x4 (2) £4.99
  Z-ARA716035 O-Ring 2.6x2mm (8) £6.99
  Z-ARA716036 O-Ring 8x1.5mm (4) £4.99
  Z-ARA727312 M3x12.5mm Screw Shaft (2) £4.99
  Z-ARA727417 Double Socket Button Head Screw M4x16mm (10) £5.99
  Z-AR330468 Hinge Pin 3x31mm 4x4 (2) £4.99
  Z-AR330469 Steering Block (2) 4x4 £6.99
  Z-AR330470 Rod End Set 4x4 £10.99
  Z-AR330535 Steel Turnbuckle M4X34mm Black (2) £6.99
  Z-AR340137 Steering Post (2) 4x4 £6.99
  Z-AR340138 Flanged Tube 4x4 (2) £4.99
  Z-AR390001 Antenna Pipe with Cap £4.99
  Z-AR610014 Ball Bearing 5x8x2.5mm 4x4 (2) £6.99
  Z-AR701404 Set Screw 4x4mm (10) £4.99
  Z-AR702002 Cap Head Screw 2.5x12mm (10) £6.99
  Z-AR708008 Flanged Nyloc Locknut 4mm Silver (4) £4.99
  Z-AR709012 Washer / Shim 2.7x5x0.5mm (10) £4.99
  Z-AR709049 Washer / Shim 7.1x11x0.5mm (4) 4x4 £4.99
  Z-AR709052 Washer / Shim 12x15.5x0.2mm (4) £4.99
  Z-AR713014 Pin 3x17mm Nero (4) £4.99
  Z-AR713028 Pin 2.5x12mm (10) £6.99
  Z-AR715001 Nylon Nut 3mm (4) £4.99
  Z-AR715005 Nut M4 Nylon (4) £4.99
  Z-AR715008 Nylon Nut 2.5mm (4) £4.99
  Z-AR721303 Button Head Hex Machine Screw 3x3mm (10) £4.99
  Z-AR721308 Button Head Screw 3x8mm (10) £4.99
  Z-AR721310 Button Head Screw 3x10mm (10) £4.99
  Z-AR721312 Button Head Screw 3.x12mm (10) £4.99
  Z-AR721316 Button Head Screw 3x16mm (10) £4.99
  Z-AR721320 Button Head Screw 3x20mm (10) £4.99
  Z-AR721414 Button Head Screw 4x14mm (4) £4.99
  Z-AR722308 Flat Head Screw 3x8mm (10) £4.99
  Z-AR722310 Flat Head Screw 3x10mm (10) £4.99
  Z-AR722316 Flat Head Screw 3x16mm (10) £4.99
  Z-AR722412 Flat Head Screw 4x12mm (4) £4.99
  Z-AR722415 Flt Head Hex Machine Screw 4x15mm 4x4 (4) £4.99
  Z-AR722440 Flt Head Hex Machine Screw 4x40mm 4x4 (4) £4.99
  Z-AR723308 Cap Head Screw 3x8mm 4x4 (10) £4.99
  Z-AR723310 Cap HD Screw M3X10mm (10) £4.99
  Z-AR723312 Cap Head Screw 3x12mm (10) £4.99
  Z-AR723316 Cap Head Hex Machine Screw 3x16mm (4) £4.99
  Z-AR723320 Cap Head Hex Machine Screw 3x20mm (4) £4.99
  Z-AR724303 Set Screw 3x3mm (10) £4.99
  Z-ARA-1083 Composite Chassis - LWB £32.50
  Z-ARA-1296 Body Mounting Hardware Set £7.99
  Z-ARA-1382 Wheel Axle, Long (2) £10.99
  Z-ARA-1575 Rear Hub Set £7.99
  Z-ARA-1602 Shock Tower Set £24.99
  Z-ARA-1606 Rear Arms (2) £13.99
  Z-ARA-1607 Front Arms (2) £14.99
  Z-ARA-1610 Body Release Set £16.99
  Z-ARA-1611 Inner Body Dirt Guard Set £16.99
  Z-ARA-1612 Inner Body Support Set £16.99
  Z-ARA-1613 Roof Skid Set £7.99
  Z-ARA-1614 Side Guard Set £19.99
  Z-ARA-1615 Lower Skid and Bumper Set £11.99
  Z-ARA-1616 DBOOTS 'FORTRESS SC' Tire Set Glued, Black (2) £39.99
  Z-ARA-1617 Cap Head Screw M3x22mm (10) £4.99
  Z-ARA-1618 Cap Head Screw M3x30mm (10) £4.99
  Z-ARA-1619 Button Head Screw M4x32mm (10) £4.99
  Z-ARA-1625 SENTON Clipless Painted Decaled Trimmed Body, Yellow £69.99

Optional Parts

Image Item Id Name Trade SSP Order
Now
  T-DYNT3040 1/10 Competition Hex & Nut Driver Set (5) £47.50
  Z-AR310816 Wheel Hex Metal 12mm (4) £10.99
  Z-AR310867 CVD Diff Outdrives 4x4 MEGA BLX (2) £19.99
  Z-AR310868 CVD Wheel Axle 4x4 MEGA BLX (2) £19.99
  Z-AR310869 CVD Pin Set 4x4 MEGA BLX £11.99
  Z-ARA-1624 SENTON 4X4 Trimmed Body, Clear £59.99
  Z-ARA310996 13T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA310997 14T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA310998 15T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311000 17T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311001 18T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311002 19T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311003 20T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311004 21T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311005 22T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311006 23T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311007 24T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311008 25T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311009 26T 0.8Mod Safe-D5 Pinion Gear £19.99
  Z-ARA311152 Metal Main Diff Gear (37T, 1.35M) 4S v2 £19.99
  Z-ARA311154 Diff Case Set 4S v2 £10.99
  Z-ARA311155 Metal Diff Set (37T, 1.35M) 4S v2 £64.99
  Z-ARA311156 Metal Gear F/R Transmission Module Set 4S v2 £69.99
  Z-ARA330665 Shock Cap (2) £6.99
  Z-ARA340181 Direct Mount Servo Saver (23T Spline) £9.99
  Z-ARA340191 Aluminum Steering Rack (Mega/Boost/3S/4S) £12.99
  Z-ARA850027 Diff Fluid, 20 Million cSt 20mL £16.99
  G-ARA210007 Metal Diff BOOST Box £99.99
  G-ARA840000 Arrma Foam Pit Mat, 24" x 68" £24.99
  M-SPMX-1103 Replacement ESC Fan for SPMXSE4510RX and SPMXSE8010RX £9.99
  O-SPMX52S50H5 5000mAh 2S 7.4V SMART G2 50C IC5 £64.99
  O-SPMX53S50H5 5000mAh 3S 11.1V SMART G2 50C IC5 £84.99
  O-SPMXC2090 S100 1x100W USB-C Smart Charger £29.99
  O-SPMXCA300 Smart Lipo Bag, 16 x7.5 x 6.5 cm £22.50
  T-DYNT1229 7-in-1 Drive Tool Set with Handle £37.50
  T-DYNT3010 Nut Driver Set, Metric (4) £37.50
  T-DYNT3030 Hex Driver Set, Metric (4) £37.50

Pit/Field Tools

Image Item Id Name Trade SSP Order
Now
  G-ARA840000 Arrma Foam Pit Mat, 24" x 68" £24.99
  O-FS-LCB01 Li-Po Battery Box - Charge Box 17x8x7cm £9.99
  O-FS-LCB02 Li-Po Battery Bag - Charge Bag 23x30cm £6.99
  T-DYNT0500 Startup Tool Set: ECX/VTR/HPI £37.50
  T-RCO-TL002 Hex Driver Set 1.5/2/2.5/3mm Black £11.99
  T-RCO-TL002N Nut Driver Set 4/5.5/7/8mm Black £14.99
  T-RCO-TL011R Magnetic Parts Tray Red £3.50
  T-RCO-TL013B RC Car Stand Black £14.99
  T-RCO-TL014 Camber & Ride Height Gauge £10.99
  T-RCO-TL015 Rc Car Cleaning Brush 225mm £2.25
  T-RCO-TL017 Pit Mat 600x400x3mm £9.99
  T-RCO-TL018 RC Hauler Bag (560x360x250mm) £22.50
  T-RCO-TL019 Charger/Tool Bag (250x150x100mm) £9.99
