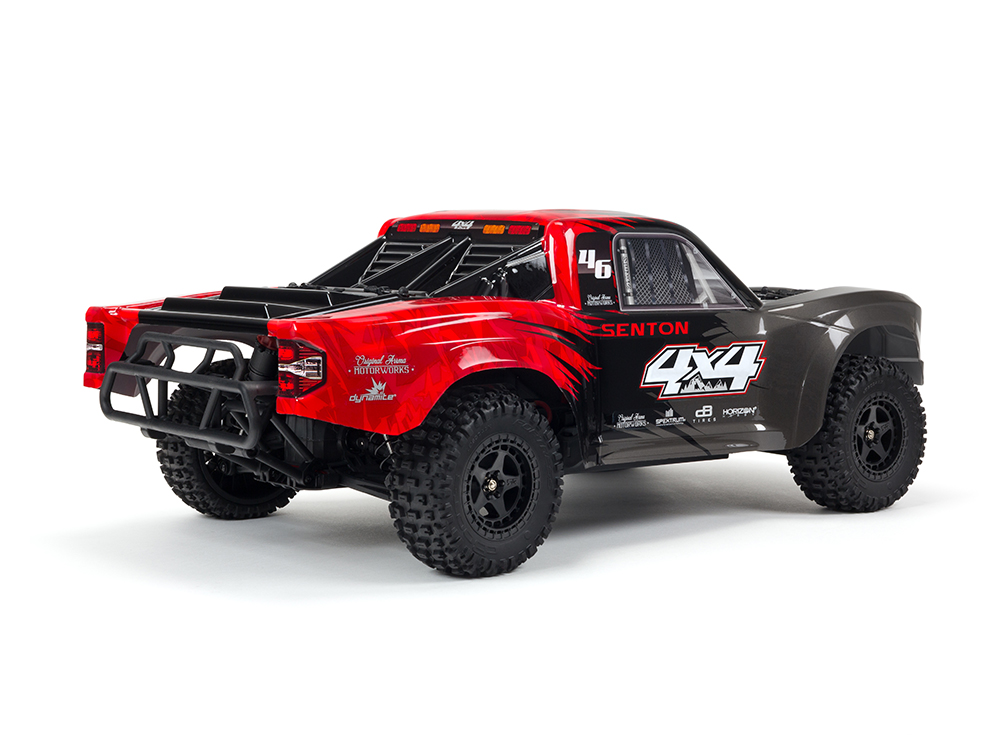

Senton 4X4 MEGA SLT3 Short Course Truck RTR Red
C-ARA4203V3BIT1
Arrma Arrma 5052127043946
SRP: £299.99
SMAP:
Trade:

Barcode:
5052127043946

Features

  • Stronger chassis and retained hinge pin plates
  • Steering with more clearance for stones
  • Castellated slipper pad and sliding gear mesh
  • 23T Spline servo saver
  • Brushless-ready 37T 1.35Mod diffs with silicone O-rings
  • Power Module with sliding gear mesh and improved dirt management
  • Rubber shielded bearings throughout
  • Oil-filled shocks with silicone O-rings
  • New body design, front and rear bumpers, paint and decals
  • New vented tyres
  • MEGA 12T brushed 550 motor
  • MEGA waterproof* ESC
    * Note: For details on waterproof standards, refer to the instruction manual
  • IC3™ connectors (EC3™) compatible
  • Signature easy-access modular design
    • Easy-access power module
    • Easy-access electronics module
    • Easy-access diff module removal front and rear
  • Double wishbone suspension front and rear
  • Metal-geared differentials
  • Adjustable ride height
  • Adjustable body mounts
  • Extended height dirt defenders
  • Multi-terrain dBoots® Fortress SC tyres
  • Tough multi-spoke black wheels
  • ADC-N7 7-cell NiMH wall charger
  • 30MPH (48km/h) speed achievable in optimum driving conditions with optional gearing

Overview

Fast, rugged and factory-built, the 2S LiPo-compatible ARRMA® SENTON™ 4X4 MEGA RTR comes ready to bash on any terrain. This version of the Short Course truck features new equipment that improves on the original's already impressive performance and durability.

The SENTON™ 4X4 MEGA RTR Short Course truck is DESIGNED FAST, DESIGNED TOUGH - built for exciting bashing speeds and extreme, all-terrain durability. New features to enhance its unstoppable performance include a stronger chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber shielded bearings throughout.

The Short Course truck now also includes the Spektrum™ SLT3™ transmitter and SLR300 receiver. The transmitter is ergonomically designed for long periods of fatigue-free driving and has a foam wheel for precise fingertip control plus an improved hand grip and trigger feel. New bashers will be able to set throttle limits at 50% or 75% until they are ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

It retains the ingenious modular design perfected by ARRMA® engineers for easy component access and maintenance. The power module, with improved dirt management, consists of a MEGA 550 motor, motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The gear ratio can be finely tuned as the power module now uses a sliding motor mesh design.

A two-piece molding screwed to the truck's chassis serves as its electronics module, containing a waterproof receiver box, servo mount and ESC tray. The SLR300 receiver mounts inside the receiver box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.

The differential module houses each differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for differential access. The SENTON™ 4X4 MEGA RTR comes brushless-ready with 37T 1.35mod diffs with silicone O-rings. The large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.

Its full-time 4WD transmission uses strong front, rear, and centerline telescopic driveshafts that can't be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The SENTON™ 4X4 MEGA RTR includes the waterproof Spektrum™ SPMS650 digital servo for 20% more torque than the previous version's ADS-5 servo.

The self-bleeding, oil-filled shocks, now with silicone O-rings, use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod-end has a moulded-in spring perch for extra toughness. High chassis guards limit the amount of dirt and debris that can get into the chassis tub. Side impact nerf bars further protect the chassis and body shell. Shock-absorbing loops keep the front and rear bumpers secured to the chassis, offering defense against heavy impacts.

Tough, multi-spoke black SC wheels with vented dBoots® Fortress™ SC tyres give the SENTON™ 4X4 MEGA RTR effective traction for bashing on almost any terrain. Multiple battery types can be used with the hook-and-loop mounting, from 6-cell NiMH packs to a 2S block pack. This version comes with a Dynamite® 3300 mAh 8.4V 7-cell Speedpack® 2 Hump NiMH battery that provides 35% more run time compared to the 2400mAh pack of its predecessor.

Needed to Complete
  • (4) AA Batteries
What's in the Box?
  • (1) ARRMA® SENTON™ 4X4 MEGA 550 1/10 Scale 4WD Short Course Truck RTR
  • (1) MEGA Waterproof* ESC
  • (1) MEGA 12T Brushed 550 Motor
  • (1) Spektrum™ 2.4GHz SLT3™ 3-Channel Transmitter
  • (1) Spektrum™ SLR300 Receiver
  • (1) Spektrum™ Waterproof* SPMS650 Digital Servo
  • (1) Dynamite® 3300mAh 8.4V 7-Cell Speedpack® 2 Hump NiMH Battery
  • (1) ADC-N7 7-Cell NiMH Wall Charger
  • (1) Product Manual
  • *For details on waterproof standards, refer to the instruction manual.
Spektrum™ 3-Channel SLT3™ 2.4GHz radio and SLR300 Waterproof* Receiver

Spektrum™ 3-Channel SLT3™ 2.4GHz radio and SLR300 Waterproof* Receiver

  • Fast response SLT™ protocol
  • Foam wheel
  • Improved grip and trigger feel
  • Improved wheel and trigger force
  • 2-way thumb switch third channel
  • 50% and 75% Throttle mode (for beginners)
  • Tactic® SLT™ receiver compatible



Dynamite 3300mAh 8.4V 7-Cell Speedpack 2 Hump NiMH Battery

Dynamite® 3300mAh 8.4V 7-Cell Speedpack® 2 Hump NiMH Battery

  • 35% more run time over the 2400mAh pack in the previous version
  • 7 cell NiMH Hump Pack
  • 3300mAh capacity
  • 8.4 Volts
  • Factory-fitted IC3® Connector (EC3 Compatible)



Spektrum SPMS650 digital servo

Spektrum™ SPMS650 digital servo

  • 84 oz-in (6 kg-cm) @ 6V
  • 20% more torque than the previous ADS-5 servo for improved steering feel
  • Waterproof*
* Note: For details on waterproof standards, refer to the instruction manual

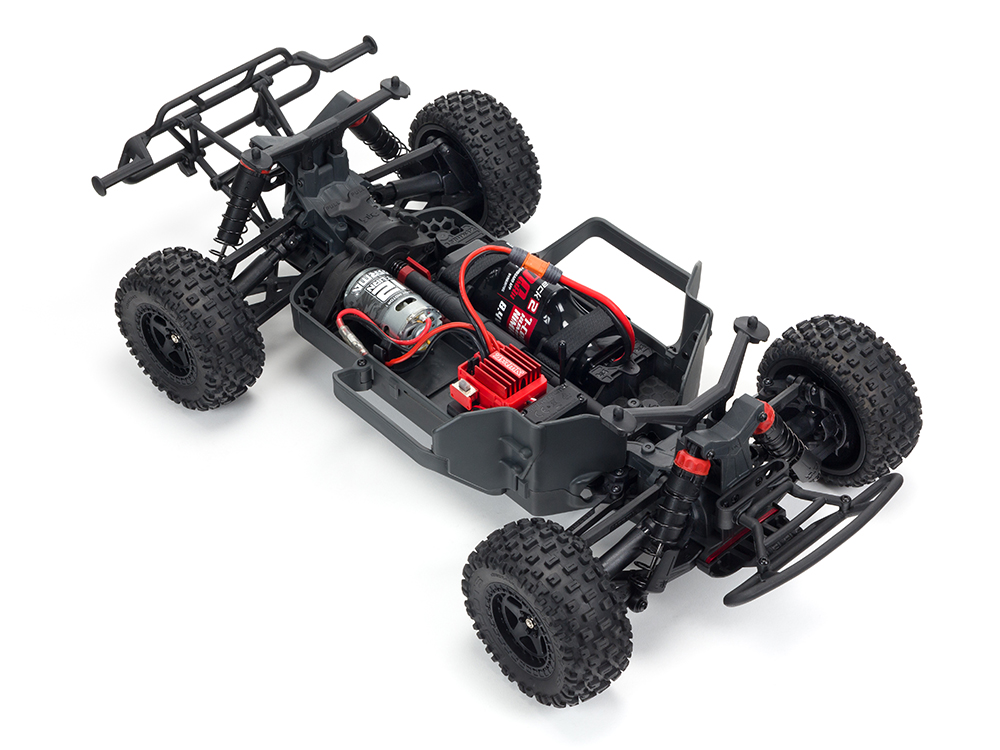

Strengthened Chassis

Strengthened Chassis

Stronger chassis and retained hinge pin plates



Larger pull tab on power module

Larger pull tab on power module



Castellated slipper pad and sliding gear mesh

Castellated slipper pad and sliding gear mesh



Rubber shielded bearings

Rubber shielded bearings



Redesigned Steering

Redesigned Steering

Steering with more clearance for stones.



Tougher brushless ready transmission

Tougher brushless ready transmission

Metal input spline moulded into composite gear. Same gears as the ARRMA 4S.



Sealed Wheels & Vented Tyres

Sealed Wheels & Vented Tyres

Stops dirt getting in and allows water to escape.

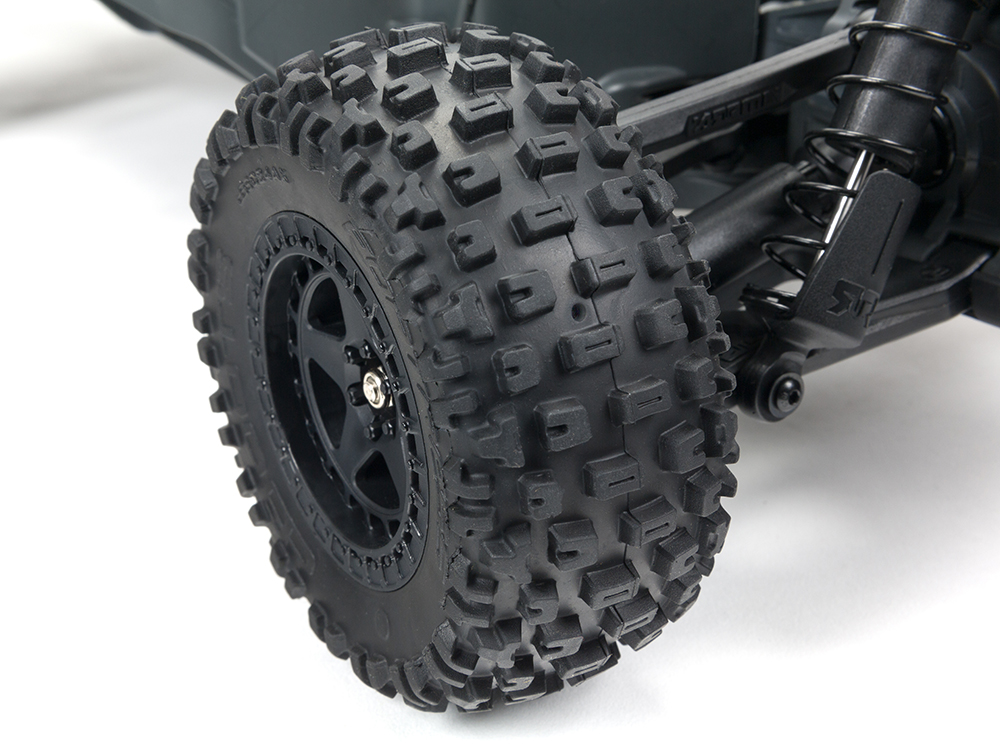

dBoots Fortress SC tyres

dBoots® Fortress™ SC tyres

Tough, multi-spoke black SC wheels with vented dBoots® Fortress™ SC tyres give the SENTON™ 4X4 MEGA RTR effective traction for bashing on almost any terrain.



Silicone O-rings

Silicone O-rings

Oil-filled shocks with silicone O-rings

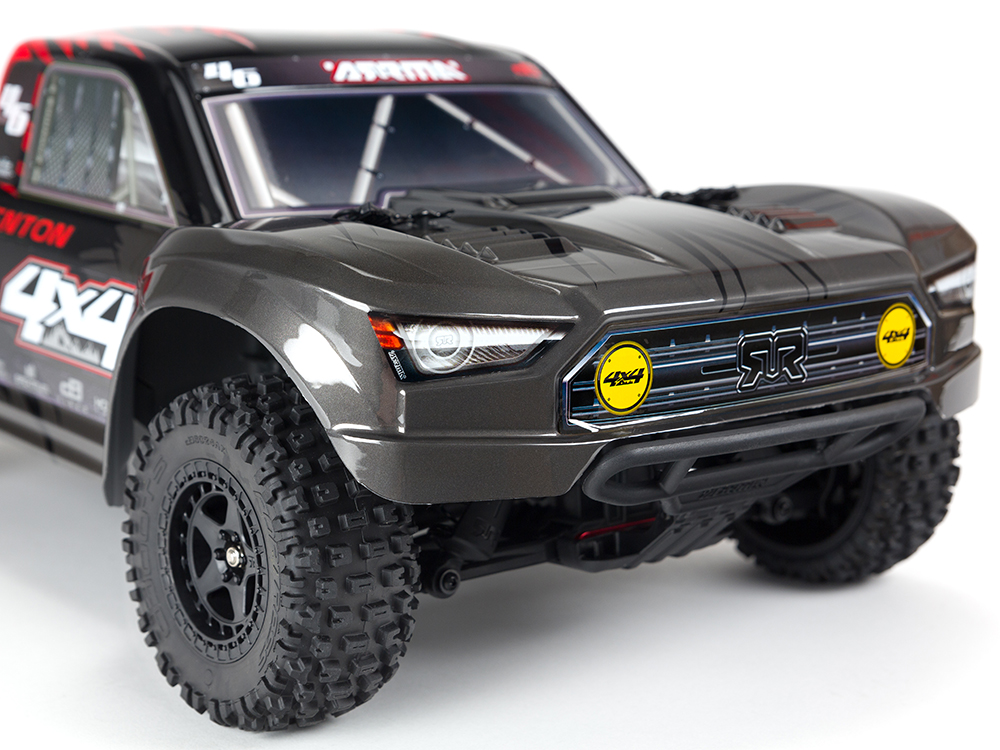

Heavy-Duty Bumpers

Heavy-Duty Bumpers

Impact absorbing.



Proven Power Package

Proven Power Package

  • MEGA 12T brushed 550 motor
  • MEGA waterproof* ESC
    * Note: For details on waterproof standards, refer to the instruction manual
  • IC3™ connectors (EC3™) compatible

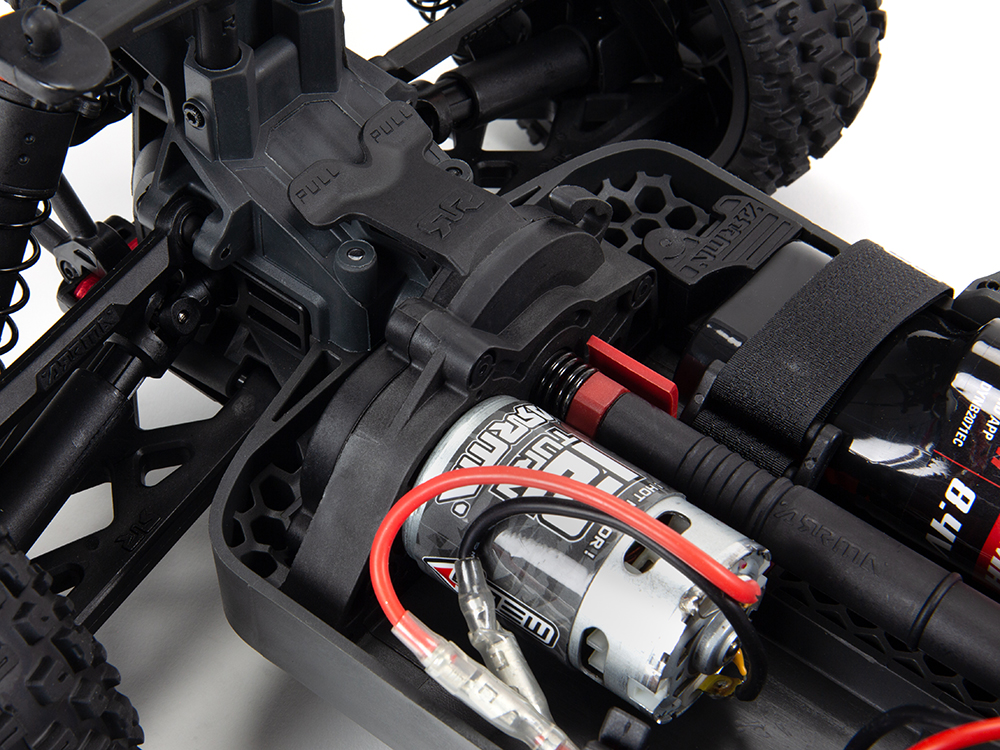

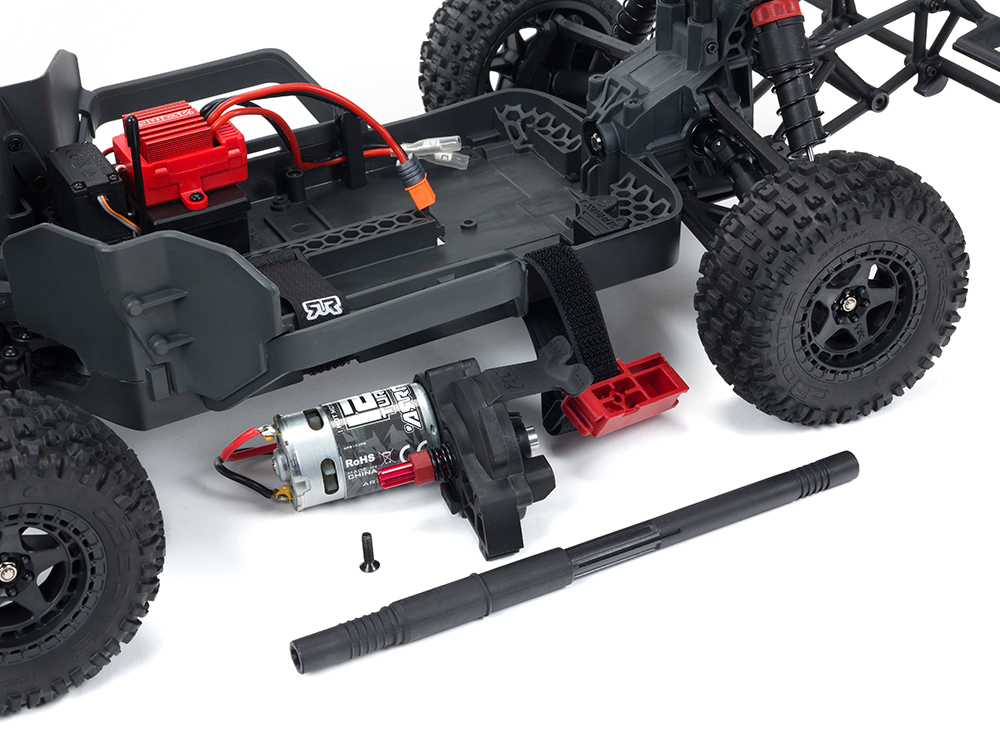

Easy-access power module

Easy-access power module

  • Detaches from chassis as a complete unit by removing one screw.
  • Contains motor, motor plate, slipper clutch assembly and gear cover.

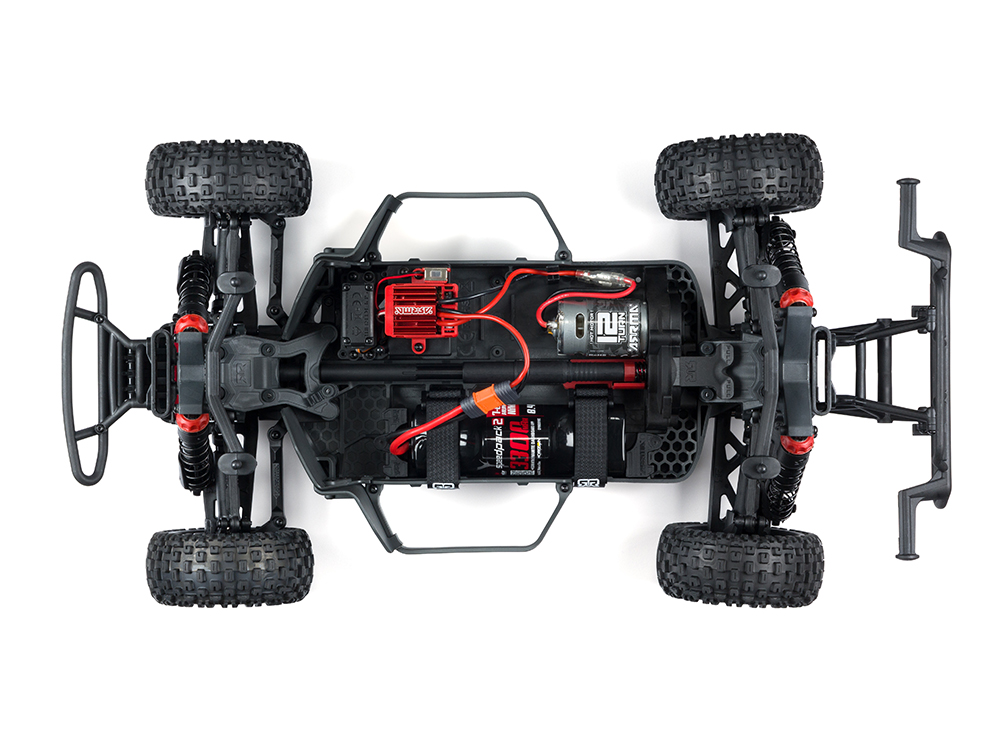

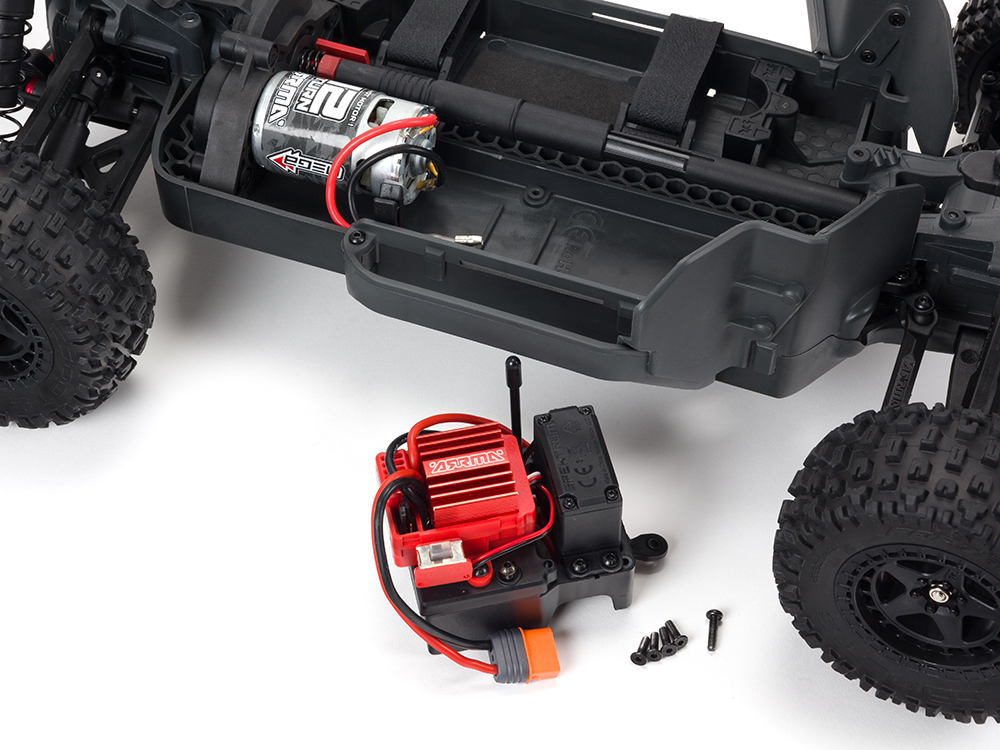

Easy-access electronics module

Easy-access electronics module

  • Two-piece molding screwed to the chassis contains a waterproof receiver box, servo mount, and ESC tray.
  • Receiver mounts inside sealed module for protection from dirt and moisture.
  • ESC screws to the top for easy maintenance and switch access.
  • Servo mounts on the side for quick servicing.



Metal-geared differentials

Metal-geared differentials

  • Large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.
  • Easy-access front and rear diff module removal.

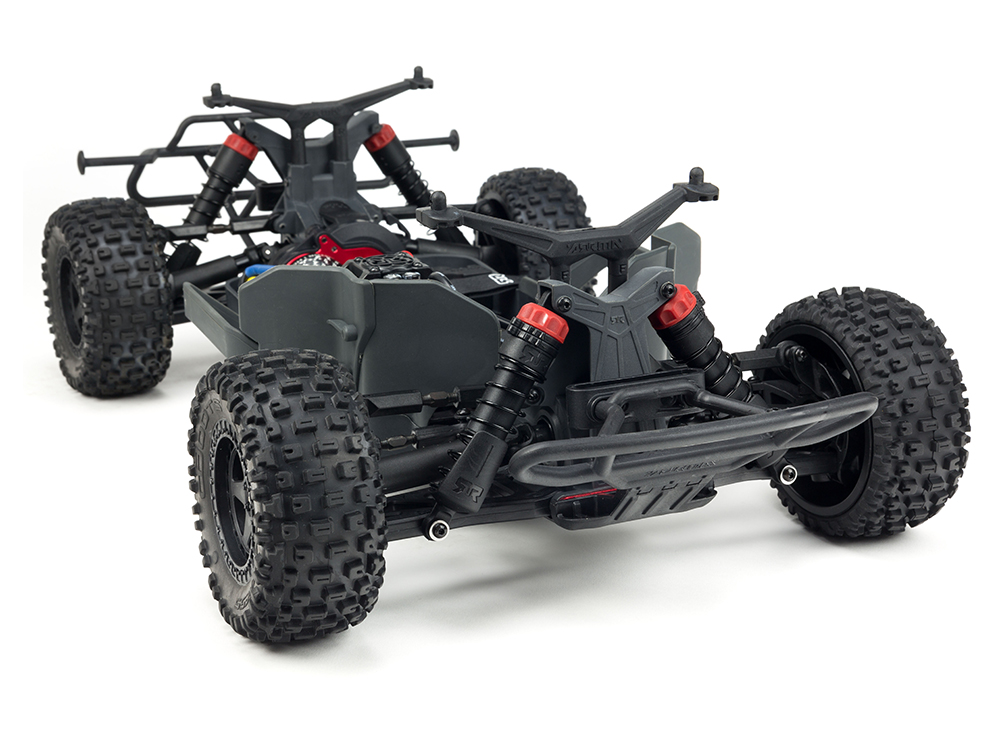

Proven tough composite shock towers

Proven tough composite shock towers






Spec Data
Scale 1/10
Motor type brushed
Weight
2944g
Height
210mm
Length
558mm
Width
305mm
