M-FS-XC5075

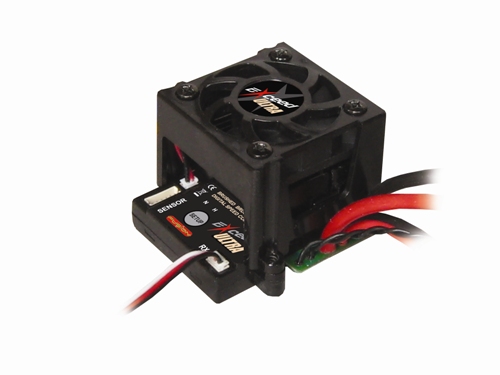

Exceed Ultra 550 HV 140A w/7.5T 3100kv Combo
£164.99


Item NumberM-FS-XC3135 Exceed 13.5 Turn ComboM-FS-XC3105 Exceed 10.5 Turn ComboM-FS-XC3065 Exceed 6.5 Turn ComboM-FS-XC3035 Exceed 3.5 Turn ComboM-FS-XC5075 Exceed 550 7.5 Turn HV Combo
SENSORED BRUSHLESS MOTORS EXCEED 13.5T EXCEED 10.5T EXCEED 6.5T EXCEED 3.5T EXCEED 550 7.5T
Size 540 540 540 540 550
Motor Turns 13.5 10.5 6.5 3.5 7.5
NiCd / NiMH 4~7 Cells 4~7 Cells 4~7 Cells 4~7 Cells 12~14 Cells
LiPo 2 Cells 2 Cells 2 Cells 2 Cells 4 Cells
RPM/V(kv) 3,500 4,500 7,400 13,300 3,100
Rated Current(7.2V) 27A 36A 45A 90A 43A (@14.4V)
Commutation Sensored Type Sensored Type Sensored Type Sensored Type Sensored Type
Magnet type All Motors Sintered Neodymium (12.3mm)
Weight 170g 170g 163g 163g 272g
Shaft Diameter 3.17mm 3.17mm 3.17mm 3.17mm 5mm
Can Size (Diameter x Length) 36mm x 53mm 36mm x 53mm 36mm x 53mm 36mm x 53mm 36mm x 74.5mm

BRUSHED / BRUSHLESS ESC EXCEED SPORT EXCEED RACE EXCEED PRO EXCEED COMP EXCEED ULTRA 550 HV
Input: NiCd / NiMH 4~8 Cells 4~8 Cells 4~6 Cells 4~6 Cells 6~14 Cells
  Li-Po / Li-Fe 2~3 Cells 2~3 Cells 2 Cells 2 Cells 2~4 Cells
Sensored / Sensorless Brushless Yes Yes Yes Yes Only Sensored
Forward / Brake / Reverse Yes Yes Yes Yes Yes
BEC (Volts/Amps) 5.0V/3.0A 5.0V/3.0A 6.0V/3.0A 6.0V/3.0A 6.0V/3.0A
Continuous Current 40A(2.5Ah battery) 60A(2.5Ah battery) 80A(4.4Ah battery) 150A(4.4Ah battery) 140A(4.4Ah battery)
Peak Current 50A 75A 100A 200A 180A
Rated Current(Brushless) 116A/phase 260A/phase 382A/phase 764A/phase 520A/phase
Rated Current (Brushed-Fwd&Brakes) 348A 780A 1146A 2292A 1560A
Rated Current (Brushed-Fwd&rev.) 116A 260A 382A 764A 520A
Motor Limit (Brushless) Over 12.5 turns Over 8.5 turns Over 5.5 turns Over 2.5 turns Over 4.5 turns
Motor Limit (Brushed-Fwd&Brakes) Over 8 turns Over 6 turns Over 4 turns No Limit No Limit
Motor Limit (Brushed-Fwd&Rev.) Over 10 turns Over 7 turns Over 6 turns Over 4 turns Over 7 turns
Sensored Frequency 2KHz 2KHz 2KHz 2KHz 2KHz
Sensorless Frequency 32KHz 32KHz 32KHz 32KHz 32KHz
Brushed Frequency 2KHz 2KHz 2KHz 2KHz 2KHz
Super Programming system Yes Yes Yes Yes Yes
Overtemp. Protection Yes Yes Yes Yes Yes
Low voltage cut-off Protection Yes Yes Yes Yes Yes
Overcurrent. Protection No No Yes Yes Yes
Power wires 2.0mm2 2.0mm2 2.5mm2 4.0mm2 4.0mm2
Motor wires 2.0mm2 2.0mm2 2.5mm2 2.5mm2 2.5mm2
Dimensions(mm) 40 x 41 x 28.7 40 x 41 x 28.7 34 x 38 x 25.5 34 x 38 x 30.5 56.5 x 54.5 x 45
Weight(w/o wires) 43g 43g 50g 61g 150g
